Base class for both Device and FileSystem objects. More...

#include <Devtab.hxx>

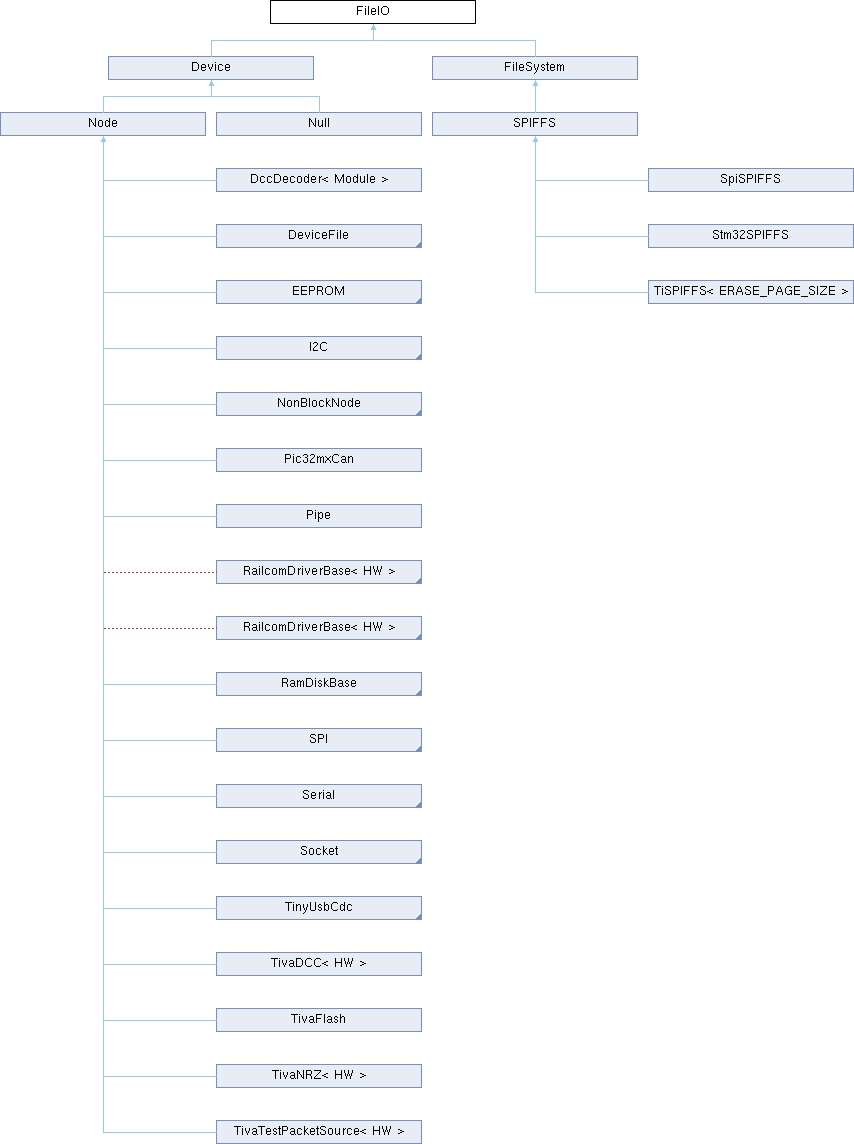

Inheritance diagram for FileIO:

Static Public Member Functions
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Protected Member Functions
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual int	open (File file, const char path, int flags, int mode)=0
	Open a file or device.

virtual int	close (File *file)=0
	Close a file or device.

virtual ssize_t	read (File file, void buf, size_t count)=0
	Read from a file or device.

virtual ssize_t	write (File file, const void buf, size_t count)=0
	Write to a file or device.

virtual off_t	lseek (File *f, off_t offset, int whence)
	Seek method.

virtual int	fstat (File file, struct stat stat)=0
	Get the status information of a file or device.

virtual int	ioctl (File *file, unsigned long int key, unsigned long data)
	Request an ioctl transaction.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

virtual bool	select (File *file, int mode)
	Device select method.

Static Protected Member Functions
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Protected Attributes
const char *	name
	device name

Static Protected Attributes
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (FileIO)

Friends
class	Device
	Allow access from Device class.

class	FileSystem
	Allow access from FileSystem class.

Detailed Description

Base class for both Device and FileSystem objects.

Definition at line 72 of file Devtab.hxx.

Constructor & Destructor Documentation

◆ FileIO()

FileIO::FileIO ( const char * name )

inlineprotected

Constructor.

Parameters

name	name of mount point in the root file system. Pointer must be valid throughout the entire lifetime.

Definition at line 144 of file Devtab.hxx.

◆ ~FileIO()

virtual FileIO::~FileIO ( )

inlineprotectedvirtual

Destructor.

Definition at line 150 of file Devtab.hxx.

Member Function Documentation

◆ close()

virtual int FileIO::close ( File * file )

protectedpure virtual

Close a file or device.

Parameters

file	file reference for this device

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implemented in Node, Null, Pipe, CC32xxSocket, CC32xxSocket, FreeRTOSTCPSocket, and SPIFFS.

◆ fcntl() [1/2]

int FileIO::fcntl	(	File *	file,
		int	cmd,
		unsigned long	data
	)

protectedvirtual

Manipulate a file descriptor.

Parameters

file	file reference for this device
cmd	operation to perform
data	parameter to the cmd operation

Returns: dependent on the operation (POSIX compliant where applicable) or negative error number upon error.

Reimplemented in Pipe, CC32xxSocket, CC32xxSocket, and FreeRTOSTCPSocket.

Definition at line 310 of file Fileio.cxx.

◆ fcntl() [2/2]

int FileIO::fcntl	(	int	fd,
		int	cmd,
		unsigned long	data
	)

static

Manipulate a file descriptor.

Parameters

fd	file descriptor
cmd	operation to perform
data	parameter to the cmd operation

Returns: dependent on the operation (POSIX compliant where applicable) or -1 on error with errno set appropriately

Definition at line 233 of file Fileio.cxx.

◆ fd_alloc()

int FileIO::fd_alloc ( void )

staticprotected

Allocate a free file descriptor.

This call must be made with the static Device::mutex locked.

Returns: file number on success, else -1 on failure; file number on success, else -1 on failure

Definition at line 47 of file Fileio.cxx.

◆ fd_free()

void FileIO::fd_free ( int fd )

staticprotected

Free up a file descriptor.

Parameters

fd	number to free up

Definition at line 71 of file Fileio.cxx.

◆ fd_lookup()

int FileIO::fd_lookup ( File * file )

staticprotected

Looks up a file descriptor corresponding to a given File reference.

Parameters

file	is a reference to a File structure.

Returns: file descriptor (assert on error).

Definition at line 101 of file Fileio.cxx.

◆ file_lookup()

File * FileIO::file_lookup ( int fd )

staticprotected

Looks up a reference to a File corresponding to a given file descriptor.

Parameters

fd	is a file descriptor as supplied to the read-write-close-ioctl commands.

Returns: NULL and sets errno if fd is invalid, otherwise the File reference.

Definition at line 82 of file Fileio.cxx.

◆ fstat() [1/2]

virtual int FileIO::fstat	(	File *	file,
		struct stat *	stat
	)

protectedpure virtual

Get the status information of a file or device.

Parameters

file	file reference for this device
stat	structure to fill status info into

Returns: 0 upon successor or negative error number upon error.

Implemented in FileSystem, Node, FlashFile< FLASH >, Null, SPIFFS, CC32xxDeviceFile, and TivaEEPROMFile.

◆ fstat() [2/2]

int FileIO::fstat	(	struct _reent *	reent,
		int	fd,
		struct stat *	stat
	)

static

Get the status information of a file or device.

Parameters

reent	thread safe reentrant structure
fd	file descriptor to get status of
stat	structure to fill status info into

Returns: 0 upon success, -1 upon failure with errno containing the cause

Definition at line 186 of file Fileio.cxx.

◆ ioctl() [1/2]

int FileIO::ioctl	(	File *	file,
		unsigned long int	key,
		unsigned long	data
	)

protectedvirtual

Request an ioctl transaction.

Parameters

file	file reference for this device
key	ioctl key
data	key data

Returns: 0 upon success or negative error number upon error.

Reimplemented in NonBlockNode, I2C, TCAN4550Can, MCP2515Can, RailcomDriverBase< HW >, RailcomDriverBase< HW >, Serial, Socket, SPI, TCAN4550Can, Stm32Can, Stm32Uart, CC32xxUart, TivaDCC< HW >, TivaUart, TivaCan, and TivaNRZ< HW >.

Definition at line 299 of file Fileio.cxx.

◆ ioctl() [2/2]

int FileIO::ioctl	(	int	fd,
		unsigned long int	key,
		unsigned long	data
	)

static

Request and ioctl transaction.

Parameters

fd	file descriptor
key	ioctl key
data	key data

Returns: 0 upon success, -1 upon failure with errno containing the cause

Definition at line 209 of file Fileio.cxx.

◆ is_device()

static bool FileIO::is_device ( int fd )

inlinestatic

Test if the file descriptor belongs to a device.

Parameters

fd	file descriptor

Returns: true if fd belongs to a device, false if belongs to a file system

Definition at line 134 of file Devtab.hxx.

◆ lseek() [1/2]

off_t FileIO::lseek	(	File *	f,
		off_t	offset,
		int	whence
	)

protectedvirtual

Seek method.

Parameters

f	file reference for this device
offset	offset in bytes from whence directive
whence	SEEK_SET if to set the file offset to an abosolute position, SEEK_CUR if to set the file offset from current position

Returns: current offest or negative error number upon error.

Parameters

f	file reference for this device
offset	offset in bytes from whence directive
whence	SEEK_SET if to set the file offset to an abosolute position, SEEK_CUR if to set the file offset from current position

Returns: current offset, or -1 with errno set upon error.

Reimplemented in Pipe, Socket, SPIFFS, and EEPROM.

Definition at line 279 of file Fileio.cxx.

◆ lseek() [2/2]

_off_t FileIO::lseek	(	struct _reent *	reent,
		int	fd,
		_off_t	offset,
		int	whence
	)

static

Change the offset index of a file or device.

Parameters

reent	thread save reentrant structure
fd	file descriptor to seek
offset	offset within file
whence	type of seek to complete

Returns: resulting offset from beginning of file, -1 upon failure with errno containing the cause

Definition at line 163 of file Fileio.cxx.

◆ open()

virtual int FileIO::open	(	File *	file,
		const char *	path,
		int	flags,
		int	mode
	)

protectedpure virtual

Open a file or device.

Parameters

file	file reference for this device
path	file or device name
flags	open flags
mode	open mode, ignored in this implementation

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implemented in Node, Null, RamDiskBase, DeviceFile, EEPROM, FlashFile< FLASH >, SPIFFS, and CC32xxDeviceFile.

◆ read() [1/2]

virtual ssize_t FileIO::read	(	File *	file,
		void *	buf,
		size_t	count
	)

protectedpure virtual

Read from a file or device.

Parameters

file	file reference for this device
buf	location to place read data
count	number of bytes to read

Returns: number of bytes read upon success, -1 upon failure with errno containing the cause

Implemented in Null, TivaFlash, Pic32mxCan, BenchmarkCan, Can, DccDecoder< Module >, DeviceFile, EEPROM, I2C, TCAN4550Can, Pipe, RailcomDriverBase< HW >, RailcomDriverBase< HW >, RamDiskBase, Serial, Socket, SPI, TCAN4550Can, MbedAsyncUSBSerial, Pic32mxCdc, SPIFFS, Stm32RailcomSender, TivaDCC< HW >, TivaNRZ< HW >, TinyUsbCdc, and TivaTestPacketSource< HW >.

◆ read() [2/2]

ssize_t FileIO::read	(	struct _reent *	reent,
		int	fd,
		void *	buf,
		size_t	count
	)

static

Read from a file or device.

Parameters

reent	thread save reentrant structure
fd	file descriptor to read
buf	location to place read data
count	number of bytes to read

Returns: number of bytes read upon success, -1 upon failure with errno containing the cause

Parameters

reent	thread safe reentrant structure
fd	file descriptor to read
buf	location to place read data
count	number of bytes to read

Returns: number of bytes read upon success, -1 upon failure with errno containing the cause

Definition at line 115 of file Fileio.cxx.

◆ select()

virtual bool FileIO::select	(	File *	file,
		int	mode
	)

inlineprotectedvirtual

Device select method.

Default impementation returns true.

Parameters

file	reference to the file
mode	FREAD for read active, FWRITE for write active, 0 for exceptions

Returns: true if active, false if inactive

Reimplemented in Can, DccDecoder< Module >, TCAN4550Can, Pipe, Serial, Socket, TCAN4550Can, CC32xxSocket, CC32xxSocket, FreeRTOSTCPSocket, Pic32mxCan, Pic32mxCdc, TivaCdc, TivaTestPacketSource< HW >, and TinyUsbCdc.

Definition at line 226 of file Devtab.hxx.

◆ write() [1/2]

virtual ssize_t FileIO::write	(	File *	file,
		const void *	buf,
		size_t	count
	)

protectedpure virtual

Write to a file or device.

Parameters

file	file reference for this device
buf	location to find write data
count	number of bytes to write

Returns: number of bytes written upon success, -1 upon failure with errno containing the cause

Implemented in TivaTestPacketSource< HW >, Null, RailcomDriverBase< HW >, RailcomDriverBase< HW >, TivaFlash, Pic32mxCan, BenchmarkCan, Can, DccDecoder< Module >, DeviceFile, EEPROM, I2C, TCAN4550Can, Pipe, RamDiskBase, Serial, Socket, SPI, TCAN4550Can, MbedAsyncUSBSerial, Pic32mxCdc, SPIFFS, Stm32RailcomSender, TivaDCC< HW >, TivaCdc, TivaNRZ< HW >, and TinyUsbCdc.

◆ write() [2/2]

ssize_t FileIO::write	(	struct _reent *	reent,
		int	fd,
		const void *	buf,
		size_t	count
	)

static

Write to a file or device.

Parameters

reent	thread save reentrant structure
fd	file descriptor to write
buf	location to find write data
count	number of bytes to write

Returns: number of bytes written upon success, -1 upon failure with errno containing the cause

Definition at line 139 of file Fileio.cxx.

Friends And Related Symbol Documentation

◆ Device

friend class Device

friend

Allow access from Device class.

Definition at line 269 of file Devtab.hxx.

◆ FileSystem

friend class FileSystem

friend

Allow access from FileSystem class.

Definition at line 272 of file Devtab.hxx.

Member Data Documentation

◆ files

File FileIO::files

staticprotected

File descriptor pool.

Definition at line 261 of file Devtab.hxx.

◆ mutex

OSMutex FileIO::mutex

staticprotected

mutual exclusion for fileio

Definition at line 264 of file Devtab.hxx.

◆ name

const char* FileIO::name

protected

device name

Definition at line 266 of file Devtab.hxx.

◆ numOpenFiles

const unsigned int FileIO::numOpenFiles = 20

staticprotected

Returns: the maximum number of open file descriptors possible (the size of the files[] array.

Definition at line 258 of file Devtab.hxx.

The documentation for this class was generated from the following files:

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ FileIO()

◆ ~FileIO()

Member Function Documentation

◆ close()

◆ fcntl() [1/2]

◆ fcntl() [2/2]

◆ fd_alloc()

◆ fd_free()

◆ fd_lookup()

◆ file_lookup()

◆ fstat() [1/2]

◆ fstat() [2/2]

◆ ioctl() [1/2]

◆ ioctl() [2/2]

◆ is_device()

◆ lseek() [1/2]

◆ lseek() [2/2]

◆ open()

◆ read() [1/2]

◆ read() [2/2]

◆ select()

◆ write() [1/2]

◆ write() [2/2]

Friends And Related Symbol Documentation

◆ Device

◆ FileSystem

Member Data Documentation

◆ files

◆ mutex

◆ name

◆ numOpenFiles
