Base class for all File systems. More...

#include <Devtab.hxx>

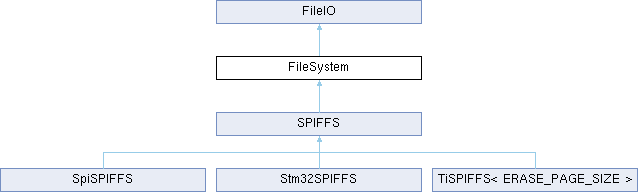

Inheritance diagram for FileSystem:

Public Member Functions
	FileSystem ()
	Constructor.

virtual	~FileSystem ()
	Destructor.

virtual void	mount (const char *mount_point)=0
	Mount the file system.

virtual void	format ()=0
	Format the file system, all data will be lost.

Static Public Member Functions
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	unlink (struct _reent reent, const char path)
	Remove a file.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	fsync (int fd)
	Synchronize (flush) a file to disk.

static int	closedir (DIR *dirp)
	Close a directory.

static DIR *	opendir (const char *name)
	Open a directory.

static struct dirent *	readdir (DIR *dirp)
	Read the next entry in a directory.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Protected Member Functions
virtual int	unlink (const char *path)=0
	Remove a file.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

virtual int	stat (const char path, struct stat stat)=0
	Get the status information of a file or device.

virtual int	fsync (File *file)=0
	Synchronize (flush) a file to disk.

virtual int	closedir (File *file)=0
	Close a directory.

virtual File *	opendir (File file, const char name)=0
	Open a directory.

virtual struct dirent *	readdir (File *file)=0
	Read the next entry in a directory.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual int	open (File file, const char path, int flags, int mode)=0
	Open a file or device.

virtual int	close (File *file)=0
	Close a file or device.

virtual ssize_t	read (File file, void buf, size_t count)=0
	Read from a file or device.

virtual ssize_t	write (File file, const void buf, size_t count)=0
	Write to a file or device.

virtual off_t	lseek (File *f, off_t offset, int whence)
	Seek method.

virtual int	ioctl (File *file, unsigned long int key, unsigned long data)
	Request an ioctl transaction.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

virtual bool	select (File *file, int mode)
	Device select method.

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (FileSystem)

Static Private Member Functions
static FileSystem *	fs_lookup (const char *path)
	Locate the file system for a given path.

Private Attributes
FileSystem *	next
	next device in linked list

FileSystem *	prev
	previous device in linked list

Static Private Attributes
static FileSystem *	first = NULL
	first device in linked list

Additional Inherited Members
Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Protected Attributes inherited from FileIO
const char *	name
	device name

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

Base class for all File systems.

Definition at line 279 of file Devtab.hxx.

Constructor & Destructor Documentation

◆ FileSystem()

FileSystem::FileSystem ( )

Constructor.

Definition at line 43 of file FileSystem.cxx.

◆ ~FileSystem()

FileSystem::~FileSystem ( )

virtual

Destructor.

Definition at line 59 of file FileSystem.cxx.

Member Function Documentation

◆ close()

int FileSystem::close	(	struct _reent *	reent,
		int	fd
	)

static

Close a file or device.

Parameters

reent	thread save reentrant structure
fd	file descriptor to close

Returns: 0 upon success, -1 upon failure with errno containing the cause

Definition at line 159 of file FileSystem.cxx.

◆ closedir() [1/2]

int FileSystem::closedir ( DIR * dirp )

static

Close a directory.

Parameters

dirp directory pointer to close

Returns: 0 upon success, -1 upon failure with errno containing the cause

Definition at line 269 of file FileSystem.cxx.

◆ closedir() [2/2]

virtual int FileSystem::closedir ( File * file )

protectedpure virtual

Close a directory.

Parameters

file	file reference for this device

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implemented in SPIFFS.

◆ format()

virtual void FileSystem::format ( )

pure virtual

Format the file system, all data will be lost.

The file system must not be mounted at the time of calling this.

Implemented in SPIFFS.

◆ fs_lookup()

FileSystem * FileSystem::fs_lookup ( const char * path )

staticprivate

Locate the file system for a given path.

Parameters

path	full path to file/directory

Returns: reference to file system on success, else nullptr

Definition at line 81 of file FileSystem.cxx.

◆ fstat()

int FileSystem::fstat	(	File *	file,
		struct stat *	stat
	)

overrideprotectedvirtual

Get the status information of a file or device.

Parameters

file	file reference for this device
stat	structure to fill status info into

Returns: 0 upon successor or negative error number upon error.

Implements FileIO.

Reimplemented in SPIFFS.

Definition at line 236 of file FileSystem.cxx.

◆ fsync() [1/2]

virtual int FileSystem::fsync ( File * file )

protectedpure virtual

Synchronize (flush) a file to disk.

Parameters

file	file reference for this device

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implemented in SPIFFS.

◆ fsync() [2/2]

int FileSystem::fsync ( int fd )

static

Synchronize (flush) a file to disk.

Parameters

fd	file descriptor to sync

Returns: 0 upon success, -1 upon failure with errno containing the cause

Definition at line 246 of file FileSystem.cxx.

◆ mount()

virtual void FileSystem::mount ( const char * mount_point )

pure virtual

Mount the file system.

Parameters

mount_point path in the root file system for the mount point Must not contain any trailing '/' characters, e.g. "/usr", not "/usr/". Unlike in linux, each mount must be entirely unique point in the system. For example, mounting of both "/usr" and "/usr/bin" is is not supported. However, "/usr" and "/usr1" is supported. This saves on file open logic.

Implemented in SPIFFS.

◆ open()

int FileSystem::open	(	struct _reent *	reent,
		const char *	path,
		int	flags,
		int	mode
	)

static

Open a file or device.

Parameters

reent	thread save reentrant structure
path	file or device name
flags	open flags
mode	open mode, ignored in this implementation

Returns: 0 upon success, -1 upon failure with errno containing the cause

Definition at line 119 of file FileSystem.cxx.

◆ opendir() [1/2]

DIR * FileSystem::opendir ( const char * name )

static

Open a directory.

Parameters

name	directory path

Returns: pointer to the open directory on success, NULL on error

Definition at line 291 of file FileSystem.cxx.

◆ opendir() [2/2]

virtual File * FileSystem::opendir	(	File *	file,
		const char *	name
	)

protectedpure virtual

Open a directory.

Parameters

file	file reference for this device
name	directory path

Returns: pointer to the open directory on success, NULL on error

Implemented in SPIFFS.

◆ readdir() [1/2]

struct dirent * FileSystem::readdir ( DIR * dirp )

static

Read the next entry in a directory.

Parameters

dirp	directory pointer to read.

Returns: pointer to a struct dirent representing the next directectory entry

Definition at line 325 of file FileSystem.cxx.

◆ readdir() [2/2]

virtual struct dirent * FileSystem::readdir ( File * file )

protectedpure virtual

Read the next entry in a directory.

Parameters

file	file reference for this device

Returns: pointer to a struct dirent representing the next directectory entry

Implemented in SPIFFS.

◆ stat() [1/2]

virtual int FileSystem::stat	(	const char *	path,
		struct stat *	stat
	)

protectedpure virtual

Get the status information of a file or device.

Parameters

path	file or device name
stat	structure to fill status info into

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implemented in SPIFFS.

◆ stat() [2/2]

int FileSystem::stat	(	struct _reent *	reent,
		const char *	path,
		struct stat *	stat
	)

static

Get the status information of a file or device.

Parameters

reent	thread safe reentrant structure
path	file or device name
stat	structure to fill status info into

Returns: 0 upon success, -1 upon failure with errno containing the cause

Parameters

reent	thread save reentrant structure
path	file or device name
stat	structure to fill status info into

Returns: 0 upon success, -1 upon failure with errno containing the cause

Definition at line 212 of file FileSystem.cxx.

◆ unlink() [1/2]

virtual int FileSystem::unlink ( const char * path )

protectedpure virtual

Remove a file.

Parameters

path file name

Returns: 0 upon successor or negative error number upon error.

Implemented in SPIFFS.

◆ unlink() [2/2]

int FileSystem::unlink	(	struct _reent *	reent,
		const char *	path
	)

static

Remove a file.

Parameters

reent	thread safe reentrant structure
path	file name

Returns: 0 upon success, -1 upon failure with errno containing the cause

Definition at line 187 of file FileSystem.cxx.

Member Data Documentation

◆ first

FileSystem * FileSystem::first = NULL

staticprivate

first device in linked list

Definition at line 417 of file Devtab.hxx.

◆ next

FileSystem* FileSystem::next

private

next device in linked list

Definition at line 420 of file Devtab.hxx.

◆ prev

FileSystem* FileSystem::prev

private

previous device in linked list

Definition at line 423 of file Devtab.hxx.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FileSystem()

◆ ~FileSystem()

Member Function Documentation

◆ close()

◆ closedir() [1/2]

◆ closedir() [2/2]

◆ format()

◆ fs_lookup()

◆ fstat()

◆ fsync() [1/2]

◆ fsync() [2/2]

◆ mount()

◆ open()

◆ opendir() [1/2]

◆ opendir() [2/2]

◆ readdir() [1/2]

◆ readdir() [2/2]

◆ stat() [1/2]

◆ stat() [2/2]

◆ unlink() [1/2]

◆ unlink() [2/2]

Member Data Documentation

◆ first

◆ next

◆ prev
