Generic SPIFFS base class. More...

#include <SPIFFS.hxx>

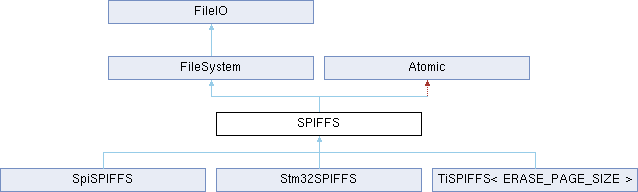

Inheritance diagram for SPIFFS:

Classes
struct	OpenDir
	Open directory metadata structure. More...

Public Member Functions
void	mount (const char *mount_point) override
	Mount the file system.

void	format () override
	Format the file system, all data will be lost.

bool	is_any_dirty ()

void	flush_cache ()
	Performs a sync on all files that have had a write but no fsync call since then.

Public Member Functions inherited from FileSystem
	FileSystem ()
	Constructor.

virtual	~FileSystem ()
	Destructor.

Static Public Member Functions
static void	extern_lock (struct spiffs_t *fs)
	Provide mutex lock.

static void	extern_unlock (struct spiffs_t *fs)
	Provide mutex unlock.

Static Public Member Functions inherited from FileSystem
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	unlink (struct _reent reent, const char path)
	Remove a file.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	fsync (int fd)
	Synchronize (flush) a file to disk.

static int	closedir (DIR *dirp)
	Close a directory.

static DIR *	opendir (const char *name)
	Open a directory.

static struct dirent *	readdir (DIR *dirp)
	Read the next entry in a directory.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Protected Member Functions
	SPIFFS (size_t physical_address, size_t size_on_disk, size_t erase_block_size, size_t logical_block_size, size_t logical_page_size, size_t max_num_open_descriptors=16, size_t cache_pages=8, std::function< void()> post_format_hook=nullptr)
	Constructor.

	~SPIFFS ()
	Destructor.

void	unmount ()
	Flushes caches and unmounts the filesystem.

virtual int32_t	flash_read (uint32_t addr, uint32_t size, uint8_t *dst)=0
	SPIFFS callback to read flash, in context.

virtual int32_t	flash_write (uint32_t addr, uint32_t size, uint8_t *src)=0
	SPIFFS callback to write flash, in context.

virtual int32_t	flash_erase (uint32_t addr, uint32_t size)=0
	SPIFFS callback to erase flash, in context.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual int	ioctl (File *file, unsigned long int key, unsigned long data)
	Request an ioctl transaction.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

virtual bool	select (File *file, int mode)
	Device select method.

Static Protected Member Functions
static int	flash_read (struct spiffs_t fs, unsigned addr, unsigned size, uint8_t dst)
	SPIFFS callback to read flash.

static int	flash_write (struct spiffs_t fs, unsigned addr, unsigned size, uint8_t src)
	SPIFFS callback to write flash.

static int	flash_erase (struct spiffs_t *fs, unsigned addr, unsigned size)
	SPIFFS callback to erase flash.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Protected Attributes
spiffs *	fs_
	file system instance metadata

Protected Attributes inherited from FileIO
const char *	name
	device name

Private Member Functions
int	open (File file, const char path, int flags, int mode) override
	Open a file or device.

int	close (File *file) override
	Close a file or device.

int	unlink (const char *path) override
	Remove a file.

ssize_t	read (File file, void buf, size_t count) override
	Read from a file or device.

ssize_t	write (File file, const void buf, size_t count) override
	Write to a file or device.

off_t	lseek (File *f, off_t offset, int whence) override
	Seek method.

int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

int	stat (const char path, struct stat stat) override
	Get the status information of a file or device.

int	fsync (File *file) override
	Synchronize (flush) a file to disk.

int	closedir (File *file) override
	Close a directory.

File *	opendir (File file, const char name) override
	Open a directory.

struct dirent *	readdir (File *file) override
	Read the next entry in a directory.

int	errno_translate (int spiffs_error)
	Translate a SPIFFS specific error number to a standard POSIX errno.

int	do_mount ()
	Helper to mount the file system.

	DISALLOW_COPY_AND_ASSIGN (SPIFFS)

Private Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Private Attributes
std::function< void()>	postFormatHook_
	callback to be called post a formating operation

OSMutex	lock_
	whole file system lock

uint8_t *	workBuffer_
	work buffer for the file system

uint32_t	fdSpaceSize_
	size in bytes of the fdSpace_

uint8_t *	fdSpace_
	file descriptor metadata

uint32_t	cacheSize_
	size in bytes of cache_

void *	cache_
	memory for cache

bool	formatted_: 1
	has the file system been formatted since last reboot?

bool	anyDirty_: 1
	Bit that is set to 1 when any write operation happens to this FS.

Additional Inherited Members
Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

Generic SPIFFS base class.

Definition at line 48 of file SPIFFS.hxx.

Constructor & Destructor Documentation

◆ SPIFFS()

SPIFFS::SPIFFS	(	size_t	physical_address,
		size_t	size_on_disk,
		size_t	erase_block_size,
		size_t	logical_block_size,
		size_t	logical_page_size,
		size_t	max_num_open_descriptors = `16`,
		size_t	cache_pages = `8`,
		std::function< void()>	post_format_hook = `nullptr`
	)

protected

Constructor.

Parameters

post_format_hook method to be called after a clean format of the file system. This allows the user to prime a clean or factory reset file system with an initial set files.

Definition at line 102 of file SPIFFS.cxx.

◆ ~SPIFFS()

SPIFFS::~SPIFFS ( )

protected

Destructor.

Definition at line 137 of file SPIFFS.cxx.

Member Function Documentation

◆ close()

int SPIFFS::close ( File * file )

overrideprivatevirtual

Close a file or device.

Parameters

file	file reference for this device
fd	file descriptor to close

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 253 of file SPIFFS.cxx.

◆ closedir()

int SPIFFS::closedir ( File * file )

overrideprivatevirtual

Close a directory.

Parameters

file	file reference for this device

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implements FileSystem.

Definition at line 455 of file SPIFFS.cxx.

◆ do_mount()

int SPIFFS::do_mount ( )

private

Helper to mount the file system.

Returns: 0 if successful, else some error code

Definition at line 189 of file SPIFFS.cxx.

◆ errno_translate()

int SPIFFS::errno_translate ( int spiffs_error )

private

Translate a SPIFFS specific error number to a standard POSIX errno.

Parameters

spiffs_error SPIFFS specific error number

Returns: standard POSX errno

Definition at line 526 of file SPIFFS.cxx.

◆ extern_lock()

void SPIFFS::extern_lock ( struct spiffs_t * fs )

inlinestatic

Provide mutex lock.

Parameters

fs	reference to the file system instance

Definition at line 49 of file SPIFFS.cxx.

◆ extern_unlock()

void SPIFFS::extern_unlock ( struct spiffs_t * fs )

inlinestatic

Provide mutex unlock.

Parameters

fs	reference to the file system instance

Definition at line 54 of file SPIFFS.cxx.

◆ flash_erase() [1/2]

int SPIFFS::flash_erase	(	struct spiffs_t *	fs,
		unsigned	addr,
		unsigned	size
	)

staticprotected

SPIFFS callback to erase flash.

Parameters

fs	reference to SPIFFS instance
addr	adddress location to erase
size	size of erase region in bytes

Definition at line 94 of file SPIFFS.cxx.

◆ flash_erase() [2/2]

virtual int32_t SPIFFS::flash_erase	(	uint32_t	addr,
		uint32_t	size
	)

protectedpure virtual

SPIFFS callback to erase flash, in context.

Parameters

addr	adddress location to erase
size	size of erase region in bytes

Implemented in TiSPIFFS< ERASE_PAGE_SIZE >, SpiSPIFFS, and Stm32SPIFFS.

◆ flash_read() [1/2]

int SPIFFS::flash_read	(	struct spiffs_t *	fs,
		unsigned	addr,
		unsigned	size,
		uint8_t *	dst
	)

staticprotected

SPIFFS callback to read flash.

Parameters

fs	reference to SPIFFS instance
addr	adddress location to read
size	size of read in bytes
dst	destination buffer for read

Definition at line 80 of file SPIFFS.cxx.

◆ flash_read() [2/2]

virtual int32_t SPIFFS::flash_read	(	uint32_t	addr,
		uint32_t	size,
		uint8_t *	dst
	)

protectedpure virtual

SPIFFS callback to read flash, in context.

Parameters

addr	adddress location to read
size	size of read in bytes
dst	destination buffer for read

Implemented in TiSPIFFS< ERASE_PAGE_SIZE >, SpiSPIFFS, and Stm32SPIFFS.

◆ flash_write() [1/2]

int SPIFFS::flash_write	(	struct spiffs_t *	fs,
		unsigned	addr,
		unsigned	size,
		uint8_t *	src
	)

staticprotected

SPIFFS callback to write flash.

Parameters

fs	reference to SPIFFS instance
addr	adddress location to write
size	size of write in bytes
src	source buffer for write

Definition at line 87 of file SPIFFS.cxx.

◆ flash_write() [2/2]

virtual int32_t SPIFFS::flash_write	(	uint32_t	addr,
		uint32_t	size,
		uint8_t *	src
	)

protectedpure virtual

SPIFFS callback to write flash, in context.

Parameters

addr	adddress location to write
size	size of write in bytes
src	source buffer for write

Implemented in TiSPIFFS< ERASE_PAGE_SIZE >, SpiSPIFFS, and Stm32SPIFFS.

◆ flush_cache()

void SPIFFS::flush_cache ( )

inline

Performs a sync on all files that have had a write but no fsync call since then.

This can be used by the caller to implement a background flush thread.

Definition at line 101 of file SPIFFS.hxx.

◆ format()

void SPIFFS::format ( )

overridevirtual

Format the file system, all data will be lost.

The file system must not be mounted at the time of calling this.

Implements FileSystem.

Definition at line 172 of file SPIFFS.cxx.

◆ fstat()

int SPIFFS::fstat	(	File *	file,
		struct stat *	stat
	)

overrideprivatevirtual

Get the status information of a file or device.

Parameters

file	file reference for this device
stat	structure to fill status info into

Returns: 0 upon successor or negative error number upon error.

Reimplemented from FileSystem.

Definition at line 390 of file SPIFFS.cxx.

◆ fsync()

int SPIFFS::fsync ( File * file )

overrideprivatevirtual

Synchronize (flush) a file to disk.

Parameters

file	file reference for this device

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implements FileSystem.

Definition at line 439 of file SPIFFS.cxx.

◆ is_any_dirty()

bool SPIFFS::is_any_dirty ( )

inline

Returns: true if there was any file written on this filesystem since the last call to is_any_dirty. (Transactionality guaranteed.) The caller can create a background flush thread using this information.

Definition at line 87 of file SPIFFS.hxx.

◆ lseek()

off_t SPIFFS::lseek	(	File *	f,
		off_t	offset,
		int	whence
	)

overrideprivatevirtual

Seek method.

Parameters

f	file reference for this device
offset	offset in bytes from whence directive
whence	SEEK_SET if to set the file offset to an abosolute position, SEEK_CUR if to set the file offset from current position SEEK_END if to set the file offset to the end of the file

Returns: current offset or negative error number upon error.

Reimplemented from FileIO.

Definition at line 326 of file SPIFFS.cxx.

◆ mount()

void SPIFFS::mount ( const char * mount_point )

inlineoverridevirtual

Mount the file system.

Parameters

mount_point path in the root file system for the mount point. Must not contain any trailing '/' characters, e.g. "/usr", not "/usr/". Unlike in linux, each mount must be entirely unique point in the system. For example, mounting of both "/usr" and "/usr/bin" is is not supported. However, "/usr" and "/usr1" is supported. This saves on file open logic.

Implements FileSystem.

Definition at line 59 of file SPIFFS.hxx.

◆ open()

int SPIFFS::open	(	File *	file,
		const char *	path,
		int	flags,
		int	mode
	)

overrideprivatevirtual

Open a file or device.

Parameters

file	file reference for this device
path	file or device name
flags	open flags
mode	open mode, ignored in this implementation

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 200 of file SPIFFS.cxx.

◆ opendir()

File * SPIFFS::opendir	(	File *	file,
		const char *	name
	)

overrideprivatevirtual

Open a directory.

Parameters

file	file reference for this device
name	directory path

Returns: pointer to the open directory on success, NULL on error

Implements FileSystem.

Definition at line 474 of file SPIFFS.cxx.

◆ read()

ssize_t SPIFFS::read	(	File *	file,
		void *	buf,
		size_t	count
	)

overrideprivatevirtual

Read from a file or device.

Parameters

file	file reference for this device
buf	location to place read data
count	number of bytes to read

Returns: number of bytes read upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 286 of file SPIFFS.cxx.

◆ readdir()

struct dirent * SPIFFS::readdir ( File * file )

overrideprivatevirtual

Read the next entry in a directory.

Parameters

file	file reference for this device

Returns: pointer to a struct dirent representing the next directectory entry

Implements FileSystem.

Definition at line 502 of file SPIFFS.cxx.

◆ stat()

int SPIFFS::stat	(	const char *	path,
		struct stat *	stat
	)

overrideprivatevirtual

Get the status information of a file or device.

Parameters

path	file or device name
stat	structure to fill status info into

Returns: 0 upon success, -1 upon failure with errno containing the cause

Implements FileSystem.

Definition at line 410 of file SPIFFS.cxx.

◆ unlink()

int SPIFFS::unlink ( const char * path )

overrideprivatevirtual

Remove a file.

Parameters

path file name

Returns: 0 upon successor or negative error number upon error.

Implements FileSystem.

Definition at line 271 of file SPIFFS.cxx.

◆ unmount()

void SPIFFS::unmount ( )

protected

Flushes caches and unmounts the filesystem.

The destructor of the derived class MUST call this function.

Definition at line 151 of file SPIFFS.cxx.

◆ write()

ssize_t SPIFFS::write	(	File *	file,
		const void *	buf,
		size_t	count
	)

overrideprivatevirtual

Write to a file or device.

Parameters

file	file reference for this device
buf	location to find write data
count	number of bytes to write

Returns: number of bytes written upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 303 of file SPIFFS.cxx.

Member Data Documentation

◆ anyDirty_

bool SPIFFS::anyDirty_

private

Bit that is set to 1 when any write operation happens to this FS.

Definition at line 302 of file SPIFFS.hxx.

◆ cache_

void* SPIFFS::cache_

private

memory for cache

Definition at line 296 of file SPIFFS.hxx.

◆ cacheSize_

uint32_t SPIFFS::cacheSize_

private

size in bytes of cache_

Definition at line 293 of file SPIFFS.hxx.

◆ fdSpace_

uint8_t* SPIFFS::fdSpace_

private

file descriptor metadata

Definition at line 290 of file SPIFFS.hxx.

◆ fdSpaceSize_

uint32_t SPIFFS::fdSpaceSize_

private

size in bytes of the fdSpace_

Definition at line 287 of file SPIFFS.hxx.

◆ formatted_

bool SPIFFS::formatted_

private

has the file system been formatted since last reboot?

Definition at line 299 of file SPIFFS.hxx.

◆ fs_

spiffs* SPIFFS::fs_

protected

file system instance metadata

Definition at line 182 of file SPIFFS.hxx.

◆ lock_

OSMutex SPIFFS::lock_

private

whole file system lock

Definition at line 281 of file SPIFFS.hxx.

◆ postFormatHook_

std::function<void()> SPIFFS::postFormatHook_

private

callback to be called post a formating operation

Definition at line 278 of file SPIFFS.hxx.

◆ workBuffer_

uint8_t* SPIFFS::workBuffer_

private

work buffer for the file system

Definition at line 284 of file SPIFFS.hxx.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SPIFFS()

◆ ~SPIFFS()

Member Function Documentation

◆ close()

◆ closedir()

◆ do_mount()

◆ errno_translate()

◆ extern_lock()

◆ extern_unlock()

◆ flash_erase() [1/2]

◆ flash_erase() [2/2]

◆ flash_read() [1/2]

◆ flash_read() [2/2]

◆ flash_write() [1/2]

◆ flash_write() [2/2]

◆ flush_cache()

◆ format()

◆ fstat()

◆ fsync()

◆ is_any_dirty()

◆ lseek()

◆ mount()

◆ open()

◆ opendir()

◆ read()

◆ readdir()

◆ stat()

◆ unlink()

◆ unmount()

◆ write()

Member Data Documentation

◆ anyDirty_

◆ cache_

◆ cacheSize_

◆ fdSpace_

◆ fdSpaceSize_

◆ formatted_

◆ fs_

◆ lock_

◆ postFormatHook_

◆ workBuffer_
