Specialization of Serial SPIFFS driver for TI driverlib devices. More...

#include <TiSPIFFS.hxx>

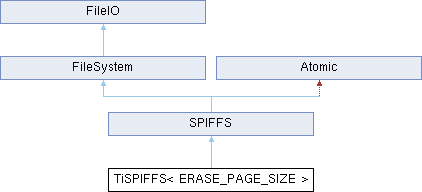

Inheritance diagram for TiSPIFFS< ERASE_PAGE_SIZE >:

Public Member Functions
	TiSPIFFS (size_t physical_address, size_t size_on_disk, size_t logical_block_size, size_t logical_page_size, size_t max_num_open_descriptors=16, size_t cache_pages=8, std::function< void()> post_format_hook=nullptr)
	Constructor.

	~TiSPIFFS ()
	Destructor.

Public Member Functions inherited from SPIFFS
void	mount (const char *mount_point) override
	Mount the file system.

void	format () override
	Format the file system, all data will be lost.

bool	is_any_dirty ()

void	flush_cache ()
	Performs a sync on all files that have had a write but no fsync call since then.

Public Member Functions inherited from FileSystem
	FileSystem ()
	Constructor.

virtual	~FileSystem ()
	Destructor.

Private Member Functions
int32_t	flash_read (uint32_t addr, uint32_t size, uint8_t *dst) override
	SPIFFS callback to read flash, in context.

int32_t	flash_write (uint32_t addr, uint32_t size, uint8_t *src) override
	SPIFFS callback to write flash, in context.

int32_t	flash_erase (uint32_t addr, uint32_t size) override
	SPIFFS callback to erase flash, in context.

	DISALLOW_COPY_AND_ASSIGN (TiSPIFFS)

Additional Inherited Members
Static Public Member Functions inherited from SPIFFS
static void	extern_lock (struct spiffs_t *fs)
	Provide mutex lock.

static void	extern_unlock (struct spiffs_t *fs)
	Provide mutex unlock.

Static Public Member Functions inherited from FileSystem
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	unlink (struct _reent reent, const char path)
	Remove a file.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	fsync (int fd)
	Synchronize (flush) a file to disk.

static int	closedir (DIR *dirp)
	Close a directory.

static DIR *	opendir (const char *name)
	Open a directory.

static struct dirent *	readdir (DIR *dirp)
	Read the next entry in a directory.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Protected Member Functions inherited from SPIFFS
	SPIFFS (size_t physical_address, size_t size_on_disk, size_t erase_block_size, size_t logical_block_size, size_t logical_page_size, size_t max_num_open_descriptors=16, size_t cache_pages=8, std::function< void()> post_format_hook=nullptr)
	Constructor.

	~SPIFFS ()
	Destructor.

void	unmount ()
	Flushes caches and unmounts the filesystem.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual int	ioctl (File *file, unsigned long int key, unsigned long data)
	Request an ioctl transaction.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

virtual bool	select (File *file, int mode)
	Device select method.

Static Protected Member Functions inherited from SPIFFS
static int	flash_read (struct spiffs_t fs, unsigned addr, unsigned size, uint8_t dst)
	SPIFFS callback to read flash.

static int	flash_write (struct spiffs_t fs, unsigned addr, unsigned size, uint8_t src)
	SPIFFS callback to write flash.

static int	flash_erase (struct spiffs_t *fs, unsigned addr, unsigned size)
	SPIFFS callback to erase flash.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Protected Attributes inherited from SPIFFS
spiffs *	fs_
	file system instance metadata

Protected Attributes inherited from FileIO
const char *	name
	device name

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

template<unsigned ERASE_PAGE_SIZE>
class TiSPIFFS< ERASE_PAGE_SIZE >

Specialization of Serial SPIFFS driver for TI driverlib devices.

Parameters

ERASE_PAGE_SIZE size of an erase page in FLASH

Definition at line 44 of file TiSPIFFS.hxx.

Constructor & Destructor Documentation

◆ TiSPIFFS()

template<unsigned ERASE_PAGE_SIZE>

TiSPIFFS< ERASE_PAGE_SIZE >::TiSPIFFS	(	size_t	physical_address,
		size_t	size_on_disk,
		size_t	logical_block_size,
		size_t	logical_page_size,
		size_t	max_num_open_descriptors = `16`,
		size_t	cache_pages = `8`,
		std::function< void()>	post_format_hook = `nullptr`
	)

inline

Constructor.

Definition at line 48 of file TiSPIFFS.hxx.

◆ ~TiSPIFFS()

template<unsigned ERASE_PAGE_SIZE>

TiSPIFFS< ERASE_PAGE_SIZE >::~TiSPIFFS ( )

inline

Destructor.

Definition at line 59 of file TiSPIFFS.hxx.

Member Function Documentation

◆ flash_erase()

template<unsigned ERASE_PAGE_SIZE>

int32_t TiSPIFFS< ERASE_PAGE_SIZE >::flash_erase	(	uint32_t	addr,
		uint32_t	size
	)

overrideprivatevirtual

SPIFFS callback to erase flash, in context.

Parameters

addr	adddress location to erase
size	size of erase region in bytes

Implements SPIFFS.

Definition at line 74 of file TiSPIFFSImpl.hxx.

◆ flash_read()

template<unsigned ERASE_PAGE_SIZE>

int32_t TiSPIFFS< ERASE_PAGE_SIZE >::flash_read	(	uint32_t	addr,
		uint32_t	size,
		uint8_t *	dst
	)

overrideprivatevirtual

SPIFFS callback to read flash, in context.

Parameters

addr	adddress location to read
size	size of read in bytes
dst	destination buffer for read

Implements SPIFFS.

Definition at line 48 of file TiSPIFFSImpl.hxx.

◆ flash_write()

template<unsigned ERASE_PAGE_SIZE>

int32_t TiSPIFFS< ERASE_PAGE_SIZE >::flash_write	(	uint32_t	addr,
		uint32_t	size,
		uint8_t *	src
	)

overrideprivatevirtual

SPIFFS callback to write flash, in context.

Parameters

addr	adddress location to write
size	size of write in bytes
src	source buffer for write

Implements SPIFFS.

Definition at line 62 of file TiSPIFFSImpl.hxx.

The documentation for this class was generated from the following files:
