Private data for a serial device. More...

#include <Serial.hxx>

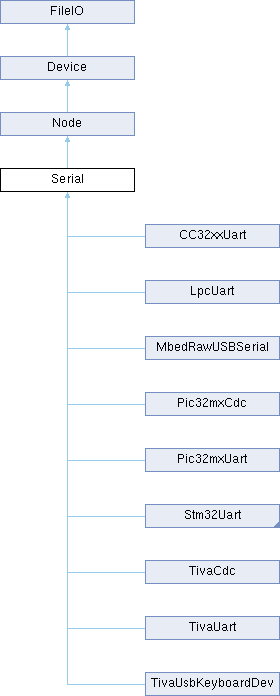

Inheritance diagram for Serial:

Protected Member Functions
	Serial (const char *name, size_t tx_buffer_size=config_serial_tx_buffer_size(), size_t rx_buffer_size=config_serial_rx_buffer_size())
	Constructor.

	~Serial ()
	Destructor.

virtual void	tx_char ()=0
	Function to try and transmit a character.

ssize_t	read (File file, void buf, size_t count) OVERRIDE
	Read from a file or device.

ssize_t	write (File file, const void buf, size_t count) OVERRIDE
	Write to a file or device.

int	ioctl (File *file, unsigned long int key, unsigned long data) OVERRIDE
	Request an ioctl transaction.

bool	select (File *file, int mode) OVERRIDE
	Device select method.

void	flush_buffers () OVERRIDE
	Discards all pending buffers.

Protected Member Functions inherited from Node
	Node (const char *name)
	Constructor.

virtual	~Node ()
	Destructor.

virtual void	enable ()=0
	This will be called once when reference-count goes from 0 to positive.

virtual void	disable ()=0
	This will be called when reference count goes from non-zero to 0.

int	open (File , const char , int, int) OVERRIDE
	Open method.

int	close (File *) OVERRIDE
	Close method.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual off_t	lseek (File *f, off_t offset, int whence)
	Seek method.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

Protected Attributes
DeviceBuffer< uint8_t > *	txBuf
	transmit buffer

DeviceBuffer< uint8_t > *	rxBuf
	receive buffer

unsigned int	overrunCount
	overrun count

Protected Attributes inherited from Node
OSMutex	lock_
	protects internal structures.

mode_t	mode_
	File open mode, such as O_NONBLOCK.

unsigned int	references_
	number of open references

Protected Attributes inherited from FileIO
const char *	name
	device name

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (Serial)

Additional Inherited Members
Public Member Functions inherited from Device
	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Static Public Member Functions inherited from Device
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Static Protected Member Functions inherited from Device
static void	select_insert (SelectInfo *info)
	Add client to list of clients needing woken.

static void	select_wakeup (SelectInfo *info)
	Wakeup the list of clients needing woken.

static void	select_wakeup_from_isr (SelectInfo info, int woken)
	Wakeup the list of clients needing woken.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

Private data for a serial device.

Definition at line 45 of file Serial.hxx.

Constructor & Destructor Documentation

◆ Serial()

Serial::Serial	(	const char *	name,
		size_t	tx_buffer_size = `config_serial_tx_buffer_size()`,
		size_t	rx_buffer_size = `config_serial_rx_buffer_size()`
	)

inlineprotected

Constructor.

Parameters

name	device name in file system
tx_buffer_size	transmit buffer size in bytes
rx_buffer_size	receive buffer size in bytes

Definition at line 53 of file Serial.hxx.

◆ ~Serial()

Serial::~Serial ( )

inlineprotected

Destructor.

Definition at line 68 of file Serial.hxx.

Member Function Documentation

◆ flush_buffers()

void Serial::flush_buffers ( )

protectedvirtual

Discards all pending buffers.

Flush the receive and transmit buffers for this device.

Called after disable().

Implements Node.

Definition at line 42 of file Serial.cxx.

◆ ioctl()

int Serial::ioctl	(	File *	file,
		unsigned long int	key,
		unsigned long	data
	)

protectedvirtual

Request an ioctl transaction.

Parameters

file	file reference for this device
key	ioctl key
data	key data
file	file reference for this device
node	node reference for this device
key	ioctl key
data	key data

Reimplemented from FileIO.

Reimplemented in Stm32Uart, and TivaUart.

Definition at line 166 of file Serial.cxx.

◆ read()

ssize_t Serial::read	(	File *	file,
		void *	buf,
		size_t	count
	)

protectedvirtual

Read from a file or device.

Parameters

file	file reference for this device
buf	location to place read data
count	number of bytes to read

Returns: number of bytes read upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Reimplemented in Stm32RailcomSender.

Definition at line 61 of file Serial.cxx.

◆ select()

bool Serial::select	(	File *	file,
		int	mode
	)

protectedvirtual

Device select method.

Default implementation returns true.

Parameters

file	reference to the file
mode	FREAD for read active, FWRITE for write active, 0 for exceptions

Returns: true if active, false if inactive

Default impementation returns true.

Parameters

file	reference to the file
mode	FREAD for read active, FWRITE for write active, 0 for exceptions

Returns: true if active, false if inactive

Reimplemented from FileIO.

Reimplemented in TivaCdc.

Definition at line 177 of file Serial.cxx.

◆ tx_char()

virtual void Serial::tx_char ( )

protectedpure virtual

Function to try and transmit a character.

Implemented in LpcUart, MbedRawUSBSerial, Pic32mxUart, Pic32mxCdc, Stm32Uart, CC32xxUart, TivaCdc, TivaUart, and TivaUsbKeyboardDev.

◆ write()

ssize_t Serial::write	(	File *	file,
		const void *	buf,
		size_t	count
	)

protectedvirtual

Write to a file or device.

Parameters

file	file reference for this device
buf	location to find write data
count	number of bytes to write

Returns: number of bytes written upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Reimplemented in Stm32RailcomSender, and TivaCdc.

Definition at line 112 of file Serial.cxx.

Member Data Documentation

◆ overrunCount

unsigned int Serial::overrunCount

protected

overrun count

Definition at line 86 of file Serial.hxx.

◆ rxBuf

DeviceBuffer<uint8_t>* Serial::rxBuf

protected

receive buffer

Definition at line 85 of file Serial.hxx.

◆ txBuf

DeviceBuffer<uint8_t>* Serial::txBuf

protected

transmit buffer

Definition at line 84 of file Serial.hxx.
