This device driver appears as a virtual serial port to the OpenMRN application, and appears as an USB keyboard to the connected computer. More...

#include <TivaUsbKeyboardDev.hxx>

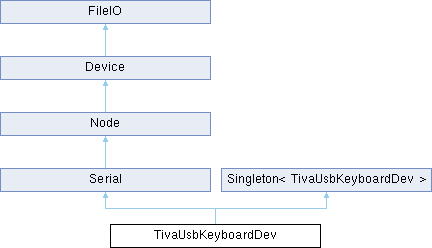

Inheritance diagram for TivaUsbKeyboardDev:

Public Member Functions
	TivaUsbKeyboardDev (const char *name, uint32_t interrupt)

void	tx_char () override
	Function to try and transmit a character.

void	enable () override
	This will be called once when reference-count goes from 0 to positive.

void	disable () override
	This will be called when reference count goes from non-zero to 0.

uint32_t	keyboard_handler (uint32_t ui32Event, uint32_t ui32MsgData, void *pvMsgData)
	Callback from the keyboard driver. Called in an interrupt context.

Public Member Functions inherited from Device
	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Private Member Functions
bool	send_next_event ()
	Internal implementation that sends a single keyboard event, from a critical section or in an interrupt context.

Private Attributes
unsigned	errorCount_ {0}
	Number of transmission errors. These occur in the USB device stack.

tUSBDHIDKeyboardDevice	tivaKeyboardDevice_
	Keyboard driver structure.

uint8_t	isConnected_: 1
	Whether the USB host has connected to this device.

uint8_t	isSuspended_: 1
	Whether the USB bus is suspended.

uint8_t	txPending_: 1
	Whether we have a pending unfinished send.

uint8_t	keyUpPending_: 1
	Whether we need to send a key up command still.

Additional Inherited Members
Static Public Member Functions inherited from Device
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Static Public Member Functions inherited from Singleton< TivaUsbKeyboardDev >
static TivaUsbKeyboardDev *	instance ()

static bool	exists ()

Protected Member Functions inherited from Serial
	Serial (const char *name, size_t tx_buffer_size=config_serial_tx_buffer_size(), size_t rx_buffer_size=config_serial_rx_buffer_size())
	Constructor.

	~Serial ()
	Destructor.

ssize_t	read (File file, void buf, size_t count) OVERRIDE
	Read from a file or device.

ssize_t	write (File file, const void buf, size_t count) OVERRIDE
	Write to a file or device.

int	ioctl (File *file, unsigned long int key, unsigned long data) OVERRIDE
	Request an ioctl transaction.

bool	select (File *file, int mode) OVERRIDE
	Device select method.

void	flush_buffers () OVERRIDE
	Discards all pending buffers.

Protected Member Functions inherited from Node
	Node (const char *name)
	Constructor.

virtual	~Node ()
	Destructor.

int	open (File , const char , int, int) OVERRIDE
	Open method.

int	close (File *) OVERRIDE
	Close method.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual off_t	lseek (File *f, off_t offset, int whence)
	Seek method.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

Static Protected Member Functions inherited from Device
static void	select_insert (SelectInfo *info)
	Add client to list of clients needing woken.

static void	select_wakeup (SelectInfo *info)
	Wakeup the list of clients needing woken.

static void	select_wakeup_from_isr (SelectInfo info, int woken)
	Wakeup the list of clients needing woken.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Protected Attributes inherited from Serial
DeviceBuffer< uint8_t > *	txBuf
	transmit buffer

DeviceBuffer< uint8_t > *	rxBuf
	receive buffer

unsigned int	overrunCount
	overrun count

Protected Attributes inherited from Node
OSMutex	lock_
	protects internal structures.

mode_t	mode_
	File open mode, such as O_NONBLOCK.

unsigned int	references_
	number of open references

Protected Attributes inherited from FileIO
const char *	name
	device name

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

This device driver appears as a virtual serial port to the OpenMRN application, and appears as an USB keyboard to the connected computer.

Any strings that are written to the serial device from OpenMRN will be sent as keystrokes typed to the host computer.

Definition at line 60 of file TivaUsbKeyboardDev.hxx.

Constructor & Destructor Documentation

◆ TivaUsbKeyboardDev()

TivaUsbKeyboardDev::TivaUsbKeyboardDev	(	const char *	name,
		uint32_t	interrupt
	)

Definition at line 248 of file TivaUsbKeyboardDev.cxx.

Member Function Documentation

◆ disable()

void TivaUsbKeyboardDev::disable ( )

inlineoverridevirtual

This will be called when reference count goes from non-zero to 0.

Called with lock_ held.

Implements Node.

Definition at line 68 of file TivaUsbKeyboardDev.hxx.

◆ enable()

void TivaUsbKeyboardDev::enable ( )

inlineoverridevirtual

This will be called once when reference-count goes from 0 to positive.

Called with lock_ held.

Implements Node.

Definition at line 67 of file TivaUsbKeyboardDev.hxx.

◆ keyboard_handler()

uint32_t TivaUsbKeyboardDev::keyboard_handler	(	uint32_t	ui32Event,
		uint32_t	ui32MsgData,
		void *	pvMsgData
	)

Callback from the keyboard driver. Called in an interrupt context.

Definition at line 322 of file TivaUsbKeyboardDev.cxx.

◆ send_next_event()

bool TivaUsbKeyboardDev::send_next_event ( )

private

Internal implementation that sends a single keyboard event, from a critical section or in an interrupt context.

Returns: true if the txBuf needs to be signaled.

Definition at line 287 of file TivaUsbKeyboardDev.cxx.

◆ tx_char()

void TivaUsbKeyboardDev::tx_char ( )

overridevirtual

Function to try and transmit a character.

Implements Serial.

Definition at line 269 of file TivaUsbKeyboardDev.cxx.

Member Data Documentation

◆ errorCount_

unsigned TivaUsbKeyboardDev::errorCount_ {0}

private

Number of transmission errors. These occur in the USB device stack.

Definition at line 80 of file TivaUsbKeyboardDev.hxx.

◆ isConnected_

uint8_t TivaUsbKeyboardDev::isConnected_

private

Whether the USB host has connected to this device.

Definition at line 85 of file TivaUsbKeyboardDev.hxx.

◆ isSuspended_

uint8_t TivaUsbKeyboardDev::isSuspended_

private

Whether the USB bus is suspended.

This means we need a special wakeup call before sending more keys.

Definition at line 88 of file TivaUsbKeyboardDev.hxx.

◆ keyUpPending_

uint8_t TivaUsbKeyboardDev::keyUpPending_

private

Whether we need to send a key up command still.

Definition at line 92 of file TivaUsbKeyboardDev.hxx.

◆ tivaKeyboardDevice_

tUSBDHIDKeyboardDevice TivaUsbKeyboardDev::tivaKeyboardDevice_

private

Keyboard driver structure.

Definition at line 82 of file TivaUsbKeyboardDev.hxx.

◆ txPending_

uint8_t TivaUsbKeyboardDev::txPending_

private

Whether we have a pending unfinished send.

Definition at line 90 of file TivaUsbKeyboardDev.hxx.

The documentation for this class was generated from the following files:
