#include <Devtab.hxx>

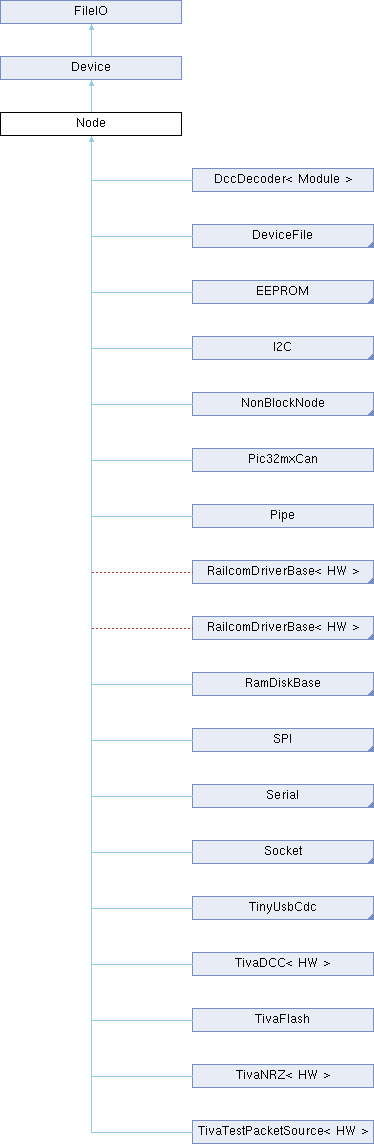

Inheritance diagram for Node:

Protected Member Functions
	Node (const char *name)
	Constructor.

virtual	~Node ()
	Destructor.

virtual void	enable ()=0
	This will be called once when reference-count goes from 0 to positive.

virtual void	disable ()=0
	This will be called when reference count goes from non-zero to 0.

virtual void	flush_buffers ()=0
	Instructs the device driver to drop all TX and RX queues.

int	open (File , const char , int, int) OVERRIDE
	Open method.

int	close (File *) OVERRIDE
	Close method.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual ssize_t	read (File file, void buf, size_t count)=0
	Read from a file or device.

virtual ssize_t	write (File file, const void buf, size_t count)=0
	Write to a file or device.

virtual off_t	lseek (File *f, off_t offset, int whence)
	Seek method.

virtual int	ioctl (File *file, unsigned long int key, unsigned long data)
	Request an ioctl transaction.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

virtual bool	select (File *file, int mode)
	Device select method.

Protected Attributes
OSMutex	lock_
	protects internal structures.

mode_t	mode_
	File open mode, such as O_NONBLOCK.

unsigned int	references_
	number of open references

Protected Attributes inherited from FileIO
const char *	name
	device name

Private Member Functions
mode_t	get_mode () override
	Get the mode of the device.

	DISALLOW_COPY_AND_ASSIGN (Node)

Additional Inherited Members
Public Member Functions inherited from Device
	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Static Public Member Functions inherited from Device
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Static Protected Member Functions inherited from Device
static void	select_insert (SelectInfo *info)
	Add client to list of clients needing woken.

static void	select_wakeup (SelectInfo *info)
	Wakeup the list of clients needing woken.

static void	select_wakeup_from_isr (SelectInfo info, int woken)
	Wakeup the list of clients needing woken.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

Node information.

Definition at line 548 of file Devtab.hxx.

Constructor & Destructor Documentation

◆ Node()

Node::Node ( const char * name )

inlineprotected

Constructor.

Definition at line 553 of file Devtab.hxx.

◆ ~Node()

virtual Node::~Node ( )

inlineprotectedvirtual

Destructor.

Definition at line 561 of file Devtab.hxx.

Member Function Documentation

◆ close()

int Node::close ( File * )

protectedvirtual

Close method.

Implements FileIO.

Reimplemented in Pipe.

Definition at line 54 of file freertos_drivers/common/Node.cxx.

◆ disable()

virtual void Node::disable ( )

protectedpure virtual

This will be called when reference count goes from non-zero to 0.

Called with lock_ held.

Implemented in Pic32mxCan, TivaNRZ< HW >, BenchmarkCan, BitBangI2C< HW >, DccDecoder< Module >, DeviceFile, EEPROM, TCAN4550Can, MCP2515Can, Pipe, TivaRailcomDriver< HW >, RamDiskBase, Socket, TCAN4550Can, LpcCan, LpcUart, MbedAsyncUSBSerial, MbedCanDriver, MbedRawUSBSerial, Pic32mxUart, Pic32mxCdc, Stm32Can, Stm32I2C, Stm32RailcomDriver< HW >, Stm32SPI, Stm32Uart, CC32xxDeviceFile, CC32xxSPI, CC32xxUart, TivaDCC< HW >, TivaCdc, TivaUart, TivaCan, TivaI2C, TivaFlash, TivaRailcomDriver< HW >, TivaSPI, TivaTestPacketSource< HW >, TivaUsbKeyboardDev, TinyUsbCdc, Can, and Can.

◆ enable()

virtual void Node::enable ( )

protectedpure virtual

This will be called once when reference-count goes from 0 to positive.

Called with lock_ held.

Implemented in Pic32mxCan, TivaNRZ< HW >, BenchmarkCan, BitBangI2C< HW >, DccDecoder< Module >, DeviceFile, EEPROM, TCAN4550Can, MCP2515Can, Pipe, TivaRailcomDriver< HW >, RamDiskBase, Socket, TCAN4550Can, LpcCan, LpcUart, MbedAsyncUSBSerial, MbedCanDriver, MbedRawUSBSerial, Pic32mxUart, Pic32mxCdc, Stm32Can, Stm32I2C, Stm32RailcomDriver< HW >, Stm32SPI, Stm32Uart, CC32xxSPI, CC32xxUart, TivaDCC< HW >, TivaCdc, TivaUart, TivaCan, TivaI2C, TivaFlash, TivaRailcomDriver< HW >, TivaSPI, TivaTestPacketSource< HW >, TivaUsbKeyboardDev, TinyUsbCdc, Can, and Can.

◆ flush_buffers()

virtual void Node::flush_buffers ( )

protectedpure virtual

Instructs the device driver to drop all TX and RX queues.

This is called after disable() still under the device lock.

Implemented in TivaNRZ< HW >, Can, DccDecoder< Module >, DeviceFile, EEPROM, I2C, TCAN4550Can, Pipe, RailcomDriverBase< HW >, RailcomDriverBase< HW >, RamDiskBase, Serial, Socket, SPI, TCAN4550Can, MbedAsyncUSBSerial, MbedCanDriver, Pic32mxCan, Pic32mxCdc, CC32xxEEPROMEmulation, TivaDCC< HW >, TivaFlash, TivaTestPacketSource< HW >, and TinyUsbCdc.

◆ fstat()

int Node::fstat	(	File *	file,
		struct stat *	stat
	)

overrideprotectedvirtual

Get the status information of a file or device.

Parameters

file	file reference for this device
stat	structure to fill status info into

Returns: 0 upon successor or negative error number upon error.

Implements FileIO.

Reimplemented in FlashFile< FLASH >, CC32xxDeviceFile, and TivaEEPROMFile.

Definition at line 70 of file freertos_drivers/common/Node.cxx.

◆ get_mode()

mode_t Node::get_mode ( )

inlineoverrideprivatevirtual

Get the mode of the device.

Returns: mode of device.

Reimplemented from Device.

Definition at line 598 of file Devtab.hxx.

◆ open()

int Node::open	(	File *	,
		const char *	,
		int	,
		int
	)

protectedvirtual

Open method.

Implements FileIO.

Reimplemented in RamDiskBase.

Definition at line 43 of file freertos_drivers/common/Node.cxx.

Member Data Documentation

◆ lock_

OSMutex Node::lock_

protected

protects internal structures.

Definition at line 588 of file Devtab.hxx.

◆ mode_

mode_t Node::mode_

protected

File open mode, such as O_NONBLOCK.

Definition at line 590 of file Devtab.hxx.

◆ references_

unsigned int Node::references_

protected

number of open references

Definition at line 592 of file Devtab.hxx.

The documentation for this class was generated from the following files:
