Specialization of CAN driver for LPC17xx and LPC40xx CAN. More...

#include <Stm32Can.hxx>

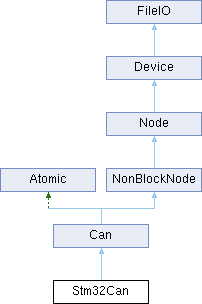

Inheritance diagram for Stm32Can:

Public Member Functions
	Stm32Can (const char *name)
	Constructor.

	~Stm32Can ()
	Destructor.

void	rx_interrupt_handler ()
	Handle an interrupt.

void	tx_interrupt_handler ()
	Handle an interrupt.

void	sce_interrupt_handler ()
	Handle an interrupt.

Public Member Functions inherited from Can
int	available ()

int	availableForWrite ()

int	read (struct can_frame *frame)
	Read a frame if there is one available.

int	write (const struct can_frame *frame)
	Send a frame if there is space available.

Public Member Functions inherited from Device
	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Static Public Attributes
static Stm32Can *	instances [1] = {NULL}
	Instance pointers help us get context from the interrupt handler(s)

Static Public Attributes inherited from Can
static unsigned	numReceivedPackets_ {0}

static unsigned	numTransmittedPackets_ {0}

Private Member Functions
int	ioctl (File *file, unsigned long int key, unsigned long data) override
	Request an ioctl transaction.

void	enable () override
	function to enable device

void	disable () override
	function to disable device

void	tx_msg () override
	function to try and transmit a message

	Stm32Can ()
	Default constructor.

	DISALLOW_COPY_AND_ASSIGN (Stm32Can)

Private Attributes
uint8_t	state_
	present bus state

Static Private Attributes
static unsigned int	intCount
	one interrupt vector is shared between two CAN controllers, so we need to keep track of the number of controllers in use.

Additional Inherited Members
Static Public Member Functions inherited from Device
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Protected Member Functions inherited from Can
	Can (const char *ignored)
	Constructor.

	~Can ()
	Destructor.

	Can (const char *name, size_t tx_buffer_size=config_can_tx_buffer_size(), size_t rx_buffer_size=config_can_rx_buffer_size())
	Constructor.

	~Can ()
	Destructor.

bool	has_tx_buffer_space () OVERRIDE

bool	has_rx_buffer_data () OVERRIDE

void	flush_buffers () OVERRIDE
	called after disable

ssize_t	read (File file, void buf, size_t count) OVERRIDE
	Read from a file or device.

ssize_t	write (File file, const void buf, size_t count) OVERRIDE
	Write to a file or device.

bool	select (File *file, int mode) OVERRIDE
	Device select method.

Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Protected Member Functions inherited from NonBlockNode
	NonBlockNode (const char *name)
	Constructor.

Protected Member Functions inherited from Node
	Node (const char *name)
	Constructor.

virtual	~Node ()
	Destructor.

int	open (File , const char , int, int) OVERRIDE
	Open method.

int	close (File *) OVERRIDE
	Close method.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual off_t	lseek (File *f, off_t offset, int whence)
	Seek method.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

Static Protected Member Functions inherited from Device
static void	select_insert (SelectInfo *info)
	Add client to list of clients needing woken.

static void	select_wakeup (SelectInfo *info)
	Wakeup the list of clients needing woken.

static void	select_wakeup_from_isr (SelectInfo info, int woken)
	Wakeup the list of clients needing woken.

static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Protected Attributes inherited from Can
DeviceBuffer< struct can_frame > *	txBuf
	transmit buffer

DeviceBuffer< struct can_frame > *	rxBuf
	receive buffer

unsigned int	overrunCount
	overrun count

unsigned int	busOffCount
	bus-off count

unsigned int	softErrorCount
	soft error count

Protected Attributes inherited from NonBlockNode
Notifiable *	readableNotify_
	This will be notified if the device has data avilable for read.

Notifiable *	writableNotify_
	This will be notified if the device has buffer avilable for write.

Protected Attributes inherited from Node
OSMutex	lock_
	protects internal structures.

mode_t	mode_
	File open mode, such as O_NONBLOCK.

unsigned int	references_
	number of open references

Protected Attributes inherited from FileIO
const char *	name
	device name

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

Specialization of CAN driver for LPC17xx and LPC40xx CAN.

Definition at line 50 of file Stm32Can.hxx.

Constructor & Destructor Documentation

◆ Stm32Can()

Stm32Can::Stm32Can ( const char * name )

Constructor.

Parameters

name	name of this device instance in the file system

Definition at line 102 of file Stm32Can.cxx.

◆ ~Stm32Can()

Stm32Can::~Stm32Can ( )

inline

Destructor.

Definition at line 60 of file Stm32Can.hxx.

Member Function Documentation

◆ disable()

void Stm32Can::disable ( )

overrideprivatevirtual

function to disable device

Disable use of the device.

Implements Can.

Definition at line 203 of file Stm32Can.cxx.

◆ enable()

void Stm32Can::enable ( )

overrideprivatevirtual

function to enable device

Enable use of the device.

Implements Can.

Definition at line 152 of file Stm32Can.cxx.

◆ ioctl()

int Stm32Can::ioctl	(	File *	file,
		unsigned long int	key,
		unsigned long	data
	)

overrideprivatevirtual

Request an ioctl transaction.

Parameters

file	file reference for this device
key	ioctl key
data	key data

Returns: >= 0 upon success, -errno upon failure

Reimplemented from NonBlockNode.

Definition at line 139 of file Stm32Can.cxx.

◆ rx_interrupt_handler()

void Stm32Can::rx_interrupt_handler ( )

Handle an interrupt.

Definition at line 304 of file Stm32Can.cxx.

◆ sce_interrupt_handler()

void Stm32Can::sce_interrupt_handler ( )

Handle an interrupt.

Definition at line 444 of file Stm32Can.cxx.

◆ tx_interrupt_handler()

void Stm32Can::tx_interrupt_handler ( )

Handle an interrupt.

Definition at line 366 of file Stm32Can.cxx.

◆ tx_msg()

void Stm32Can::tx_msg ( )

overrideprivatevirtual

function to try and transmit a message

Implements Can.

Definition at line 220 of file Stm32Can.cxx.

Member Data Documentation

◆ instances

Stm32Can * Stm32Can::instances = {NULL}

static

Instance pointers help us get context from the interrupt handler(s)

Definition at line 97 of file Stm32Can.hxx.

◆ intCount

unsigned int Stm32Can::intCount

staticprivate

one interrupt vector is shared between two CAN controllers, so we need to keep track of the number of controllers in use.

Definition at line 91 of file Stm32Can.hxx.

◆ state_

uint8_t Stm32Can::state_

private

present bus state

Definition at line 93 of file Stm32Can.hxx.

The documentation for this class was generated from the following files:
