Node information for a device node in the filesystem that has support for nonblocking mode via Notifiable pointers for reading and writing. More...

#include <Devtab.hxx>

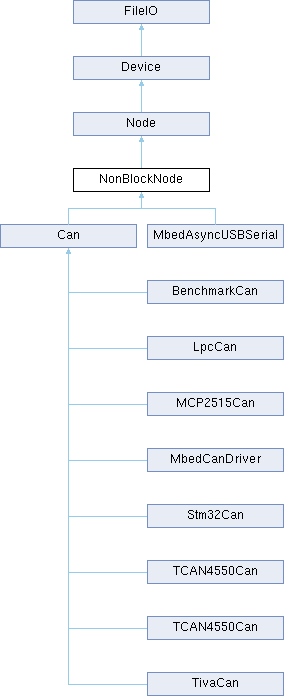

Inheritance diagram for NonBlockNode:

Protected Member Functions
	NonBlockNode (const char *name)
	Constructor.

virtual bool	has_rx_buffer_data ()=0
	Called under a critical section.

virtual bool	has_tx_buffer_space ()=0
	Called under a critical section.

int	ioctl (File *file, unsigned long int key, unsigned long data) OVERRIDE
	Request an ioctl transaction.

Protected Member Functions inherited from Node
	Node (const char *name)
	Constructor.

virtual	~Node ()
	Destructor.

virtual void	enable ()=0
	This will be called once when reference-count goes from 0 to positive.

virtual void	disable ()=0
	This will be called when reference count goes from non-zero to 0.

virtual void	flush_buffers ()=0
	Instructs the device driver to drop all TX and RX queues.

int	open (File , const char , int, int) OVERRIDE
	Open method.

int	close (File *) OVERRIDE
	Close method.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual ssize_t	read (File file, void buf, size_t count)=0
	Read from a file or device.

virtual ssize_t	write (File file, const void buf, size_t count)=0
	Write to a file or device.

virtual off_t	lseek (File *f, off_t offset, int whence)
	Seek method.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

virtual bool	select (File *file, int mode)
	Device select method.

Protected Attributes
Notifiable *	readableNotify_
	This will be notified if the device has data avilable for read.

Notifiable *	writableNotify_
	This will be notified if the device has buffer avilable for write.

Protected Attributes inherited from Node
OSMutex	lock_
	protects internal structures.

mode_t	mode_
	File open mode, such as O_NONBLOCK.

unsigned int	references_
	number of open references

Protected Attributes inherited from FileIO
const char *	name
	device name

Additional Inherited Members
Public Member Functions inherited from Device
	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Static Public Member Functions inherited from Device
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Static Protected Member Functions inherited from Device
static void	select_insert (SelectInfo *info)
	Add client to list of clients needing woken.

static void	select_wakeup (SelectInfo *info)
	Wakeup the list of clients needing woken.

static void	select_wakeup_from_isr (SelectInfo info, int woken)
	Wakeup the list of clients needing woken.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

Node information for a device node in the filesystem that has support for nonblocking mode via Notifiable pointers for reading and writing.

Definition at line 610 of file Devtab.hxx.

Constructor & Destructor Documentation

◆ NonBlockNode()

NonBlockNode::NonBlockNode ( const char * name )

inlineprotected

Constructor.

Parameters

name	is the name of this device node in the filesystem.

Definition at line 615 of file Devtab.hxx.

Member Function Documentation

◆ has_rx_buffer_data()

virtual bool NonBlockNode::has_rx_buffer_data ( )

protectedpure virtual

Called under a critical section.

Returns: true if a read would not block right now.

Implemented in Can, and MbedAsyncUSBSerial.

◆ has_tx_buffer_space()

virtual bool NonBlockNode::has_tx_buffer_space ( )

protectedpure virtual

Called under a critical section.

Returns: true if a write would not block right now.

Implemented in Can, and MbedAsyncUSBSerial.

◆ ioctl()

int NonBlockNode::ioctl	(	File *	file,
		unsigned long int	key,
		unsigned long	data
	)

protectedvirtual

Request an ioctl transaction.

Parameters

file	file reference for this device
key	ioctl key
data	key data
file	file reference for this device
node	node reference for this device
key	ioctl key
data	key data

Reimplemented from FileIO.

Reimplemented in TCAN4550Can, TCAN4550Can, Stm32Can, and TivaCan.

Definition at line 83 of file freertos_drivers/common/Node.cxx.

Member Data Documentation

◆ readableNotify_

Notifiable* NonBlockNode::readableNotify_

protected

This will be notified if the device has data avilable for read.

Definition at line 635 of file Devtab.hxx.

◆ writableNotify_

Notifiable* NonBlockNode::writableNotify_

protected

This will be notified if the device has buffer avilable for write.

Definition at line 637 of file Devtab.hxx.

The documentation for this class was generated from the following files:
