Generic CAN driver for throughput testing purposes. More...

#include <BenchmarkCan.hxx>

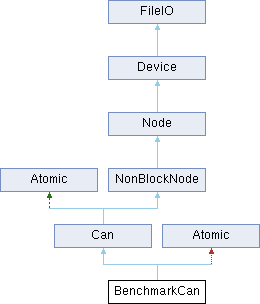

Inheritance diagram for BenchmarkCan:

Public Member Functions
	BenchmarkCan (const char *name)
	Constructor.

	~BenchmarkCan ()
	Destructor.

void	start_benchmark (const struct can_frame *frame, unsigned count)
	Start a benchmarking run.

long long	get_timestamp (unsigned *count)
	Get the latest performance time stamp.

Public Member Functions inherited from Can
int	available ()

int	availableForWrite ()

int	read (struct can_frame *frame)
	Read a frame if there is one available.

int	write (const struct can_frame *frame)
	Send a frame if there is space available.

Public Member Functions inherited from Device
	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Private Member Functions
ssize_t	read (File file, void buf, size_t count) override
	Read from a file or device.

ssize_t	write (File file, const void buf, size_t count) override
	Write to a file or device.

bool	refill_locked ()
	Refills the rxBuf from the packet_ and readCount.

void	enable () override
	function to enable device

void	disable () override
	function to disable device

void	tx_msg () override
	function to try and transmit a message

	DISALLOW_COPY_AND_ASSIGN (BenchmarkCan)

Private Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Private Attributes
struct can_frame	packet_
	packet to inject.

long long	readTimeLast_
	timestamp of last read in OS time

size_t	readCount_
	count of packets still to inject

Additional Inherited Members
Static Public Member Functions inherited from Device
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Static Public Attributes inherited from Can
static unsigned	numReceivedPackets_ {0}

static unsigned	numTransmittedPackets_ {0}

Protected Member Functions inherited from Can
	Can (const char *ignored)
	Constructor.

	~Can ()
	Destructor.

	Can (const char *name, size_t tx_buffer_size=config_can_tx_buffer_size(), size_t rx_buffer_size=config_can_rx_buffer_size())
	Constructor.

	~Can ()
	Destructor.

bool	has_tx_buffer_space () OVERRIDE

bool	has_rx_buffer_data () OVERRIDE

void	flush_buffers () OVERRIDE
	called after disable

ssize_t	read (File file, void buf, size_t count) OVERRIDE
	Read from a file or device.

ssize_t	write (File file, const void buf, size_t count) OVERRIDE
	Write to a file or device.

bool	select (File *file, int mode) OVERRIDE
	Device select method.

Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Protected Member Functions inherited from NonBlockNode
	NonBlockNode (const char *name)
	Constructor.

int	ioctl (File *file, unsigned long int key, unsigned long data) OVERRIDE
	Request an ioctl transaction.

Protected Member Functions inherited from Node
	Node (const char *name)
	Constructor.

virtual	~Node ()
	Destructor.

int	open (File , const char , int, int) OVERRIDE
	Open method.

int	close (File *) OVERRIDE
	Close method.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual off_t	lseek (File *f, off_t offset, int whence)
	Seek method.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

Static Protected Member Functions inherited from Device
static void	select_insert (SelectInfo *info)
	Add client to list of clients needing woken.

static void	select_wakeup (SelectInfo *info)
	Wakeup the list of clients needing woken.

static void	select_wakeup_from_isr (SelectInfo info, int woken)
	Wakeup the list of clients needing woken.

static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Protected Attributes inherited from Can
DeviceBuffer< struct can_frame > *	txBuf
	transmit buffer

DeviceBuffer< struct can_frame > *	rxBuf
	receive buffer

unsigned int	overrunCount
	overrun count

unsigned int	busOffCount
	bus-off count

unsigned int	softErrorCount
	soft error count

Protected Attributes inherited from NonBlockNode
Notifiable *	readableNotify_
	This will be notified if the device has data avilable for read.

Notifiable *	writableNotify_
	This will be notified if the device has buffer avilable for write.

Protected Attributes inherited from Node
OSMutex	lock_
	protects internal structures.

mode_t	mode_
	File open mode, such as O_NONBLOCK.

unsigned int	references_
	number of open references

Protected Attributes inherited from FileIO
const char *	name
	device name

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

Generic CAN driver for throughput testing purposes.

Definition at line 42 of file BenchmarkCan.hxx.

Constructor & Destructor Documentation

◆ BenchmarkCan()

BenchmarkCan::BenchmarkCan ( const char * name )

inline

Constructor.

Parameters

name	name of this device instance in the file system
base	base address of this device
interrupt	interrupt number of this device

Definition at line 50 of file BenchmarkCan.hxx.

◆ ~BenchmarkCan()

BenchmarkCan::~BenchmarkCan ( )

inline

Destructor.

Definition at line 59 of file BenchmarkCan.hxx.

Member Function Documentation

◆ disable()

void BenchmarkCan::disable ( )

inlineoverrideprivatevirtual

function to disable device

Implements Can.

Definition at line 162 of file BenchmarkCan.hxx.

◆ enable()

void BenchmarkCan::enable ( )

inlineoverrideprivatevirtual

function to enable device

Implements Can.

Definition at line 159 of file BenchmarkCan.hxx.

◆ get_timestamp()

long long BenchmarkCan::get_timestamp ( unsigned * count )

inline

Get the latest performance time stamp.

Parameters

count the number of messages still left from the performance run, zero if the performance run is completed.

Returns: the time when the last message was read by the stack.

Definition at line 88 of file BenchmarkCan.hxx.

◆ read()

ssize_t BenchmarkCan::read	(	File *	file,
		void *	buf,
		size_t	count
	)

inlineoverrideprivatevirtual

Read from a file or device.

Parameters

file	file reference for this device
buf	location to place read data
count	number of bytes to read

Returns: number of bytes read upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 102 of file BenchmarkCan.hxx.

◆ refill_locked()

bool BenchmarkCan::refill_locked ( )

inlineprivate

Refills the rxBuf from the packet_ and readCount.

Must be called within a critical section lock.

Returns: true if the condition needs to be signaled.

Definition at line 145 of file BenchmarkCan.hxx.

◆ start_benchmark()

void BenchmarkCan::start_benchmark	(	const struct can_frame *	frame,
		unsigned	count
	)

inline

Start a benchmarking run.

Causes the same frame from being injected count times as if it was received from the CAN-bus.

Parameters

frame	is the frame to inject to the stack.
count	how many copies of this frame to inject.

Definition at line 68 of file BenchmarkCan.hxx.

◆ tx_msg()

void BenchmarkCan::tx_msg ( )

inlineoverrideprivatevirtual

function to try and transmit a message

Implements Can.

Definition at line 165 of file BenchmarkCan.hxx.

◆ write()

ssize_t BenchmarkCan::write	(	File *	file,
		const void *	buf,
		size_t	count
	)

inlineoverrideprivatevirtual

Write to a file or device.

Parameters

file	file reference for this device
buf	location to find write data
count	number of bytes to write

Returns: number of bytes written upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 136 of file BenchmarkCan.hxx.

Member Data Documentation

◆ packet_

struct can_frame BenchmarkCan::packet_

private

packet to inject.

Definition at line 169 of file BenchmarkCan.hxx.

◆ readCount_

size_t BenchmarkCan::readCount_

private

count of packets still to inject

Definition at line 171 of file BenchmarkCan.hxx.

◆ readTimeLast_

long long BenchmarkCan::readTimeLast_

private

timestamp of last read in OS time

Definition at line 170 of file BenchmarkCan.hxx.

The documentation for this class was generated from the following file:

BenchmarkCan.hxx

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BenchmarkCan()

◆ ~BenchmarkCan()

Member Function Documentation

◆ disable()

◆ enable()

◆ get_timestamp()

◆ read()

◆ refill_locked()

◆ start_benchmark()

◆ tx_msg()

◆ write()

Member Data Documentation

◆ packet_

◆ readCount_

◆ readTimeLast_
