Base class for railcom drivers. More...

#include <Railcom.hxx>

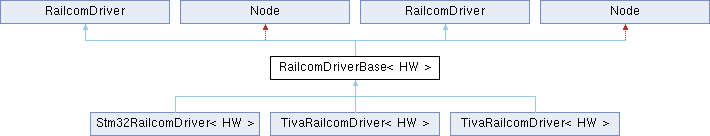

Inheritance diagram for RailcomDriverBase< HW >:

Public Member Functions
	RailcomDriverBase (const char *name)
	Constructor.

void	os_interrupt_handler ()
	Implementation of the interrupt handler running at the kernel interrupt priority.

	RailcomDriverBase (const char *name)
	Constructor.

void	os_interrupt_handler ()
	Implementation of the interrupt handler running at the kernel interrupt priority.

Public Member Functions inherited from RailcomDriver
virtual void	feedback_sample ()=0
	Call to the driver for sampling the current sensors.

virtual void	start_cutout ()=0
	Instructs the driver that the railcom cutout is starting now.

virtual void	middle_cutout ()=0
	Notifies the driver that the railcom cutout has reached the middle point, i.e., the first window is passed and the second window is starting.

virtual void	end_cutout ()=0
	Instructs the driver that the railcom cutout is over now.

virtual void	no_cutout ()=0
	Called instead of start/mid/end-cutout at the end of the current packet if there was no cutout requested.

virtual void	send_ch1 (const DCCFeedback *ch1_pkt)
	Specifies what packet should be sent for the channel1 cutout.

virtual void	send_ch2 (const DCCFeedback *ch2_pkt)
	Specifies what packet should be sent for the channel2 cutout.

Protected Member Functions
dcc::Feedback *	alloc_new_packet (uint8_t channel)
	Takes a new empty packet at the front of the queue, fills in feedback key and channel information.

void	add_sample (int sample)
	Adds a sample for a preamble bit.

dcc::Feedback *	alloc_new_packet (uint8_t channel)
	Takes a new empty packet at the front of the queue, fills in feedback key and channel information.

void	add_sample (int sample)
	Adds a sample for a preamble bit.

Protected Attributes
Notifiable *	readableNotifiable_
	Notify this when we have data in our buffers.

FixedQueue< dcc::Feedback, HW::Q_SIZE >	feedbackQueue_
	The packets we have read so far.

uint32_t	feedbackKey_
	Stores the key for the next packets to read.

dcc::Feedback *	returnedPackets_ [HW::CHANNEL_COUNT]
	Stores pointers to packets we are filling right now, one for each channel.

Private Member Functions
ssize_t	write (File , const void , size_t) OVERRIDE
	Write to a file or device.

ssize_t	read (File file, void buf, size_t count) OVERRIDE
	Read from a file or device.

void	flush_buffers () OVERRIDE
	Instructs the device driver to drop all TX and RX queues.

int	ioctl (File *file, unsigned long int key, unsigned long data) override
	Request an ioctl transaction.

void	set_feedback_key (uint32_t key) OVERRIDE
	Specifies the feedback key to write into the received railcom data packets.

virtual void	int_set_pending (unsigned int_nr)=0
	Sets a given software interrupt pending.

ssize_t	write (File , const void , size_t) OVERRIDE
	Write to a file or device.

ssize_t	read (File file, void buf, size_t count) OVERRIDE
	Read from a file or device.

void	flush_buffers () OVERRIDE
	Instructs the device driver to drop all TX and RX queues.

int	ioctl (File *file, unsigned long int key, unsigned long data) override
	Request an ioctl transaction.

void	set_feedback_key (uint32_t key) OVERRIDE
	Specifies the feedback key to write into the received railcom data packets.

Private Member Functions inherited from Node
	Node (const char *name)
	Constructor.

virtual	~Node ()
	Destructor.

virtual void	enable ()=0
	This will be called once when reference-count goes from 0 to positive.

virtual void	disable ()=0
	This will be called when reference count goes from non-zero to 0.

int	open (File , const char , int, int) OVERRIDE
	Open method.

int	close (File *) OVERRIDE
	Close method.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

Private Member Functions inherited from Device
	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Private Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual off_t	lseek (File *f, off_t offset, int whence)
	Seek method.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

virtual bool	select (File *file, int mode)
	Device select method.

Additional Inherited Members
Static Private Member Functions inherited from Device
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

static void	select_insert (SelectInfo *info)
	Add client to list of clients needing woken.

static void	select_wakeup (SelectInfo *info)
	Wakeup the list of clients needing woken.

static void	select_wakeup_from_isr (SelectInfo info, int woken)
	Wakeup the list of clients needing woken.

Static Private Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Private Attributes inherited from Node
OSMutex	lock_
	protects internal structures.

mode_t	mode_
	File open mode, such as O_NONBLOCK.

unsigned int	references_
	number of open references

Private Attributes inherited from FileIO
const char *	name
	device name

Static Private Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

template<class HW>
class RailcomDriverBase< HW >

Base class for railcom drivers.

Base class for railcom driver implementations.

Ideally this base class should be non-specific to the hardwsre or the TivaWare driver library.

Todo:: (balazs.racz) factor this class out into freertos_drivers/common/Railcom.hxx.

Definition at line 132 of file Railcom.hxx.

Constructor & Destructor Documentation

◆ RailcomDriverBase() [1/2]

template<class HW >

RailcomDriverBase< HW >::RailcomDriverBase ( const char * name )

inline

Constructor.

Parameters

name	is the device node (e.g. "/dev/railcom0").

Definition at line 136 of file Railcom.hxx.

◆ ~RailcomDriverBase() [1/2]

template<class HW >

RailcomDriverBase< HW >::~RailcomDriverBase ( )

inline

Definition at line 145 of file Railcom.hxx.

◆ RailcomDriverBase() [2/2]

template<class HW >

RailcomDriverBase< HW >::RailcomDriverBase ( const char * name )

inline

Constructor.

Parameters

name	is the device node (e.g. "/dev/railcom0").

Definition at line 127 of file RailcomImpl.hxx.

◆ ~RailcomDriverBase() [2/2]

template<class HW >

RailcomDriverBase< HW >::~RailcomDriverBase ( )

inline

Definition at line 134 of file RailcomImpl.hxx.

Member Function Documentation

◆ add_sample() [1/2]

template<class HW >

void RailcomDriverBase< HW >::add_sample ( int sample )

inlineprotected

Adds a sample for a preamble bit.

Parameters

sample is the next sample to return to the application layer (usually a bitmask setting which channels are active).

Definition at line 261 of file Railcom.hxx.

◆ add_sample() [2/2]

template<class HW >

void RailcomDriverBase< HW >::add_sample ( int sample )

inlineprotected

Adds a sample for a preamble bit.

Parameters

sample is the next sample to return to the application layer (usually a bitmask setting which channels are active).

Definition at line 253 of file RailcomImpl.hxx.

◆ alloc_new_packet() [1/2]

template<class HW >

dcc::Feedback * RailcomDriverBase< HW >::alloc_new_packet ( uint8_t channel )

inlineprotected

Takes a new empty packet at the front of the queue, fills in feedback key and channel information.

Parameters

channel is which channel to set the packet for.

Returns: a packet pointer to write into. If there is no space, returns nullptr.

Definition at line 245 of file Railcom.hxx.

◆ alloc_new_packet() [2/2]

template<class HW >

dcc::Feedback * RailcomDriverBase< HW >::alloc_new_packet ( uint8_t channel )

inlineprotected

Takes a new empty packet at the front of the queue, fills in feedback key and channel information.

Parameters

channel is which channel to set the packet for.

Returns: a packet pointer to write into. If there is no space, returns nullptr.

Definition at line 237 of file RailcomImpl.hxx.

◆ flush_buffers() [1/2]

template<class HW >

void RailcomDriverBase< HW >::flush_buffers ( )

inlineprivatevirtual

Instructs the device driver to drop all TX and RX queues.

This is called after disable() still under the device lock.

Implements Node.

Definition at line 173 of file Railcom.hxx.

◆ flush_buffers() [2/2]

template<class HW >

void RailcomDriverBase< HW >::flush_buffers ( )

inlineprivatevirtual

Instructs the device driver to drop all TX and RX queues.

This is called after disable() still under the device lock.

Implements Node.

Definition at line 165 of file RailcomImpl.hxx.

◆ int_set_pending()

template<class HW >

virtual void RailcomDriverBase< HW >::int_set_pending ( unsigned int_nr )

privatepure virtual

Sets a given software interrupt pending.

Parameters

int_nr interrupt number (will be HW::OS_INTERRUPT)

Implemented in Stm32RailcomDriver< HW >, and TivaRailcomDriver< HW >.

◆ ioctl() [1/2]

template<class HW >

int RailcomDriverBase< HW >::ioctl	(	File *	file,
		unsigned long int	key,
		unsigned long	data
	)

inlineoverrideprivatevirtual

Request an ioctl transaction.

Parameters

file	file reference for this device
key	ioctl key
data	key data

Returns: 0 upon success or negative error number upon error.

Reimplemented from FileIO.

Definition at line 182 of file Railcom.hxx.

◆ ioctl() [2/2]

template<class HW >

int RailcomDriverBase< HW >::ioctl	(	File *	file,
		unsigned long int	key,
		unsigned long	data
	)

inlineoverrideprivatevirtual

Request an ioctl transaction.

Parameters

file	file reference for this device
key	ioctl key
data	key data

Returns: 0 upon success or negative error number upon error.

Reimplemented from FileIO.

Definition at line 174 of file RailcomImpl.hxx.

◆ os_interrupt_handler() [1/2]

template<class HW >

void RailcomDriverBase< HW >::os_interrupt_handler ( )

inline

Implementation of the interrupt handler running at the kernel interrupt priority.

Call this function from the hardware interrupt handler.

Definition at line 219 of file Railcom.hxx.

◆ os_interrupt_handler() [2/2]

template<class HW >

void RailcomDriverBase< HW >::os_interrupt_handler ( )

inline

Implementation of the interrupt handler running at the kernel interrupt priority.

Call this function from the hardware interrupt handler.

Definition at line 211 of file RailcomImpl.hxx.

◆ read() [1/2]

template<class HW >

ssize_t RailcomDriverBase< HW >::read	(	File *	file,
		void *	buf,
		size_t	count
	)

inlineprivatevirtual

Read from a file or device.

Parameters

file	file reference for this device
buf	location to place read data
count	number of bytes to read

Returns: number of bytes read upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 157 of file Railcom.hxx.

◆ read() [2/2]

template<class HW >

ssize_t RailcomDriverBase< HW >::read	(	File *	file,
		void *	buf,
		size_t	count
	)

inlineprivatevirtual

Read from a file or device.

Parameters

file	file reference for this device
buf	location to place read data
count	number of bytes to read

Returns: number of bytes read upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 149 of file RailcomImpl.hxx.

◆ set_feedback_key() [1/2]

template<class HW >

void RailcomDriverBase< HW >::set_feedback_key ( uint32_t key )

inlineprivatevirtual

Specifies the feedback key to write into the received railcom data packets.

This feedback key is used by the application layer to correlate the stream of DCC packets to the stream of Railcom packets. This method shall be called before start_cutout. The feedback key set here is used until this method is called again.

Parameters

key	is the new feedback key.

Implements RailcomDriver.

Definition at line 234 of file Railcom.hxx.

◆ set_feedback_key() [2/2]

template<class HW >

void RailcomDriverBase< HW >::set_feedback_key ( uint32_t key )

inlineprivatevirtual

Specifies the feedback key to write into the received railcom data packets.

This feedback key is used by the application layer to correlate the stream of DCC packets to the stream of Railcom packets. This method shall be called before start_cutout. The feedback key set here is used until this method is called again.

Parameters

key	is the new feedback key.

Implements RailcomDriver.

Definition at line 226 of file RailcomImpl.hxx.

◆ write() [1/2]

template<class HW >

ssize_t RailcomDriverBase< HW >::write	(	File *	file,
		const void *	buf,
		size_t	count
	)

inlineprivatevirtual

Write to a file or device.

Parameters

file	file reference for this device
buf	location to find write data
count	number of bytes to write

Returns: number of bytes written upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 151 of file Railcom.hxx.

◆ write() [2/2]

template<class HW >

ssize_t RailcomDriverBase< HW >::write	(	File *	file,
		const void *	buf,
		size_t	count
	)

inlineprivatevirtual

Write to a file or device.

Parameters

file	file reference for this device
buf	location to find write data
count	number of bytes to write

Returns: number of bytes written upon success, -1 upon failure with errno containing the cause

Implements FileIO.

Definition at line 143 of file RailcomImpl.hxx.

Member Data Documentation

◆ feedbackKey_

template<class HW >

uint32_t RailcomDriverBase< HW >::feedbackKey_

protected

Stores the key for the next packets to read.

Definition at line 282 of file Railcom.hxx.

◆ feedbackQueue_

template<class HW >

FixedQueue< dcc::Feedback, HW::Q_SIZE > RailcomDriverBase< HW >::feedbackQueue_

protected

The packets we have read so far.

Definition at line 280 of file Railcom.hxx.

◆ readableNotifiable_

template<class HW >

Notifiable * RailcomDriverBase< HW >::readableNotifiable_

protected

Notify this when we have data in our buffers.

Definition at line 278 of file Railcom.hxx.

◆ returnedPackets_

template<class HW >

dcc::Feedback * RailcomDriverBase< HW >::returnedPackets_

protected

Stores pointers to packets we are filling right now, one for each channel.

Definition at line 285 of file Railcom.hxx.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ RailcomDriverBase() [1/2]

◆ ~RailcomDriverBase() [1/2]

◆ RailcomDriverBase() [2/2]

◆ ~RailcomDriverBase() [2/2]

Member Function Documentation

◆ add_sample() [1/2]

◆ add_sample() [2/2]

◆ alloc_new_packet() [1/2]

◆ alloc_new_packet() [2/2]

◆ flush_buffers() [1/2]

◆ flush_buffers() [2/2]

◆ int_set_pending()

◆ ioctl() [1/2]

◆ ioctl() [2/2]

◆ os_interrupt_handler() [1/2]

◆ os_interrupt_handler() [2/2]

◆ read() [1/2]

◆ read() [2/2]

◆ set_feedback_key() [1/2]

◆ set_feedback_key() [2/2]

◆ write() [1/2]

◆ write() [2/2]

Member Data Documentation

◆ feedbackKey_

◆ feedbackQueue_

◆ readableNotifiable_

◆ returnedPackets_
