Interface for a single throttle for running a train node. More...

#include <TractionThrottle.hxx>

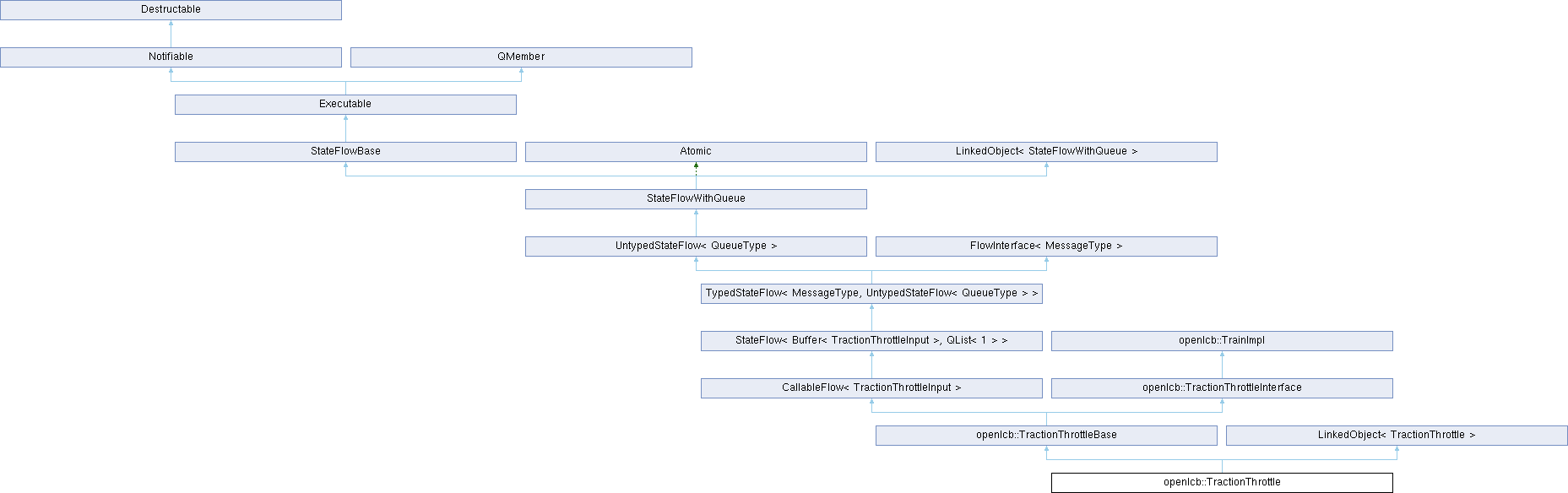

Inheritance diagram for openlcb::TractionThrottle:

Public Types
enum	{ TIMEOUT_NSEC = SEC_TO_NSEC(2) , MAX_FN_QUERY = 28 , ERROR_UNASSIGNED = 0x4000000 , ERROR_ASSIGNED = 0x4010000 }

using	Command = TractionThrottleInput::Command

Public Types inherited from openlcb::TractionThrottleBase
enum	{ FN_NOT_KNOWN = 0xffff }

Public Types inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Public Member Functions
	TractionThrottle (Node *node)

void	set_speed (SpeedType speed) override
	Sets the speed of the locomotive.

SpeedType	get_speed () override

void	set_emergencystop () override
	Sets the train to emergency stop.

bool	get_emergencystop () override
	Get the current E-Stop state.

void	set_fn (uint32_t address, uint16_t value) override
	Sets the value of a function.

uint16_t	get_fn (uint32_t address) override

void	toggle_fn (uint32_t fn) override
	Flips a function on<>off.

void	query_fn (uint32_t address) override
	Sends out a function query command.

uint32_t	legacy_address () override

dcc::TrainAddressType	legacy_address_type () override

bool	is_train_assigned () override
	Determine if a train is currently assigned to this trottle.

openlcb::Node *	throttle_node () override

openlcb::NodeID	target_node () override

void	set_throttle_listener (std::function< void(int fn)> update_callback) override
	Sets up a callback for listening for remote throttle updates.

Public Member Functions inherited from openlcb::TractionThrottleBase
	TractionThrottleBase (Service *s)

Public Member Functions inherited from CallableFlow< TractionThrottleInput >
	CallableFlow (Service *s)
	Creates a callable flow.

Public Member Functions inherited from StateFlow< MessageType, QueueType >
	StateFlow (Service *service)
	Constructor.

Public Member Functions inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

Public Member Functions inherited from UntypedStateFlow< QueueType >
	UntypedStateFlow (Service *service)
	Constructor.

Public Member Functions inherited from StateFlowWithQueue
void	notify () override
	Wakeup call arrived. Schedules *this on the executor.

bool	is_waiting ()

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_next ()

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Public Member Functions inherited from openlcb::TrainImpl
virtual SpeedType	get_commanded_speed ()

virtual SpeedType	get_actual_speed ()
	Returns the actual speed of the locomotive, as provided by feedback from the decoder.

Public Member Functions inherited from LinkedObject< TractionThrottle >
TractionThrottle *	link_next ()

Private Member Functions
Action	entry () override
	Entry into the StateFlow activity.

Action	release_train ()

Action	release_listener_response ()

Action	release_step_2 ()

Action	assign_train ()

Action	assign_response ()

Action	assign_consist_response ()

Action	load_state ()

Action	load_done ()

bool	pending_reply_arrived ()
	Notifies that a pending query during load has gotten a reply.

void	speed_reply (Buffer< GenMessage > *msg)
	Invoked for TRACTION_CONTROL_REPLY messages coming in via the dispatcher.

Action	consist_add ()

Action	consist_del ()

Action	consist_add_response ()

Action	consist_qry ()

Action	consist_qry_response ()

void	listen_reply (Buffer< GenMessage > *msg)
	Invoked for TRACTION_CONTROL_COMMAND messages coming in via the dispatcher.

void	listen_reply_process (const Payload &p)
	Business logic for interpreting a proxied traction command payload.

void	send_traction_message_with_loopback (Payload payload)
	Allocates (synchronously) an outgoing openlcb buffer with traction request MTI and the given payload and sends off the message to the bus for dst_.

void	loopback_traction_message (Buffer< GenMessage > *b)
	Performs loopback processing of an outgoing traction message.

void	send_traction_message (Payload payload)
	Allocates (synchronously) an outgoing openlcb buffer with traction request MTI and the given payload and sends off the message to the bus for dst_.

BufferPtr< GenMessage >	send_traction_message_helper (Payload payload)
	Allocates (synchronously) an outgoing openlcb buffer with traction request MTI and the given payload and sends off the message to the bus for dst_.

void	set_listening ()

void	clear_listening ()

void	set_assigned ()

void	clear_assigned ()

void	clear_cache ()

TractionThrottleInput *	input ()

If *	iface ()

Private Attributes
MessageHandler::GenericHandler	speedReplyHandler_

MessageHandler::GenericHandler	listenReplyHandler_

unsigned	pendingQueries_ {0}
	How many speed/fn query requests I have sent off to the train node that have not yet seen a reply.

StateFlowTimer	timer_ {this}

bool	assigned_ {false}
	True if the assign controller has returned positive.

bool	listenConsist_ {false}
	True if we also have a consist link with the assigned loco.

bool	estopActive_ {false}
	keep track if E-Stop is active

NodeID	dst_

Node *	node_

TractionResponseHandler	handler_ {iface(), node_}
	Helper class for stateful query/return flows.

std::function< void(int fn)>	updateCallback_
	Function to call when a different controller updates the train.

SpeedType	lastSetSpeed_
	Cache: Velocity value that we last commanded to the train.

std::map< uint32_t, uint16_t >	lastKnownFn_
	Cache: all known function values.

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Static Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Static Public Member Functions inherited from LinkedObject< TractionThrottle >
static TractionThrottle *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Protected Types inherited from CallableFlow< TractionThrottleInput >
using	Action = StateFlowBase::Action

Protected Types inherited from UntypedStateFlow< QueueType >
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from CallableFlow< TractionThrottleInput >
TractionThrottleInput *	request ()

bool	has_request ()

Action	return_ok ()
	Terminates the flow and returns the request buffer to the caller with an error code of OK (zero).

Action	wait_and_return_ok ()
	Waits to be notified before moving onto the next state for termination.

Action	wait_done ()
	Terminates the flow and returns the request buffer to the caller with an error code of OK (zero).

Action	return_with_error (int error)
	Terminates the flow and returns the request buffer to the caller with an specific error code.

Protected Member Functions inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Protected Member Functions inherited from UntypedStateFlow< QueueType >
void	send (BufferBase *msg, unsigned priority=UINT_MAX)
	Sends a message to the state flow for processing.

QMember *	queue_next (unsigned *priority) OVERRIDE
	Takes the front entry in the queue.

bool	queue_empty () OVERRIDE

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Protected Member Functions inherited from StateFlowWithQueue
	StateFlowWithQueue (Service *service)
	Constructor.

Action	exit ()
	Terminates the processing of this flow.

Action	release_and_exit ()
	Terminates the processing of the current message.

BufferBase *	message ()

BufferBase *	transfer_message ()
	Releases ownership of the current message.

void	reset_message (BufferBase *message, unsigned priority)
	Sets the current message being processed.

unsigned	priority ()

void	set_priority (unsigned priority)
	Overrides the current priority.

void	start_flow_at_init (Callback c)
	Call this from the constructor of the child class to do some work before the main queue processing loop begins.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_this ()

	LinkedObject ()
	Constructor. Puts *this on the linked list.

	~LinkedObject ()
	Constructor. Removes *this from the linked list.

StateFlowWithQueue *	link_next ()

Protected Member Functions inherited from LinkedObject< TractionThrottle >
TractionThrottle *	link_this ()

	LinkedObject ()
	Constructor. Puts *this on the linked list.

	~LinkedObject ()
	Constructor. Removes *this from the linked list.

Static Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_
	Linked list pointer.

Protected Attributes inherited from LinkedObject< TractionThrottle >
TractionThrottle *	link_
	Linked list pointer.

Static Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	head_
	Beginning of the list.

Static Protected Attributes inherited from LinkedObject< TractionThrottle >
static TractionThrottle *	head_
	Beginning of the list.

Detailed Description

Interface for a single throttle for running a train node.

Definition at line 51 of file TractionThrottle.hxx.

Member Typedef Documentation

◆ Command

using openlcb::TractionThrottle::Command = TractionThrottleInput::Command

Definition at line 70 of file TractionThrottle.hxx.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
TIMEOUT_NSEC	Timeout for assign controller request.
MAX_FN_QUERY	Upon a load state request, how far do we go into the function list?

Definition at line 72 of file TractionThrottle.hxx.

Constructor & Destructor Documentation

◆ TractionThrottle()

openlcb::TractionThrottle::TractionThrottle ( Node * node )

inline

Parameters

node	is the openlcb node from which this throttle will be sending its messages.

Definition at line 57 of file TractionThrottle.hxx.

◆ ~TractionThrottle()

openlcb::TractionThrottle::~TractionThrottle ( )

inline

Definition at line 64 of file TractionThrottle.hxx.

Member Function Documentation

◆ assign_consist_response()

Action openlcb::TractionThrottle::assign_consist_response ( )

inlineprivate

Definition at line 419 of file TractionThrottle.hxx.

◆ assign_response()

Action openlcb::TractionThrottle::assign_response ( )

inlineprivate

Definition at line 379 of file TractionThrottle.hxx.

◆ assign_train()

Action openlcb::TractionThrottle::assign_train ( )

inlineprivate

Definition at line 370 of file TractionThrottle.hxx.

◆ clear_assigned()

void openlcb::TractionThrottle::clear_assigned ( )

inlineprivate

Definition at line 838 of file TractionThrottle.hxx.

◆ clear_cache()

void openlcb::TractionThrottle::clear_cache ( )

inlineprivate

Definition at line 848 of file TractionThrottle.hxx.

◆ clear_listening()

void openlcb::TractionThrottle::clear_listening ( )

inlineprivate

Definition at line 825 of file TractionThrottle.hxx.

◆ consist_add()

Action openlcb::TractionThrottle::consist_add ( )

inlineprivate

Definition at line 536 of file TractionThrottle.hxx.

◆ consist_add_response()

Action openlcb::TractionThrottle::consist_add_response ( )

inlineprivate

Definition at line 553 of file TractionThrottle.hxx.

◆ consist_del()

Action openlcb::TractionThrottle::consist_del ( )

inlineprivate

Definition at line 545 of file TractionThrottle.hxx.

◆ consist_qry()

Action openlcb::TractionThrottle::consist_qry ( )

inlineprivate

Definition at line 593 of file TractionThrottle.hxx.

◆ consist_qry_response()

Action openlcb::TractionThrottle::consist_qry_response ( )

inlineprivate

Definition at line 610 of file TractionThrottle.hxx.

◆ entry()

Action openlcb::TractionThrottle::entry ( )

inlineoverrideprivatevirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns: function pointer to next state

Implements TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >.

Definition at line 203 of file TractionThrottle.hxx.

◆ get_emergencystop()

bool openlcb::TractionThrottle::get_emergencystop ( )

inlineoverridevirtual

Get the current E-Stop state.

Returns: true if the train is E-Stopped, else false

Implements openlcb::TrainImpl.

Definition at line 106 of file TractionThrottle.hxx.

◆ get_fn()

uint16_t openlcb::TractionThrottle::get_fn ( uint32_t address )

inlineoverridevirtual

Returns: the value of a function.

Implements openlcb::TrainImpl.

Definition at line 118 of file TractionThrottle.hxx.

◆ get_speed()

SpeedType openlcb::TractionThrottle::get_speed ( )

inlineoverridevirtual

Returns: the last set speed of the locomotive.

Implements openlcb::TrainImpl.

Definition at line 90 of file TractionThrottle.hxx.

◆ iface()

If * openlcb::TractionThrottle::iface ( )

inlineprivate

Definition at line 860 of file TractionThrottle.hxx.

◆ input()

TractionThrottleInput * openlcb::TractionThrottle::input ( )

inlineprivate

Definition at line 855 of file TractionThrottle.hxx.

◆ is_train_assigned()

bool openlcb::TractionThrottle::is_train_assigned ( )

inlineoverridevirtual

Determine if a train is currently assigned to this trottle.

Returns: true if a train is assigned, else false

Implements openlcb::TractionThrottleInterface.

Definition at line 162 of file TractionThrottle.hxx.

◆ legacy_address()

uint32_t openlcb::TractionThrottle::legacy_address ( )

inlineoverridevirtual

Returns: the legacy (DCC) address of this train. This value is used in determining the train's NMRAnet NodeID.

Todo:: (balazs.racz) This function should not be here. Specifying the NodeID should be more generic, but it is not clear what would be the best interface for that.

Implements openlcb::TrainImpl.

Definition at line 150 of file TractionThrottle.hxx.

◆ legacy_address_type()

dcc::TrainAddressType openlcb::TractionThrottle::legacy_address_type ( )

inlineoverridevirtual

Returns: the type of legacy protocol in use.

Implements openlcb::TrainImpl.

Definition at line 155 of file TractionThrottle.hxx.

◆ listen_reply()

void openlcb::TractionThrottle::listen_reply ( Buffer< GenMessage > * msg )

inlineprivate

Invoked for TRACTION_CONTROL_COMMAND messages coming in via the dispatcher.

These are generally update commands coming on when another throttle is controlling the same loco or consist via another member.

Definition at line 646 of file TractionThrottle.hxx.

◆ listen_reply_process()

void openlcb::TractionThrottle::listen_reply_process ( const Payload & p )

inlineprivate

Business logic for interpreting a proxied traction command payload.

The command may be coming back as a consist forward message due to throttle listener, or may be one that went out from another TractionThrottle instance to the same train.

Definition at line 665 of file TractionThrottle.hxx.

◆ load_done()

Action openlcb::TractionThrottle::load_done ( )

inlineprivate

Definition at line 447 of file TractionThrottle.hxx.

◆ load_state()

Action openlcb::TractionThrottle::load_state ( )

inlineprivate

Definition at line 435 of file TractionThrottle.hxx.

◆ loopback_traction_message()

void openlcb::TractionThrottle::loopback_traction_message ( Buffer< GenMessage > * b )

inlineprivate

Performs loopback processing of an outgoing traction message.

Run on the iface()'s executor.

Parameters

b	the message that was sent out. Will be unreffed.

Definition at line 734 of file TractionThrottle.hxx.

◆ pending_reply_arrived()

bool openlcb::TractionThrottle::pending_reply_arrived ( )

inlineprivate

Notifies that a pending query during load has gotten a reply.

Returns: true if we were in the load state.

Definition at line 463 of file TractionThrottle.hxx.

◆ query_fn()

void openlcb::TractionThrottle::query_fn ( uint32_t address )

inlineoverridevirtual

Sends out a function query command.

The throttle listener will be called when the response is available.

Parameters

address function to query.

Reimplemented from openlcb::TractionThrottleInterface.

Definition at line 145 of file TractionThrottle.hxx.

◆ release_listener_response()

Action openlcb::TractionThrottle::release_listener_response ( )

inlineprivate

Definition at line 343 of file TractionThrottle.hxx.

◆ release_step_2()

Action openlcb::TractionThrottle::release_step_2 ( )

inlineprivate

Definition at line 354 of file TractionThrottle.hxx.

◆ release_train()

Action openlcb::TractionThrottle::release_train ( )

inlineprivate

Definition at line 286 of file TractionThrottle.hxx.

◆ send_traction_message()

void openlcb::TractionThrottle::send_traction_message ( Payload payload )

inlineprivate

Allocates (synchronously) an outgoing openlcb buffer with traction request MTI and the given payload and sends off the message to the bus for dst_.

Parameters

payload is the data contents of the message (e.g. TractionDefs::speed_set_payload(...).

Definition at line 798 of file TractionThrottle.hxx.

◆ send_traction_message_helper()

BufferPtr< GenMessage > openlcb::TractionThrottle::send_traction_message_helper ( Payload payload )

inlineprivate

Allocates (synchronously) an outgoing openlcb buffer with traction request MTI and the given payload and sends off the message to the bus for dst_.

Returns a reference to the buffer.

Definition at line 808 of file TractionThrottle.hxx.

◆ send_traction_message_with_loopback()

void openlcb::TractionThrottle::send_traction_message_with_loopback ( Payload payload )

inlineprivate

Allocates (synchronously) an outgoing openlcb buffer with traction request MTI and the given payload and sends off the message to the bus for dst_.

Performs loopback to other traction throttles that might be assigned to the same train.

Parameters

payload is the data contents of the message (e.g. TractionDefs::speed_set_payload(...).

Definition at line 722 of file TractionThrottle.hxx.

◆ set_assigned()

void openlcb::TractionThrottle::set_assigned ( )

inlineprivate

Definition at line 832 of file TractionThrottle.hxx.

◆ set_emergencystop()

void openlcb::TractionThrottle::set_emergencystop ( )

inlineoverridevirtual

Sets the train to emergency stop.

Implements openlcb::TrainImpl.

Definition at line 97 of file TractionThrottle.hxx.

◆ set_fn()

void openlcb::TractionThrottle::set_fn	(	uint32_t	address,
		uint16_t	value
	)

inlineoverridevirtual

Sets the value of a function.

Parameters

address	is a 24-bit address of the function to set. For legacy DCC locomotives, see TractionDefs for the address definitions (0=light, 1-28= traditional function buttons).
value	is the function value. For binary functions, any non-zero value sets the function to on, zero sets it to off.

Implements openlcb::TrainImpl.

Definition at line 111 of file TractionThrottle.hxx.

◆ set_listening()

void openlcb::TractionThrottle::set_listening ( )

inlineprivate

Definition at line 818 of file TractionThrottle.hxx.

◆ set_speed()

void openlcb::TractionThrottle::set_speed ( SpeedType speed )

inlineoverridevirtual

Sets the speed of the locomotive.

Parameters

speed is the requested scale speed in m/s. The sign of the number means the direction.

Implements openlcb::TrainImpl.

Definition at line 82 of file TractionThrottle.hxx.

◆ set_throttle_listener()

void openlcb::TractionThrottle::set_throttle_listener ( std::function< void(int fn)> update_callback )

inlineoverridevirtual

Sets up a callback for listening for remote throttle updates.

When a different throttle modifies the train node's state, and the ASSIGN_TRAIN command was executed with "listen==true" parameter, we will get notifications about those remote changes. The notifications update the cached state in TractionThrottle, and call this update callback. Repeat with nullptr if the callbacks are not desired anymore.

Parameters

update_callback will be executed when a different throttle changes the train state. fn is the function number changed, or -1 for speed update.

Implements openlcb::TractionThrottleInterface.

Definition at line 188 of file TractionThrottle.hxx.

◆ speed_reply()

void openlcb::TractionThrottle::speed_reply ( Buffer< GenMessage > * msg )

inlineprivate

Invoked for TRACTION_CONTROL_REPLY messages coming in via the dispatcher.

Definition at line 478 of file TractionThrottle.hxx.

◆ target_node()

openlcb::NodeID openlcb::TractionThrottle::target_node ( )

inlineoverridevirtual

Returns: the controlled node (the train node) ID.

Implements openlcb::TractionThrottleInterface.

Definition at line 174 of file TractionThrottle.hxx.

◆ throttle_node()

openlcb::Node * openlcb::TractionThrottle::throttle_node ( )

inlineoverridevirtual

Returns: the controlling node (virtual node of the throttle, i.e., us.)

Implements openlcb::TractionThrottleInterface.

Definition at line 168 of file TractionThrottle.hxx.

◆ toggle_fn()

void openlcb::TractionThrottle::toggle_fn ( uint32_t fn )

inlineoverridevirtual

Flips a function on<>off.

Implements openlcb::TractionThrottleInterface.

Definition at line 128 of file TractionThrottle.hxx.

Member Data Documentation

◆ assigned_

bool openlcb::TractionThrottle::assigned_ {false}

private

True if the assign controller has returned positive.

Definition at line 876 of file TractionThrottle.hxx.

◆ dst_

NodeID openlcb::TractionThrottle::dst_

private

Definition at line 881 of file TractionThrottle.hxx.

◆ estopActive_

bool openlcb::TractionThrottle::estopActive_ {false}

private

keep track if E-Stop is active

Definition at line 880 of file TractionThrottle.hxx.

◆ handler_

TractionResponseHandler openlcb::TractionThrottle::handler_ {iface(), node_}

private

Helper class for stateful query/return flows.

Definition at line 884 of file TractionThrottle.hxx.

◆ lastKnownFn_

std::map<uint32_t, uint16_t> openlcb::TractionThrottle::lastKnownFn_

private

Cache: all known function values.

Definition at line 890 of file TractionThrottle.hxx.

◆ lastSetSpeed_

SpeedType openlcb::TractionThrottle::lastSetSpeed_

private

Cache: Velocity value that we last commanded to the train.

Definition at line 888 of file TractionThrottle.hxx.

◆ listenConsist_

bool openlcb::TractionThrottle::listenConsist_ {false}

private

True if we also have a consist link with the assigned loco.

Definition at line 878 of file TractionThrottle.hxx.

◆ listenReplyHandler_

MessageHandler::GenericHandler openlcb::TractionThrottle::listenReplyHandler_

private

Initial value:

{

this, &TractionThrottle::listen_reply}

openlcb::TractionThrottle::listen_reply

void listen_reply(Buffer< GenMessage > *msg)

Invoked for TRACTION_CONTROL_COMMAND messages coming in via the dispatcher.

Definition TractionThrottle.hxx:646

Definition at line 869 of file TractionThrottle.hxx.

◆ node_

Node* openlcb::TractionThrottle::node_

private

Definition at line 882 of file TractionThrottle.hxx.

◆ pendingQueries_

unsigned openlcb::TractionThrottle::pendingQueries_ {0}

private

How many speed/fn query requests I have sent off to the train node that have not yet seen a reply.

Definition at line 873 of file TractionThrottle.hxx.

◆ speedReplyHandler_

MessageHandler::GenericHandler openlcb::TractionThrottle::speedReplyHandler_

private

Initial value:

{

this, &TractionThrottle::speed_reply}

openlcb::TractionThrottle::speed_reply

void speed_reply(Buffer< GenMessage > *msg)

Invoked for TRACTION_CONTROL_REPLY messages coming in via the dispatcher.

Definition TractionThrottle.hxx:478

Definition at line 867 of file TractionThrottle.hxx.

◆ timer_

StateFlowTimer openlcb::TractionThrottle::timer_ {this}

private

Definition at line 874 of file TractionThrottle.hxx.

◆ updateCallback_

std::function<void(int fn)> openlcb::TractionThrottle::updateCallback_

private

Function to call when a different controller updates the train.

Definition at line 886 of file TractionThrottle.hxx.

The documentation for this class was generated from the following file:

TractionThrottle.hxx

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Command

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ TractionThrottle()

◆ ~TractionThrottle()

Member Function Documentation

◆ assign_consist_response()

◆ assign_response()

◆ assign_train()

◆ clear_assigned()

◆ clear_cache()

◆ clear_listening()

◆ consist_add()

◆ consist_add_response()

◆ consist_del()

◆ consist_qry()

◆ consist_qry_response()

◆ entry()

◆ get_emergencystop()

◆ get_fn()

◆ get_speed()

◆ iface()

◆ input()

◆ is_train_assigned()

◆ legacy_address()

◆ legacy_address_type()

◆ listen_reply()

◆ listen_reply_process()

◆ load_done()

◆ load_state()

◆ loopback_traction_message()

◆ pending_reply_arrived()

◆ query_fn()

◆ release_listener_response()

◆ release_step_2()

◆ release_train()

◆ send_traction_message()

◆ send_traction_message_helper()

◆ send_traction_message_with_loopback()

◆ set_assigned()

◆ set_emergencystop()

◆ set_fn()

◆ set_listening()

◆ set_speed()

◆ set_throttle_listener()

◆ speed_reply()

◆ target_node()

◆ throttle_node()

◆ toggle_fn()

Member Data Documentation

◆ assigned_

◆ dst_

◆ estopActive_

◆ handler_

◆ lastKnownFn_

◆ lastSetSpeed_

◆ listenConsist_

◆ listenReplyHandler_

◆ node_

◆ pendingQueries_

◆ speedReplyHandler_

◆ timer_

◆ updateCallback_
