Use this timer class to deliver the timeout notification to a stateflow. More...

#include <StateFlow.hxx>

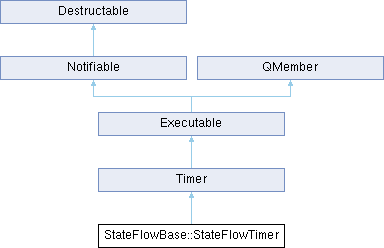

Inheritance diagram for StateFlowBase::StateFlowTimer:

Public Member Functions
	StateFlowTimer (StateFlowBase *parent)
	Constructor.

long long	timeout () override
	Clients of timer should override this function.

Public Member Functions inherited from Timer
	Timer (ActiveTimers *timers)
	Constructor.

	~Timer ()
	Destructor.

void	run () override
	Callback from the executor when this timer is scheduled.

long long	schedule_time ()

void	start (long long period=-1)
	Starts a timer.

void	start_absolute (long long expiry_time_nsec)
	Starts the timer with an absolute deadline.

void	restart ()
	Restart a timer with the existing period but from the current time.

void	trigger ()
	This will wakeup the timer prematurely, immediately.

void	ensure_triggered ()
	Triggers the timer if it is not expired yet.

void	cancel ()
	Dangerous, do not call.

bool	is_triggered ()

void	set_triggered ()
	Sets the timer as if it was woken up by a trigger(), even if it was never started.

Public Member Functions inherited from Executable
void	test_deletion ()

void	notify () override
	Crashes the program – everyone who is expecting notify calls must override this function.

virtual void	alloc_result (QMember *item)
	Return the result of an alloc_async() from a memory Pool.

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Protected Attributes
StateFlowBase *	parent_
	The timer will deliver notifications to this flow.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Additional Inherited Members
Public Types inherited from Timer
enum	{ NONE = 0 , RESTART = 1 , DELETE = -1 }
	Special return values from the timeout function. More...

Protected Member Functions inherited from Timer
void	update_period (long long period)
	Updates the period, to be used after the next expiration of the timer in order to restart it.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Detailed Description

Use this timer class to deliver the timeout notification to a stateflow.

Usage:

in the StateFlow class create a variable StateFlowTimer timer_; in the constructor initialize it with , timer_(this). then in the state function do return sleep_and_call(&timer_, MSEC_TO_NSEC(200), STATE(next_after_timeout)); If needed, you can wake up the timer in a handler function by calling timer_.trigger(). This will transition to the new state immediately.

Definition at line 462 of file StateFlow.hxx.

Constructor & Destructor Documentation

◆ StateFlowTimer()

StateFlowBase::StateFlowTimer::StateFlowTimer ( StateFlowBase * parent )

inline

Constructor.

Parameters

parent is the stateflow owning *this.

Definition at line 466 of file StateFlow.hxx.

Member Function Documentation

◆ timeout()

long long StateFlowBase::StateFlowTimer::timeout ( )

inlineoverridevirtual

Clients of timer should override this function.

It will be called on the executor of the timer.

Returns: the new timer period, or one of the above special values.

Implements Timer.

Definition at line 472 of file StateFlow.hxx.

Member Data Documentation

◆ parent_

StateFlowBase* StateFlowBase::StateFlowTimer::parent_

protected

The timer will deliver notifications to this flow.

Definition at line 480 of file StateFlow.hxx.

The documentation for this class was generated from the following file:

StateFlow.hxx
