Base class for state machines. More...

#include <StateFlow.hxx>

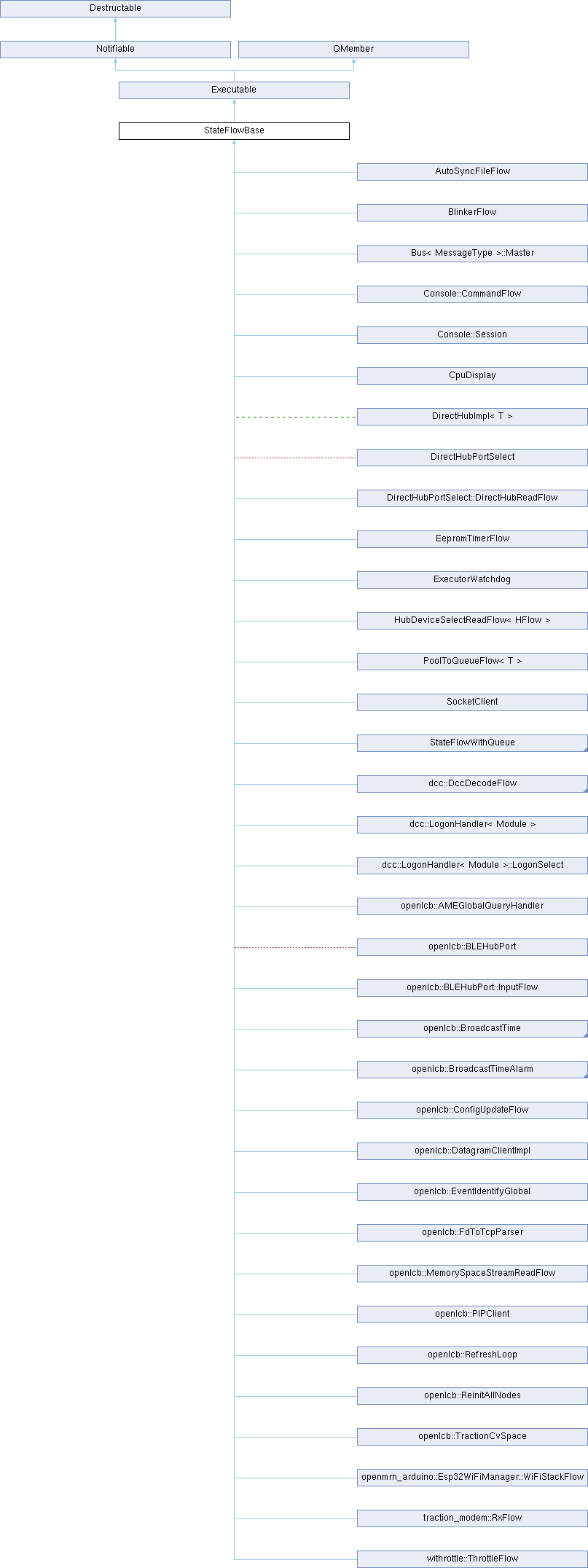

Inheritance diagram for StateFlowBase:

Classes
class	Action
	Return type for a state flow callback. More...

struct	StateFlowSelectHelper
	Use this class to read from an fd using select() in a state flow. More...

struct	StateFlowTimedSelectHelper
	Use this class to read from an fd with select and timeout. More...

class	StateFlowTimer
	Use this timer class to deliver the timeout notification to a stateflow. More...

Public Member Functions
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Static Public Member Functions
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Protected Types
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Private Member Functions
Action	terminated ()
	Terminates the current StateFlow activity.

void	alloc_result (QMember *b) override
	Callback from a Pool in case of an asynchronous allocation.

	StateFlowBase ()
	Default constructor.

	DISALLOW_COPY_AND_ASSIGN (StateFlowBase)

Private Attributes
Service *	service_
	Service this StateFlow belongs to.

Callback	state_
	current active state in the flow

QMember *	allocationResult_
	The result of the next allocation that comes in.

Additional Inherited Members
Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

Base class for state machines.

A state machine is a form of collaborative multi-tasking. StateFlows can be scheduled on an executor, and alternately perform synchronous code (executing a state handler function) and an asynchronous operation (waiting for some event to happen). The asynchronous operations may include waiting for a message to arrive in a queue, or waiting for the allocation of an empty buffer, or a notification from a called lower-level library that a specific request has completed processing.

The current state of the StateFlow is represented by a function pointer the points to a member function of the current object. When the state flow is scheduled on an executor, it will execute the current state function. Upon the return of that state function some Action will be performed. The Actions to perform are represented by functions on the StateFlowBase class that return an Action structure, such as allocate_and_call(), wait_and_call(), or call_immediately(). Most factory functions that create these Actions will receive the new state handler as an argument; when the asynchronous action is complete, the state flow will resume execution in the presented state handler function.

Definition at line 170 of file StateFlow.hxx.

Member Typedef Documentation

◆ Callback

typedef Action(StateFlowBase::* StateFlowBase::Callback) ()

protected

State Flow callback prototype.

Definition at line 218 of file StateFlow.hxx.

Constructor & Destructor Documentation

◆ StateFlowBase()

StateFlowBase::StateFlowBase ( Service * service )

inlineprotected

Constructor.

Parameters

service Service that this state flow is part of

Definition at line 200 of file StateFlow.hxx.

◆ ~StateFlowBase()

StateFlowBase::~StateFlowBase ( )

inlineprotected

Destructor.

Definition at line 209 of file StateFlow.hxx.

Member Function Documentation

◆ again()

Action StateFlowBase::again ( )

inlineprotected

Call the current state again via call_immediately.

Returns: function pointer to current state handler

Definition at line 280 of file StateFlow.hxx.

◆ alloc_result()

void StateFlowBase::alloc_result ( QMember * b )

inlineoverrideprivatevirtual

Callback from a Pool in case of an asynchronous allocation.

Parameters

b	the newly allocated payload object.

Reimplemented from Executable.

Definition at line 945 of file StateFlow.hxx.

◆ allocate_and_call() [1/2]

Action StateFlowBase::allocate_and_call	(	Callback	c,
		QAsync *	queue
	)

inlineprotected

Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

Parameters

c	is the state to transition to after allocation
queue	is the queue to allocate from.

Returns: new state object to return from state function.

Definition at line 372 of file StateFlow.hxx.

◆ allocate_and_call() [2/2]

template<class T >

Action StateFlowBase::allocate_and_call	(	FlowInterface< Buffer< T > > *	target_flow,
		Callback	c,
		Pool *	pool = `nullptr`
	)

inlineprotected

Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Parameters

target_flow	defines the type of buffer to allocate.
c	Callback "state" to move to after allocation
pool	pool to allocate from; defaults to the pool of the target flow.

Returns: function pointer to be returned from state function

Definition at line 351 of file StateFlow.hxx.

◆ call_immediately()

Action StateFlowBase::call_immediately ( Callback c )

inlineprotected

Imediately call the next state upon return.

Parameters

c	Callback "state" to move to

Returns: function pointer to be returned from state function

Definition at line 318 of file StateFlow.hxx.

◆ cast_allocation_result()

template<class T >

void StateFlowBase::cast_allocation_result ( T ** member )

inlineprotected

Takes the result of the asynchronous allocation without resetting the object.

This should be the first statement in the state where the allocation transitioned. T must be descendant of QMember.

Parameters

member will be filled with the current / latest allocation result correctly casted to the given type.

Definition at line 411 of file StateFlow.hxx.

◆ delete_this()

Action StateFlowBase::delete_this ( )

inlineprotected

Terminates the flow and deletes *this.

Do not access any member function after this call has been made.

Returns: state object to return from state handle.

Definition at line 298 of file StateFlow.hxx.

◆ exit()

Action StateFlowBase::exit ( )

inlineprotected

Terminate current StateFlow activity.

The message instance is not released before termination. This is usefull if the message will be reused for the purpose of sending to another StateFlow.

Returns: function pointer to terminated method

Definition at line 290 of file StateFlow.hxx.

◆ full_allocation_result() [1/2]

template<class T >

Buffer< T > * StateFlowBase::full_allocation_result ( FlowInterface< Buffer< T > > * target_flow )

inlineprotected

Takes the result of the asynchronous allocation without resetting the object.

This should be the first statement in the state where the allocation transitioned. If you expect an empty object, use get_allocation_result() instead.

Parameters

target_flow is the StateFlow for which we allocated.

Returns: The full buffer as it was inserted into the async queue.

Definition at line 386 of file StateFlow.hxx.

◆ full_allocation_result() [2/2]

template<class T >

T * StateFlowBase::full_allocation_result ( TypedQAsync< T > * queue )

inlineprotected

Takes the result of the asynchronous allocation without resetting the object.

This should be the first statement in the state where the allocation transitioned. If you expect an empty object, use get_allocation_result() instead.

Parameters

queue is the typed queue which we allocated from.

Returns: The object that the queue gave to us.

Definition at line 399 of file StateFlow.hxx.

◆ get_allocation_result()

template<class T >

Buffer< T > * StateFlowBase::get_allocation_result ( FlowInterface< Buffer< T > > * target_flow )

inlineprotected

Takes the result of the asynchronous allocation.

This should be the first statement in the state where the allocation transitioned.

Parameters

target_flow is the StateFlow for which we allocated.

Returns: an initialized buffer of the correct type.

Definition at line 1221 of file StateFlow.hxx.

◆ internal_try_read()

Action StateFlowBase::internal_try_read ( )

inlineprotected

Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Returns: next action.

Definition at line 667 of file StateFlow.hxx.

◆ internal_try_write()

Action StateFlowBase::internal_try_write ( )

inlineprotected

Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Returns: next action.

Definition at line 808 of file StateFlow.hxx.

◆ invoke_subflow_and_ignore_result()

template<class T , typename... Args>

static void StateFlowBase::invoke_subflow_and_ignore_result	(	FlowInterface< Buffer< T > > *	target_flow,
		Args &&...	args
	)

inlinestatic

Calls a helper flow to perform some actions.

Performs inline synchronous allocation form the main buffer pool. Ignores the target flow's buffer pool settings, because that makes it impossible to guarantee successful allocation.

Fills in the payload's arguments using the passed-in args by calling T::reset(args...). Then sends the buffer to the target flow, and ignores any response value.

Parameters

target_flow	is a pointer to the helper flow to be used
args	are forwarded to the reset() method on the target flow's buffer type.

Definition at line 548 of file StateFlow.hxx.

◆ invoke_subflow_and_wait()

template<class T , typename... Args>

Action StateFlowBase::invoke_subflow_and_wait	(	FlowInterface< Buffer< T > > *	target_flow,
		Callback	c,
		Args &&...	args
	)

inlineprotected

Calls a helper flow to perform some actions.

Performs inline synchronous allocation form the main buffer pool. Ignores the target flow's buffer pool settings, because that makes it impossible to guarantee successful allocation.

Fills in the payload's arguments using the passed-in args by calling T::reset(args...). Then sends the buffer to the target flow, and waits for the target flow to call return_buffer().

There are requirements on the arguments structure T:

struct Foo { void reset(...); BarrierNotifiable done; }

Parameters

target_flow	is a pointer to the helper flow to be used
c	is the next state after the target flow is completed
args	are forwarded to the reset() method on the target flow's buffer type.

Definition at line 521 of file StateFlow.hxx.

◆ is_state()

bool StateFlowBase::is_state ( Callback c )

inlineprotected

Returns: true if the state flow is in a specific state.

Definition at line 253 of file StateFlow.hxx.

◆ is_terminated()

bool StateFlowBase::is_terminated ( )

inlineprotected

Returns: true if the current flow is terminated.

Definition at line 259 of file StateFlow.hxx.

◆ notify()

void StateFlowBase::notify ( )

overridevirtual

Wakeup call arrived.

Schedules *this on the executor. Does not know the priority.

Reimplemented from Executable.

Reimplemented in StateFlowWithQueue.

Definition at line 97 of file StateFlow.cxx.

◆ read_nonblocking()

Action StateFlowBase::read_nonblocking	(	StateFlowSelectHelper *	helper,
		int	fd,
		void *	buf,
		size_t	size,
		Callback	c,
		unsigned	priority = `Selectable::MAX_PRIO`
	)

inlineprotected

Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Parameters

helper	stores intermediate state.
fd	isthe file to read from
buf	where to write data we've read
size	how many bytes to read
c	next state to call after write is complete
piority	what execution priority we should be scheduling the intermediate and next states after the read is complete.

Definition at line 619 of file StateFlow.hxx.

◆ read_repeated()

Action StateFlowBase::read_repeated	(	StateFlowSelectHelper *	helper,
		int	fd,
		void *	buf,
		size_t	size,
		Callback	c,
		unsigned	priority = `Selectable::MAX_PRIO`
	)

inlineprotected

Blocks until size bytes are read and then invokes the next state.

Parameters

helper	stores intermediate state.
fd	isthe file to read from
buf	where to write data we've read
size	how many bytes to read
c	next state to call after write is complete
piority	what execution priority we should be scheduling the intermediate and next states after the read is complete.

Definition at line 570 of file StateFlow.hxx.

◆ read_repeated_with_timeout()

Action StateFlowBase::read_repeated_with_timeout	(	StateFlowTimedSelectHelper *	helper,
		long long	timeout_nsec,
		int	fd,
		void *	buf,
		size_t	size,
		Callback	c,
		unsigned	priority = `Selectable::MAX_PRIO`
	)

inlineprotected

Blocks until size bytes are read, or a timeout expires.

If the timeout expires, jumps to next state with whatever data has been read. To figure out whether the timer expired or the read completed, the caller can check helper->remaining_ != 0.

Parameters

helper	stores intermediate state.
timeout_nsec	stop waiting for more data after this many nanoseconds elapsed
fd	isthe file to read from
buf	where to write data we've read
size	how many bytes to read maximum
c	next state to call after write is complete
piority	what execution priority we should be scheduling the intermediate and next states after the read is complete.

Definition at line 646 of file StateFlow.hxx.

◆ read_single()

Action StateFlowBase::read_single	(	StateFlowSelectHelper *	helper,
		int	fd,
		void *	buf,
		size_t	size,
		Callback	c,
		unsigned	priority = `Selectable::MAX_PRIO`
	)

inlineprotected

Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Then the next state is invoked with whatever the first read returned.

Parameters

helper	stores intermediate state.
fd	isthe file to read from
buf	where to write data we've read
size	how many bytes to read maximum
c	next state to call after write is complete
piority	what execution priority we should be scheduling the intermediate and next states after the read is complete.

Definition at line 594 of file StateFlow.hxx.

◆ reset_flow()

void StateFlowBase::reset_flow ( Callback c )

inlineprotected

Resets the flow to the specified state.

Parameters

c	is the state to continue the flow from after the next notification.

Definition at line 247 of file StateFlow.hxx.

◆ run()

void StateFlowBase::run ( )

overridevirtual

Callback from the executor.

Executes the current state (until we get a wait or yield return).

This function will be invoked when the current stateflow gets the CPU. It will execute the current states until the flow yields or is blocked in a waiting state.

Implements Executable.

Definition at line 58 of file StateFlow.cxx.

◆ service()

Service * StateFlowBase::service ( )

inline

Return a pointer to the service I am bound to.

Returns: pointer to service

Definition at line 191 of file StateFlow.hxx.

◆ set_terminated()

Action StateFlowBase::set_terminated ( )

inlineprotected

Sets the flow to terminated state.

Returns: action to return from state handler.

Definition at line 309 of file StateFlow.hxx.

◆ sleep_and_call()

Action StateFlowBase::sleep_and_call	(	::Timer *	timer,
		long long	timeout_nsec,
		Callback	c
	)

inlineprotected

Suspends execution of this control flow for a specified time.

After the timeout expires the flow will continue in state c.

Parameters

timer	is the timer to start. This timer should be set up to eventually call notify() on *this. We recommend using a StateFlowTimer.
timeout_nsec	is the timeout with which to start the timer.
c	is the next state to transition to when the timeout expires or the timer gets triggered.

Returns: state flow action.

Definition at line 493 of file StateFlow.hxx.

◆ start_flow()

void StateFlowBase::start_flow ( Callback c )

inlineprotected

Resets the flow to the specified state and starts it.

Parameters

c	is the state to start the flow from.

Definition at line 267 of file StateFlow.hxx.

◆ terminated()

StateFlowBase::Action StateFlowBase::terminated ( )

private

Terminates the current StateFlow activity.

This is a sink state, and there has to be an external call to do anything useful after this state has been reached.

Returns: delay.

Definition at line 126 of file StateFlow.cxx.

◆ wait()

Action StateFlowBase::wait ( )

inlineprotected

Wait for an asynchronous call.

Returns: special function pointer to return from a state handler that will cause the StateFlow to wait for an incoming wakeup (notification).

Definition at line 327 of file StateFlow.hxx.

◆ wait_and_call()

Action StateFlowBase::wait_and_call ( Callback c )

inlineprotected

Wait for resource to become available before proceeding to next state.

Parameters

c	State to move to

Returns: function pointer to be returned from state function

Definition at line 336 of file StateFlow.hxx.

◆ write_repeated()

Action StateFlowBase::write_repeated	(	StateFlowSelectHelper *	helper,
		int	fd,
		const void *	buf,
		size_t	size,
		Callback	c,
		unsigned	priority = `Selectable::MAX_PRIO`
	)

inlineprotected

Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Parameters

helper	temporary storage (usually local to the calling flow)
fd	filedes to write into
buf	Pointer to data to write. The data must stay alive until the next state is called.
size	Number of bytes of data to write.
c	next state function to call. Use the syntax STATE(my_state_fn)
priority	Which priority to schedule the flow's next state when the write is complete.

Returns: action to return.

Definition at line 790 of file StateFlow.hxx.

◆ yield()

Action StateFlowBase::yield ( )

inlineprotected

Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Similar to again, except we place this flow on the back of the Executor queue.

Returns: function pointer to be returned from state function

Definition at line 442 of file StateFlow.hxx.

◆ yield_and_call()

Action StateFlowBase::yield_and_call ( Callback c )

inlineprotected

Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Similar to call_immediately, except we place this flow on the back of the Executor queue.

Parameters

c	Callback "state" to move to

Returns: function pointer to be returned from state function

Definition at line 430 of file StateFlow.hxx.

Member Data Documentation

◆ allocationResult_

QMember* StateFlowBase::allocationResult_

private

The result of the next allocation that comes in.

Definition at line 955 of file StateFlow.hxx.

◆ service_

Service* StateFlowBase::service_

private

Service this StateFlow belongs to.

Definition at line 934 of file StateFlow.hxx.

◆ state_

Callback StateFlowBase::state_

private

current active state in the flow

Definition at line 952 of file StateFlow.hxx.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Callback

Constructor & Destructor Documentation

◆ StateFlowBase()

◆ ~StateFlowBase()

Member Function Documentation

◆ again()

◆ alloc_result()

◆ allocate_and_call() [1/2]

◆ allocate_and_call() [2/2]

◆ call_immediately()

◆ cast_allocation_result()

◆ delete_this()

◆ exit()

◆ full_allocation_result() [1/2]

◆ full_allocation_result() [2/2]

◆ get_allocation_result()

◆ internal_try_read()

◆ internal_try_write()

◆ invoke_subflow_and_ignore_result()

◆ invoke_subflow_and_wait()

◆ is_state()

◆ is_terminated()

◆ notify()

◆ read_nonblocking()

◆ read_repeated()

◆ read_repeated_with_timeout()

◆ read_single()

◆ reset_flow()

◆ run()

◆ service()

◆ set_terminated()

◆ sleep_and_call()

◆ start_flow()

◆ terminated()

◆ wait()

◆ wait_and_call()

◆ write_repeated()

◆ yield()

◆ yield_and_call()

Member Data Documentation

◆ allocationResult_

◆ service_

◆ state_
