Use this class to read from an fd with select and timeout. More...

#include <StateFlow.hxx>

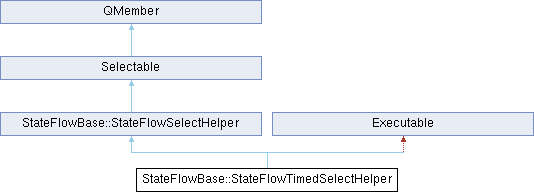

Inheritance diagram for StateFlowBase::StateFlowTimedSelectHelper:

Public Member Functions
	StateFlowTimedSelectHelper (StateFlowBase *parent)

void	set_timed_wakeup ()
	Called from the stateflow's internal state to instruct to set the wakeup target for the timer.

Public Member Functions inherited from StateFlowBase::StateFlowSelectHelper
	StateFlowSelectHelper (StateFlowBase *parent)

Public Member Functions inherited from Selectable
	Selectable (Executable *parent)
	Constructor.

void	reset (SelectType type, int fd, unsigned priority)
	Re-initialize a Selectable preparing to add it to select().

bool	is_empty ()

unsigned	priority ()

SelectType	type ()

Executable *	parent ()

int	fd ()

void	set_wakeup (Executable *e)
	Can be used to override the executable to wake up.

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Public Attributes
StateFlowTimer	timer_
	This timer is used to wake up the StateFlow.

long long	expiry_
	End of the wakeup timeout.

Public Attributes inherited from StateFlowBase::StateFlowSelectHelper
union {

const uint8_t * wbuf_

uint8_t * rbuf_

};

Callback	nextState_
	State to transition to after the read is complete.

unsigned	readFully_: 1
	1 if we need to read until all remaining_ is consumed.

unsigned	readNonblocking_: 1
	1 if we need a non-blocking read, in other words, try once

unsigned	readWithTimeout_: 1
	1 if there is also a timer involved; in this case *this must be a StateFlowTimedSelectHelper.

unsigned	hasError_: 1
	1 if there was an error reading of writing.

unsigned	remaining_: 28
	Number of bytes still outstanding to read.

Private Member Functions
void	run () override
	Entry point.

Private Member Functions inherited from Executable
void	test_deletion ()

void	notify () override
	Crashes the program – everyone who is expecting notify calls must override this function.

virtual void	alloc_result (QMember *item)
	Return the result of an alloc_async() from a memory Pool.

Private Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Additional Inherited Members
Public Types inherited from Selectable
enum	SelectType { READ = 1 , WRITE = 2 , EXCEPT = 3 }
	Which operation this file should be selected upon. More...

enum	Limits { MAX_FD = (1 << 14) - 1 , MAX_PRIO = (1 << 16) - 1 }
	Helper declarations for the certain fields' maximums. More...

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Private Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

Use this class to read from an fd with select and timeout.

This clas encapsulates both a selecthelper and a timer. It is okay to use them separately and independently from each other as well, for example to do return sleep_and_call(&timedSelect_.timer_, ...).

Definition at line 895 of file StateFlow.hxx.

Constructor & Destructor Documentation

◆ StateFlowTimedSelectHelper()

StateFlowBase::StateFlowTimedSelectHelper::StateFlowTimedSelectHelper ( StateFlowBase * parent )

inline

Parameters

parent owning flow.

Definition at line 899 of file StateFlow.hxx.

Member Function Documentation

◆ run()

void StateFlowBase::StateFlowTimedSelectHelper::run ( )

inlineoverrideprivatevirtual

Entry point.

This funciton will be called when *this gets scheduled on the CPU.

Implements Executable.

Definition at line 927 of file StateFlow.hxx.

◆ set_timed_wakeup()

void StateFlowBase::StateFlowTimedSelectHelper::set_timed_wakeup ( )

inline

Called from the stateflow's internal state to instruct to set the wakeup target for the timer.

Definition at line 907 of file StateFlow.hxx.

Member Data Documentation

◆ expiry_

long long StateFlowBase::StateFlowTimedSelectHelper::expiry_

End of the wakeup timeout.

We need to store this separately because each immediate select return will cancel the timer. This is in absolute time.

Definition at line 923 of file StateFlow.hxx.

◆ timer_

StateFlowTimer StateFlowBase::StateFlowTimedSelectHelper::timer_

This timer is used to wake up the StateFlow.

In general if the timer expires first, it will notify the stateflow directly. If the select expires first, it will cause code to run that trigger()'s this timer.

It is okay to use this timer for other purposes in the same stateflow when there is no read_with_timeout in operation.

Definition at line 918 of file StateFlow.hxx.

The documentation for this struct was generated from the following file:

StateFlow.hxx
