Implementation the ExecutorBase with a specific number of priority bands. More...

#include <Executor.hxx>

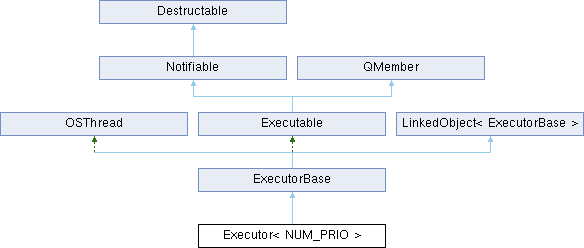

Inheritance diagram for Executor< NUM_PRIO >:

Public Member Functions
	Executor (const char *name, int priority, size_t stack_size)
	Constructor.

	Executor (const NO_THREAD &unused)
	Constructor that does not create a thread for running the executor.

void	start_thread (const char *name, int priority, size_t stack_size)
	Creates a new thread for running this executor.

	~Executor ()
	Destructor.

void	add (Executable *msg, unsigned priority=UINT_MAX) OVERRIDE
	Send a message to this Executor's queue.

void	thread_body ()
	If the executor was created with NO_THREAD, then this function needs to be called to run the executor loop.

bool	empty () OVERRIDE

uint32_t	sequence () OVERRIDE

Public Member Functions inherited from ExecutorBase
	ExecutorBase ()
	Constructor.

	~ExecutorBase ()
	Destructor.

void	sync_run (std::function< void()> fn)
	Synchronously runs a closure on this executor.

void	select (Selectable *job)
	Adds a file descriptor to be watched to the select loop.

bool	is_selected (Selectable *job)

void	unselect (Selectable *job)
	Removes a job from the select loop.

bool	loop_once ()
	Performs one loop of the execution on the calling thread.

long long	loop_some () ICACHE_FLASH_ATTR
	Performs a few loops of the executor on the calling thread.

ActiveTimers *	active_timers ()

void	shutdown ()
	Terminates the executor thread.

os_thread_t	thread_handle ()

OSThread &	thread ()

void	assert_current ()
	Die if we are not on the current executor.

Executable *	current ()
	Helper function for debugging and tracing.

Public Member Functions inherited from LinkedObject< ExecutorBase >
ExecutorBase *	link_next ()

Private Member Functions
Executable *	next (unsigned *priority) OVERRIDE
	Retrieve an item from the front of the queue.

	Executor ()
	Default Constructor.

	DISALLOW_COPY_AND_ASSIGN (Executor)

Private Attributes
QListProtected< NUM_PRIO >	queue_
	Internal queue of executables waiting to be scheduled.

Additional Inherited Members
Static Public Member Functions inherited from ExecutorBase
static ExecutorBase *	by_name (const char *name, bool wait)
	Lookup an executor by its name.

Static Public Member Functions inherited from LinkedObject< ExecutorBase >
static ExecutorBase *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Protected Member Functions inherited from ExecutorBase
void *	entry () override
	Thread entry point.

void	run () override
	Entry point.

	DISALLOW_COPY_AND_ASSIGN (ExecutorBase)

	OSThread (const char name, int priority, size_t stack_size, void (start_routine)(void ), void *arg)
	Create a thread.

	OSThread ()
	Creates a thread via inheritance.

void	start (const char *name, int priority, size_t stack_size)
	Starts the thread.

virtual	~OSThread ()
	Default destructor.

bool	is_created ()

void	inherit ()
	Inherits the current thread.

os_thread_t	get_handle ()

void	lock_to_thread ()
	Sets the thread handle to the current calling thread's.

void	unlock_from_thread ()
	Resets the thread handle to none.

Protected Member Functions inherited from Executable
void	test_deletion ()

void	notify () override
	Crashes the program – everyone who is expecting notify calls must override this function.

virtual void	alloc_result (QMember *item)
	Return the result of an alloc_async() from a memory Pool.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

void	init ()
	Initiailize a QMember, in place of a public placement construction.

Protected Member Functions inherited from LinkedObject< ExecutorBase >
ExecutorBase *	link_this ()

	LinkedObject ()
	Constructor. Puts *this on the linked list.

	~LinkedObject ()
	Constructor. Removes *this from the linked list.

ExecutorBase *	link_next ()

Static Protected Member Functions inherited from OSThread
static int	getpriority (OSThread *thread)
	Return the current thread priority.

static int	get_priority (OSThread *thread)
	Return the current thread priority.

static int	get_priority_min ()
	Get the minimum thread priority.

static int	get_priority_max ()
	Get the maximum thread priority.

Static Protected Member Functions inherited from LinkedObject< ExecutorBase >
static ExecutorBase *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Protected Attributes inherited from ExecutorBase
OSSelectWakeup	selectHelper_
	Helper object for interruptible select calls.

volatile unsigned	sequence_: 25
	Sequence number.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Protected Attributes inherited from LinkedObject< ExecutorBase >
ExecutorBase *	link_
	Linked list pointer.

Static Protected Attributes inherited from LinkedObject< ExecutorBase >
static ExecutorBase *	head_
	Beginning of the list.

Detailed Description

template<unsigned NUM_PRIO>
class Executor< NUM_PRIO >

Implementation the ExecutorBase with a specific number of priority bands.

The memory usage and scheduling cost is proportional to the number of priority bands, so it should be kept pretty low.

Definition at line 265 of file Executor.hxx.

Constructor & Destructor Documentation

◆ Executor() [1/2]

template<unsigned NUM_PRIO>

Executor< NUM_PRIO >::Executor	(	const char *	name,
		int	priority,
		size_t	stack_size
	)

inline

Constructor.

Parameters

name	name of executor
priority	thread priority
stack_size	thread stack size

Definition at line 274 of file Executor.hxx.

◆ Executor() [2/2]

template<unsigned NUM_PRIO>

Executor< NUM_PRIO >::Executor ( const NO_THREAD & unused )

inlineexplicit

Constructor that does not create a thread for running the executor.

The owner should later create a thread to this executor by calling the start_thread() function or donate a thread by calling thread_body() function.

Parameters

unused unused – just here for polymorphic disalbiguation.

Definition at line 284 of file Executor.hxx.

◆ ~Executor()

template<unsigned NUM_PRIO>

Executor< NUM_PRIO >::~Executor ( )

Destructor.

Destructs the executor.

Waits for the executor to run out of work first.

Definition at line 411 of file Executor.hxx.

Member Function Documentation

◆ add()

template<unsigned NUM_PRIO>

void Executor< NUM_PRIO >::add	(	Executable *	msg,
		unsigned	priority = `UINT_MAX`
	)

inlinevirtual

Send a message to this Executor's queue.

Parameters

msg	Executable instance to insert into the input queue
priority	priority of message

Implements ExecutorBase.

Definition at line 306 of file Executor.hxx.

◆ empty()

template<unsigned NUM_PRIO>

bool Executor< NUM_PRIO >::empty ( )

inlinevirtual

Returns: true if there are no executables waiting on this thread to be executed. There could still be a current executable.

Implements ExecutorBase.

Definition at line 350 of file Executor.hxx.

◆ next()

template<unsigned NUM_PRIO>

Executable * Executor< NUM_PRIO >::next ( unsigned * priority )

inlineprivatevirtual

Retrieve an item from the front of the queue.

Parameters

priority pass back the priority of the queue pulled from

Returns: item retrieved from queue, else NULL if none waiting.

Implements ExecutorBase.

Definition at line 362 of file Executor.hxx.

◆ sequence()

template<unsigned NUM_PRIO>

uint32_t Executor< NUM_PRIO >::sequence ( )

inlinevirtual

Returns: a number that gets incremented by one every time an executable runs.

Implements ExecutorBase.

Definition at line 355 of file Executor.hxx.

◆ start_thread()

template<unsigned NUM_PRIO>

void Executor< NUM_PRIO >::start_thread	(	const char *	name,
		int	priority,
		size_t	stack_size
	)

inline

Creates a new thread for running this executor.

Parameters

name	thread name (passed to OS)
priority	thread priority (0 == default prio)
stack_size	number of bytes to allocate for the thread stack; used only for FreeRTOS and ignored on linux etc.

Definition at line 293 of file Executor.hxx.

◆ thread_body()

template<unsigned NUM_PRIO>

void Executor< NUM_PRIO >::thread_body ( )

inline

If the executor was created with NO_THREAD, then this function needs to be called to run the executor loop.

It will exit when the execut gets shut down. Useful for having an executor loop run in the main thread.

Definition at line 344 of file Executor.hxx.

Member Data Documentation

◆ queue_

template<unsigned NUM_PRIO>

QListProtected<NUM_PRIO> Executor< NUM_PRIO >::queue_

private

Internal queue of executables waiting to be scheduled.

Definition at line 376 of file Executor.hxx.

The documentation for this class was generated from the following file:

Executor.hxx
