CallableFlow< RequestType > Class Template Reference

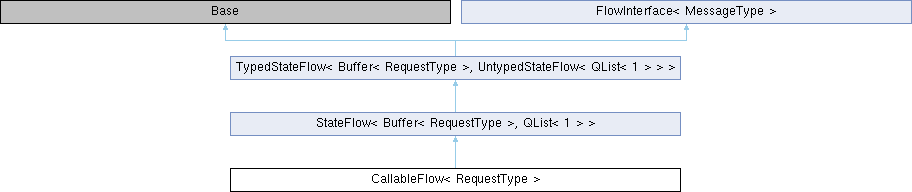

Inheritance diagram for CallableFlow< RequestType >:

Public Member Functions
	CallableFlow (Service *s)
	Creates a callable flow.
Public Member Functions inherited from StateFlow< Buffer< RequestType >, QList< 1 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
virtual Action	entry () override=0
	Entry into the StateFlow activity.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Protected Types
using	Action = StateFlowBase::Action

Protected Member Functions
RequestType *	request ()
bool	has_request ()
Action	return_ok ()
	Terminates the flow and returns the request buffer to the caller with an error code of OK (zero).
Action	wait_and_return_ok ()
	Waits to be notified before moving onto the next state for termination.
Action	wait_done ()
	Terminates the flow and returns the request buffer to the caller with an error code of OK (zero).
Action	return_with_error (int error)
	Terminates the flow and returns the request buffer to the caller with an specific error code.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Detailed Description

template<class RequestType>
class CallableFlow< RequestType >

Definition at line 57 of file CallableFlow.hxx.

Member Typedef Documentation

Action

template<class RequestType >

using CallableFlow< RequestType >::Action = StateFlowBase::Action

protected

Definition at line 64 of file CallableFlow.hxx.

Constructor & Destructor Documentation

CallableFlow()

template<class RequestType >

CallableFlow< RequestType >::CallableFlow ( Service *  s )

inline

Creates a callable flow.

Parameters

s	defines the service we are operating upon.

Definition at line 61 of file CallableFlow.hxx.

Member Function Documentation

has_request()

template<class RequestType >

bool CallableFlow< RequestType >::has_request ( )

inlineprotected

Returns

true if there is an active request, i.e., when request() is allowed to be called.

Definition at line 84 of file CallableFlow.hxx.

request()

template<class RequestType >

RequestType * CallableFlow< RequestType >::request ( )

inlineprotected

Returns

the current request we are working on. This function may be called only if there is an active request. If unsure, use {} to verify it first.

Definition at line 69 of file CallableFlow.hxx.

return_ok()

template<class RequestType >

Action CallableFlow< RequestType >::return_ok ( )

inlineprotected

Terminates the flow and returns the request buffer to the caller with an error code of OK (zero).

Definition at line 91 of file CallableFlow.hxx.

return_with_error()

template<class RequestType >

Action CallableFlow< RequestType >::return_with_error ( int  error )

inlineprotected

Terminates the flow and returns the request buffer to the caller with an specific error code.

Definition at line 111 of file CallableFlow.hxx.

wait_and_return_ok()

template<class RequestType >

Action CallableFlow< RequestType >::wait_and_return_ok ( )

inlineprotected

Waits to be notified before moving onto the next state for termination.

Definition at line 97 of file CallableFlow.hxx.

wait_done()

template<class RequestType >

Action CallableFlow< RequestType >::wait_done ( )

inlineprotected

Terminates the flow and returns the request buffer to the caller with an error code of OK (zero).

Definition at line 104 of file CallableFlow.hxx.

---

The documentation for this class was generated from the following file:

• CallableFlow.hxx
