openlcb::MemoryConfigStreamHandler Class Reference

Handler for the stream read/write commands in the memory config protocol (server side). More...

#include <MemoryConfigStream.hxx>

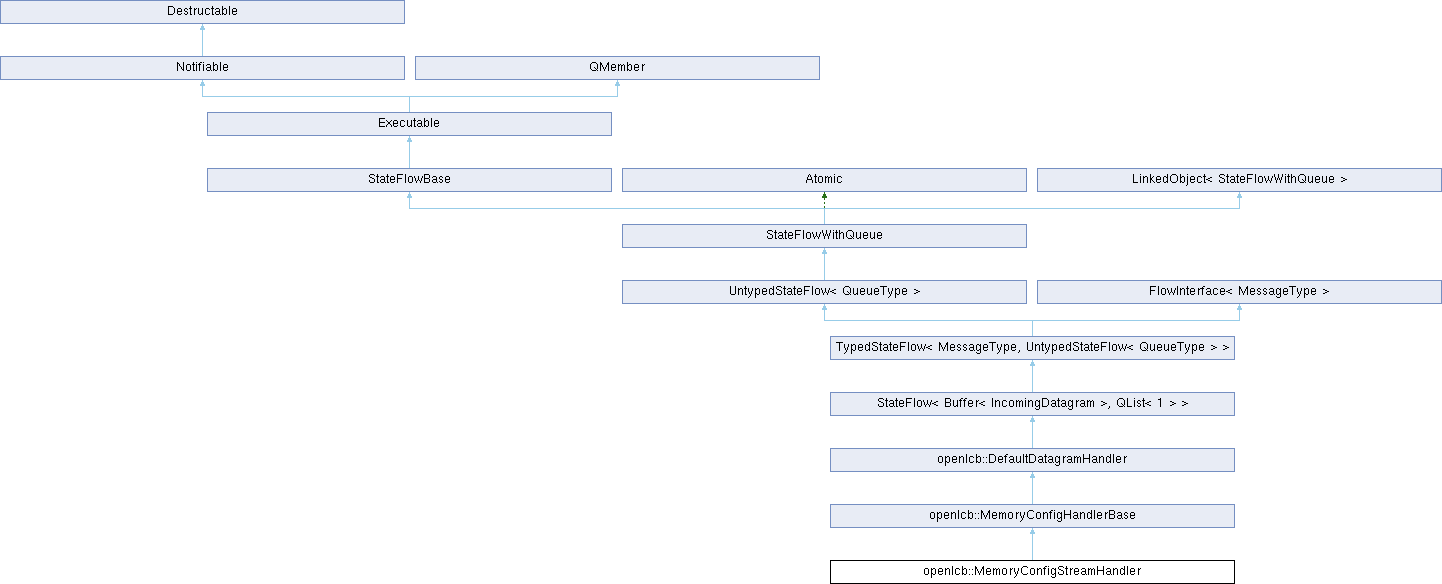

Inheritance diagram for openlcb::MemoryConfigStreamHandler:

Public Member Functions
	MemoryConfigStreamHandler (MemoryConfigHandler *parent)
Action	entry () override
	Entry into the StateFlow activity.
Public Member Functions inherited from openlcb::DefaultDatagramHandler
DatagramService *	dg_service ()
Public Member Functions inherited from StateFlow< MessageType, QueueType >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from UntypedStateFlow< QueueType >
	UntypedStateFlow (Service *service)
	Constructor.
Public Member Functions inherited from StateFlowWithQueue
void	notify () override
	Wakeup call arrived. Schedules *this on the executor.
bool	is_waiting ()
Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.
Service *	service ()
	Return a pointer to the service I am bound to.
Public Member Functions inherited from Executable
void	test_deletion ()
Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.
Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_next ()
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Member Functions
Action	handle_read_stream ()
void	stream_start_cb (uint16_t error)
	Callback from the stream flow that tells us whether the stream was successfully started (or not).
Action	read_started ()
MemorySpace *	get_space ()
	Looks up the memory space for the current datagram.
Registry *	registry ()

Private Attributes
MemoryConfigHandler *	parent_
	Parent object from which we are getting commands forwarded.
uint16_t	streamErrorCode_
	OpenLCB error code from the stream start.
union {
MemorySpaceStreamReadFlow *   readFlow_
	The flow that we created for reading the memory space into the stream. More...
};

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.
Static Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()
static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Types inherited from openlcb::MemoryConfigHandlerBase
enum	{ DATAGRAM_ID = DatagramDefs::CONFIGURATION }
typedef MemorySpace::address_t	address_t
typedef MemorySpace::errorcode_t	errorcode_t
typedef TypedNodeHandlerMap< Node, MemorySpace >	Registry
Protected Types inherited from UntypedStateFlow< QueueType >
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.
Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.
Protected Member Functions inherited from openlcb::MemoryConfigHandlerBase
	MemoryConfigHandlerBase (DatagramService *if_dg)
Action	ok_response_sent () OVERRIDE
	This state is where the handling will end up after a respond_ok call.
Action	cleanup ()
Action	client_allocated ()
Action	send_response_datagram ()
Action	response_flow_complete ()
bool	has_custom_space ()
int	get_space_number ()
	Returns the memory space number, or -1 if the incoming datagram is of incorrect format.
int	get_read_length ()
	Returns the read/write length from byte 6 or 7 of the incoming datagram, or -1 if the incoming datagram is of incorrect format.
int	get_write_length ()
address_t	get_address ()
	Returns the address from the incoming datagram.
void	set_address_and_space ()
	Copies the address and memory space information from the incoming datagram to the outgoing datagram payload.
void	set_address (address_t address)
	Sets the address in the response payload buffer.
uint8_t *	out_bytes ()
const uint8_t *	in_bytes ()
Protected Member Functions inherited from openlcb::DefaultDatagramHandler
	DefaultDatagramHandler (DatagramService *if_datagram)
Action	respond_ok (uint8_t flags)
	Sends a DATAGRAM_OK response to the datagram originator node.
void	inline_respond_ok (uint8_t flags)
	Sends a DATAGRAM_OK response to the datagram originator node.
Action	respond_reject (uint16_t error_code)
	Sends a DATAGRAM_REJECT response to the datagram originator node.
size_t	size ()
const uint8_t *	payload ()
Protected Member Functions inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.
Protected Member Functions inherited from UntypedStateFlow< QueueType >
void	send (BufferBase *msg, unsigned priority=UINT_MAX)
	Sends a message to the state flow for processing.
QMember *	queue_next (unsigned *priority) OVERRIDE
	Takes the front entry in the queue.
bool	queue_empty () OVERRIDE
Action	call_immediately (Callback c)
	Imediately call the next state upon return.
Protected Member Functions inherited from StateFlowWithQueue
	StateFlowWithQueue (Service *service)
	Constructor.
Action	exit ()
	Terminates the processing of this flow.
Action	release_and_exit ()
	Terminates the processing of the current message.
BufferBase *	message ()
BufferBase *	transfer_message ()
	Releases ownership of the current message.
void	reset_message (BufferBase *message, unsigned priority)
	Sets the current message being processed.
unsigned	priority ()
void	set_priority (unsigned priority)
	Overrides the current priority.
void	start_flow_at_init (Callback c)
	Call this from the constructor of the child class to do some work before the main queue processing loop begins.
Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.
	~StateFlowBase ()
	Destructor.
void	reset_flow (Callback c)
	Resets the flow to the specified state.
bool	is_state (Callback c)
bool	is_terminated ()
void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.
Action	again ()
	Call the current state again via call_immediately.
Action	exit ()
	Terminate current StateFlow activity.
Action	delete_this ()
	Terminates the flow and deletes *this.
Action	set_terminated ()
	Sets the flow to terminated state.
Action	call_immediately (Callback c)
	Imediately call the next state upon return.
Action	wait ()
	Wait for an asynchronous call.
Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.
template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > *target_flow, Callback c, Pool *pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.
Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.
template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.
template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.
template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.
template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.
Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.
Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.
Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.
template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.
Action	read_repeated (StateFlowSelectHelper *helper, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.
Action	read_single (StateFlowSelectHelper *helper, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.
Action	read_nonblocking (StateFlowSelectHelper *helper, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.
Action	read_repeated_with_timeout (StateFlowTimedSelectHelper *helper, long long timeout_nsec, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.
Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.
Action	write_repeated (StateFlowSelectHelper *helper, int fd, const void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.
Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.
Protected Member Functions inherited from QMember
	QMember ()
	Constructor.
	~QMember ()
	Destructor.
Protected Member Functions inherited from Atomic
void	lock ()
void	unlock ()
Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_this ()
	LinkedObject ()
	Constructor. Puts *this on the linked list.
	~LinkedObject ()
	Constructor. Removes *this from the linked list.
StateFlowWithQueue *	link_next ()
Static Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()
static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).
Protected Attributes inherited from openlcb::MemoryConfigHandlerBase
DatagramPayload	response_
DatagramClient *	responseFlow_
BarrierNotifiable	b_
Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue
Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_
	Linked list pointer.
Static Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	head_
	Beginning of the list.

Detailed Description

Handler for the stream read/write commands in the memory config protocol (server side).

Definition at line 269 of file MemoryConfigStream.hxx.

Constructor & Destructor Documentation

MemoryConfigStreamHandler()

openlcb::MemoryConfigStreamHandler::MemoryConfigStreamHandler ( MemoryConfigHandler *  parent )

inline

Definition at line 272 of file MemoryConfigStream.hxx.

Member Function Documentation

entry()

Action openlcb::MemoryConfigStreamHandler::entry ( )

inlineoverridevirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns

function pointer to next state

Todo:

handle write stream

Implements TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >.

Definition at line 279 of file MemoryConfigStream.hxx.

get_space()

MemorySpace * openlcb::MemoryConfigStreamHandler::get_space ( )

inlineprivate

Looks up the memory space for the current datagram.

Returns NULL if no space was registered (for neither the current node, nor global).

Definition at line 391 of file MemoryConfigStream.hxx.

handle_read_stream()

Action openlcb::MemoryConfigStreamHandler::handle_read_stream ( )

inlineprivate

Definition at line 300 of file MemoryConfigStream.hxx.

read_started()

Action openlcb::MemoryConfigStreamHandler::read_started ( )

inlineprivate

Definition at line 351 of file MemoryConfigStream.hxx.

registry()

Registry * openlcb::MemoryConfigStreamHandler::registry ( )

inlineprivate

Definition at line 416 of file MemoryConfigStream.hxx.

stream_start_cb()

void openlcb::MemoryConfigStreamHandler::stream_start_cb ( uint16_t  error )

inlineprivate

Callback from the stream flow that tells us whether the stream was successfully started (or not).

Definition at line 345 of file MemoryConfigStream.hxx.

Member Data Documentation

parent_

MemoryConfigHandler* openlcb::MemoryConfigStreamHandler::parent_

private

Parent object from which we are getting commands forwarded.

Definition at line 423 of file MemoryConfigStream.hxx.

readFlow_

MemorySpaceStreamReadFlow* openlcb::MemoryConfigStreamHandler::readFlow_

The flow that we created for reading the memory space into the stream.

Definition at line 432 of file MemoryConfigStream.hxx.

streamErrorCode_

uint16_t openlcb::MemoryConfigStreamHandler::streamErrorCode_

private

OpenLCB error code from the stream start.

Definition at line 426 of file MemoryConfigStream.hxx.

---

The documentation for this class was generated from the following file:

• MemoryConfigStream.hxx
