This is a self-owned flow which reads an memory space into a stream. More...

#include <MemoryConfigStream.hxx>

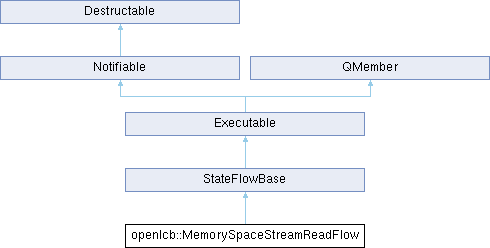

Inheritance diagram for openlcb::MemorySpaceStreamReadFlow:

Public Types
using	CallbackFn = std::function< void(uint16_t)>
	This callback function will be called with an error code, or 0 on success.

Public Member Functions
	MemorySpaceStreamReadFlow (Node node, MemorySpace space, NodeHandle dst, uint8_t dst_stream_id, uint32_t ofs, uint32_t len, CallbackFn started_cb)
	Constructor.

uint8_t	get_src_stream_id ()

uint8_t	get_dst_stream_id ()

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Private Member Functions
Action	alloc_stream ()

Action	got_sender ()

Action	initiate_stream ()

Action	wait_for_started ()

Action	alloc_buffer ()

Action	have_raw_buffer ()

Action	try_read ()

Action	wait_for_close ()

Action	done_stream ()

StreamTransport *	stream_transport ()

Private Attributes
LimitedPool	sendBufferPool_ {sizeof(RawBuffer), 2, rawBufferPool}
	This pool is used to allocate raw buffers to read data into from the memory space.

ByteBufferPtr	sendBuffer_
	We keep reading into this buffer from the memory space.

StateFlowTimer	timer_ {this}
	Helper object for waiting.

NodeHandle	dst_
	Address to which we are sending the stream.

CallbackFn	startedCb_
	callback to invoke after start is successful.

MemorySpace *	space_
	Memory space we are reading.

uint8_t	srcStreamId_ {StreamDefs::INVALID_STREAM_ID}
	Destination stream ID on the target node.

uint8_t	dstStreamId_
	Destination stream ID on the target node.

Node *	node_
	Node from which we are sending the stream.

uint32_t	ofs_
	Next byte to read.

uint32_t	len_
	How many bytes are left to read.

StreamSenderCan *	senderCan_

StreamSender *	sender_

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

This is a self-owned flow which reads an memory space into a stream.

Definition at line 47 of file MemoryConfigStream.hxx.

Member Typedef Documentation

◆ CallbackFn

using openlcb::MemorySpaceStreamReadFlow::CallbackFn = std::function<void(uint16_t)>

This callback function will be called with an error code, or 0 on success.

Definition at line 52 of file MemoryConfigStream.hxx.

Constructor & Destructor Documentation

◆ MemorySpaceStreamReadFlow()

openlcb::MemorySpaceStreamReadFlow::MemorySpaceStreamReadFlow	(	Node *	node,
		MemorySpace *	space,
		NodeHandle	dst,
		uint8_t	dst_stream_id,
		uint32_t	ofs,
		uint32_t	len,
		CallbackFn	started_cb
	)

inline

Constructor.

Does NOT transfer ownership; this class will delete itself.

Parameters

node	virtual nde where to send the stream from.
space	memory space pointer
dst	target node to send data to
dst_stream_id	sream ID on the target node
ofs	where to start reading from in the memory space
len	how many bytes to send (0xFFFFFFFF to send until EOF)
started_cb	will be invoked when the stream initiate reply arrives and data can be sent to the stream.

Definition at line 65 of file MemoryConfigStream.hxx.

Member Function Documentation

◆ alloc_buffer()

Action openlcb::MemorySpaceStreamReadFlow::alloc_buffer ( )

inlineprivate

Definition at line 140 of file MemoryConfigStream.hxx.

◆ alloc_stream()

Action openlcb::MemorySpaceStreamReadFlow::alloc_stream ( )

inlineprivate

Definition at line 94 of file MemoryConfigStream.hxx.

◆ done_stream()

Action openlcb::MemorySpaceStreamReadFlow::done_stream ( )

inlineprivate

Definition at line 222 of file MemoryConfigStream.hxx.

◆ get_dst_stream_id()

uint8_t openlcb::MemorySpaceStreamReadFlow::get_dst_stream_id ( )

inline

Returns: the currently running flow's destination stream ID.

Definition at line 88 of file MemoryConfigStream.hxx.

◆ get_src_stream_id()

uint8_t openlcb::MemorySpaceStreamReadFlow::get_src_stream_id ( )

inline

Returns: the currently running flow's source stream ID.

Definition at line 82 of file MemoryConfigStream.hxx.

◆ got_sender()

Action openlcb::MemorySpaceStreamReadFlow::got_sender ( )

inlineprivate

Todo:: the APIs are not on the right object in StreamSender, so we have to do this down cast.

Definition at line 100 of file MemoryConfigStream.hxx.

◆ have_raw_buffer()

Action openlcb::MemorySpaceStreamReadFlow::have_raw_buffer ( )

inlineprivate

Definition at line 146 of file MemoryConfigStream.hxx.

◆ initiate_stream()

Action openlcb::MemorySpaceStreamReadFlow::initiate_stream ( )

inlineprivate

Definition at line 112 of file MemoryConfigStream.hxx.

◆ stream_transport()

StreamTransport * openlcb::MemorySpaceStreamReadFlow::stream_transport ( )

inlineprivate

Definition at line 230 of file MemoryConfigStream.hxx.

◆ try_read()

Action openlcb::MemorySpaceStreamReadFlow::try_read ( )

inlineprivate

Definition at line 156 of file MemoryConfigStream.hxx.

◆ wait_for_close()

Action openlcb::MemorySpaceStreamReadFlow::wait_for_close ( )

inlineprivate

Definition at line 204 of file MemoryConfigStream.hxx.

◆ wait_for_started()

Action openlcb::MemorySpaceStreamReadFlow::wait_for_started ( )

inlineprivate

Definition at line 120 of file MemoryConfigStream.hxx.

Member Data Documentation

◆ dst_

NodeHandle openlcb::MemorySpaceStreamReadFlow::dst_

private

Address to which we are sending the stream.

Definition at line 245 of file MemoryConfigStream.hxx.

◆ dstStreamId_

uint8_t openlcb::MemorySpaceStreamReadFlow::dstStreamId_

private

Destination stream ID on the target node.

Definition at line 253 of file MemoryConfigStream.hxx.

◆ len_

uint32_t openlcb::MemorySpaceStreamReadFlow::len_

private

How many bytes are left to read.

0xFFFFFFFF if all bytes until EOF need to be read.

Definition at line 260 of file MemoryConfigStream.hxx.

◆ node_

Node* openlcb::MemorySpaceStreamReadFlow::node_

private

Node from which we are sending the stream.

Definition at line 255 of file MemoryConfigStream.hxx.

◆ ofs_

uint32_t openlcb::MemorySpaceStreamReadFlow::ofs_

private

Next byte to read.

Definition at line 257 of file MemoryConfigStream.hxx.

◆ sendBuffer_

ByteBufferPtr openlcb::MemorySpaceStreamReadFlow::sendBuffer_

private

We keep reading into this buffer from the memory space.

Definition at line 241 of file MemoryConfigStream.hxx.

◆ sendBufferPool_

LimitedPool openlcb::MemorySpaceStreamReadFlow::sendBufferPool_ {sizeof(RawBuffer), 2, rawBufferPool}

private

This pool is used to allocate raw buffers to read data into from the memory space.

By keeping the count limited we can ensure that we only carry 2 kbytes of data in RAM before it gets dumped into the CAN-bus packets.

Definition at line 239 of file MemoryConfigStream.hxx.

◆ sender_

StreamSender* openlcb::MemorySpaceStreamReadFlow::sender_

private

Definition at line 264 of file MemoryConfigStream.hxx.

◆ senderCan_

StreamSenderCan* openlcb::MemorySpaceStreamReadFlow::senderCan_

private

Definition at line 263 of file MemoryConfigStream.hxx.

◆ space_

MemorySpace* openlcb::MemorySpaceStreamReadFlow::space_

private

Memory space we are reading.

Definition at line 249 of file MemoryConfigStream.hxx.

◆ srcStreamId_

uint8_t openlcb::MemorySpaceStreamReadFlow::srcStreamId_ {StreamDefs::INVALID_STREAM_ID}

private

Destination stream ID on the target node.

Definition at line 251 of file MemoryConfigStream.hxx.

◆ startedCb_

CallbackFn openlcb::MemorySpaceStreamReadFlow::startedCb_

private

callback to invoke after start is successful.

Definition at line 247 of file MemoryConfigStream.hxx.

◆ timer_

StateFlowTimer openlcb::MemorySpaceStreamReadFlow::timer_ {this}

private

Helper object for waiting.

Definition at line 243 of file MemoryConfigStream.hxx.

The documentation for this class was generated from the following file:

MemoryConfigStream.hxx

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ CallbackFn

Constructor & Destructor Documentation

◆ MemorySpaceStreamReadFlow()

Member Function Documentation

◆ alloc_buffer()

◆ alloc_stream()

◆ done_stream()

◆ get_dst_stream_id()

◆ get_src_stream_id()

◆ got_sender()

◆ have_raw_buffer()

◆ initiate_stream()

◆ stream_transport()

◆ try_read()

◆ wait_for_close()

◆ wait_for_started()

Member Data Documentation

◆ dst_

◆ dstStreamId_

◆ len_

◆ node_

◆ ofs_

◆ sendBuffer_

◆ sendBufferPool_

◆ sender_

◆ senderCan_

◆ space_

◆ srcStreamId_

◆ startedCb_

◆ timer_
