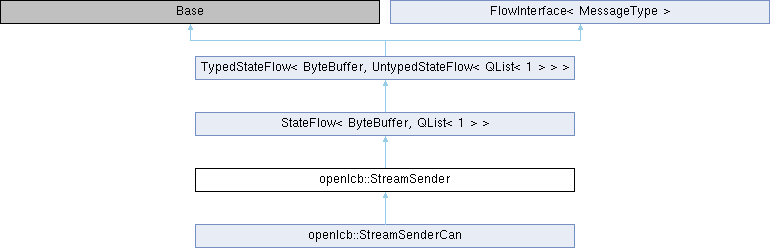

Inheritance diagram for openlcb::StreamSender:

Public Types
enum	StreamSenderState : uint8_t { IDLE , STARTED , INITIATING , RUNNING , FULL , CLOSING , STATE_ERROR }
	Describes the different states in the stream sender. More...

Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Public Member Functions
	StreamSender (Service *s)

Public Member Functions inherited from StateFlow< ByteBuffer, QList< 1 > >
	StateFlow (Service *service)
	Constructor.

Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

virtual Action	entry () override=0
	Entry into the StateFlow activity.

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Additional Inherited Members
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Detailed Description

Definition at line 51 of file StreamSender.hxx.

Member Enumeration Documentation

Describes the different states in the stream sender.

Enumerator
IDLE	This stream sender is not in use now.
STARTED	The local client has started using the stream sender (via API).
INITIATING	The stream initiate message was sent.
RUNNING	Stream is open and data can be transferred.
FULL	Stream buffer is full, waiting for proceed message.
CLOSING	Stream close message was sent.
STATE_ERROR	An error occurred.

Definition at line 60 of file StreamSender.hxx.

openlcb::StreamSender::StreamSender ( Service * s )

inline

Definition at line 54 of file StreamSender.hxx.

The documentation for this class was generated from the following file:
