openlcb::DatagramService Class Reference

Transport-agnostic dispatcher of datagrams. More...

#include <Datagram.hxx>

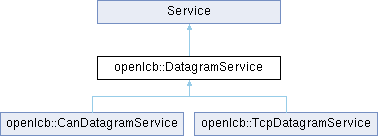

Inheritance diagram for openlcb::DatagramService:

Classes
class	DatagramDispatcher
	Class for routing incoming datagram messages to the datagram handlers. More...

Public Types
typedef TypedNodeHandlerMap< Node, DatagramHandler >	Registry

Public Member Functions
	DatagramService (If *iface, size_t num_registry_entries)
	Creates a datagram dispatcher.
Registry *	registry ()
TypedQAsync< DatagramClient > *	client_allocator ()
	Datagram clients.
If *	iface ()
Public Member Functions inherited from Service
	Service (ExecutorBase *e)
	Constructor.
	~Service ()
	Destructor.
ExecutorBase *	executor ()

Private Attributes
If *	iface_
	Interface on which we are registered.
TypedQAsync< DatagramClient >	clients_
	Datagram clients.
DatagramDispatcher	dispatcher_
	Datagram dispatch handler.

Detailed Description

Transport-agnostic dispatcher of datagrams.

There will be typically one instance of this for each interface with virtual nodes. This class is responsible for maintaining the registered datagram handlers, and taking the datagram MTI from the incoming messages and routing them to the datagra for datagram handlers.

The datagram handler needs to listen to the incoming queue for arriving datagrams.

Definition at line 160 of file Datagram.hxx.

Member Typedef Documentation

Registry

typedef TypedNodeHandlerMap<Node, DatagramHandler> openlcb::DatagramService::Registry

Definition at line 163 of file Datagram.hxx.

Constructor & Destructor Documentation

DatagramService()

openlcb::DatagramService::DatagramService	(	If *	iface,
		size_t	num_registry_entries
	)

Creates a datagram dispatcher.

Parameters

interface	is the async interface to which to bind.
num_registry_entries	is the size of the registry map (how many datagram handlers can be registered)

Definition at line 44 of file Datagram.cxx.

~DatagramService()

openlcb::DatagramService::~DatagramService

(

)

Definition at line 52 of file Datagram.cxx.

Member Function Documentation

client_allocator()

TypedQAsync< DatagramClient > * openlcb::DatagramService::client_allocator ( )

inline

Datagram clients.

Use control flows from this allocator to send datagrams to remote nodes. When the client flow completes, it is the caller's responsibility to return it to this allocator, once the client is done examining the result codes.

Definition at line 186 of file Datagram.hxx.

iface()

If * openlcb::DatagramService::iface ( )

inline

Definition at line 191 of file Datagram.hxx.

registry()

Registry * openlcb::DatagramService::registry ( )

inline

Returns

the registry of datagram handlers.

Definition at line 175 of file Datagram.hxx.

Member Data Documentation

clients_

TypedQAsync<DatagramClient> openlcb::DatagramService::clients_

private

Datagram clients.

Definition at line 243 of file Datagram.hxx.

dispatcher_

DatagramDispatcher openlcb::DatagramService::dispatcher_

private

Datagram dispatch handler.

Definition at line 246 of file Datagram.hxx.

iface_

If* openlcb::DatagramService::iface_

private

Interface on which we are registered.

Definition at line 240 of file Datagram.hxx.

---

The documentation for this class was generated from the following files:

• Datagram.hxx
• Datagram.cxx
