openlcb::DatagramService::DatagramDispatcher Class Reference

Class for routing incoming datagram messages to the datagram handlers. More...

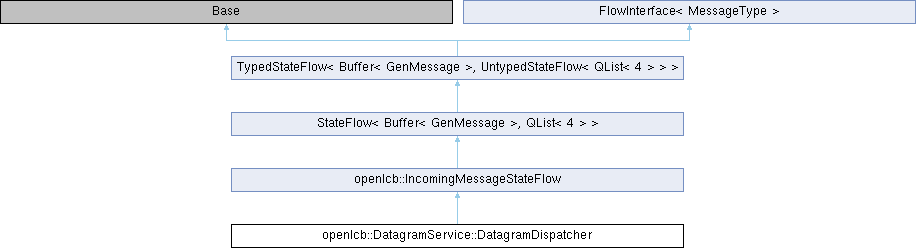

Inheritance diagram for openlcb::DatagramService::DatagramDispatcher:

Public Member Functions
	DatagramDispatcher (If *iface, size_t num_registry_entries)
Registry *	registry ()
Public Member Functions inherited from openlcb::IncomingMessageStateFlow
	IncomingMessageStateFlow (If *iface)
If *	iface ()
GenMessage *	nmsg ()
	Returns the NMRAnet message we received.
Public Member Functions inherited from StateFlow< Buffer< GenMessage >, QList< 4 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Member Functions
Action	entry () override
	Entry into the StateFlow activity.
Action	incoming_datagram_allocated ()
Action	respond_rejection ()

Private Attributes
Buffer< IncomingDatagram > *	d_
uint16_t	resultCode_
Registry	registry_
	Maintains the registered datagram handlers.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.

Detailed Description

Class for routing incoming datagram messages to the datagram handlers.

Keeps a registry of datagram handlers. Listens to incoming MTI_DATAGRAM messages coming from the If, and routes them to the appropriate datagram handlerflow.

The dispatcher is a state flow that is using the If as the base service and not the DatagramService that owns it.

Definition at line 205 of file Datagram.hxx.

Constructor & Destructor Documentation

DatagramDispatcher()

openlcb::DatagramService::DatagramDispatcher::DatagramDispatcher ( If *  iface, size_t  num_registry_entries  )

inline

Definition at line 208 of file Datagram.hxx.

~DatagramDispatcher()

openlcb::DatagramService::DatagramDispatcher::~DatagramDispatcher ( )

inline

Definition at line 214 of file Datagram.hxx.

Member Function Documentation

entry()

StateFlowBase::Action openlcb::DatagramService::DatagramDispatcher::entry ( )

overrideprivatevirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns

function pointer to next state

Implements TypedStateFlow< MessageType, Base >.

Definition at line 58 of file Datagram.cxx.

incoming_datagram_allocated()

StateFlowBase::Action openlcb::DatagramService::DatagramDispatcher::incoming_datagram_allocated ( )

private

@TODO(balazs.racz) Implement buffer refcounting.

Definition at line 68 of file Datagram.cxx.

registry()

Registry * openlcb::DatagramService::DatagramDispatcher::registry ( )

inline

Returns

the registry of datagram handlers.

Definition at line 219 of file Datagram.hxx.

respond_rejection()

StateFlowBase::Action openlcb::DatagramService::DatagramDispatcher::respond_rejection ( )

private

Definition at line 116 of file Datagram.cxx.

Member Data Documentation

d_

Buffer<IncomingDatagram>* openlcb::DatagramService::DatagramDispatcher::d_

private

Definition at line 230 of file Datagram.hxx.

registry_

Registry openlcb::DatagramService::DatagramDispatcher::registry_

private

Maintains the registered datagram handlers.

Definition at line 234 of file Datagram.hxx.

resultCode_

uint16_t openlcb::DatagramService::DatagramDispatcher::resultCode_

private

Definition at line 231 of file Datagram.hxx.

---

The documentation for this class was generated from the following files:

• Datagram.hxx
• Datagram.cxx
