Implementation of a Broadcast Time Protocol server. More...

#include <BroadcastTimeServer.hxx>

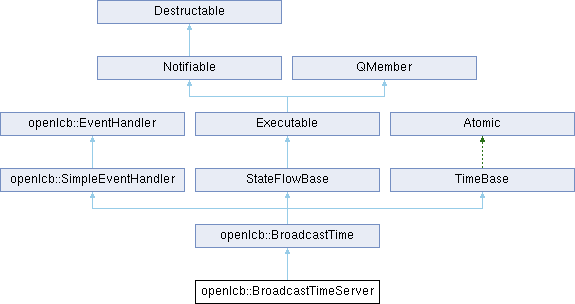

Inheritance diagram for openlcb::BroadcastTimeServer:

Public Member Functions
	BroadcastTimeServer (Node *node, NodeID clock_id)
	Constructor.

	~BroadcastTimeServer ()
	Destructor.

bool	is_server_detected () override
	Has a time server been detected?

bool	is_server_self () override
	Test if this is a server.

Public Member Functions inherited from openlcb::BroadcastTime
virtual	~BroadcastTime ()
	Destructor.

void	set_time (int hours, int minutes)
	Set the time in seconds since the system Epoch.

void	set_date (int month, int day)
	Set the time in seconds since the system Epoch.

void	set_year (int year)
	Set the time in seconds since the system Epoch.

void	set_date_year_str (const char *date_year)
	Set the date and year from a C string.

void	set_rate_quarters (int16_t rate)
	Set Rate.

void	start ()
	Start clock.

void	stop ()
	Stop clock.

void	query ()
	Query the current time.

UpdateSubscribeHandle	update_subscribe_add (TimeUpdateCallback callback)
	Register a callback for when the time synchronization is updated.

void	update_subscribe_remove (UpdateSubscribeHandle handle)
	Unregister a callback for when the time synchronization is updated.

Node *	node ()
	Accessor method to get the Node reference.

NodeID	clock_id ()
	Accessor method to get the (48-bit) Clock ID.

EventId	event_base ()
	Access method to get the (64-bit) Event ID base.

const struct tm *	gmtime_recalculate ()
	Recalculate the struct tm representation of time.

const struct tm *	gmtime_get ()
	Get the last calculated reprentation of time.

Public Member Functions inherited from openlcb::SimpleEventHandler
	IGNOREFN (handle_event_report)

	IGNOREFN (handle_consumer_identified)

	IGNOREFN (handle_consumer_range_identified)

	IGNOREFN (handle_producer_identified)

	IGNOREFN (handle_producer_range_identified)

	IGNOREFN (handle_identify_consumer)

	IGNOREFN (handle_identify_producer)

Public Member Functions inherited from openlcb::EventHandler
virtual void	handle_producer_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ProducerIdentified for this event.

virtual void	handle_producer_range_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ProducerRangeIdentified for this event.

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Public Member Functions inherited from TimeBase
void	sync (const TimeBase &other)
	Synchronizes this time with a different clock.

std::pair< time_t, int16_t >	time_and_rate_quarters ()
	Get the time as a value of seconds relative to the system epoch.

time_t	compare_realtime (time_t t1, time_t t2)
	Get the difference in time scaled to real time.

time_t	time ()
	Get the time as a value of seconds relative to the system epoch.

struct tm *	gmtime_r (struct tm *result)
	Get the time as a standard struct tm.

int	date (int month, int day)
	Get the date (month/day).

int	day_of_week ()
	Get the day of the week.

int	day_of_year ()
	Get the day of the year.

int	year ()
	Get the year.

int16_t	get_rate_quarters ()
	Report the clock rate as a 12-bit fixed point number (-512.00 to 511.75).

bool	is_running ()
	Test of the clock is running.

bool	is_started ()
	Test of the clock is started (rate could still be 0).

bool	fast_sec_to_real_nsec_period (int16_t rate, time_t fast_sec, long long *real_nsec)
	Convert fast clock period to a period in real nsec.

bool	real_nsec_to_fast_sec_period (int16_t rate, long long real_nsec, time_t *fast_sec)
	Convert period in real nsec to a fast clock period.

bool	real_nsec_until_fast_time_abs (time_t fast_sec, long long *real_nsec)
	Convert a fast time to absolute nsec until it will occur.

bool	fast_sec_to_real_nsec_period_abs (time_t fast_sec, long long *real_nsec)
	Convert fast clock absolute (negative or positive) period to a positive (absolute) period in real nsec.

Private Member Functions
void	handle_identify_global (const EventRegistryEntry &entry, EventReport event, BarrierNotifiable done) override
	Handle requested identification message.

void	handle_identify_consumer (const EventRegistryEntry &entry, EventReport event, BarrierNotifiable done) override
	Handle requested identification message.

void	handle_identify_producer (const EventRegistryEntry &entry, EventReport event, BarrierNotifiable done) override
	Handle requested identification message.

void	handle_consumer_identified (const EventRegistryEntry &entry, EventReport event, BarrierNotifiable done) override
	Handle an incoming consumer identified.

void	handle_consumer_range_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done) override
	Called on another node sending ConsumerRangeIdentified.

void	handle_event_report (const EventRegistryEntry &entry, EventReport event, BarrierNotifiable done) override
	Handle an incoming event report.

virtual void	set_shortcut (uint64_t event) override
	Try the possible set event shortcut.

Action	entry ()
	Entry to state machine.

Action	query_response ()
	Respond to a query by scheduling a sync.

	DISALLOW_COPY_AND_ASSIGN (BroadcastTimeServer)

Private Attributes
time_t	secondsRequested_
	pending clock time in seconds

uint16_t	updateRequested_: 1
	clock settings have change

BroadcastTimeServerTime *	time_

BroadcastTimeServerSync *	sync_

BroadcastTimeServerSet *	set_

BroadcastTimeServerAlarm *	alarm_

Friends
class	BroadcastTimeServerTime

class	BroadcastTimeServerSync

class	BroadcastTimeServerSet

class	BroadcastTimeServerAlarm

Additional Inherited Members
Public Types inherited from openlcb::BroadcastTime
typedef size_t	UpdateSubscribeHandle
	An opaque data element that is returned from update subscriber registration, and allows unregistering a subscriber.

typedef std::function< void(time_t old, time_t current)>	TimeUpdateCallback
	Callback type used for time update subscribers.

Public Types inherited from openlcb::EventHandler
using	EventReport = openlcb::EventReport

using	EventRegistryEntry = openlcb::EventRegistryEntry

using	EventId = openlcb::EventId

Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from openlcb::BroadcastTime
	BroadcastTime (Node *node, NodeID clock_id)
	Constructor.

void	service_callbacks (time_t old, time_t current)
	Service all of the attached update subscribers.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Protected Attributes inherited from openlcb::BroadcastTime
struct tm	tm_
	the time we are last set to as a struct tm

Node *	node_
	OpenLCB node to export the consumer on.

EventId	eventBase_
	48-bit unique identifier for the clock instance

WriteHelper	writer_
	helper for sending event messages

StateFlowTimer	timer_
	timer helper

std::vector< TimeUpdateCallback >	callbacks_
	update subscribers

int16_t	rateRequested_
	pending clock rate

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Protected Attributes inherited from TimeBase
long long	timestamp_ {OSTime::get_monotonic()}
	OS time at the last time update.

time_t	seconds_ {0}
	Clock time at the last time update.

int16_t	rate_ {0}
	effective clock rate

uint16_t	started_: 1
	true if clock is started

Detailed Description

Implementation of a Broadcast Time Protocol server.

Note: A Broadcast Time server must produce all the individual time events for which there is an identified consumer. In order to guarantee that the server can identify all of the consumers, it is important to have an Event Identify Global message sent after the creation of the server object. In order to prevent unnecessary duplication of Event Identify Global messages, it is left to the application to send the Event Identify Global message. An application can use the openlcb::EventIdentifyGlobal object for production of an Event Identify Global message.

Definition at line 58 of file BroadcastTimeServer.hxx.

Constructor & Destructor Documentation

◆ BroadcastTimeServer()

openlcb::BroadcastTimeServer::BroadcastTimeServer	(	Node *	node,
		NodeID	clock_id
	)

Constructor.

Parameters

node	the virtual node that will be listening for events and responding to Identify messages.
clock_id	48-bit unique identifier for the clock instance

Definition at line 803 of file BroadcastTimeServer.cxx.

◆ ~BroadcastTimeServer()

openlcb::BroadcastTimeServer::~BroadcastTimeServer ( )

Destructor.

Definition at line 822 of file BroadcastTimeServer.cxx.

Member Function Documentation

◆ entry()

Action openlcb::BroadcastTimeServer::entry ( )

inlineprivate

Entry to state machine.

Returns: query_response after timeout

Definition at line 191 of file BroadcastTimeServer.hxx.

◆ handle_consumer_identified()

void openlcb::BroadcastTimeServer::handle_consumer_identified	(	const EventRegistryEntry &	entry,
		EventReport *	event,
		BarrierNotifiable *	done
	)

overrideprivatevirtual

Handle an incoming consumer identified.

Parameters

entry	registry entry for the event range
event	information about the incoming message
done	used to notify we are finished

Reimplemented from openlcb::EventHandler.

Definition at line 848 of file BroadcastTimeServer.cxx.

◆ handle_consumer_range_identified()

void openlcb::BroadcastTimeServer::handle_consumer_range_identified	(	const EventRegistryEntry &	registry_entry,
		EventReport *	event,
		BarrierNotifiable *	done
	)

overrideprivatevirtual

Called on another node sending ConsumerRangeIdentified.

Parameters

event	stores information about the incoming message. Filled: event id, mask (!= 1), src_node. Not filled: state.
registry_entry	gives the registry entry for which the current handler is being called.
done	must be notified when the processing is done.

Reimplemented from openlcb::EventHandler.

Definition at line 871 of file BroadcastTimeServer.cxx.

◆ handle_event_report()

void openlcb::BroadcastTimeServer::handle_event_report	(	const EventRegistryEntry &	entry,
		EventReport *	event,
		BarrierNotifiable *	done
	)

overrideprivatevirtual

Handle an incoming event report.

Parameters

entry	registry entry for the event range
event	information about the incoming message
done	used to notify we are finished

Implements openlcb::EventHandler.

Definition at line 886 of file BroadcastTimeServer.cxx.

◆ handle_identify_consumer()

void openlcb::BroadcastTimeServer::handle_identify_consumer	(	const EventRegistryEntry &	entry,
		EventReport *	event,
		BarrierNotifiable *	done
	)

inlineoverrideprivatevirtual

Handle requested identification message.

Parameters

entry	registry entry for the event range
event	information about the incoming message
done	used to notify we are finished

Implements openlcb::EventHandler.

Definition at line 127 of file BroadcastTimeServer.hxx.

◆ handle_identify_global()

void openlcb::BroadcastTimeServer::handle_identify_global	(	const EventRegistryEntry &	entry,
		EventReport *	event,
		BarrierNotifiable *	done
	)

inlineoverrideprivatevirtual

Handle requested identification message.

Parameters

entry	registry entry for the event range
event	information about the incoming message
done	used to notify we are finished

Implements openlcb::EventHandler.

Definition at line 95 of file BroadcastTimeServer.hxx.

◆ handle_identify_producer()

void openlcb::BroadcastTimeServer::handle_identify_producer	(	const EventRegistryEntry &	entry,
		EventReport *	event,
		BarrierNotifiable *	done
	)

inlineoverrideprivatevirtual

Handle requested identification message.

Parameters

entry	registry entry for the event range
event	information about the incoming message
done	used to notify we are finished

Implements openlcb::EventHandler.

Definition at line 148 of file BroadcastTimeServer.hxx.

◆ is_server_detected()

bool openlcb::BroadcastTimeServer::is_server_detected ( )

inlineoverridevirtual

Has a time server been detected?

Returns: true if a time server has been detected, else false

Implements openlcb::BroadcastTime.

Definition at line 72 of file BroadcastTimeServer.hxx.

◆ is_server_self()

bool openlcb::BroadcastTimeServer::is_server_self ( )

inlineoverridevirtual

Test if this is a server.

Returns: true if a BroadcastTimeServer, else false

Implements openlcb::BroadcastTime.

Definition at line 79 of file BroadcastTimeServer.hxx.

◆ query_response()

StateFlowBase::Action openlcb::BroadcastTimeServer::query_response ( )

private

Respond to a query by scheduling a sync.

Returns: exit()

Definition at line 924 of file BroadcastTimeServer.cxx.

◆ set_shortcut()

void openlcb::BroadcastTimeServer::set_shortcut ( uint64_t event )

overrideprivatevirtual

Try the possible set event shortcut.

Parameters

event event that we would be "setting"

Reimplemented from openlcb::BroadcastTime.

Definition at line 898 of file BroadcastTimeServer.cxx.

Friends And Related Symbol Documentation

◆ BroadcastTimeServerAlarm

friend class BroadcastTimeServerAlarm

friend

Definition at line 216 of file BroadcastTimeServer.hxx.

◆ BroadcastTimeServerSet

friend class BroadcastTimeServerSet

friend

Definition at line 215 of file BroadcastTimeServer.hxx.

◆ BroadcastTimeServerSync

friend class BroadcastTimeServerSync

friend

Definition at line 214 of file BroadcastTimeServer.hxx.

◆ BroadcastTimeServerTime

friend class BroadcastTimeServerTime

friend

Definition at line 213 of file BroadcastTimeServer.hxx.

Member Data Documentation

◆ alarm_

BroadcastTimeServerAlarm* openlcb::BroadcastTimeServer::alarm_

private

Definition at line 211 of file BroadcastTimeServer.hxx.

◆ secondsRequested_

time_t openlcb::BroadcastTimeServer::secondsRequested_

private

pending clock time in seconds

Definition at line 202 of file BroadcastTimeServer.hxx.

◆ set_

BroadcastTimeServerSet* openlcb::BroadcastTimeServer::set_

private

Definition at line 210 of file BroadcastTimeServer.hxx.

◆ sync_

BroadcastTimeServerSync* openlcb::BroadcastTimeServer::sync_

private

Definition at line 209 of file BroadcastTimeServer.hxx.

◆ time_

BroadcastTimeServerTime* openlcb::BroadcastTimeServer::time_

private

Definition at line 208 of file BroadcastTimeServer.hxx.

◆ updateRequested_

uint16_t openlcb::BroadcastTimeServer::updateRequested_

private

clock settings have change

Definition at line 203 of file BroadcastTimeServer.hxx.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BroadcastTimeServer()

◆ ~BroadcastTimeServer()

Member Function Documentation

◆ entry()

◆ handle_consumer_identified()

◆ handle_consumer_range_identified()

◆ handle_event_report()

◆ handle_identify_consumer()

◆ handle_identify_global()

◆ handle_identify_producer()

◆ is_server_detected()

◆ is_server_self()

◆ query_response()

◆ set_shortcut()

Friends And Related Symbol Documentation

◆ BroadcastTimeServerAlarm

◆ BroadcastTimeServerSet

◆ BroadcastTimeServerSync

◆ BroadcastTimeServerTime

Member Data Documentation

◆ alarm_

◆ secondsRequested_

◆ set_

◆ sync_

◆ time_

◆ updateRequested_
