Helper object for producing an Event Identify Global message. More...

#include <EventIdentifyGlobal.hxx>

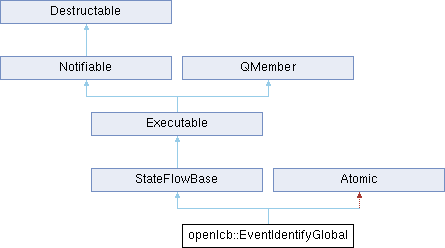

Inheritance diagram for openlcb::EventIdentifyGlobal:

Public Member Functions
	EventIdentifyGlobal (Node *node)
	Constructor.

	~EventIdentifyGlobal ()
	Destructor.

void	arm (bool delete_self=false)
	Arm the EventIdentifyGlobal request.

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Private Member Functions
void	handle_incoming_event_identify_global (Buffer< GenMessage > *msg)
	Callback upon receiving a Defs::MTI_EVENTS_IDENTIFY_GLOBAL message.

Action	entry ()
	Entry/reset point into state machine.

Action	timeout ()
	Will be called on the executor of the timer.

Action	fill_buffer ()
	Fill in allocated buffer and send Event Identify Global message.

Private Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Private Attributes
MessageHandler::GenericHandler	eventIdentifyGlobalHandler_
	handler for incoming messages

StateFlowTimer	timer_
	timer object for handling the timeout

Node *	node_
	node to send message from

uint8_t	aborted_: 1
	true if message received, abort need to send

uint8_t	deleteSelf_: 1
	delete object upon state flow exit (one-shot)

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

Helper object for producing an Event Identify Global message.

Once armed, will produce an Event Identify Global message on the node's interface at a pseudo random time between 1.500 and 2.011 seconds in the future. The randomness comes a hash of the Node ID and aids in reducing the likeliness of multiple nodes of the same design producing the same Event Identify Global message unnecessarily. If another node produces the Event Identify Global first (after arm but before timeout), then we abort the state machine early.

Definition at line 52 of file EventIdentifyGlobal.hxx.

Constructor & Destructor Documentation

◆ EventIdentifyGlobal()

openlcb::EventIdentifyGlobal::EventIdentifyGlobal ( Node * node )

inline

Constructor.

Parameters

node	Node ID associated with this object

Definition at line 57 of file EventIdentifyGlobal.hxx.

◆ ~EventIdentifyGlobal()

openlcb::EventIdentifyGlobal::~EventIdentifyGlobal ( )

inline

Destructor.

Definition at line 72 of file EventIdentifyGlobal.hxx.

Member Function Documentation

◆ arm()

void openlcb::EventIdentifyGlobal::arm ( bool delete_self = false )

inline

Arm the EventIdentifyGlobal request.

Multi-thread safe.

Parameters

delete_self true if the object should delete itself on next state flow completion (one-shot).

Definition at line 82 of file EventIdentifyGlobal.hxx.

◆ entry()

Action openlcb::EventIdentifyGlobal::entry ( )

inlineprivate

Entry/reset point into state machine.

Definition at line 104 of file EventIdentifyGlobal.hxx.

◆ fill_buffer()

Action openlcb::EventIdentifyGlobal::fill_buffer ( )

inlineprivate

Fill in allocated buffer and send Event Identify Global message.

Definition at line 143 of file EventIdentifyGlobal.hxx.

◆ handle_incoming_event_identify_global()

void openlcb::EventIdentifyGlobal::handle_incoming_event_identify_global ( Buffer< GenMessage > * msg )

inlineprivate

Callback upon receiving a Defs::MTI_EVENTS_IDENTIFY_GLOBAL message.

Parameters

msg	unused, need to unref to prevent memory leak

Definition at line 96 of file EventIdentifyGlobal.hxx.

◆ timeout()

Action openlcb::EventIdentifyGlobal::timeout ( )

inlineprivate

Will be called on the executor of the timer.

Definition at line 117 of file EventIdentifyGlobal.hxx.

Member Data Documentation

◆ aborted_

uint8_t openlcb::EventIdentifyGlobal::aborted_

private

true if message received, abort need to send

Definition at line 158 of file EventIdentifyGlobal.hxx.

◆ deleteSelf_

uint8_t openlcb::EventIdentifyGlobal::deleteSelf_

private

delete object upon state flow exit (one-shot)

Definition at line 159 of file EventIdentifyGlobal.hxx.

◆ eventIdentifyGlobalHandler_

MessageHandler::GenericHandler openlcb::EventIdentifyGlobal::eventIdentifyGlobalHandler_

private

handler for incoming messages

Definition at line 155 of file EventIdentifyGlobal.hxx.

◆ node_

Node* openlcb::EventIdentifyGlobal::node_

private

node to send message from

Definition at line 157 of file EventIdentifyGlobal.hxx.

◆ timer_

StateFlowTimer openlcb::EventIdentifyGlobal::timer_

private

timer object for handling the timeout

Definition at line 156 of file EventIdentifyGlobal.hxx.

The documentation for this class was generated from the following file:

EventIdentifyGlobal.hxx
