Helper class for implementing fast clocks. More...

#include <TimeBase.hxx>

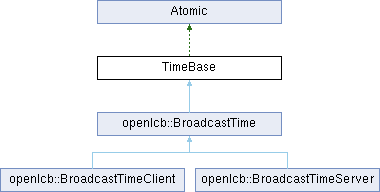

Inheritance diagram for TimeBase:

Public Member Functions
void	sync (const TimeBase &other)
	Synchronizes this time with a different clock.

std::pair< time_t, int16_t >	time_and_rate_quarters ()
	Get the time as a value of seconds relative to the system epoch.

time_t	compare_realtime (time_t t1, time_t t2)
	Get the difference in time scaled to real time.

time_t	time ()
	Get the time as a value of seconds relative to the system epoch.

struct tm *	gmtime_r (struct tm *result)
	Get the time as a standard struct tm.

int	date (int month, int day)
	Get the date (month/day).

int	day_of_week ()
	Get the day of the week.

int	day_of_year ()
	Get the day of the year.

int	year ()
	Get the year.

int16_t	get_rate_quarters ()
	Report the clock rate as a 12-bit fixed point number (-512.00 to 511.75).

bool	is_running ()
	Test of the clock is running.

bool	is_started ()
	Test of the clock is started (rate could still be 0).

bool	fast_sec_to_real_nsec_period (int16_t rate, time_t fast_sec, long long *real_nsec)
	Convert fast clock period to a period in real nsec.

bool	real_nsec_to_fast_sec_period (int16_t rate, long long real_nsec, time_t *fast_sec)
	Convert period in real nsec to a fast clock period.

bool	real_nsec_until_fast_time_abs (time_t fast_sec, long long *real_nsec)
	Convert a fast time to absolute nsec until it will occur.

bool	fast_sec_to_real_nsec_period_abs (time_t fast_sec, long long *real_nsec)
	Convert fast clock absolute (negative or positive) period to a positive (absolute) period in real nsec.

Protected Attributes
long long	timestamp_ {OSTime::get_monotonic()}
	OS time at the last time update.

time_t	seconds_ {0}
	Clock time at the last time update.

int16_t	rate_ {0}
	effective clock rate

uint16_t	started_: 1
	true if clock is started

Additional Inherited Members
Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Detailed Description

Helper class for implementing fast clocks.

Represents the fast time against the OS (monotonic) clock.

Definition at line 43 of file TimeBase.hxx.

Constructor & Destructor Documentation

◆ TimeBase()

TimeBase::TimeBase ( )

inline

Definition at line 46 of file TimeBase.hxx.

Member Function Documentation

◆ compare_realtime()

time_t TimeBase::compare_realtime	(	time_t	t1,
		time_t	t2
	)

inline

Get the difference in time scaled to real time.

Parameters

t1	time 1 to compare
t2	time 2 to compare

Returns: (t1 - t2) scaled to real time.

Definition at line 74 of file TimeBase.hxx.

◆ date()

int TimeBase::date	(	int *	month,
		int *	day
	)

inline

Get the date (month/day).

Parameters

month	month (1 to 12)
day	day of month (1 to 31)

Returns: 0 upon success, else -1 on failure

Definition at line 118 of file TimeBase.hxx.

◆ day_of_week()

int TimeBase::day_of_week ( )

inline

Get the day of the week.

Returns: day of the week (0 - 6, Sunday - Saturday) upon success, else -1 on failure

Definition at line 133 of file TimeBase.hxx.

◆ day_of_year()

int TimeBase::day_of_year ( )

inline

Get the day of the year.

Returns: day of the year (0 - 365) upon success, else -1 on failure

Definition at line 145 of file TimeBase.hxx.

◆ fast_sec_to_real_nsec_period()

bool TimeBase::fast_sec_to_real_nsec_period	(	int16_t	rate,
		time_t	fast_sec,
		long long *	real_nsec
	)

inline

Convert fast clock period to a period in real nsec.

Result will preserve sign.

Parameters

rate	rate to use in conversion
fast_sec	period in seconds in fast clock time
real_nsec	period in nsec

Returns: true if successfull, else false if clock is not running

Definition at line 197 of file TimeBase.hxx.

◆ fast_sec_to_real_nsec_period_abs()

bool TimeBase::fast_sec_to_real_nsec_period_abs	(	time_t	fast_sec,
		long long *	real_nsec
	)

inline

Convert fast clock absolute (negative or positive) period to a positive (absolute) period in real nsec.

Caution!!! Not an atomic operation if called from a different thread or executor than the thread or executor being used by this object.

Parameters

sec	period in seconds in fast clock time
real_nsec	period in nsec

Returns: true if successfull, else false if clock is not running

Definition at line 273 of file TimeBase.hxx.

◆ get_rate_quarters()

int16_t TimeBase::get_rate_quarters ( )

inline

Report the clock rate as a 12-bit fixed point number (-512.00 to 511.75).

Returns: clock rate

Definition at line 170 of file TimeBase.hxx.

◆ gmtime_r()

struct tm * TimeBase::gmtime_r ( struct tm * result )

inline

Get the time as a standard struct tm.

Parameters

result a pointer to the structure that will hold the result

Returns: pointer to the passed in result on success, nullptr on failure

Definition at line 108 of file TimeBase.hxx.

◆ is_running()

bool TimeBase::is_running ( )

inline

Test of the clock is running.

Running backwards (negative rate) also qualifies as running.

Returns: true if running, else false

Definition at line 178 of file TimeBase.hxx.

◆ is_started()

bool TimeBase::is_started ( )

inline

Test of the clock is started (rate could still be 0).

Returns: true if started, else false

Definition at line 186 of file TimeBase.hxx.

◆ real_nsec_to_fast_sec_period()

bool TimeBase::real_nsec_to_fast_sec_period	(	int16_t	rate,
		long long	real_nsec,
		time_t *	fast_sec
	)

inline

Convert period in real nsec to a fast clock period.

Result will preserve sign.

Parameters

rate	rate to use in conversion
real_nsec	period in nsec
fast_sec	period in seconds in fast clock time

Returns: true if successfull, else false if clock is not running

Definition at line 223 of file TimeBase.hxx.

◆ real_nsec_until_fast_time_abs()

bool TimeBase::real_nsec_until_fast_time_abs	(	time_t	fast_sec,
		long long *	real_nsec
	)

inline

Convert a fast time to absolute nsec until it will occur.

Caution!!! Not an atomic operation if called from a different thread or executor than the thread or executor being used by this object.

Parameters

fast_sec	seconds in rate time
real_nsec	period in nsec until it will occure

Returns: true if successfull, else false if clock is not running

Definition at line 249 of file TimeBase.hxx.

◆ sync()

void TimeBase::sync ( const TimeBase & other )

inline

Synchronizes this time with a different clock.

Parameters

other a different clock. The current clock will take over that other clocks's state.

Definition at line 53 of file TimeBase.hxx.

◆ time()

time_t TimeBase::time ( )

inline

Get the time as a value of seconds relative to the system epoch.

Returns: time in seconds relative to the system epoch

Definition at line 87 of file TimeBase.hxx.

◆ time_and_rate_quarters()

std::pair< time_t, int16_t > TimeBase::time_and_rate_quarters ( )

inline

Get the time as a value of seconds relative to the system epoch.

At the same time get an atomic matching pair of the rate

Returns: pair<time in seconds relative to the system epoch, rate>

Definition at line 64 of file TimeBase.hxx.

◆ year()

int TimeBase::year ( )

inline

Get the year.

Returns: year (0 - 4095) upon success, else -1 on failure

Definition at line 157 of file TimeBase.hxx.

Member Data Documentation

◆ rate_

int16_t TimeBase::rate_ {0}

protected

effective clock rate

Definition at line 291 of file TimeBase.hxx.

◆ seconds_

time_t TimeBase::seconds_ {0}

protected

Clock time at the last time update.

Definition at line 290 of file TimeBase.hxx.

◆ started_

uint16_t TimeBase::started_

protected

true if clock is started

Definition at line 293 of file TimeBase.hxx.

◆ timestamp_

long long TimeBase::timestamp_ {OSTime::get_monotonic()}

protected

OS time at the last time update.

Definition at line 288 of file TimeBase.hxx.

The documentation for this class was generated from the following file:

TimeBase.hxx
