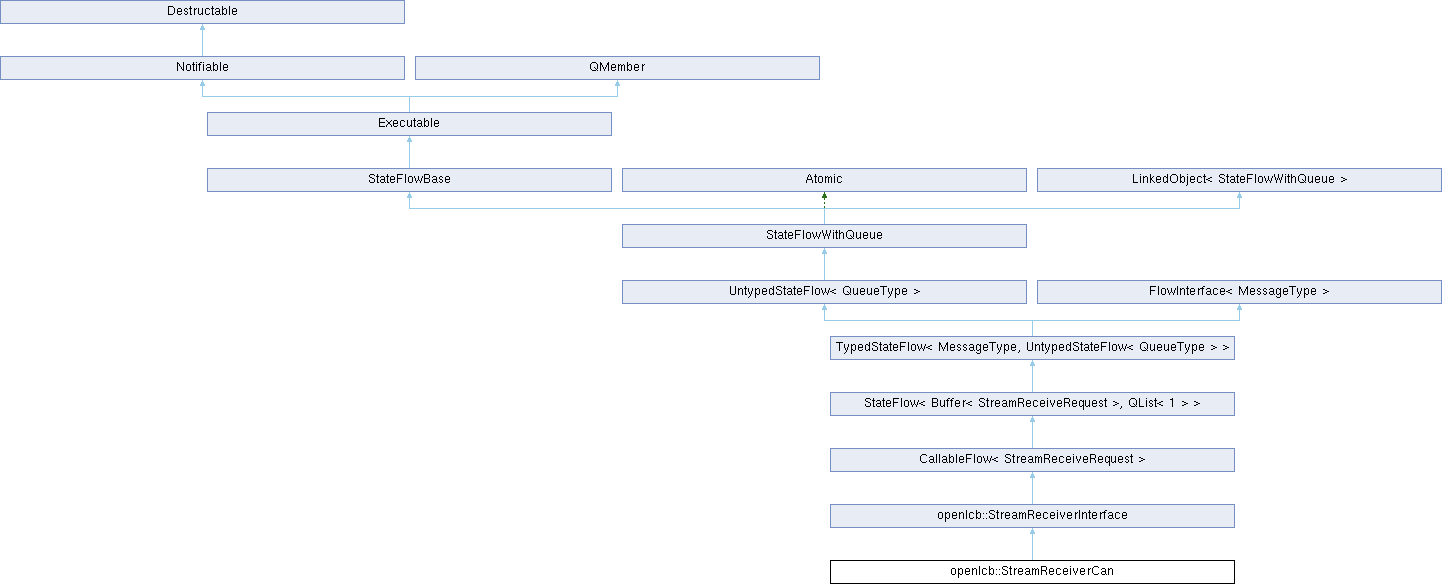

Inheritance diagram for openlcb::StreamReceiverCan:

Classes
class	StreamDataHandler

Public Member Functions
	StreamReceiverCan (IfCan *interface, uint8_t local_stream_id)
	Constructor.

void	send (Buffer< StreamReceiveRequest > *msg, unsigned prio=0) override
	Implements the flow interface for the request API.

void	cancel_request () override
	Cancels the currently pending stream receive request.

Public Member Functions inherited from openlcb::StreamReceiverInterface
	StreamReceiverInterface (Service *s)

Public Member Functions inherited from CallableFlow< StreamReceiveRequest >
	CallableFlow (Service *s)
	Creates a callable flow.

Public Member Functions inherited from StateFlow< MessageType, QueueType >
	StateFlow (Service *service)
	Constructor.

Public Member Functions inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

Public Member Functions inherited from UntypedStateFlow< QueueType >
	UntypedStateFlow (Service *service)
	Constructor.

Public Member Functions inherited from StateFlowWithQueue
void	notify () override
	Wakeup call arrived. Schedules *this on the executor.

bool	is_waiting ()

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_next ()

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Member Functions
void	announced_stream ()
	Helper function for send() when a stream has to start synchronously.

Action	entry () override
	This state is not used, but it's virtual abstract.

Action	wait_for_wakeup ()

Action	wakeup ()
	Root of the flow when something happens in the handlers.

Action	init_reply ()
	Invoked when we get the stream initiate request.

Action	init_buffer_ready ()

Action	window_reached ()
	Invoked when the stream window runs out.

Action	have_raw_buffer ()
	Called when the allocation of the raw buffer is successful.

void	handle_stream_initiate (Buffer< GenMessage > *message)
	Invoked by the GenericHandler when a stream initiate message arrives.

void	handle_bytes_received (const uint8_t *data, size_t len)
	Handles data arriving from the network.

void	handle_stream_complete (Buffer< GenMessage > *message)
	Invoked by the GenericHandler when a stream complete message arrives.

void	unregister_handlers ()
	Removes all handlers that are registered.

IfCan *	if_can ()

Node *	node ()

Private Attributes
MessageHandler::GenericHandler	streamInitiateHandler_
	Helper class for incoming message for stream initiate.

MessageHandler::GenericHandler	streamCompleteHandler_
	Helper class for incoming message for stream complete.

LimitedPool	lastBufferPool_ {sizeof(RawBuffer), 2, rawBufferPool}
	This pool is used to allocate one raw buffer per stream window size.

ByteBufferPtr	currentBuffer_
	The buffer that we are currently filling with incoming data.

RawBufferPtr	lastBuffer_
	The buffer that will be the last one in this stream window.

std::unique_ptr< StreamDataHandler >	dataHandler_
	Helper object that receives the actual stream CAN frames.

size_t	totalByteCount_
	How many bytes we have transmitted in this stream so far.

uint16_t	streamWindowRemaining_
	Remaining stream window size.

const uint8_t	assignedStreamId_
	Unique stream ID at the destination (local) node, assigned at construction time.

uint8_t	streamClosed_: 1
	1 if we received the stream complete message.

uint8_t	pendingInit_: 1
	1 if we received the stream init request message.

uint8_t	pendingCancel_: 1
	1 if we received a cancel request

uint8_t	isWaiting_: 1
	1 if we are currently waiting for a notification

Friends
class	StreamDataHandler

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Static Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Protected Types inherited from CallableFlow< StreamReceiveRequest >
using	Action = StateFlowBase::Action

Protected Types inherited from UntypedStateFlow< QueueType >
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from CallableFlow< StreamReceiveRequest >
StreamReceiveRequest *	request ()

bool	has_request ()

Action	return_ok ()
	Terminates the flow and returns the request buffer to the caller with an error code of OK (zero).

Action	wait_and_return_ok ()
	Waits to be notified before moving onto the next state for termination.

Action	wait_done ()
	Terminates the flow and returns the request buffer to the caller with an error code of OK (zero).

Action	return_with_error (int error)
	Terminates the flow and returns the request buffer to the caller with an specific error code.

Protected Member Functions inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Protected Member Functions inherited from UntypedStateFlow< QueueType >
void	send (BufferBase *msg, unsigned priority=UINT_MAX)
	Sends a message to the state flow for processing.

QMember *	queue_next (unsigned *priority) OVERRIDE
	Takes the front entry in the queue.

bool	queue_empty () OVERRIDE

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Protected Member Functions inherited from StateFlowWithQueue
	StateFlowWithQueue (Service *service)
	Constructor.

Action	exit ()
	Terminates the processing of this flow.

Action	release_and_exit ()
	Terminates the processing of the current message.

BufferBase *	message ()

BufferBase *	transfer_message ()
	Releases ownership of the current message.

void	reset_message (BufferBase *message, unsigned priority)
	Sets the current message being processed.

unsigned	priority ()

void	set_priority (unsigned priority)
	Overrides the current priority.

void	start_flow_at_init (Callback c)
	Call this from the constructor of the child class to do some work before the main queue processing loop begins.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_this ()

	LinkedObject ()
	Constructor. Puts *this on the linked list.

	~LinkedObject ()
	Constructor. Removes *this from the linked list.

StateFlowWithQueue *	link_next ()

Static Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_
	Linked list pointer.

Static Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	head_
	Beginning of the list.

Detailed Description

Definition at line 49 of file StreamReceiver.hxx.

Constructor & Destructor Documentation

◆ StreamReceiverCan()

openlcb::StreamReceiverCan::StreamReceiverCan	(	IfCan *	interface,
		uint8_t	local_stream_id
	)

Constructor.

Parameters

interface	the CAN interface that owns this stream receiver.
local_stream_id	what should be the local stream ID for the streams used for this receiver.

Definition at line 302 of file StreamReceiver.cxx.

◆ ~StreamReceiverCan()

openlcb::StreamReceiverCan::~StreamReceiverCan ( )

Definition at line 312 of file StreamReceiver.cxx.

Member Function Documentation

◆ announced_stream()

void openlcb::StreamReceiverCan::announced_stream ( )

private

Helper function for send() when a stream has to start synchronously.

Definition at line 48 of file StreamReceiver.cxx.

◆ cancel_request()

void openlcb::StreamReceiverCan::cancel_request ( )

overridevirtual

Cancels the currently pending stream receive request.

The message will then be asynchronously returned using the regular mechanism with a temporary error.

Implements openlcb::StreamReceiverInterface.

Definition at line 315 of file StreamReceiver.cxx.

◆ entry()

Action openlcb::StreamReceiverCan::entry ( )

inlineoverrideprivatevirtual

This state is not used, but it's virtual abstract.

Implements TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >.

Definition at line 76 of file StreamReceiver.hxx.

◆ handle_bytes_received()

void openlcb::StreamReceiverCan::handle_bytes_received	(	const uint8_t *	data,
		size_t	len
	)

inlineprivate

Handles data arriving from the network.

Definition at line 150 of file StreamReceiver.cxx.

◆ handle_stream_complete()

void openlcb::StreamReceiverCan::handle_stream_complete ( Buffer< GenMessage > * message )

private

Invoked by the GenericHandler when a stream complete message arrives.

Parameters

message buffer with stream complete message.

Definition at line 198 of file StreamReceiver.cxx.

◆ handle_stream_initiate()

void openlcb::StreamReceiverCan::handle_stream_initiate ( Buffer< GenMessage > * message )

private

Invoked by the GenericHandler when a stream initiate message arrives.

Parameters

message buffer with stream initiate message.

Definition at line 87 of file StreamReceiver.cxx.

◆ have_raw_buffer()

StateFlowBase::Action openlcb::StreamReceiverCan::have_raw_buffer ( )

private

Called when the allocation of the raw buffer is successful.

Sends off the stream proceed message.

Definition at line 401 of file StreamReceiver.cxx.

◆ if_can()

IfCan * openlcb::StreamReceiverCan::if_can ( )

inlineprivate

Returns: the local CAN interface.

Definition at line 125 of file StreamReceiver.hxx.

◆ init_buffer_ready()

StateFlowBase::Action openlcb::StreamReceiverCan::init_buffer_ready ( )

private

Definition at line 379 of file StreamReceiver.cxx.

◆ init_reply()

StateFlowBase::Action openlcb::StreamReceiverCan::init_reply ( )

private

Invoked when we get the stream initiate request.

Initializes receive buffers and sends stream init response.

Definition at line 372 of file StreamReceiver.cxx.

◆ node()

Node * openlcb::StreamReceiverCan::node ( )

inlineprivate

Returns: the local node pointer.

Definition at line 131 of file StreamReceiver.hxx.

◆ send()

void openlcb::StreamReceiverCan::send	(	Buffer< StreamReceiveRequest > *	msg,
		unsigned	prio = `0`
	)

override

Implements the flow interface for the request API.

This is not based on entry() because the registration has to be synchrnous with the calling of send().

Definition at line 66 of file StreamReceiver.cxx.

◆ unregister_handlers()

void openlcb::StreamReceiverCan::unregister_handlers ( )

private

Removes all handlers that are registered.

Definition at line 325 of file StreamReceiver.cxx.

◆ wait_for_wakeup()

Action openlcb::StreamReceiverCan::wait_for_wakeup ( )

inlineprivate

Definition at line 81 of file StreamReceiver.hxx.

◆ wakeup()

StateFlowBase::Action openlcb::StreamReceiverCan::wakeup ( )

private

Root of the flow when something happens in the handlers.

Definition at line 334 of file StreamReceiver.cxx.

◆ window_reached()

StateFlowBase::Action openlcb::StreamReceiverCan::window_reached ( )

private

Invoked when the stream window runs out.

Maybe waits for the data to be consumed below the low-watermark.

Definition at line 395 of file StreamReceiver.cxx.

Friends And Related Symbol Documentation

◆ StreamDataHandler

friend class StreamDataHandler

friend

Definition at line 141 of file StreamReceiver.hxx.

Member Data Documentation

◆ assignedStreamId_

const uint8_t openlcb::StreamReceiverCan::assignedStreamId_

private

Unique stream ID at the destination (local) node, assigned at construction time.

Definition at line 171 of file StreamReceiver.hxx.

◆ currentBuffer_

ByteBufferPtr openlcb::StreamReceiverCan::currentBuffer_

private

The buffer that we are currently filling with incoming data.

Definition at line 154 of file StreamReceiver.hxx.

◆ dataHandler_

std::unique_ptr<StreamDataHandler> openlcb::StreamReceiverCan::dataHandler_

private

Helper object that receives the actual stream CAN frames.

Definition at line 161 of file StreamReceiver.hxx.

◆ isWaiting_

uint8_t openlcb::StreamReceiverCan::isWaiting_

private

1 if we are currently waiting for a notification

Definition at line 180 of file StreamReceiver.hxx.

◆ lastBuffer_

RawBufferPtr openlcb::StreamReceiverCan::lastBuffer_

private

The buffer that will be the last one in this stream window.

This buffer comes from the lastBufferPool_ to function as throttling signal.

Definition at line 158 of file StreamReceiver.hxx.

◆ lastBufferPool_

LimitedPool openlcb::StreamReceiverCan::lastBufferPool_ {sizeof(RawBuffer), 2, rawBufferPool}

private

This pool is used to allocate one raw buffer per stream window size.

This pool therefore functions as a throttling for the data producer. We have a fixed size of 2, meaning that we are allowing ourselves to load 2x the stream window size into our RAM.

Definition at line 151 of file StreamReceiver.hxx.

◆ pendingCancel_

uint8_t openlcb::StreamReceiverCan::pendingCancel_

private

1 if we received a cancel request

Definition at line 178 of file StreamReceiver.hxx.

◆ pendingInit_

uint8_t openlcb::StreamReceiverCan::pendingInit_

private

1 if we received the stream init request message.

Definition at line 176 of file StreamReceiver.hxx.

◆ streamClosed_

uint8_t openlcb::StreamReceiverCan::streamClosed_

private

1 if we received the stream complete message.

Definition at line 174 of file StreamReceiver.hxx.

◆ streamCompleteHandler_

MessageHandler::GenericHandler openlcb::StreamReceiverCan::streamCompleteHandler_

private

Initial value:

{

this, &StreamReceiverCan::handle_stream_complete}

openlcb::StreamReceiverCan::handle_stream_complete

void handle_stream_complete(Buffer< GenMessage > *message)

Invoked by the GenericHandler when a stream complete message arrives.

Definition StreamReceiver.cxx:198

Helper class for incoming message for stream complete.

Definition at line 144 of file StreamReceiver.hxx.

◆ streamInitiateHandler_

MessageHandler::GenericHandler openlcb::StreamReceiverCan::streamInitiateHandler_

private

Initial value:

{

this, &StreamReceiverCan::handle_stream_initiate}

openlcb::StreamReceiverCan::handle_stream_initiate

void handle_stream_initiate(Buffer< GenMessage > *message)

Invoked by the GenericHandler when a stream initiate message arrives.

Definition StreamReceiver.cxx:87

Helper class for incoming message for stream initiate.

Definition at line 137 of file StreamReceiver.hxx.

◆ streamWindowRemaining_

uint16_t openlcb::StreamReceiverCan::streamWindowRemaining_

private

Remaining stream window size.

Definition at line 167 of file StreamReceiver.hxx.

◆ totalByteCount_

size_t openlcb::StreamReceiverCan::totalByteCount_

private

How many bytes we have transmitted in this stream so far.

Definition at line 164 of file StreamReceiver.hxx.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ StreamReceiverCan()

◆ ~StreamReceiverCan()

Member Function Documentation

◆ announced_stream()

◆ cancel_request()

◆ entry()

◆ handle_bytes_received()

◆ handle_stream_complete()

◆ handle_stream_initiate()

◆ have_raw_buffer()

◆ if_can()

◆ init_buffer_ready()

◆ init_reply()

◆ node()

◆ send()

◆ unregister_handlers()

◆ wait_for_wakeup()

◆ wakeup()

◆ window_reached()

Friends And Related Symbol Documentation

◆ StreamDataHandler

Member Data Documentation

◆ assignedStreamId_

◆ currentBuffer_

◆ dataHandler_

◆ isWaiting_

◆ lastBuffer_

◆ lastBufferPool_

◆ pendingCancel_

◆ pendingInit_

◆ streamClosed_

◆ streamCompleteHandler_

◆ streamInitiateHandler_

◆ streamWindowRemaining_

◆ totalByteCount_
