openlcb::BootloaderClient::WriteResponseHandler Class Reference

Datagram handler that listens to the incoming memoryconfig datagram for the write stream response message. More...

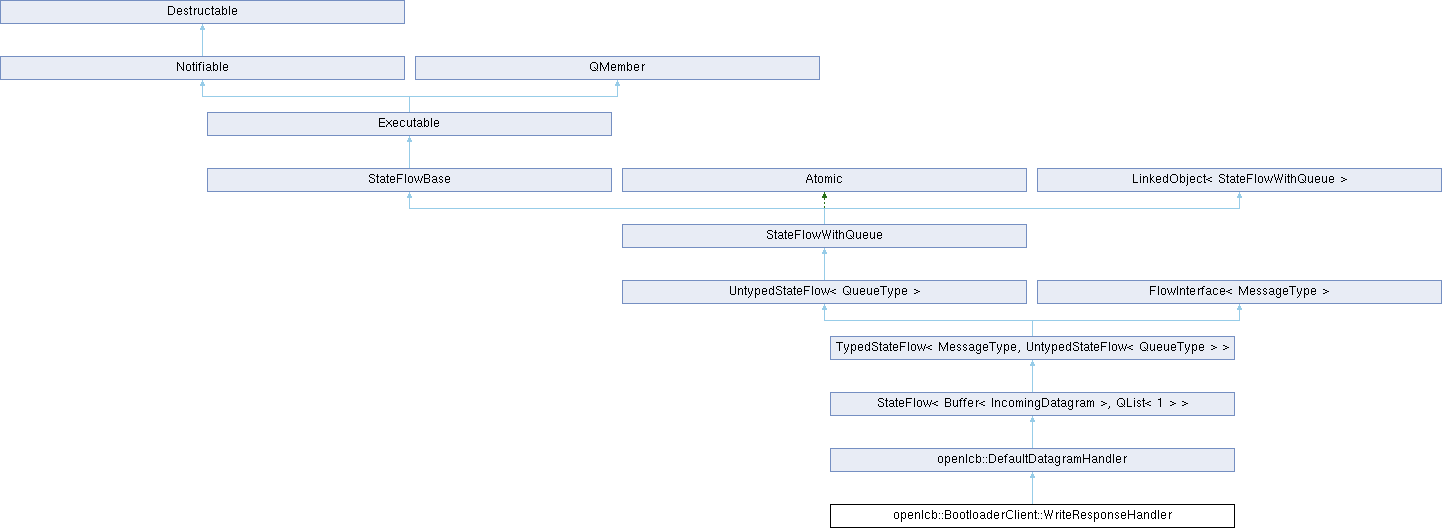

Inheritance diagram for openlcb::BootloaderClient::WriteResponseHandler:

Public Member Functions
	WriteResponseHandler (BootloaderClient *parent)
Action	entry () override
	Entry into the StateFlow activity.
Action	ok_response_sent () override
	This state is where the handling will end up after a respond_ok call.
Public Member Functions inherited from openlcb::DefaultDatagramHandler
DatagramService *	dg_service ()
Public Member Functions inherited from StateFlow< MessageType, QueueType >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from UntypedStateFlow< QueueType >
	UntypedStateFlow (Service *service)
	Constructor.
Public Member Functions inherited from StateFlowWithQueue
void	notify () override
	Wakeup call arrived. Schedules *this on the executor.
bool	is_waiting ()
Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.
Service *	service ()
	Return a pointer to the service I am bound to.
Public Member Functions inherited from Executable
void	test_deletion ()
Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.
Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_next ()
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Attributes
BootloaderClient *	parent_

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.
Static Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()
static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Types inherited from UntypedStateFlow< QueueType >
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.
Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.
Protected Member Functions inherited from openlcb::DefaultDatagramHandler
	DefaultDatagramHandler (DatagramService *if_datagram)
Action	respond_ok (uint8_t flags)
	Sends a DATAGRAM_OK response to the datagram originator node.
void	inline_respond_ok (uint8_t flags)
	Sends a DATAGRAM_OK response to the datagram originator node.
Action	respond_reject (uint16_t error_code)
	Sends a DATAGRAM_REJECT response to the datagram originator node.
size_t	size ()
const uint8_t *	payload ()
Protected Member Functions inherited from TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.
Protected Member Functions inherited from UntypedStateFlow< QueueType >
void	send (BufferBase *msg, unsigned priority=UINT_MAX)
	Sends a message to the state flow for processing.
QMember *	queue_next (unsigned *priority) OVERRIDE
	Takes the front entry in the queue.
bool	queue_empty () OVERRIDE
Action	call_immediately (Callback c)
	Imediately call the next state upon return.
Protected Member Functions inherited from StateFlowWithQueue
	StateFlowWithQueue (Service *service)
	Constructor.
Action	exit ()
	Terminates the processing of this flow.
Action	release_and_exit ()
	Terminates the processing of the current message.
BufferBase *	message ()
BufferBase *	transfer_message ()
	Releases ownership of the current message.
void	reset_message (BufferBase *message, unsigned priority)
	Sets the current message being processed.
unsigned	priority ()
void	set_priority (unsigned priority)
	Overrides the current priority.
void	start_flow_at_init (Callback c)
	Call this from the constructor of the child class to do some work before the main queue processing loop begins.
Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.
	~StateFlowBase ()
	Destructor.
void	reset_flow (Callback c)
	Resets the flow to the specified state.
bool	is_state (Callback c)
bool	is_terminated ()
void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.
Action	again ()
	Call the current state again via call_immediately.
Action	exit ()
	Terminate current StateFlow activity.
Action	delete_this ()
	Terminates the flow and deletes *this.
Action	set_terminated ()
	Sets the flow to terminated state.
Action	call_immediately (Callback c)
	Imediately call the next state upon return.
Action	wait ()
	Wait for an asynchronous call.
Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.
template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > *target_flow, Callback c, Pool *pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.
Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.
template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.
template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.
template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.
template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.
Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.
Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.
Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.
template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.
Action	read_repeated (StateFlowSelectHelper *helper, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.
Action	read_single (StateFlowSelectHelper *helper, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.
Action	read_nonblocking (StateFlowSelectHelper *helper, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.
Action	read_repeated_with_timeout (StateFlowTimedSelectHelper *helper, long long timeout_nsec, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.
Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.
Action	write_repeated (StateFlowSelectHelper *helper, int fd, const void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.
Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.
Protected Member Functions inherited from QMember
	QMember ()
	Constructor.
	~QMember ()
	Destructor.
Protected Member Functions inherited from Atomic
void	lock ()
void	unlock ()
Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_this ()
	LinkedObject ()
	Constructor. Puts *this on the linked list.
	~LinkedObject ()
	Constructor. Removes *this from the linked list.
StateFlowWithQueue *	link_next ()
Static Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()
static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).
Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue
Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_
	Linked list pointer.
Static Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	head_
	Beginning of the list.

Detailed Description

Datagram handler that listens to the incoming memoryconfig datagram for the write stream response message.

Definition at line 241 of file BootloaderClient.hxx.

Constructor & Destructor Documentation

WriteResponseHandler()

openlcb::BootloaderClient::WriteResponseHandler::WriteResponseHandler ( BootloaderClient *  parent )

inline

Definition at line 244 of file BootloaderClient.hxx.

Member Function Documentation

entry()

Action openlcb::BootloaderClient::WriteResponseHandler::entry ( )

inlineoverridevirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns

function pointer to next state

Implements TypedStateFlow< MessageType, UntypedStateFlow< QueueType > >.

Definition at line 250 of file BootloaderClient.hxx.

ok_response_sent()

Action openlcb::BootloaderClient::WriteResponseHandler::ok_response_sent ( )

inlineoverridevirtual

This state is where the handling will end up after a respond_ok call.

The user is responsible to eventually doing release and exit().

Reimplemented from openlcb::DefaultDatagramHandler.

Definition at line 268 of file BootloaderClient.hxx.

Member Data Documentation

parent_

BootloaderClient* openlcb::BootloaderClient::WriteResponseHandler::parent_

private

Definition at line 275 of file BootloaderClient.hxx.

---

The documentation for this class was generated from the following file:

• BootloaderClient.hxx
