This class takes registrations of StateFlows for incoming messages. More...

#include <Dispatcher.hxx>

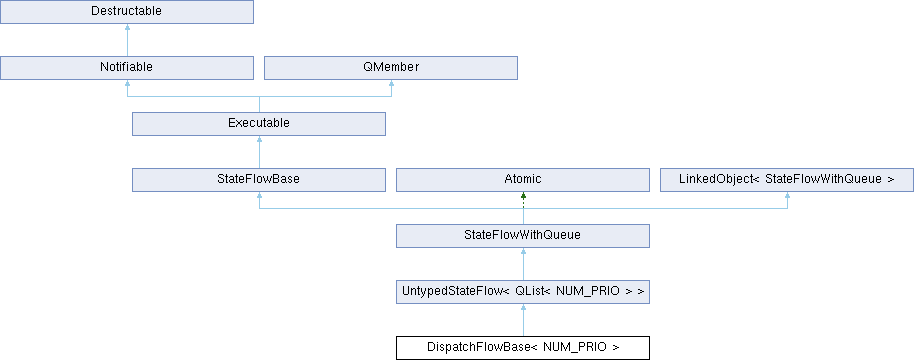

Inheritance diagram for DispatchFlowBase< NUM_PRIO >:

Classes
struct	HandlerInfo
	Internal information we store about each registered handler: identifier, mask, handler pointer. More...

Public Types
typedef StateFlowBase::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Member Functions
	DispatchFlowBase (Service *service)
	Construct a dispatchflow.

size_t	size ()

Public Member Functions inherited from UntypedStateFlow< QList< NUM_PRIO > >
	UntypedStateFlow (Service *service)
	Constructor.

Public Member Functions inherited from StateFlowWithQueue
void	notify () override
	Wakeup call arrived. Schedules *this on the executor.

bool	is_waiting ()

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_next ()

Protected Types
typedef uint32_t	ID
	Proxy the identifier type for customers to use.

typedef void	UntypedHandler
	Generic handler type.

Protected Types inherited from UntypedStateFlow< QList< NUM_PRIO > >
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions
void	register_handler (UntypedHandler *handler, ID id, ID mask)
	Adds a new handler to this dispatcher.

void	unregister_handler (UntypedHandler *handler, ID id, ID mask)
	Removes a specific instance of a handler from this dispatcher.

void	unregister_handler_all (UntypedHandler *handler)
	Removes all instances of a handler from this dispatcher.

void	register_fallback_handler (UntypedHandler *handler)
	Sets one handler to receive all messages that no other handler has matched.

virtual ID	get_message_id ()=0
	Returns the current message's ID.

virtual Action	allocate_and_clone ()=0
	Allocates an entry from lastHandlerToCall_, invoking clone() when done: return allocate_and_call(lastHandlerToCall_, STATE(clone));.

virtual void	send_transfer ()=0
	Sends the current message to lastHandlerToCall, transferring ownership.

Action	entry () override
	Entry into the StateFlow activity.

Action	iterate ()
	Iterate on potential handlers, matching the ID of the incoming message to the handlers' masks.

Action	clone_done ()
	State after a clone-and-send operation is complete.

Action	iteration_done ()
	State when the entire iteration is done.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	again ()
	Call the current state again via call_immediately.

Action	release_and_exit ()
	Terminates the processing of the current message.

Protected Member Functions inherited from UntypedStateFlow< QList< NUM_PRIO > >
void	send (BufferBase *msg, unsigned priority=UINT_MAX)
	Sends a message to the state flow for processing.

QMember *	queue_next (unsigned *priority) OVERRIDE
	Takes the front entry in the queue.

bool	queue_empty () OVERRIDE

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Protected Member Functions inherited from StateFlowWithQueue
	StateFlowWithQueue (Service *service)
	Constructor.

virtual void	release ()=0
	Releases the current message buffer back to the pool it came from.

Action	exit ()
	Terminates the processing of this flow.

Action	release_and_exit ()
	Terminates the processing of the current message.

BufferBase *	message ()

BufferBase *	transfer_message ()
	Releases ownership of the current message.

void	reset_message (BufferBase *message, unsigned priority)
	Sets the current message being processed.

unsigned	priority ()

void	set_priority (unsigned priority)
	Overrides the current priority.

void	start_flow_at_init (Callback c)
	Call this from the constructor of the child class to do some work before the main queue processing loop begins.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_this ()

	LinkedObject ()
	Constructor. Puts *this on the linked list.

	~LinkedObject ()
	Constructor. Removes *this from the linked list.

StateFlowWithQueue *	link_next ()

Protected Attributes
UntypedHandler *	lastHandlerToCall_ {nullptr}
	If non-NULL we still need to call this handler.

UntypedHandler *	fallbackHandler_ {nullptr}
	Handler to give all messages that were not matched by any other handler registration.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_
	Linked list pointer.

Private Attributes
bool	negateMatch_
	true if this flow should negate the match condition.

vector< HandlerInfo >	handlers_
	Registered handlers.

size_t	currentIndex_
	Index of the next handler to look at.

OSMutex	lock_
	Protects handler add / remove against iteration.

Friends
template<class T >
class	GenericHubFlow

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Static Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Static Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Static Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	head_
	Beginning of the list.

Detailed Description

template<int NUM_PRIO>
class DispatchFlowBase< NUM_PRIO >

This class takes registrations of StateFlows for incoming messages.

When a message shows up, all the Flows that match that message will be invoked.

Handlers are called in no particular order.

Definition at line 51 of file Dispatcher.hxx.

Member Typedef Documentation

◆ Action

template<int NUM_PRIO>

typedef StateFlowBase::Action DispatchFlowBase< NUM_PRIO >::Action

Allows using Action without having StateFlowBase:: prefix in front of it.

Definition at line 61 of file Dispatcher.hxx.

◆ ID

template<int NUM_PRIO>

typedef uint32_t DispatchFlowBase< NUM_PRIO >::ID

protected

Proxy the identifier type for customers to use.

Definition at line 70 of file Dispatcher.hxx.

◆ UntypedHandler

template<int NUM_PRIO>

typedef void DispatchFlowBase< NUM_PRIO >::UntypedHandler

protected

Generic handler type.

Will be cast to specific handlers in the specific DispatchFlow<...> template.

Definition at line 73 of file Dispatcher.hxx.

Constructor & Destructor Documentation

◆ DispatchFlowBase()

template<int NUM_PRIO>

DispatchFlowBase< NUM_PRIO >::DispatchFlowBase ( Service * service )

Construct a dispatchflow.

Parameters

service the Service this flow belongs to.

Definition at line 329 of file Dispatcher.hxx.

◆ ~DispatchFlowBase()

template<int NUM_PRIO>

DispatchFlowBase< NUM_PRIO >::~DispatchFlowBase ( )

Definition at line 337 of file Dispatcher.hxx.

Member Function Documentation

◆ again()

template<int NUM_PRIO>

Action StateFlowBase::again ( )

inlineprotected

Call the current state again via call_immediately.

Returns: function pointer to current state handler

Definition at line 280 of file StateFlow.hxx.

◆ allocate_and_clone()

template<int NUM_PRIO>

virtual Action DispatchFlowBase< NUM_PRIO >::allocate_and_clone ( )

protectedpure virtual

Allocates an entry from lastHandlerToCall_, invoking clone() when done: return allocate_and_call(lastHandlerToCall_, STATE(clone));.

Implemented in DispatchFlow< MessageType, NUM_PRIO >.

◆ call_immediately()

template<int NUM_PRIO>

Action StateFlowBase::call_immediately ( Callback c )

inlineprotected

Imediately call the next state upon return.

Parameters

c	Callback "state" to move to

Returns: function pointer to be returned from state function

Definition at line 318 of file StateFlow.hxx.

◆ clone_done()

template<int NUM_PRIO>

StateFlowBase::Action DispatchFlowBase< NUM_PRIO >::clone_done ( )

protected

State after a clone-and-send operation is complete.

Returns: next action

Definition at line 470 of file Dispatcher.hxx.

◆ entry()

template<int NUM_PRIO>

StateFlowBase::Action DispatchFlowBase< NUM_PRIO >::entry ( )

overrideprotectedvirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class. Must eventually (through some number of states) call release_and_exit() to transition to getting next message.

Returns: function pointer to next state

Implements StateFlowWithQueue.

Reimplemented in TypedStateFlow< Buffer< CanHubData >, DispatchFlowBase< BASE_NUM_PRIO > >, TypedStateFlow< Buffer< CanMessageData >, DispatchFlowBase< BASE_NUM_PRIO > >, TypedStateFlow< Buffer< D >, DispatchFlowBase< BASE_NUM_PRIO > >, TypedStateFlow< Buffer< GenMessage >, DispatchFlowBase< BASE_NUM_PRIO > >, TypedStateFlow< Buffer< HubData >, DispatchFlowBase< BASE_NUM_PRIO > >, TypedStateFlow< Buffer< ThrottleCommand >, DispatchFlowBase< BASE_NUM_PRIO > >, and TypedStateFlow< MessageType, DispatchFlowBase< BASE_NUM_PRIO > >.

Definition at line 420 of file Dispatcher.hxx.

◆ get_message_id()

template<int NUM_PRIO>

virtual ID DispatchFlowBase< NUM_PRIO >::get_message_id ( )

protectedpure virtual

Returns the current message's ID.

Implemented in DispatchFlow< MessageType, NUM_PRIO >.

◆ iterate()

template<int NUM_PRIO>

StateFlowBase::Action DispatchFlowBase< NUM_PRIO >::iterate ( )

protected

Iterate on potential handlers, matching the ID of the incoming message to the handlers' masks.

Returns: next action

Definition at line 428 of file Dispatcher.hxx.

◆ iteration_done()

template<int NUM_PRIO>

StateFlowBase::Action DispatchFlowBase< NUM_PRIO >::iteration_done ( )

protected

State when the entire iteration is done.

Returns: next action

Definition at line 478 of file Dispatcher.hxx.

◆ register_fallback_handler()

template<int NUM_PRIO>

void DispatchFlowBase< NUM_PRIO >::register_fallback_handler ( UntypedHandler * handler )

inlineprotected

Sets one handler to receive all messages that no other handler has matched.

May be called only once in the lifetime of a dispatcher object.

Parameters

handler is the handler pointer for the fallback handler.

Definition at line 104 of file Dispatcher.hxx.

◆ register_handler()

template<int NUM_PRIO>

void DispatchFlowBase< NUM_PRIO >::register_handler	(	UntypedHandler *	handler,
		ID	id,
		ID	mask
	)

protected

Adds a new handler to this dispatcher.

A handler will be called if incoming_id & mask == id & mask. If negateMatch_ then the handler will be called if incoming_id & mask != id & mask.

Parameters

id	is the identifier of the message to listen to.
mask	is the mask of the ID matcher. 0=match all; 0xff...f=match one
handler	is the flow to forward message to. It must stay alive so long as *this is alive or the handler is removed.

Definition at line 358 of file Dispatcher.hxx.

◆ release_and_exit()

template<int NUM_PRIO>

Action StateFlowWithQueue::release_and_exit ( )

inlineprotected

Terminates the processing of the current message.

Flows should end with this action. Frees the current message.

Returns: the action for checking for new messages.

Definition at line 1029 of file StateFlow.hxx.

◆ send_transfer()

template<int NUM_PRIO>

virtual void DispatchFlowBase< NUM_PRIO >::send_transfer ( )

protectedpure virtual

Sends the current message to lastHandlerToCall, transferring ownership.

Implemented in DispatchFlow< MessageType, NUM_PRIO >.

◆ size()

template<int NUM_PRIO>

size_t DispatchFlowBase< NUM_PRIO >::size ( )

Returns: the number of handlers registered.

Definition at line 343 of file Dispatcher.hxx.

◆ unregister_handler()

template<int NUM_PRIO>

void DispatchFlowBase< NUM_PRIO >::unregister_handler	(	UntypedHandler *	handler,
		ID	id,
		ID	mask
	)

protected

Removes a specific instance of a handler from this dispatcher.

Parameters

handler	handler pointer to unregister.
id	bits to unregister the handler for
mask	mask to unregister the handler for.

Todo:: (balazs.racz) optimize by looking at the current index - 1.

Definition at line 378 of file Dispatcher.hxx.

◆ unregister_handler_all()

template<int NUM_PRIO>

void DispatchFlowBase< NUM_PRIO >::unregister_handler_all ( UntypedHandler * handler )

protected

Removes all instances of a handler from this dispatcher.

Parameters

handler is the handler to unregister from all instances.

Definition at line 402 of file Dispatcher.hxx.

Friends And Related Symbol Documentation

◆ GenericHubFlow

template<int NUM_PRIO>

template<class T >

friend class GenericHubFlow

friend

Definition at line 154 of file Dispatcher.hxx.

Member Data Documentation

◆ currentIndex_

template<int NUM_PRIO>

size_t DispatchFlowBase< NUM_PRIO >::currentIndex_

private

Index of the next handler to look at.

Definition at line 188 of file Dispatcher.hxx.

◆ fallbackHandler_

template<int NUM_PRIO>

UntypedHandler* DispatchFlowBase< NUM_PRIO >::fallbackHandler_ {nullptr}

protected

Handler to give all messages that were not matched by any other handler registration.

Definition at line 195 of file Dispatcher.hxx.

◆ handlers_

template<int NUM_PRIO>

vector<HandlerInfo> DispatchFlowBase< NUM_PRIO >::handlers_

private

Registered handlers.

Definition at line 185 of file Dispatcher.hxx.

◆ lastHandlerToCall_

template<int NUM_PRIO>

UntypedHandler* DispatchFlowBase< NUM_PRIO >::lastHandlerToCall_ {nullptr}

protected

If non-NULL we still need to call this handler.

Definition at line 192 of file Dispatcher.hxx.

◆ lock_

template<int NUM_PRIO>

OSMutex DispatchFlowBase< NUM_PRIO >::lock_

private

Protects handler add / remove against iteration.

Definition at line 198 of file Dispatcher.hxx.

◆ negateMatch_

template<int NUM_PRIO>

bool DispatchFlowBase< NUM_PRIO >::negateMatch_

private

true if this flow should negate the match condition.

Definition at line 152 of file Dispatcher.hxx.

The documentation for this class was generated from the following file:

Dispatcher.hxx

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Action

◆ ID

◆ UntypedHandler

Constructor & Destructor Documentation

◆ DispatchFlowBase()

◆ ~DispatchFlowBase()

Member Function Documentation

◆ again()

◆ allocate_and_clone()

◆ call_immediately()

◆ clone_done()

◆ entry()

◆ get_message_id()

◆ iterate()

◆ iteration_done()

◆ register_fallback_handler()

◆ register_handler()

◆ release_and_exit()

◆ send_transfer()

◆ size()

◆ unregister_handler()

◆ unregister_handler_all()

Friends And Related Symbol Documentation

◆ GenericHubFlow

Member Data Documentation

◆ currentIndex_

◆ fallbackHandler_

◆ handlers_

◆ lastHandlerToCall_

◆ lock_

◆ negateMatch_
