Type-specific implementations of the DispatchFlow methods. More...

#include <Dispatcher.hxx>

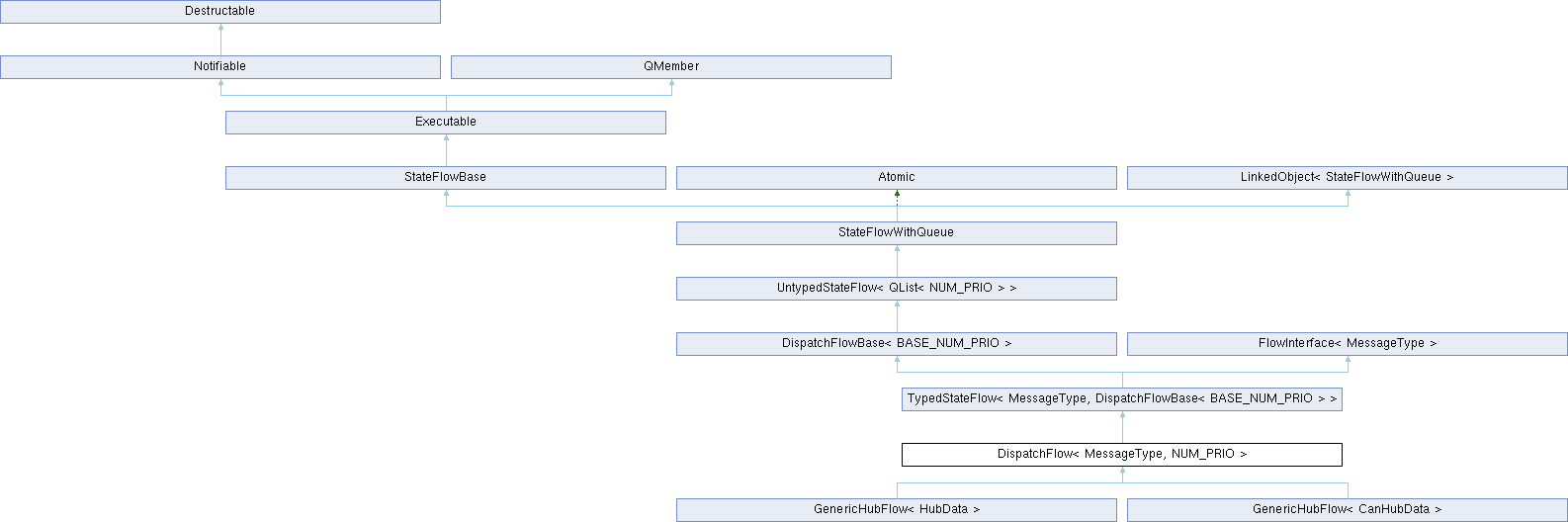

Inheritance diagram for DispatchFlow< MessageType, NUM_PRIO >:

Public Types
typedef TypedStateFlow< MessageType, DispatchFlowBase< BASE_NUM_PRIO > >	Base
	Helper typedef of the base class of *this.

typedef StateFlowBase::Action	Action
	Imports types and functions to allow less typing for the implementation.

typedef FlowInterface< MessageType >	HandlerType
	Interface type for handlers that can be registered.

typedef MessageType::value_type::id_type	ID
	Maskable type of the dispatched messages upon which handlers can configure to trigger.

Public Types inherited from TypedStateFlow< MessageType, DispatchFlowBase< BASE_NUM_PRIO > >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from DispatchFlowBase< BASE_NUM_PRIO >
typedef StateFlowBase::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Public Member Functions
	DispatchFlow (Service *service)
	Constructor.

Action	entry () OVERRIDE
	Override method that will be called after each incoming message is dequeued.

void	register_handler (HandlerType *handler, ID id, ID mask)
	Adds a new handler to this dispatcher.

void	unregister_handler (HandlerType *handler, ID id, ID mask)
	Removes a specific instance of a handler from this dispatcher.

void	unregister_handler_all (HandlerType *handler)
	Removes all instances of a handler from this dispatcher.

void	register_fallback_handler (HandlerType *handler)
	Sets one handler to receive all messages that no other handler has matched.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Public Member Functions inherited from TypedStateFlow< MessageType, DispatchFlowBase< BASE_NUM_PRIO > >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

Public Member Functions inherited from DispatchFlowBase< BASE_NUM_PRIO >
	DispatchFlowBase (Service *service)
	Construct a dispatchflow.

size_t	size ()

Public Member Functions inherited from UntypedStateFlow< QList< NUM_PRIO > >
	UntypedStateFlow (Service *service)
	Constructor.

Public Member Functions inherited from StateFlowWithQueue
void	notify () override
	Wakeup call arrived. Schedules *this on the executor.

bool	is_waiting ()

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_next ()

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Protected Member Functions
Base::ID	get_message_id () OVERRIDE

Action	allocate_and_clone () OVERRIDE
	Requests allocating a new buffer for sending off a clone.

Action	clone ()
	Takes the allocated new buffer, copies the message into it and sends off to the clone target.

void	send_transfer () OVERRIDE
	Takes the existing buffer and sends off to the target flow.

Protected Member Functions inherited from TypedStateFlow< MessageType, DispatchFlowBase< BASE_NUM_PRIO > >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Protected Member Functions inherited from DispatchFlowBase< BASE_NUM_PRIO >
void	register_handler (UntypedHandler *handler, ID id, ID mask)
	Adds a new handler to this dispatcher.

void	unregister_handler (UntypedHandler *handler, ID id, ID mask)
	Removes a specific instance of a handler from this dispatcher.

void	unregister_handler_all (UntypedHandler *handler)
	Removes all instances of a handler from this dispatcher.

void	register_fallback_handler (UntypedHandler *handler)
	Sets one handler to receive all messages that no other handler has matched.

Action	iterate ()
	Iterate on potential handlers, matching the ID of the incoming message to the handlers' masks.

Action	clone_done ()
	State after a clone-and-send operation is complete.

Action	iteration_done ()
	State when the entire iteration is done.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	again ()
	Call the current state again via call_immediately.

Action	release_and_exit ()
	Terminates the processing of the current message.

Protected Member Functions inherited from UntypedStateFlow< QList< NUM_PRIO > >
void	send (BufferBase *msg, unsigned priority=UINT_MAX)
	Sends a message to the state flow for processing.

QMember *	queue_next (unsigned *priority) OVERRIDE
	Takes the front entry in the queue.

bool	queue_empty () OVERRIDE

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Protected Member Functions inherited from StateFlowWithQueue
	StateFlowWithQueue (Service *service)
	Constructor.

Action	exit ()
	Terminates the processing of this flow.

Action	release_and_exit ()
	Terminates the processing of the current message.

BufferBase *	message ()

BufferBase *	transfer_message ()
	Releases ownership of the current message.

void	reset_message (BufferBase *message, unsigned priority)
	Sets the current message being processed.

unsigned	priority ()

void	set_priority (unsigned priority)
	Overrides the current priority.

void	start_flow_at_init (Callback c)
	Call this from the constructor of the child class to do some work before the main queue processing loop begins.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_this ()

	LinkedObject ()
	Constructor. Puts *this on the linked list.

	~LinkedObject ()
	Constructor. Removes *this from the linked list.

StateFlowWithQueue *	link_next ()

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Static Public Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Protected Types inherited from DispatchFlowBase< BASE_NUM_PRIO >
typedef uint32_t	ID
	Proxy the identifier type for customers to use.

typedef void	UntypedHandler
	Generic handler type.

Protected Types inherited from UntypedStateFlow< QList< NUM_PRIO > >
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Static Protected Member Functions inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Protected Attributes inherited from DispatchFlowBase< BASE_NUM_PRIO >
UntypedHandler *	lastHandlerToCall_
	If non-NULL we still need to call this handler.

UntypedHandler *	fallbackHandler_
	Handler to give all messages that were not matched by any other handler registration.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
StateFlowWithQueue *	link_
	Linked list pointer.

Static Protected Attributes inherited from LinkedObject< StateFlowWithQueue >
static StateFlowWithQueue *	head_
	Beginning of the list.

Detailed Description

template<class MessageType, int NUM_PRIO>
class DispatchFlow< MessageType, NUM_PRIO >

Type-specific implementations of the DispatchFlow methods.

see DispatchFlowBase.

Definition at line 215 of file Dispatcher.hxx.

Member Typedef Documentation

◆ Action

template<class MessageType , int NUM_PRIO>

typedef StateFlowBase::Action DispatchFlow< MessageType, NUM_PRIO >::Action

Imports types and functions to allow less typing for the implementation.

Definition at line 226 of file Dispatcher.hxx.

◆ Base

template<class MessageType , int NUM_PRIO>

typedef TypedStateFlow<MessageType, DispatchFlowBase<BASE_NUM_PRIO> > DispatchFlow< MessageType, NUM_PRIO >::Base

Helper typedef of the base class of *this.

Definition at line 218 of file Dispatcher.hxx.

◆ HandlerType

template<class MessageType , int NUM_PRIO>

typedef FlowInterface<MessageType> DispatchFlow< MessageType, NUM_PRIO >::HandlerType

Interface type for handlers that can be registered.

Definition at line 232 of file Dispatcher.hxx.

◆ ID

template<class MessageType , int NUM_PRIO>

typedef MessageType::value_type::id_type DispatchFlow< MessageType, NUM_PRIO >::ID

Maskable type of the dispatched messages upon which handlers can configure to trigger.

Definition at line 235 of file Dispatcher.hxx.

Constructor & Destructor Documentation

◆ DispatchFlow()

template<class MessageType , int NUM_PRIO>

DispatchFlow< MessageType, NUM_PRIO >::DispatchFlow ( Service * service )

inline

Constructor.

Parameters

service specifies which thread to execute this state flow on.

Definition at line 222 of file Dispatcher.hxx.

Member Function Documentation

◆ allocate_and_call() [1/2]

template<class MessageType , int NUM_PRIO>

Action StateFlowBase::allocate_and_call	(	Callback	c,
		QAsync *	queue
	)

inline

Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

Parameters

c	is the state to transition to after allocation
queue	is the queue to allocate from.

Returns: new state object to return from state function.

Definition at line 372 of file StateFlow.hxx.

◆ allocate_and_call() [2/2]

template<class MessageType , int NUM_PRIO>

template<class T >

Action StateFlowBase::allocate_and_call	(	FlowInterface< Buffer< T > > *	target_flow,
		Callback	c,
		Pool *	pool = `nullptr`
	)

inline

Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Parameters

target_flow	defines the type of buffer to allocate.
c	Callback "state" to move to after allocation
pool	pool to allocate from; defaults to the pool of the target flow.

Returns: function pointer to be returned from state function

Definition at line 351 of file StateFlow.hxx.

◆ allocate_and_clone()

template<class MessageType , int NUM_PRIO>

Action DispatchFlow< MessageType, NUM_PRIO >::allocate_and_clone ( )

inlineprotectedvirtual

Requests allocating a new buffer for sending off a clone.

Implements DispatchFlowBase< BASE_NUM_PRIO >.

Definition at line 291 of file Dispatcher.hxx.

◆ call_immediately()

template<class MessageType , int NUM_PRIO>

Action StateFlowBase::call_immediately ( Callback c )

inline

Imediately call the next state upon return.

Parameters

c	Callback "state" to move to

Returns: function pointer to be returned from state function

Definition at line 318 of file StateFlow.hxx.

◆ clone()

template<class MessageType , int NUM_PRIO>

Action DispatchFlow< MessageType, NUM_PRIO >::clone ( )

inlineprotected

Takes the allocated new buffer, copies the message into it and sends off to the clone target.

Returns: next action.

Definition at line 302 of file Dispatcher.hxx.

◆ entry()

template<class MessageType , int NUM_PRIO>

Action DispatchFlow< MessageType, NUM_PRIO >::entry ( )

inlinevirtual

Override method that will be called after each incoming message is dequeued.

Returns: next state.

Implements TypedStateFlow< MessageType, DispatchFlowBase< BASE_NUM_PRIO > >.

Definition at line 239 of file Dispatcher.hxx.

◆ get_allocation_result()

template<class MessageType , int NUM_PRIO>

template<class T >

Buffer< T > * StateFlowBase::get_allocation_result ( FlowInterface< Buffer< T > > * target_flow )

inline

Takes the result of the asynchronous allocation.

This should be the first statement in the state where the allocation transitioned.

Parameters

target_flow is the StateFlow for which we allocated.

Returns: an initialized buffer of the correct type.

Definition at line 422 of file StateFlow.hxx.

◆ get_message_id()

template<class MessageType , int NUM_PRIO>

Base::ID DispatchFlow< MessageType, NUM_PRIO >::get_message_id ( )

inlineprotectedvirtual

Returns: the identifier bits of the current message.

Implements DispatchFlowBase< BASE_NUM_PRIO >.

Definition at line 286 of file Dispatcher.hxx.

◆ register_fallback_handler()

template<class MessageType , int NUM_PRIO>

void DispatchFlow< MessageType, NUM_PRIO >::register_fallback_handler ( HandlerType * handler )

inline

Sets one handler to receive all messages that no other handler has matched.

May be called only once in the lifetime of a dispatcher object.

Parameters

handler is the handler pointer for the fallback handler.

Definition at line 279 of file Dispatcher.hxx.

◆ register_handler()

template<class MessageType , int NUM_PRIO>

void DispatchFlow< MessageType, NUM_PRIO >::register_handler	(	HandlerType *	handler,
		ID	id,
		ID	mask
	)

inline

Adds a new handler to this dispatcher.

A handler will be called if incoming_id & mask == id & mask. If negateMatch_ then the handler will be called if incoming_id & mask != id & mask.

Parameters

id	is the identifier of the message to listen to.
mask	is the mask of the ID matcher. 0=match all; 0xff...f=match one
handler	is the flow to forward message to. It must stay alive so long as *this is alive or the handler is removed.

Definition at line 256 of file Dispatcher.hxx.

◆ send_transfer()

template<class MessageType , int NUM_PRIO>

void DispatchFlow< MessageType, NUM_PRIO >::send_transfer ( )

inlineprotectedvirtual

Takes the existing buffer and sends off to the target flow.

Only used as the last action. Requires: lastHandlerToCall != nullptr.

Implements DispatchFlowBase< BASE_NUM_PRIO >.

Definition at line 319 of file Dispatcher.hxx.

◆ unregister_handler()

template<class MessageType , int NUM_PRIO>

void DispatchFlow< MessageType, NUM_PRIO >::unregister_handler	(	HandlerType *	handler,
		ID	id,
		ID	mask
	)

inline

Removes a specific instance of a handler from this dispatcher.

Parameters

handler	handler pointer to unregister.
id	bits to unregister the handler for
mask	mask to unregister the handler for.

Definition at line 266 of file Dispatcher.hxx.

◆ unregister_handler_all()

template<class MessageType , int NUM_PRIO>

void DispatchFlow< MessageType, NUM_PRIO >::unregister_handler_all ( HandlerType * handler )

inline

Removes all instances of a handler from this dispatcher.

Definition at line 271 of file Dispatcher.hxx.

The documentation for this class was generated from the following file:

Dispatcher.hxx

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Action

◆ Base

◆ HandlerType

◆ ID

Constructor & Destructor Documentation

◆ DispatchFlow()

Member Function Documentation

◆ allocate_and_call() [1/2]

◆ allocate_and_call() [2/2]

◆ allocate_and_clone()

◆ call_immediately()

◆ clone()

◆ entry()

◆ get_allocation_result()

◆ get_message_id()

◆ register_fallback_handler()

◆ register_handler()

◆ send_transfer()

◆ unregister_handler()

◆ unregister_handler_all()
