Memory Space implementation for a CV (configuration variable) access on a Railcom-enabled command station. More...

#include <TractionCvSpace.hxx>

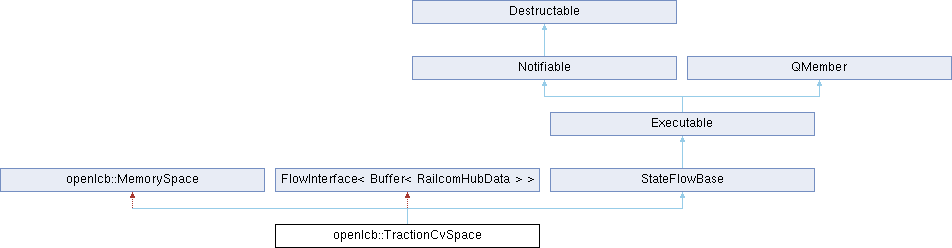

Inheritance diagram for openlcb::TractionCvSpace:

Public Types
enum	{ OFFSET_CV_INDEX = 0x7F000000 , OFFSET_CV_VALUE = 0x7F000004 , OFFSET_CV_VERIFY_VALUE = 0x7F000005 , OFFSET_CV_VERIFY_RESULT = 0x7F000006 }

Public Member Functions
	TractionCvSpace (MemoryConfigHandler parent, dcc::TrackIf track, dcc::RailcomHubFlow *railcom_hub, uint8_t space_id)

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Private Types
enum	{ ERROR_NOOP = 0 , ERROR_PENDING = 1 , ERROR_OK = 2 , _ERROR_BUSY = 3 , ERROR_NACK = 7 , ERROR_NO_RAILCOM_CH2_DATA = 4 , ERROR_GARBAGE = 5 , ERROR_UNKNOWN_RESPONSE = 6 , _ERROR_TIMEOUT = 8 }

Private Types inherited from openlcb::MemorySpace
typedef uint32_t	address_t

typedef uint16_t	errorcode_t

Private Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Private Member Functions
bool	set_node (Node *node) OVERRIDE
	Specifies which node the next operation pertains.

bool	read_only () OVERRIDE

address_t	max_address () OVERRIDE

size_t	write (address_t destination, const uint8_t data, size_t len, errorcode_t error, Notifiable *again) OVERRIDE

size_t	read (address_t source, uint8_t dst, size_t len, errorcode_t error, Notifiable *again) OVERRIDE

Action	try_read1 ()

Action	fill_read1_packet ()

Action	read_returned ()

Action	try_write1 ()

Action	fill_write1_packet ()

Action	write_returned ()

Action	pgm_verify ()

Action	pgm_verify_wait_flush ()

Action	pgm_verify_reset ()

Action	pgm_verify_packet ()

Action	pgm_verify_done ()

Action	pgm_verify_reset_done ()

Action	pgm_verify_exit ()

void	send (Buffer< dcc::RailcomHubData > *b, unsigned priority) OVERRIDE

void	record_railcom_status (unsigned code)

Action	async_done ()
	Helper function for completing asynchronous processing.

Private Member Functions inherited from openlcb::MemorySpace
virtual address_t	min_address ()

virtual errorcode_t	freeze ()
	Handles space freeze command.

virtual errorcode_t	unfreeze ()
	Handles space unfreeze command.

Private Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual void	send (MessageType *message, unsigned priority=UINT_MAX)=0
	Entry point to the flow.

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Attributes
MemoryConfigHandler *	parent_

dcc::TrackIf *	track_

dcc::RailcomHubFlow *	railcomHub_

uint16_t	currId_
	Last accepted DCC locomotive node ID (bottom 16 bits).

uint16_t	dccAddressNum_: 14
	Numberic value of last used DCC address.

uint16_t	dccIsLong_: 1
	1 for long address, 0 for short address.

uint16_t	cvNumber_
	CV to read (0 to 1023).

uint8_t	cvData_
	data read or data to write

uint8_t	errorCode_: 4

uint8_t	numTry_: 4

uint8_t	spaceId_

uint16_t	lastIndexedNode_
	Stores the last node for which the CV index was written.

uint8_t	lastVerifyValue_
	Stores the CV value that we're checking the CV against to verify.

uint32_t	lastIndexedCv_
	Stores the last CV index (for indirect CV lookup).

Notifiable *	done_

StateFlowTimer	timer_

long long	deadline_

vector< dcc::RailcomPacket >	interpretedResponse_

Static Private Attributes
static const unsigned	MAX_CV = 1023

Static Private Attributes inherited from openlcb::MemorySpace
static const errorcode_t	ERROR_AGAIN = 0x3FFF
	This error code signals that the operation was only partially completed, the again notify was used and will be notified when the operation can be re-tried).

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Static Private Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Detailed Description

Memory Space implementation for a CV (configuration variable) access on a Railcom-enabled command station.

Reads are turned into DCC extended packets for Programming-on-Main mode CV reads, and the Railcom feedback is evaluated for the result of the memory read operation. Writes are turned into POM-mode CV write packets, and the Railcom feedback is evaluated for success acknowledgement.

A single instance of this class works for all DCC locomotives, assuming that the memory configuration handler was registered for all virtual nodes of the given interface.

Restrictions: the DCC locmotives are required to have theid NodeID allocated as TractionDefs::NODE_ID_DCC + address. There is a hard-coded assumption that node IDs lower, than 128 are shoprt addresses, and higher addresses are long addresses.

@TODO(balazs.racz) Wire up a link to the traction service to somehow remove these restrictions.

Definition at line 66 of file TractionCvSpace.hxx.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Definition at line 133 of file TractionCvSpace.hxx.

◆ anonymous enum

anonymous enum

Definition at line 147 of file TractionCvSpace.hxx.

Constructor & Destructor Documentation

◆ TractionCvSpace()

openlcb::TractionCvSpace::TractionCvSpace	(	MemoryConfigHandler *	parent,
		dcc::TrackIf *	track,
		dcc::RailcomHubFlow *	railcom_hub,
		uint8_t	space_id
	)

Definition at line 54 of file TractionCvSpace.cxx.

◆ ~TractionCvSpace()

openlcb::TractionCvSpace::~TractionCvSpace ( )

Definition at line 70 of file TractionCvSpace.cxx.

Member Function Documentation

◆ async_done()

Action openlcb::TractionCvSpace::async_done ( )

inlineprivate

Helper function for completing asynchronous processing.

Definition at line 157 of file TractionCvSpace.hxx.

◆ fill_read1_packet()

StateFlowBase::Action openlcb::TractionCvSpace::fill_read1_packet ( )

private

Definition at line 291 of file TractionCvSpace.cxx.

◆ fill_write1_packet()

StateFlowBase::Action openlcb::TractionCvSpace::fill_write1_packet ( )

private

Definition at line 396 of file TractionCvSpace.cxx.

◆ max_address()

address_t openlcb::TractionCvSpace::max_address ( )

inlineprivatevirtual

Returns: the largest valid address for this block. A read of 1 from this address should succeed in returning the last byte.

Implements openlcb::MemorySpace.

Definition at line 86 of file TractionCvSpace.hxx.

◆ pgm_verify()

StateFlowBase::Action openlcb::TractionCvSpace::pgm_verify ( )

private

Definition at line 200 of file TractionCvSpace.cxx.

◆ pgm_verify_done()

StateFlowBase::Action openlcb::TractionCvSpace::pgm_verify_done ( )

private

Definition at line 248 of file TractionCvSpace.cxx.

◆ pgm_verify_exit()

StateFlowBase::Action openlcb::TractionCvSpace::pgm_verify_exit ( )

private

Definition at line 275 of file TractionCvSpace.cxx.

◆ pgm_verify_packet()

StateFlowBase::Action openlcb::TractionCvSpace::pgm_verify_packet ( )

private

Definition at line 229 of file TractionCvSpace.cxx.

◆ pgm_verify_reset()

StateFlowBase::Action openlcb::TractionCvSpace::pgm_verify_reset ( )

private

Definition at line 222 of file TractionCvSpace.cxx.

◆ pgm_verify_reset_done()

StateFlowBase::Action openlcb::TractionCvSpace::pgm_verify_reset_done ( )

private

Definition at line 266 of file TractionCvSpace.cxx.

◆ pgm_verify_wait_flush()

StateFlowBase::Action openlcb::TractionCvSpace::pgm_verify_wait_flush ( )

private

Definition at line 208 of file TractionCvSpace.cxx.

◆ read()

size_t openlcb::TractionCvSpace::read	(	address_t	source,
		uint8_t *	dst,
		size_t	len,
		errorcode_t *	error,
		Notifiable *	again
	)

privatevirtual

Returns: the number of bytes successfully read (before hitting end of space). If *error is set to non-null, then the operation has failed. If the operation needs to be continued, then sets error to ERROR_AGAIN, and calls the Notifiable

Parameters

again when a re-try makes sense. The caller should call read once more, with the offset adjusted with the previously returned bytes.

Implements openlcb::MemorySpace.

Definition at line 121 of file TractionCvSpace.cxx.

◆ read_only()

bool openlcb::TractionCvSpace::read_only ( )

inlineprivatevirtual

Returns: whether the memory space does not accept writes.

Reimplemented from openlcb::MemorySpace.

Definition at line 81 of file TractionCvSpace.hxx.

◆ read_returned()

StateFlowBase::Action openlcb::TractionCvSpace::read_returned ( )

private

Definition at line 313 of file TractionCvSpace.cxx.

◆ record_railcom_status()

void openlcb::TractionCvSpace::record_railcom_status ( unsigned code )

private

Definition at line 453 of file TractionCvSpace.cxx.

◆ send()

void openlcb::TractionCvSpace::send	(	Buffer< dcc::RailcomHubData > *	b,
		unsigned	priority
	)

private

Definition at line 460 of file TractionCvSpace.cxx.

◆ set_node()

bool openlcb::TractionCvSpace::set_node ( Node * node )

privatevirtual

Specifies which node the next operation pertains.

If it returns false, the operation will be rejected by "unknown memory space ID".

Reimplemented from openlcb::MemorySpace.

Definition at line 79 of file TractionCvSpace.cxx.

◆ try_read1()

StateFlowBase::Action openlcb::TractionCvSpace::try_read1 ( )

private

Definition at line 282 of file TractionCvSpace.cxx.

◆ try_write1()

StateFlowBase::Action openlcb::TractionCvSpace::try_write1 ( )

private

Definition at line 286 of file TractionCvSpace.cxx.

◆ write()

size_t openlcb::TractionCvSpace::write	(	address_t	destination,
		const uint8_t *	data,
		size_t	len,
		errorcode_t *	error,
		Notifiable *	again
	)

privatevirtual

Returns: the number of bytes successfully written (before hitting end of space). If *error is set to non-null, then the operation has failed. If the operation needs to be continued, then sets error to MemorySpace::ERROR_AGAIN, and calls the Notifiable

Parameters

again when a re-try makes sense. The caller should call write once more, with the offset adjusted with the previously returned bytes.

Reimplemented from openlcb::MemorySpace.

Definition at line 341 of file TractionCvSpace.cxx.

◆ write_returned()

StateFlowBase::Action openlcb::TractionCvSpace::write_returned ( )

private

Todo:: (balazs.racz) keep a timestamp to not keep trying forever.

Definition at line 420 of file TractionCvSpace.cxx.

Member Data Documentation

◆ currId_

uint16_t openlcb::TractionCvSpace::currId_

private

Last accepted DCC locomotive node ID (bottom 16 bits).

Definition at line 122 of file TractionCvSpace.hxx.

◆ cvData_

uint8_t openlcb::TractionCvSpace::cvData_

private

data read or data to write

Definition at line 130 of file TractionCvSpace.hxx.

◆ cvNumber_

uint16_t openlcb::TractionCvSpace::cvNumber_

private

CV to read (0 to 1023).

Definition at line 128 of file TractionCvSpace.hxx.

◆ dccAddressNum_

uint16_t openlcb::TractionCvSpace::dccAddressNum_

private

Numberic value of last used DCC address.

Definition at line 124 of file TractionCvSpace.hxx.

◆ dccIsLong_

uint16_t openlcb::TractionCvSpace::dccIsLong_

private

1 for long address, 0 for short address.

Definition at line 126 of file TractionCvSpace.hxx.

◆ deadline_

long long openlcb::TractionCvSpace::deadline_

private

Definition at line 174 of file TractionCvSpace.hxx.

◆ done_

Notifiable* openlcb::TractionCvSpace::done_

private

Definition at line 172 of file TractionCvSpace.hxx.

◆ errorCode_

uint8_t openlcb::TractionCvSpace::errorCode_

private

Definition at line 131 of file TractionCvSpace.hxx.

◆ interpretedResponse_

vector<dcc::RailcomPacket> openlcb::TractionCvSpace::interpretedResponse_

private

Definition at line 175 of file TractionCvSpace.hxx.

◆ lastIndexedCv_

uint32_t openlcb::TractionCvSpace::lastIndexedCv_

private

Stores the last CV index (for indirect CV lookup).

Definition at line 170 of file TractionCvSpace.hxx.

◆ lastIndexedNode_

uint16_t openlcb::TractionCvSpace::lastIndexedNode_

private

Stores the last node for which the CV index was written.

Definition at line 166 of file TractionCvSpace.hxx.

◆ lastVerifyValue_

uint8_t openlcb::TractionCvSpace::lastVerifyValue_

private

Stores the CV value that we're checking the CV against to verify.

Definition at line 168 of file TractionCvSpace.hxx.

◆ MAX_CV

const unsigned openlcb::TractionCvSpace::MAX_CV = 1023

staticprivate

Definition at line 77 of file TractionCvSpace.hxx.

◆ numTry_

uint8_t openlcb::TractionCvSpace::numTry_

private

Definition at line 132 of file TractionCvSpace.hxx.

◆ parent_

MemoryConfigHandler* openlcb::TractionCvSpace::parent_

private

Definition at line 118 of file TractionCvSpace.hxx.

◆ railcomHub_

dcc::RailcomHubFlow* openlcb::TractionCvSpace::railcomHub_

private

Definition at line 120 of file TractionCvSpace.hxx.

◆ spaceId_

uint8_t openlcb::TractionCvSpace::spaceId_

private

Definition at line 164 of file TractionCvSpace.hxx.

◆ timer_

StateFlowTimer openlcb::TractionCvSpace::timer_

private

Definition at line 173 of file TractionCvSpace.hxx.

◆ track_

dcc::TrackIf* openlcb::TractionCvSpace::track_

private

Definition at line 119 of file TractionCvSpace.hxx.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

◆ anonymous enum

Constructor & Destructor Documentation

◆ TractionCvSpace()

◆ ~TractionCvSpace()

Member Function Documentation

◆ async_done()

◆ fill_read1_packet()

◆ fill_write1_packet()

◆ max_address()

◆ pgm_verify()

◆ pgm_verify_done()

◆ pgm_verify_exit()

◆ pgm_verify_packet()

◆ pgm_verify_reset()

◆ pgm_verify_reset_done()

◆ pgm_verify_wait_flush()

◆ read()

◆ read_only()

◆ read_returned()

◆ record_railcom_status()

◆ send()

◆ set_node()

◆ try_read1()

◆ try_write1()

◆ write()

◆ write_returned()

Member Data Documentation

◆ currId_

◆ cvData_

◆ cvNumber_

◆ dccAddressNum_

◆ dccIsLong_

◆ deadline_

◆ done_

◆ errorCode_

◆ interpretedResponse_

◆ lastIndexedCv_

◆ lastIndexedNode_

◆ lastVerifyValue_

◆ MAX_CV

◆ numTry_

◆ parent_

◆ railcomHub_

◆ spaceId_

◆ timer_

◆ track_
