State flow that calls a set of Polling objects at a regular interval. More...

#include <RefreshLoop.hxx>

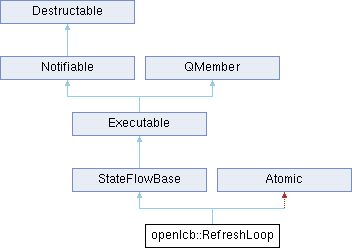

Inheritance diagram for openlcb::RefreshLoop:

Public Member Functions
template<class Container = std::initializer_list<Polling*>>
	RefreshLoop (Node *node, const Container &members)
	Constructor.

void	stop ()
	Stops the refresh loop.

void	add_member (Polling *new_member)
	Adds a new member to the polling loop.

Action	wait_for_tick ()
	State which gets called after the loop is complete.

Action	call_members ()

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Private Types
typedef vector< Polling * >	members_type
	Data structure type for storing the polling members.

Private Attributes
WriteHelper	helper_
	Message write buffer that is passed to each polling object.

StateFlowTimer	timer_
	Helper object for sleeps.

long long	lastTimeout_
	Rolling clock of when the next wakeup should happen.

BarrierNotifiable	bn_
	Controllable notifier to be passed into the polling objects.

members_type	members_
	The actual members.

unsigned	nextMember_
	Index for iterating through the members list.

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Private Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Detailed Description

State flow that calls a set of Polling objects at a regular interval.

Usage: Instantiate your objects from descendants of the Polling class. Create a RefreshLoop object and pass in the list of Polling object pointers to the constructor.

Definition at line 62 of file RefreshLoop.hxx.

Member Typedef Documentation

◆ members_type

typedef vector<Polling*> openlcb::RefreshLoop::members_type

private

Data structure type for storing the polling members.

Definition at line 149 of file RefreshLoop.hxx.

Constructor & Destructor Documentation

◆ RefreshLoop()

template<class Container = std::initializer_list<Polling*>>

openlcb::RefreshLoop::RefreshLoop	(	Node *	node,
		const Container &	members
	)

inline

Constructor.

Parameters

node	openlcb Node whose interface/executor we will be using for the polling loop.
members	container of Polling* objects (e.g. std::initializer_list<Polling> or std::vector<Polling> which need to be polled by this refresh loop.

Definition at line 73 of file RefreshLoop.hxx.

Member Function Documentation

◆ add_member()

void openlcb::RefreshLoop::add_member ( Polling * new_member )

inline

Adds a new member to the polling loop.

Parameters

new_member the member to be polled. The object ownership is retained by the caller. The object must outlive this RefreshLoop object.

Definition at line 95 of file RefreshLoop.hxx.

◆ call_members()

Action openlcb::RefreshLoop::call_members ( )

inline

Definition at line 112 of file RefreshLoop.hxx.

◆ stop()

void openlcb::RefreshLoop::stop ( )

inline

Stops the refresh loop.

If you call this funciton, then wait for the executor, then it is safe to delete *this.

Definition at line 84 of file RefreshLoop.hxx.

◆ wait_for_tick()

Action openlcb::RefreshLoop::wait_for_tick ( )

inline

State which gets called after the loop is complete.

Initializes the next loop and sleeps until it's time to go.

Definition at line 103 of file RefreshLoop.hxx.

Member Data Documentation

◆ bn_

BarrierNotifiable openlcb::RefreshLoop::bn_

private

Controllable notifier to be passed into the polling objects.

Definition at line 147 of file RefreshLoop.hxx.

◆ helper_

WriteHelper openlcb::RefreshLoop::helper_

private

Message write buffer that is passed to each polling object.

Definition at line 141 of file RefreshLoop.hxx.

◆ lastTimeout_

long long openlcb::RefreshLoop::lastTimeout_

private

Rolling clock of when the next wakeup should happen.

Definition at line 145 of file RefreshLoop.hxx.

◆ members_

members_type openlcb::RefreshLoop::members_

private

The actual members.

Definition at line 151 of file RefreshLoop.hxx.

◆ nextMember_

unsigned openlcb::RefreshLoop::nextMember_

private

Index for iterating through the members list.

Definition at line 153 of file RefreshLoop.hxx.

◆ timer_

StateFlowTimer openlcb::RefreshLoop::timer_

private

Helper object for sleeps.

Definition at line 143 of file RefreshLoop.hxx.

The documentation for this class was generated from the following file:

RefreshLoop.hxx
