Datagram client implementation for CANbus-based datagram protocol. More...

#include <DatagramImpl.hxx>

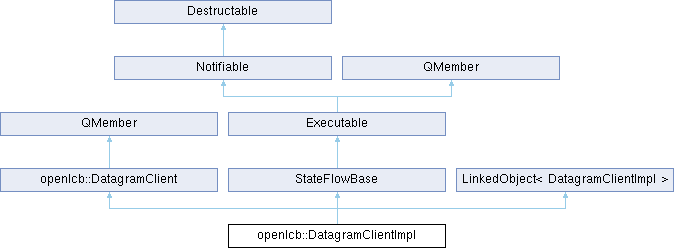

Inheritance diagram for openlcb::DatagramClientImpl:

Classes
class	ReplyListener
	This object is registered to receive response messages at the interface level. More...

Public Member Functions
	DatagramClientImpl (If iface, MessageHandler send_flow)
	Constructor.

void	write_datagram (Buffer< GenMessage > *b, unsigned priority) OVERRIDE
	Triggers sending a datagram.

void	cancel () OVERRIDE
	Requests cancelling the datagram send operation.

Public Member Functions inherited from openlcb::DatagramClient
uint32_t	result ()
	Returns a bitmask of ResultCodes for the transmission operation.

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from LinkedObject< DatagramClientImpl >
DatagramClientImpl *	link_next ()

Private Types
enum	{ MTI_1a = Defs::MTI_TERMINATE_DUE_TO_ERROR , MTI_1b = Defs::MTI_OPTIONAL_INTERACTION_REJECTED , MASK_1 = ~(MTI_1a ^ MTI_1b) , MTI_1 = MTI_1a , MTI_2a = Defs::MTI_DATAGRAM_OK , MTI_2b = Defs::MTI_DATAGRAM_REJECTED , MASK_2 = ~(MTI_2a ^ MTI_2b) , MTI_2 = MTI_2a , MTI_3 = Defs::MTI_INITIALIZATION_COMPLETE , MASK_3 = Defs::MTI_EXACT }

Private Member Functions
void	reset_message (Buffer< GenMessage > *b, unsigned priority)
	Equivalent to enqueuing a new datagram to send.

Action	start_send ()
	Entry point to the flow processing.

Action	acquire_srcdst_lock ()
	Ensures that there is no other datagram client with the same src:dst pair.

Action	do_send ()
	Hands off the datagram to the send flow.

void	register_handlers ()

Action	timeout_looking_for_dst ()

Action	timeout_waiting_for_dg_response ()

void	unregister_response_handler ()

Action	datagram_finalize ()

void	handle_response (GenMessage *message)
	Callback when a matching response comes in on the bus.

void	stop_waiting_for_response ()
	To be called from the handler.

void	notify () override
	Overrides the default notify implementation to make sure we obey the priority values.

void	set_priority (unsigned p)
	Sets the stateflow priority.

If *	iface ()

Private Attributes
Buffer< GenMessage > *	message_ {nullptr}
	Datagram message we are trying to send now. We own it.

BarrierNotifiable *	done_ {nullptr}
	This notifiable is saved from the datagram buffer.

NodeHandle	src_
	Source of the datagram we are currently sending.

NodeHandle	dst_
	Destination of the datagram we are currently sending.

MessageHandler *	sendFlow_
	Addressed datagram send flow from the interface. Externally owned.

ReplyListener	listener_
	Instance of the listener object.

StateFlowTimer	timer_ {this}
	Helper object for sleep.

TypedQueue< Executable >	waitingClients_
	List of other datagram clients that are trying to send to the same target node.

unsigned	isSleeping_: 1
	1 when we are in the sleep call waiting for the datagram Ack or Reject message.

unsigned	hasResponse_: 1

unsigned	sendPending_: 1
	1 when we have the handlers registered.

unsigned	priority_: 24
	Priority in the executor.

Static Private Attributes
static constexpr unsigned	MAX_PRIORITY = (1 << 24) - 1
	Constant used to clamp the incoming priority value to something that first in priority_ bit field.

Additional Inherited Members
Public Types inherited from openlcb::DatagramClient
enum	ResultCodes { PERMANENT_ERROR = 0x1000 , RESEND_OK = 0x2000 , TRANSPORT_ERROR = 0x4000 , BUFFER_UNAVAILABLE = 0x0020 , OUT_OF_ORDER = 0x0040 , SOURCE_NOT_PERMITTED = 0x0020 , DATAGRAMS_NOT_ACCEPTED = 0x0040 , OPERATION_SUCCESS = 0x10000 , OPERATION_PENDING = 0x20000 , DST_NOT_FOUND = Defs::ERROR_DST_NOT_FOUND , TIMEOUT = Defs::OPENMRN_TIMEOUT , DST_REBOOT = Defs::ERROR_DST_REBOOT , RESPONSE_FLAGS_SHIFT = 24 , RESPONSE_CODE_MASK = (1<<RESPONSE_FLAGS_SHIFT) - 1 , OK_REPLY_PENDING = (1 << 31) }
	Known result codes from the DatagramClient. More...

enum	ResponseFlag { REPLY_PENDING = 0x80 , REPLY_TIMEOUT_SEC = 0x1 , REPLY_TIMEOUT_MASK = 0xf }

Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Static Public Member Functions inherited from LinkedObject< DatagramClientImpl >
static DatagramClientImpl *	link_head ()

static Atomic *	head_mu ()
	Locks the list for modification (at any entry!).

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from LinkedObject< DatagramClientImpl >
DatagramClientImpl *	link_this ()

	LinkedObject ()
	Constructor. Puts *this on the linked list.

	~LinkedObject ()
	Constructor. Removes *this from the linked list.

Protected Attributes inherited from openlcb::DatagramClient
uint32_t	result_

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Protected Attributes inherited from LinkedObject< DatagramClientImpl >
DatagramClientImpl *	link_
	Linked list pointer.

Static Protected Attributes inherited from LinkedObject< DatagramClientImpl >
static DatagramClientImpl *	head_
	Beginning of the list.

Detailed Description

Datagram client implementation for CANbus-based datagram protocol.

This flow is responsible for the outgoing CAN datagram framing, and listens for incoming datagram response messages.

The base class of AddressedCanMessageWriteFlow is responsible for the discovery and address resolution of the destination node.

Definition at line 52 of file DatagramImpl.hxx.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Definition at line 159 of file DatagramImpl.hxx.

Constructor & Destructor Documentation

◆ DatagramClientImpl()

openlcb::DatagramClientImpl::DatagramClientImpl	(	If *	iface,
		MessageHandler *	send_flow
	)

inline

Constructor.

Parameters

iface	is the service on which to run this flow
send_flow	can receive an (addressed) Datagram message and send it to the appropriate destination – takes care of fragmenting etc.

Definition at line 61 of file DatagramImpl.hxx.

Member Function Documentation

◆ acquire_srcdst_lock()

Action openlcb::DatagramClientImpl::acquire_srcdst_lock ( )

inlineprivate

Ensures that there is no other datagram client with the same src:dst pair.

This is required by the standard.

Returns: next state

Definition at line 113 of file DatagramImpl.hxx.

◆ cancel()

void openlcb::DatagramClientImpl::cancel ( )

inlinevirtual

Requests cancelling the datagram send operation.

Will notify the done callback when the canceling is completed.

Implements openlcb::DatagramClient.

Definition at line 84 of file DatagramImpl.hxx.

◆ datagram_finalize()

Action openlcb::DatagramClientImpl::datagram_finalize ( )

inlineprivate

Definition at line 223 of file DatagramImpl.hxx.

◆ do_send()

Action openlcb::DatagramClientImpl::do_send ( )

inlineprivate

Hands off the datagram to the send flow.

Returns: next state.

Definition at line 141 of file DatagramImpl.hxx.

◆ handle_response()

void openlcb::DatagramClientImpl::handle_response ( GenMessage * message )

inlineprivate

Callback when a matching response comes in on the bus.

Parameters

message is the incoming generic message (from the response buffer).

Definition at line 259 of file DatagramImpl.hxx.

◆ iface()

If * openlcb::DatagramClientImpl::iface ( )

inlineprivate

Returns: the interface service we are running on.

Definition at line 392 of file DatagramImpl.hxx.

◆ notify()

void openlcb::DatagramClientImpl::notify ( )

inlineoverrideprivatevirtual

Overrides the default notify implementation to make sure we obey the priority values.

Implements Notifiable.

Definition at line 379 of file DatagramImpl.hxx.

◆ register_handlers()

void openlcb::DatagramClientImpl::register_handlers ( )

inlineprivate

Definition at line 173 of file DatagramImpl.hxx.

◆ reset_message()

void openlcb::DatagramClientImpl::reset_message	(	Buffer< GenMessage > *	b,
		unsigned	priority
	)

inlineprivate

Equivalent to enqueuing a new datagram to send.

Parameters

b	datagram to send.
priority	executor priority.

Definition at line 93 of file DatagramImpl.hxx.

◆ set_priority()

void openlcb::DatagramClientImpl::set_priority ( unsigned p )

inlineprivate

Sets the stateflow priority.

Parameters

p	the stateflow's priority on the executor.

Definition at line 386 of file DatagramImpl.hxx.

◆ start_send()

Action openlcb::DatagramClientImpl::start_send ( )

inlineprivate

Entry point to the flow processing.

Returns: next state

Definition at line 101 of file DatagramImpl.hxx.

◆ stop_waiting_for_response()

void openlcb::DatagramClientImpl::stop_waiting_for_response ( )

inlineprivate

To be called from the handler.

Wakes up main flow and terminates it (with whatever is in the result_ code right now).

@TODO(balazs.racz) Here we might want to decide whether to start a retry.

Definition at line 360 of file DatagramImpl.hxx.

◆ timeout_looking_for_dst()

Action openlcb::DatagramClientImpl::timeout_looking_for_dst ( )

inlineprivate

Todo:: In IfCanImpl.hxx there is a timeout_looking_for_dst action. It should trigger a 'terminate due to error' response message, and when that arrives in the handle_response() function below, this is the code that we need to trigger.

Definition at line 187 of file DatagramImpl.hxx.

◆ timeout_waiting_for_dg_response()

Action openlcb::DatagramClientImpl::timeout_waiting_for_dg_response ( )

inlineprivate

Definition at line 194 of file DatagramImpl.hxx.

◆ unregister_response_handler()

void openlcb::DatagramClientImpl::unregister_response_handler ( )

inlineprivate

Definition at line 206 of file DatagramImpl.hxx.

◆ write_datagram()

void openlcb::DatagramClientImpl::write_datagram	(	Buffer< GenMessage > *	b,
		unsigned	priority
	)

inlinevirtual

Triggers sending a datagram.

Parameters

b	is the datagra buffer.
priority	is the priority of the datagram client in the executor.

Callers should set the done closure of the Buffer. After that closure is notified, the caller must ensure that the datagram client is released back to the freelist.

@TODO(balazs.racz): revisit the type of DatagramPayload and ensure that there will be no extra copy of the data happening.

Implements openlcb::DatagramClient.

Definition at line 70 of file DatagramImpl.hxx.

Member Data Documentation

◆ done_

BarrierNotifiable* openlcb::DatagramClientImpl::done_ {nullptr}

private

This notifiable is saved from the datagram buffer.

Will be notified when the entire interaction is completed, but the buffer itself is transferred to the send flow.

Definition at line 402 of file DatagramImpl.hxx.

◆ dst_

NodeHandle openlcb::DatagramClientImpl::dst_

private

Destination of the datagram we are currently sending.

Definition at line 406 of file DatagramImpl.hxx.

◆ hasResponse_

unsigned openlcb::DatagramClientImpl::hasResponse_

private

Definition at line 420 of file DatagramImpl.hxx.

◆ isSleeping_

unsigned openlcb::DatagramClientImpl::isSleeping_

private

1 when we are in the sleep call waiting for the datagram Ack or Reject message.

Definition at line 419 of file DatagramImpl.hxx.

◆ listener_

ReplyListener openlcb::DatagramClientImpl::listener_

private

Instance of the listener object.

Definition at line 410 of file DatagramImpl.hxx.

◆ MAX_PRIORITY

constexpr unsigned openlcb::DatagramClientImpl::MAX_PRIORITY = (1 << 24) - 1

staticconstexprprivate

Constant used to clamp the incoming priority value to something that first in priority_ bit field.

Definition at line 428 of file DatagramImpl.hxx.

◆ message_

Buffer<GenMessage>* openlcb::DatagramClientImpl::message_ {nullptr}

private

Datagram message we are trying to send now. We own it.

Definition at line 398 of file DatagramImpl.hxx.

◆ priority_

unsigned openlcb::DatagramClientImpl::priority_

private

Priority in the executor.

Definition at line 425 of file DatagramImpl.hxx.

◆ sendFlow_

MessageHandler* openlcb::DatagramClientImpl::sendFlow_

private

Addressed datagram send flow from the interface. Externally owned.

Definition at line 408 of file DatagramImpl.hxx.

◆ sendPending_

unsigned openlcb::DatagramClientImpl::sendPending_

private

1 when we have the handlers registered.

During this time we have exclusive lock on the specific src/dst node pair.

Definition at line 423 of file DatagramImpl.hxx.

◆ src_

NodeHandle openlcb::DatagramClientImpl::src_

private

Source of the datagram we are currently sending.

Definition at line 404 of file DatagramImpl.hxx.

◆ timer_

StateFlowTimer openlcb::DatagramClientImpl::timer_ {this}

private

Helper object for sleep.

Definition at line 412 of file DatagramImpl.hxx.

◆ waitingClients_

TypedQueue<Executable> openlcb::DatagramClientImpl::waitingClients_

private

List of other datagram clients that are trying to send to the same target node.

We need to wake up one of this list when we are done sending.

Definition at line 416 of file DatagramImpl.hxx.

The documentation for this class was generated from the following file:

DatagramImpl.hxx

Classes

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ DatagramClientImpl()

Member Function Documentation

◆ acquire_srcdst_lock()

◆ cancel()

◆ datagram_finalize()

◆ do_send()

◆ handle_response()

◆ iface()

◆ notify()

◆ register_handlers()

◆ reset_message()

◆ set_priority()

◆ start_send()

◆ stop_waiting_for_response()

◆ timeout_looking_for_dst()

◆ timeout_waiting_for_dg_response()

◆ unregister_response_handler()

◆ write_datagram()

Member Data Documentation

◆ done_

◆ dst_

◆ hasResponse_

◆ isSleeping_

◆ listener_

◆ MAX_PRIORITY

◆ message_

◆ priority_

◆ sendFlow_

◆ sendPending_

◆ src_

◆ timer_

◆ waitingClients_
