Basic alarm type that all other alarms are based off of. More...

#include <BroadcastTimeAlarm.hxx>

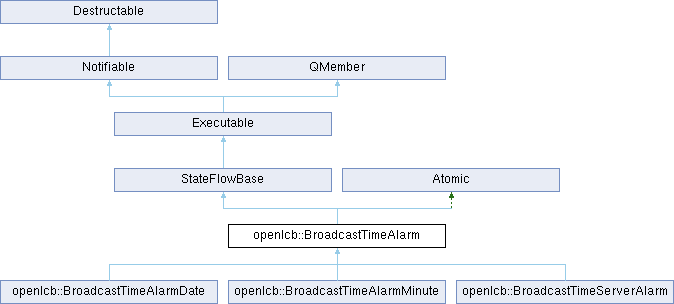

Inheritance diagram for openlcb::BroadcastTimeAlarm:

Classes
class	Wakeup

Public Member Functions
	BroadcastTimeAlarm (Node node, BroadcastTime clock, std::function< void(BarrierNotifiable *)> callback)
	Constructor.

	~BroadcastTimeAlarm ()
	Destructor.

void	set_period (time_t period)
	Start the alarm to expire at the given period from now.

void	set (time_t time)
	Start the alarm to expire at the given fast time.

void	clear ()
	Inactivate the alarm.

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Protected Member Functions
virtual Action	entry ()
	Entry point to state flow.

virtual void	update_notify ()
	Called by the clock when time, rate, or running state has changed.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Protected Attributes
BroadcastTime *	clock_
	clock that our alarm is based off of

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Private Member Functions
Action	setup ()
	Setup, or wait to setup alarm.

Action	timeout ()
	Wait for timeout or early trigger.

Action	expired ()
	Handle action on timer expiration.

void	wakeup ()
	Wakeup the state machine. Must be called from this service's executor.

	DISALLOW_COPY_AND_ASSIGN (BroadcastTimeAlarm)

Private Attributes
Wakeup	wakeup_
	wakeup helper for scheduling alarms

std::function< void(BarrierNotifiable *)>	callback_
	callback for when alarm expires

StateFlowTimer	timer_
	timer helper

BarrierNotifiable	bn_
	notifiable for callback callee

BarrierNotifiable *	bnPtr_
	not null we have an outstanding notification

time_t	expires_
	time at which the alarm expires

uint8_t	running_: 1
	true if running (alarm armed), else false

uint8_t	set_: 1
	true if a start request is pending

BroadcastTime::UpdateSubscribeHandle	updateSubscribeHandle_
	handle to the update subscrition used for unsubcribing in the destructor

Friends
class	BroadcastTimeAlarm::Wakeup
	make our wakeup agent a friend

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Detailed Description

Basic alarm type that all other alarms are based off of.

Definition at line 44 of file BroadcastTimeAlarm.hxx.

Constructor & Destructor Documentation

◆ BroadcastTimeAlarm()

openlcb::BroadcastTimeAlarm::BroadcastTimeAlarm	(	Node *	node,
		BroadcastTime *	clock,
		std::function< void(BarrierNotifiable *)>	callback
	)

inline

Constructor.

Parameters

node	the virtual node that our StateFlowBase service will be derived from
clock	clock that our alarm is based off of
callback	callback for when alarm expires

Definition at line 52 of file BroadcastTimeAlarm.hxx.

◆ ~BroadcastTimeAlarm()

openlcb::BroadcastTimeAlarm::~BroadcastTimeAlarm ( )

inline

Destructor.

Definition at line 78 of file BroadcastTimeAlarm.hxx.

Member Function Documentation

◆ clear()

void openlcb::BroadcastTimeAlarm::clear ( )

inline

Inactivate the alarm.

Definition at line 115 of file BroadcastTimeAlarm.hxx.

◆ entry()

virtual Action openlcb::BroadcastTimeAlarm::entry ( )

inlineprotectedvirtual

Entry point to state flow.

Returns: next state setup()

Reimplemented in openlcb::BroadcastTimeAlarmDate, openlcb::BroadcastTimeAlarmMinute, and openlcb::BroadcastTimeServerAlarm.

Definition at line 141 of file BroadcastTimeAlarm.hxx.

◆ expired()

Action openlcb::BroadcastTimeAlarm::expired ( )

inlineprivate

Handle action on timer expiration.

Returns: setup()

Definition at line 270 of file BroadcastTimeAlarm.hxx.

◆ set()

void openlcb::BroadcastTimeAlarm::set ( time_t time )

inline

Start the alarm to expire at the given fast time.

Parameters

time	in seconds since epoch to expire

Definition at line 95 of file BroadcastTimeAlarm.hxx.

◆ set_period()

void openlcb::BroadcastTimeAlarm::set_period ( time_t period )

inline

Start the alarm to expire at the given period from now.

Parameters

period in fast seconds from now to expire. period is a a signed value. If the fast time rate is negative, the period passed in should also be negative for an expiration in the future.

Definition at line 88 of file BroadcastTimeAlarm.hxx.

◆ setup()

Action openlcb::BroadcastTimeAlarm::setup ( )

inlineprivate

Setup, or wait to setup alarm.

Returns: expired() if alarm is set and already expired, timeout() if alarm will expire in the future, setup() if clock and/or alarm is not currently active

Definition at line 214 of file BroadcastTimeAlarm.hxx.

◆ timeout()

Action openlcb::BroadcastTimeAlarm::timeout ( )

inlineprivate

Wait for timeout or early trigger.

Returns: setup() if the timer is triggered prematurely, else expired() if the timer has expired

Definition at line 254 of file BroadcastTimeAlarm.hxx.

◆ update_notify()

virtual void openlcb::BroadcastTimeAlarm::update_notify ( )

inlineprotectedvirtual

Called by the clock when time, rate, or running state has changed.

Reimplemented in openlcb::BroadcastTimeAlarmDate, openlcb::BroadcastTimeAlarmMinute, and openlcb::BroadcastTimeServerAlarm.

Definition at line 147 of file BroadcastTimeAlarm.hxx.

◆ wakeup()

void openlcb::BroadcastTimeAlarm::wakeup ( )

inlineprivate

Wakeup the state machine. Must be called from this service's executor.

Definition at line 283 of file BroadcastTimeAlarm.hxx.

Friends And Related Symbol Documentation

◆ BroadcastTimeAlarm::Wakeup

friend class BroadcastTimeAlarm::Wakeup

friend

make our wakeup agent a friend

Definition at line 309 of file BroadcastTimeAlarm.hxx.

Member Data Documentation

◆ bn_

BarrierNotifiable openlcb::BroadcastTimeAlarm::bn_

private

notifiable for callback callee

Definition at line 297 of file BroadcastTimeAlarm.hxx.

◆ bnPtr_

BarrierNotifiable* openlcb::BroadcastTimeAlarm::bnPtr_

private

not null we have an outstanding notification

Definition at line 298 of file BroadcastTimeAlarm.hxx.

◆ callback_

std::function<void(BarrierNotifiable *)> openlcb::BroadcastTimeAlarm::callback_

private

callback for when alarm expires

Definition at line 295 of file BroadcastTimeAlarm.hxx.

◆ clock_

BroadcastTime* openlcb::BroadcastTimeAlarm::clock_

protected

clock that our alarm is based off of

Definition at line 164 of file BroadcastTimeAlarm.hxx.

◆ expires_

time_t openlcb::BroadcastTimeAlarm::expires_

private

time at which the alarm expires

Definition at line 299 of file BroadcastTimeAlarm.hxx.

◆ running_

uint8_t openlcb::BroadcastTimeAlarm::running_

private

true if running (alarm armed), else false

Definition at line 300 of file BroadcastTimeAlarm.hxx.

◆ set_

uint8_t openlcb::BroadcastTimeAlarm::set_

private

true if a start request is pending

Definition at line 301 of file BroadcastTimeAlarm.hxx.

◆ timer_

StateFlowTimer openlcb::BroadcastTimeAlarm::timer_

private

timer helper

Definition at line 296 of file BroadcastTimeAlarm.hxx.

◆ updateSubscribeHandle_

BroadcastTime::UpdateSubscribeHandle openlcb::BroadcastTimeAlarm::updateSubscribeHandle_

private

handle to the update subscrition used for unsubcribing in the destructor

Definition at line 306 of file BroadcastTimeAlarm.hxx.

◆ wakeup_

Wakeup openlcb::BroadcastTimeAlarm::wakeup_

private

wakeup helper for scheduling alarms

Definition at line 293 of file BroadcastTimeAlarm.hxx.

The documentation for this class was generated from the following file:

BroadcastTimeAlarm.hxx

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BroadcastTimeAlarm()

◆ ~BroadcastTimeAlarm()

Member Function Documentation

◆ clear()

◆ entry()

◆ expired()

◆ set()

◆ set_period()

◆ setup()

◆ timeout()

◆ update_notify()

◆ wakeup()

Friends And Related Symbol Documentation

◆ BroadcastTimeAlarm::Wakeup

Member Data Documentation

◆ bn_

◆ bnPtr_

◆ callback_

◆ clock_

◆ expires_

◆ running_

◆ set_

◆ timer_

◆ updateSubscribeHandle_

◆ wakeup_
