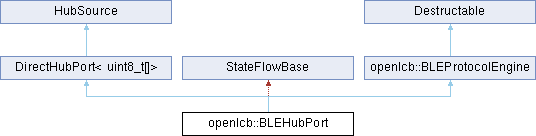

Inheritance diagram for openlcb::BLEHubPort:

Classes
class	InputFlow
	State flow that handles data arriving from this bluetooth connection. More...

struct	OutputDataEntry
	Holds the necessary information we need to keep in the queue about a single output entry. More...

Public Types
using	SendFunction = std::function< void(const uint8_t *data, size_t len)>
	This function needs to be implemented by the application that has the specific BLE stack.

Public Member Functions
	BLEHubPort (DirectHubInterface< uint8_t[]> hub, std::unique_ptr< MessageSegmenter > segmenter, Service ble_write_service, SendFunction send_function, Notifiable *on_error=nullptr)
	Constructor.

void	disconnect_and_delete () override
	Notifies the protocol engine that the connection has been terminated.

void	ack ()
	Called by the BLE stack, when a send function is completed.

void	nack ()
	Called by the BLE stack, when a send has failed.

void	input_data (const uint8_t *data, size_t len)
	Called by the BLE stack when input data arrives from this remote endpoint.

void	send (MessageAccessor< uint8_t[]> *msg) override
	Synchronous output routine called by the hub.

Action	read_queue ()
	Entry point to the flow, when an outgoing message got into the queue and we are woken up.

Action	do_write ()

Action	shutdown_and_exit ()
	Invoked after pendingShutdown == true.

Public Member Functions inherited from DirectHubPort< uint8_t[]>
virtual void	send (MessageAccessor< uint8_t > *msg)=0
	Send some data out on this port.

Static Public Attributes
static constexpr size_t	MAX_BYTES_PER_WRITE = 220
	How big can a single attribute write be? ESP's BLE implementation says 600 bytes.

Protected Types
typedef Buffer< OutputDataEntry >	BufferType
	Type of buffers we are enqueuing for output.

typedef Q	QueueType
	Type of the queue used to keep the output buffer queue.

Protected Member Functions
void	ack_helper ()

Atomic *	lock ()

Protected Attributes
bool	pendingShutdown_: 1
	True if we have an error and we are trying to shut down.

bool	notRunning_: 1
	1 if the state flow is paused, waiting for the notification.

bool	waitingForAck_: 1
	true if the write flow is paused waiting for the BLE stack to ack the data.

QueueType	pendingQueue_
	Contains buffers of OutputDataEntries to write.

OutputDataEntry *	pendingTail_ = nullptr
	Last tail pointer in the pendingQueue.

size_t	totalPendingSize_ = 0
	Total number of bytes in the pendingQueue.

BufferPtr< OutputDataEntry >	currentHead_
	The buffer that is taken out of the queue while flushing.

SendFunction	sendFunction_
	Function object used to send out actual data.

Notifiable *	onError_ = nullptr
	This notifiable will be called before exiting.

int	sendPending_ {0}
	Number of in-flight messages sent but not acknowledged.

InputFlow	input_

Additional Inherited Members
Private Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Private Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Private Member Functions inherited from Executable
void	test_deletion ()

Private Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Static Private Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Private Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

Definition at line 50 of file BLEHubPort.hxx.

Member Typedef Documentation

◆ BufferType

typedef Buffer<OutputDataEntry> openlcb::BLEHubPort::BufferType

protected

Type of buffers we are enqueuing for output.

Definition at line 512 of file BLEHubPort.hxx.

◆ QueueType

typedef Q openlcb::BLEHubPort::QueueType

protected

Type of the queue used to keep the output buffer queue.

Definition at line 514 of file BLEHubPort.hxx.

◆ SendFunction

using openlcb::BLEHubPort::SendFunction = std::function<void(const uint8_t *data, size_t len)>

This function needs to be implemented by the application that has the specific BLE stack.

Performs the actual send. Synchronous, with the expectation being that once this function returns, the data is copied away from the buffer and is sent or will eventually be sent.

Parameters

data	data payload to send
len	number of bytes to send

Definition at line 63 of file BLEHubPort.hxx.

Constructor & Destructor Documentation

◆ BLEHubPort()

openlcb::BLEHubPort::BLEHubPort	(	DirectHubInterface< uint8_t[]> *	hub,
		std::unique_ptr< MessageSegmenter >	segmenter,
		Service *	ble_write_service,
		SendFunction	send_function,
		Notifiable *	on_error = `nullptr`
	)

inline

Constructor.

Parameters

hub	pointer to the direct hub instance. Externally owned.
segmenter	Segments incoming data into messages. Ownership will be taken. Typically created using creat_gc_message_segmenter().
ble_write_service	Thread on which the send_function will be invoked.
send_function	Function that performs the actual send. See {} on_error Will be notified upon disconnect.

Definition at line 80 of file BLEHubPort.hxx.

Member Function Documentation

◆ ack()

void openlcb::BLEHubPort::ack ( )

inline

Called by the BLE stack, when a send function is completed.

Definition at line 123 of file BLEHubPort.hxx.

◆ ack_helper()

void openlcb::BLEHubPort::ack_helper ( )

inlineprotected

Definition at line 306 of file BLEHubPort.hxx.

◆ disconnect_and_delete()

void openlcb::BLEHubPort::disconnect_and_delete ( )

inlineoverridevirtual

Notifies the protocol engine that the connection has been terminated.

The implementation must (eventually) call delete this.

Implements openlcb::BLEProtocolEngine.

Definition at line 98 of file BLEHubPort.hxx.

◆ do_write()

Action openlcb::BLEHubPort::do_write ( )

inline

Definition at line 234 of file BLEHubPort.hxx.

◆ input_data()

void openlcb::BLEHubPort::input_data	(	const uint8_t *	data,
		size_t	len
	)

inline

Called by the BLE stack when input data arrives from this remote endpoint.

Parameters

data	payload that arrived. The data will be copied inline, and does not need to exist beyond when this function returns.
len	number of bytes in the data payload.

Definition at line 143 of file BLEHubPort.hxx.

◆ lock()

Atomic * openlcb::BLEHubPort::lock ( )

inlineprotected

Returns: lock usable for the write flow and the port altogether.

Definition at line 517 of file BLEHubPort.hxx.

◆ nack()

void openlcb::BLEHubPort::nack ( )

inline

Called by the BLE stack, when a send has failed.

Definition at line 130 of file BLEHubPort.hxx.

◆ read_queue()

Action openlcb::BLEHubPort::read_queue ( )

inline

Entry point to the flow, when an outgoing message got into the queue and we are woken up.

Definition at line 207 of file BLEHubPort.hxx.

◆ send()

void openlcb::BLEHubPort::send ( MessageAccessor< uint8_t[]> * msg )

inlineoverride

Synchronous output routine called by the hub.

Todo:: we should try to collect the bytes into a buffer first before enqueueing them.

Definition at line 149 of file BLEHubPort.hxx.

◆ shutdown_and_exit()

Action openlcb::BLEHubPort::shutdown_and_exit ( )

inline

Invoked after pendingShutdown == true.

At this point nothing gets added to the pending queue.

Definition at line 288 of file BLEHubPort.hxx.

Member Data Documentation

◆ currentHead_

BufferPtr<OutputDataEntry> openlcb::BLEHubPort::currentHead_

protected

The buffer that is taken out of the queue while flushing.

This variable is not locked, because it is owned by the state flow states.

Definition at line 544 of file BLEHubPort.hxx.

◆ input_

InputFlow openlcb::BLEHubPort::input_

protected

Definition at line 556 of file BLEHubPort.hxx.

◆ MAX_BYTES_PER_WRITE

constexpr size_t openlcb::BLEHubPort::MAX_BYTES_PER_WRITE = 220

staticconstexpr

How big can a single attribute write be? ESP's BLE implementation says 600 bytes.

We keep some buffer.

Definition at line 67 of file BLEHubPort.hxx.

◆ notRunning_

bool openlcb::BLEHubPort::notRunning_

protected

1 if the state flow is paused, waiting for the notification.

Definition at line 526 of file BLEHubPort.hxx.

◆ onError_

Notifiable* openlcb::BLEHubPort::onError_ = nullptr

protected

This notifiable will be called before exiting.

Definition at line 551 of file BLEHubPort.hxx.

◆ pendingQueue_

QueueType openlcb::BLEHubPort::pendingQueue_

protected

Contains buffers of OutputDataEntries to write.

lock() is the internal lock of this object.

Definition at line 534 of file BLEHubPort.hxx.

◆ pendingShutdown_

bool openlcb::BLEHubPort::pendingShutdown_

protected

True if we have an error and we are trying to shut down.

Causes all outgoing data to be thrown away.

Definition at line 524 of file BLEHubPort.hxx.

◆ pendingTail_

OutputDataEntry* openlcb::BLEHubPort::pendingTail_ = nullptr

protected

Last tail pointer in the pendingQueue.

If queue is empty, nullptr. Protected by pendingQueue_.lock().

Definition at line 537 of file BLEHubPort.hxx.

◆ sendFunction_

SendFunction openlcb::BLEHubPort::sendFunction_

protected

Function object used to send out actual data.

This is synchronously operating, meaning it makes a copy of the data to the stack for sending it out.

Definition at line 549 of file BLEHubPort.hxx.

◆ sendPending_

int openlcb::BLEHubPort::sendPending_ {0}

protected

Number of in-flight messages sent but not acknowledged.

Definition at line 554 of file BLEHubPort.hxx.

◆ totalPendingSize_

size_t openlcb::BLEHubPort::totalPendingSize_ = 0

protected

Total number of bytes in the pendingQueue.

This does not include data that is in currentHead_. Protected by lock().

Definition at line 540 of file BLEHubPort.hxx.

◆ waitingForAck_

bool openlcb::BLEHubPort::waitingForAck_

protected

true if the write flow is paused waiting for the BLE stack to ack the data.

Should be notified when the acknowledgements make sendPending_ <=

Definition at line 530 of file BLEHubPort.hxx.

The documentation for this class was generated from the following file:

BLEHubPort.hxx

Classes

Public Types

Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BufferType

◆ QueueType

◆ SendFunction

Constructor & Destructor Documentation

◆ BLEHubPort()

Member Function Documentation

◆ ack()

◆ ack_helper()

◆ disconnect_and_delete()

◆ do_write()

◆ input_data()

◆ lock()

◆ nack()

◆ read_queue()

◆ send()

◆ shutdown_and_exit()

Member Data Documentation

◆ currentHead_

◆ input_

◆ MAX_BYTES_PER_WRITE

◆ notRunning_

◆ onError_

◆ pendingQueue_

◆ pendingShutdown_

◆ pendingTail_

◆ sendFunction_

◆ sendPending_

◆ totalPendingSize_

◆ waitingForAck_
