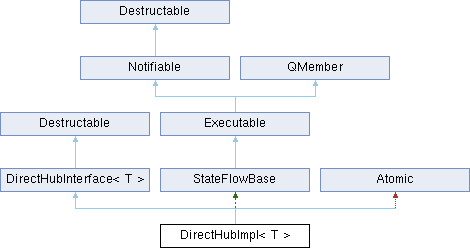

Inheritance diagram for DirectHubImpl< T >:

Public Member Functions
	DirectHubImpl (DirectHubService *service)

Service *	get_service () override

void	register_port (DirectHubPort< T > *port) override
	Adds a port to this hub.

void	unregister_port (DirectHubPort< T > *port) override
	Synchronously unregisters a port.

void	unregister_port (DirectHubPort< T > port, Notifiable done) override
	Removes a port from this hub.

void	enqueue_send (Executable *caller) override
	Signals that the caller wants to send a message to the hub.

MessageAccessor< T > *	mutable_message () override
	Accessor to fill in the message payload.

void	do_send () override
	Sends a message to the hub.

bool	should_send_to (DirectHubPort< T > *p)
	Filters a message going towards a specific output port.

Private Member Functions
DirectHubService *	service ()

Private Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Private Attributes
std::vector< DirectHubPort< T > * >	ports_
	Stores the registered output ports. Protected by Atomic *this.

MessageAccessor< T >	msg_
	The message we are trying to send.

Additional Inherited Members
Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Protected Member Functions inherited from Executable
void	test_deletion ()

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

void	init ()
	Initiailize a QMember, in place of a public placement construction.

Static Protected Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

template<class T>
class DirectHubImpl< T >

Definition at line 142 of file DirectHub.cxx.

Constructor & Destructor Documentation

◆ DirectHubImpl()

template<class T >

DirectHubImpl< T >::DirectHubImpl ( DirectHubService * service )

inline

Definition at line 147 of file DirectHub.cxx.

◆ ~DirectHubImpl()

template<class T >

DirectHubImpl< T >::~DirectHubImpl ( )

inline

Definition at line 152 of file DirectHub.cxx.

Member Function Documentation

◆ do_send()

template<class T >

void DirectHubImpl< T >::do_send ( )

inlineoverridevirtual

Sends a message to the hub.

Before this is called, the message has to be filled in via mutable_message().

Implements DirectHubInterface< T >.

Definition at line 204 of file DirectHub.cxx.

◆ enqueue_send()

template<class T >

void DirectHubImpl< T >::enqueue_send ( Executable * caller )

inlineoverridevirtual

Signals that the caller wants to send a message to the hub.

When the hub is ready for that, will execute *caller. This might happen inline within this function call, or on a different executor.

Parameters

caller callback that actually sends the message. It is required to call do_send() inline.

Implements DirectHubInterface< T >.

Definition at line 194 of file DirectHub.cxx.

◆ get_service()

template<class T >

Service * DirectHubImpl< T >::get_service ( )

inlineoverridevirtual

Returns: an executor service.

Implements DirectHubInterface< T >.

Definition at line 157 of file DirectHub.cxx.

◆ mutable_message()

template<class T >

MessageAccessor< T > * DirectHubImpl< T >::mutable_message ( )

inlineoverridevirtual

Accessor to fill in the message payload.

Must be called only from within the callback as invoked by enqueue_send.

Returns: mutable structure to fill in the message. This structure was cleared by the hub before it is returned here.

Implements DirectHubInterface< T >.

Definition at line 199 of file DirectHub.cxx.

◆ register_port()

template<class T >

void DirectHubImpl< T >::register_port ( DirectHubPort< T > * port )

inlineoverridevirtual

Adds a port to this hub.

This port will be receiving all further messages.

Parameters

port	the downstream port.

Implements DirectHubInterface< T >.

Definition at line 162 of file DirectHub.cxx.

◆ service()

template<class T >

DirectHubService * DirectHubImpl< T >::service ( )

inlineprivate

Definition at line 238 of file DirectHub.cxx.

◆ should_send_to()

template<class T >

bool DirectHubImpl< T >::should_send_to ( DirectHubPort< T > * p )

inline

Filters a message going towards a specific output port.

Parameters

p	the output port

Returns: true if this message should be sent to that output port.

Definition at line 232 of file DirectHub.cxx.

◆ unregister_port() [1/2]

template<class T >

void DirectHubImpl< T >::unregister_port ( DirectHubPort< T > * port )

inlineoverridevirtual

Synchronously unregisters a port.

Implements DirectHubInterface< T >.

Definition at line 169 of file DirectHub.cxx.

◆ unregister_port() [2/2]

template<class T >

void DirectHubImpl< T >::unregister_port	(	DirectHubPort< T > *	port,
		Notifiable *	done
	)

inlineoverridevirtual

Removes a port from this hub.

This port must have been registered previously.

Parameters

port	the downstream port.

Implements DirectHubInterface< T >.

Definition at line 179 of file DirectHub.cxx.

Member Data Documentation

◆ msg_

template<class T >

MessageAccessor<T> DirectHubImpl< T >::msg_

private

The message we are trying to send.

Definition at line 247 of file DirectHub.cxx.

◆ ports_

template<class T >

std::vector<DirectHubPort<T> *> DirectHubImpl< T >::ports_

private

Stores the registered output ports. Protected by Atomic *this.

Definition at line 244 of file DirectHub.cxx.

The documentation for this class was generated from the following file:

DirectHub.cxx
