withrottle::ServerCommandLoco Class Reference

WiThrottle server command handler base object for multi, primary, and secondary locomotive. More...

#include <ServerCommandLoco.hxx>

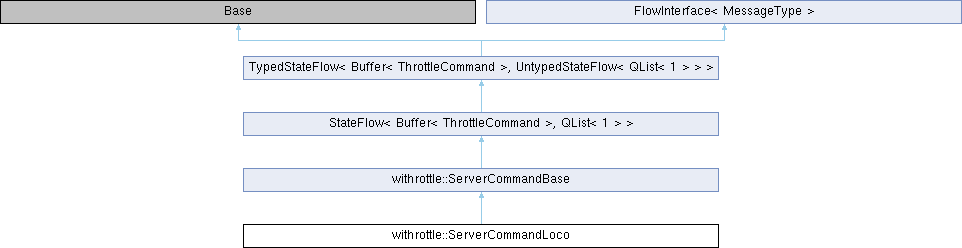

Inheritance diagram for withrottle::ServerCommandLoco:

Public Member Functions
	ServerCommandLoco (ThrottleFlow *throttle)
	Constructor.
	~ServerCommandLoco ()
	Destructor.
Public Member Functions inherited from StateFlow< Buffer< ThrottleCommand >, QList< 1 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Member Functions
StateFlowBase::Action	entry () override
	Entry point to the state machine.
StateFlowBase::Action	address_long ()
	Handle a DCC long address sub-command.
StateFlowBase::Action	assign_train ()
	Handle succes or failure of assigning the train, including getting the latest train state.
StateFlowBase::Action	load_state ()
	Update the LCD display with the trains current state.
	DISALLOW_COPY_AND_ASSIGN (ServerCommandLoco)

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Member Functions inherited from withrottle::ServerCommandBase
	ServerCommandBase (ThrottleFlow *throttle, CommandType type)
	Constructor.
	~ServerCommandBase ()
	Destructor.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.
Protected Attributes inherited from withrottle::ServerCommandBase
ThrottleFlow *	throttle
	pointer to parent throttle

Detailed Description

WiThrottle server command handler base object for multi, primary, and secondary locomotive.

Definition at line 39 of file ServerCommandLoco.hxx.

Constructor & Destructor Documentation

ServerCommandLoco()

withrottle::ServerCommandLoco::ServerCommandLoco

(

ThrottleFlow *

throttle

)

Constructor.

Parameters

throttle

parent throttle that this flow is acting on

Definition at line 41 of file ServerCommandLoco.cxx.

~ServerCommandLoco()

withrottle::ServerCommandLoco::~ServerCommandLoco

(

)

Destructor.

Definition at line 51 of file ServerCommandLoco.cxx.

Member Function Documentation

address_long()

StateFlowBase::Action withrottle::ServerCommandLoco::address_long ( )

private

Handle a DCC long address sub-command.

Returns

next state assign_train

Todo:

need to search for train

Definition at line 74 of file ServerCommandLoco.cxx.

assign_train()

StateFlowBase::Action withrottle::ServerCommandLoco::assign_train ( )

private

Handle succes or failure of assigning the train, including getting the latest train state.

Returns

next state load_state()

Definition at line 96 of file ServerCommandLoco.cxx.

entry()

StateFlowBase::Action withrottle::ServerCommandLoco::entry ( )

overrideprivatevirtual

Entry point to the state machine.

Returns

next state based on the CommandSubType

Implements TypedStateFlow< MessageType, Base >.

Definition at line 60 of file ServerCommandLoco.cxx.

load_state()

StateFlowBase::Action withrottle::ServerCommandLoco::load_state ( )

private

Update the LCD display with the trains current state.

Returns

next state release_and_exit()

Definition at line 117 of file ServerCommandLoco.cxx.

---

The documentation for this class was generated from the following files:

• ServerCommandLoco.hxx
• ServerCommandLoco.cxx
