WiThrottle server command handler base object. More...

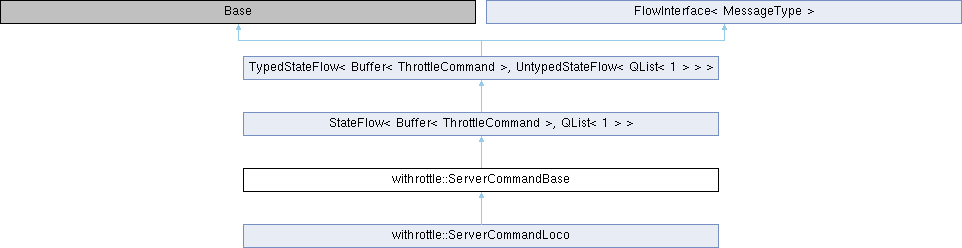

Inheritance diagram for withrottle::ServerCommandBase:

Protected Member Functions
	ServerCommandBase (ThrottleFlow *throttle, CommandType type)
	Constructor.

	~ServerCommandBase ()
	Destructor.

Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (ServerCommandBase)

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Public Member Functions inherited from StateFlow< Buffer< ThrottleCommand >, QList< 1 > >
	StateFlow (Service *service)
	Constructor.

Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

virtual Action	entry () override=0
	Entry into the StateFlow activity.

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Detailed Description

WiThrottle server command handler base object.

Definition at line 43 of file ServerCommand.hxx.

Constructor & Destructor Documentation

withrottle::ServerCommandBase::ServerCommandBase	(	ThrottleFlow *	throttle,
		CommandType	type
	)

protected

Constructor.

Parameters

throttle	parent throttle that this flow is acting on
type	the command type belonging to this handler.

Definition at line 38 of file ServerCommand.cxx.

withrottle::ServerCommandBase::~ServerCommandBase ( )

protected

Destructor.

Definition at line 48 of file ServerCommand.cxx.

ThrottleFlow* withrottle::ServerCommandBase::throttle

protected

pointer to parent throttle

Definition at line 57 of file ServerCommand.hxx.

The documentation for this class was generated from the following files:
