This class provides a simple way for ESP32 nodes to manage the WiFi and mDNS systems of the ESP32, the node being a hub and connecting to an uplink node to participate in the CAN bus. More...

#include <Esp32WiFiManager.hxx>

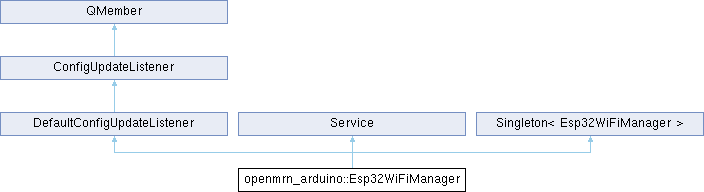

Inheritance diagram for openmrn_arduino::Esp32WiFiManager:

Classes
class	UplinkNotifiable
	This class provides a proxy for the Notifiable provided by the SocketClient. More...

class	WiFiStackFlow
	StateFlow that is responsible for startup and maintenance of the WiFi stack. More...

Public Member Functions
	Esp32WiFiManager (const char station_ssid, const char station_password, openlcb::SimpleStackBase stack, const WiFiConfiguration &cfg, wifi_mode_t wifi_mode=WIFI_MODE_STA, uint8_t connection_mode=CONN_MODE_UPLINK_BIT, const char hostname_prefix="esp32_", const char sntp_server="pool.ntp.org", const char timezone="UTC0", bool sntp_enabled=false, uint8_t softap_channel=1, wifi_auth_mode_t softap_auth_mode=WIFI_AUTH_OPEN, const char softap_ssid="", const char softap_password="")
	Constructor.

	~Esp32WiFiManager ()
	Destructor.

void	display_configuration ()
	Display the configuration settings in use.

void	set_status_led (const Gpio *led=nullptr)
	Configures a Gpio to be used as a visual indication of the current WiFi status.

ConfigUpdateListener::UpdateAction	apply_configuration (int fd, bool initial_load, BarrierNotifiable *done) override
	Updates the WiFiConfiguration settings used by this node.

void	factory_reset (int fd) override
	Resets the WiFiConfiguration settings used by this node.

void	enable_verbose_logging ()
	If called, sets the ESP32 wifi stack to log verbose information to the console.

void	start_ssid_scan (Notifiable *n)
	Starts a scan for available SSIDs.

size_t	get_ssid_scan_result_count ()

wifi_ap_record_t	get_ssid_scan_result (size_t index)
	Returns one entry from the SSID scan.

void	clear_ssid_scan_results ()
	Clears the SSID scan results.

void	mdns_publish (std::string service, uint16_t port)
	Advertises a service via mDNS.

void	mdns_unpublish (std::string service)
	Removes the advertisement of a service via mDNS.

void	wait_for_ssid_connect (bool enable)
	Forces the Esp32WiFiManager to wait until SSID connection completes.

void	set_tx_power (uint8_t power)
	Configures the WiFi maximum transmit power setting.

void	register_network_up_callback (esp_network_up_callback_t callback)
	Registers a callback for when the WiFi connection is up.

void	register_network_down_callback (esp_network_down_callback_t callback)
	Registers a callback for when the WiFi connection is down.

void	register_network_init_callback (esp_network_init_callback_t callback)
	Registers a callback for when WiFi interfaces are being initialized.

void	register_network_time_callback (esp_network_time_callback_t callback)
	Registers a callback for when SNTP updates are received.

void	sync_time (time_t now)
	Time synchronization callback for SNTP.

Executor< 1 > *	executor ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Public Member Functions inherited from Service
	Service (ExecutorBase *e)
	Constructor.

	~Service ()
	Destructor.

ExecutorBase *	executor ()

Static Public Member Functions
static void	process_idf_event (void ctx, esp_event_base_t event_base, int32_t event_id, void event_data)
	Processes an event coming from the ESP-IDF default event loop.

Static Public Member Functions inherited from Singleton< Esp32WiFiManager >
static Esp32WiFiManager *	instance ()

static bool	exists ()

Private Member Functions
	Esp32WiFiManager ()
	Default constructor.

void	stop_hub ()
	Shuts down the hub listener (if running) for this node.

void	start_hub ()
	Creates a hub listener for this node after loading configuration details.

void	stop_uplink ()
	Disconnects and shuts down the uplink connector socket (if running).

void	start_uplink ()
	Creates an uplink connector socket that will automatically add the uplink to the node's hub.

void	on_uplink_created (int fd, Notifiable *on_exit)
	Callback for the SocketClient to handle a newly connected outbound socket connection.

void	enable_esp_wifi_logging ()
	Enables the esp_wifi logging, including the esp_wifi_internal APIs when available.

void	start_mdns_system ()
	Initializes the mDNS system if it hasn't already been initialized.

void	on_station_started ()
	Event handler called when the ESP32 Station interface has started.

void	on_station_connected ()
	Event handler called when the ESP32 Station interface has connected to an SSID.

void	on_station_disconnected (uint8_t reason)
	Event handler called when the ESP32 Station interface has lost it's connection to the SSID or failed to connect.

void	on_station_ip_assigned (uint32_t ip_address)
	Event handler called when the ESP32 Station interface has received an IP address (DHCP or static).

void	on_station_ip_lost ()
	Event handler called when the ESP32 Station interface has lost it's assigned IP address.

void	on_softap_start ()
	Event handler called when the ESP32 SoftAP interface has started.

void	on_softap_stop ()
	Event handler called when the ESP32 SoftAP interface has shutdown.

void	on_softap_station_connected (uint8_t mac[6], uint8_t aid)
	Event handler called when a station connects to the ESP32 SoftAP.

void	on_softap_station_disconnected (uint8_t mac[6], uint8_t aid)
	Event handler called when a station disconnects from the ESP32 SoftAP.

void	on_wifi_scan_completed (uint32_t status, uint8_t count)
	Event handler called when a WiFi scan operation completes.

void	configure_sntp ()
	Configures SNTP and TimeZone (if enabled).

void	reconfigure_wifi_radio_sleep ()
	Reconfigures the WiFi radio sleep mode.

void	reconfigure_wifi_tx_power ()
	Reconfigures the WiFi radio transmit power.

	DISALLOW_COPY_AND_ASSIGN (Esp32WiFiManager)

Static Private Member Functions
static void *	wifi_manager_task (void *param)
	Background task used by the Esp32WiFiManager to maintain health of any connections to other nodes.

Private Attributes
std::string	hostname_
	Dynamically generated hostname for this node, esp32_{node-id}.

std::string	ssid_
	User provided SSID to connect to.

std::string	password_
	User provided password for the SSID to connect to.

const WiFiConfiguration	cfg_
	Persistent configuration that will be used for this node's WiFi usage.

openlcb::SimpleStackBase *	stack_
	OpenMRN stack for the Arduino system.

const Gpio *	statusLed_ {nullptr}
	WiFi connection status indicator Gpio instance.

const wifi_mode_t	wifiMode_
	WiFi operating mode.

const uint8_t	softAPChannel_
	Channel to use for the SoftAP interface.

wifi_auth_mode_t	softAPAuthMode_
	Authentication mode to use for the SoftAP.

std::string	softAPName_
	User provided name for the SoftAP when active, defaults to hostname_ when null.

std::string	softAPPassword_
	User provided password for the SoftAP when active, defaults to password when null and softAPAuthMode_ is not WIFI_AUTH_OPEN.

const bool	sntpEnabled_
	Enables SNTP polling.

std::string	sntpServer_
	SNTP server address.

std::string	timeZone_
	TimeZone of the node.

bool	sntpConfigured_ {false}
	Tracks if SNTP has been configured.

int	configFd_ {-1}
	Cached copy of the file descriptor passed into apply_configuration.

uint32_t	configCrc32_ {0}
	Calculated CRC-32 of cfg_ data.

bool	waitForStationConnect_ {true}
	If true, the esp32 will block startup until the SSID connection has successfully completed and upon failure (or timeout) the esp32 will be restarted.

bool	verboseLogging_ {false}
	If true, request esp32 wifi to do verbose logging.

uint8_t	connectionMode_ {CONN_MODE_UPLINK_BIT}
	Defines the WiFi connection mode to operate in.

uint8_t	wifiTXPower_ {84}
	Maximum WiFi transmit power setting.

std::string	hubServiceName_
	mDNS service name being advertised by the hub, if enabled.

std::unique_ptr< SocketClient >	uplink_
	SocketClient for this node's uplink connection.

int	uplinkFd_ {-1}
	Socket handle used by the uplink connection.

Notifiable *	uplinkNotifiable_ {nullptr}
	Notifiable handle provided by the SocketClient once a connection has been established.

EventGroupHandle_t	wifiStatusEventGroup_
	Internal event group used to track the IP assignment events.

std::vector< wifi_ap_record_t >	ssidScanResults_
	WiFi SSID scan results holder.

OSMutex	ssidScanResultsLock_
	Protects ssidScanResults_ vector.

Notifiable *	ssidCompleteNotifiable_ {nullptr}
	Notifiable to be called when SSID scan completes.

OSMutex	mdnsInitLock_
	Protects the mdnsInitialized_ flag and mdnsDeferredPublish_ map.

bool	mdnsInitialized_ {false}
	Internal flag for tracking that the mDNS system has been initialized.

Executor< 1 >	executor_ {NO_THREAD()}
	Executor to use for the uplink connections and callbacks.

std::map< std::string, uint16_t >	mdnsDeferredPublish_
	Internal holder for mDNS entries which could not be published due to mDNS not being initialized yet.

OSMutex	networkCallbacksLock_
	Protects the networkUpCallbacks_, networkDownCallbacks_, networkInitCallbacks_ and networkTimeCallbacks_ vectors.

std::vector< esp_network_up_callback_t >	networkUpCallbacks_
	Holder for callbacks to invoke when the WiFi connection is up.

std::vector< esp_network_down_callback_t >	networkDownCallbacks_
	Holder for callbacks to invoke when the WiFi connection is down.

std::vector< esp_network_init_callback_t >	networkInitCallbacks_
	Holder for callbacks to invoke when the WiFi subsystem has started.

std::vector< esp_network_time_callback_t >	networkTimeCallbacks_
	Holder for callbacks to invoke when network time synchronizes.

esp_netif_t *	espNetIfaces_ [MAX_NETWORK_INTERFACES]
	Network interfaces that are managed by Esp32WiFiManager.

UplinkNotifiable	uplinkNotifiableProxy_ {this}
	UplinkNotifiable to use for uplink connections.

WiFiStackFlow	wifiStackFlow_ {this}
	Instance of WiFiStackFlow used for WiFi maintenance.

Static Private Attributes
static constexpr uint8_t	MAX_HOSTNAME_LENGTH = 32
	Maximum length of the hostname for the ESP32.

static constexpr uint8_t	CONN_MODE_UPLINK_BIT = BIT(0)
	Constant used to determine if the Uplink mode should be enabled.

static constexpr uint8_t	CONN_MODE_HUB_BIT = BIT(1)
	Constant used to determine if the Hub mode should be enabled.

Additional Inherited Members
Public Types inherited from ConfigUpdateListener
enum	UpdateAction { UPDATED = 0 , REINIT_NEEDED , REBOOT_NEEDED }
	Specifies what additional steps are needed to apply the new configuration. More...

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

This class provides a simple way for ESP32 nodes to manage the WiFi and mDNS systems of the ESP32, the node being a hub and connecting to an uplink node to participate in the CAN bus.

Definition at line 119 of file Esp32WiFiManager.hxx.

Constructor & Destructor Documentation

◆ Esp32WiFiManager()

openmrn_arduino::Esp32WiFiManager::Esp32WiFiManager	(	const char *	station_ssid,
		const char *	station_password,
		openlcb::SimpleStackBase *	stack,
		const WiFiConfiguration &	cfg,
		wifi_mode_t	wifi_mode = `WIFI_MODE_STA`,
		uint8_t	connection_mode = `CONN_MODE_UPLINK_BIT`,
		const char *	hostname_prefix = `"esp32_"`,
		const char *	sntp_server = `"pool.ntp.org"`,
		const char *	timezone = `"UTC0"`,
		bool	sntp_enabled = `false`,
		uint8_t	softap_channel = `1`,
		wifi_auth_mode_t	softap_auth_mode = `WIFI_AUTH_OPEN`,
		const char *	softap_ssid = `""`,
		const char *	softap_password = `""`
	)

Constructor.

With this constructor the ESP32 WiFi and MDNS systems will be managed automatically by the Esp32WiFiManager class in addition to the inbound and outbound connections. The WiFi and MDNS systems will only be started after the initial loading of the CDI which occurs only after the application code calls OpenMRN::begin().

Parameters

station_ssid	is the WiFi AP to connect to.
station_password	is the password for the WiFi AP being connected to.
stack	is the SimpleCanStackBase for this node. Must stay alive forever.
cfg	is the WiFiConfiguration instance used for this node. This will be monitored for changes and the WiFi behavior altered accordingly.
wifi_mode	is the WiFi operating mode, defaults to WIFI_MODE_STA. When set to WIFI_MODE_STA the Esp32WiFiManager will attempt to connect to the configured WiFi station_ssid. When wifi_mode is set to WIFI_MODE_AP the Esp32WiFiManager will create a SoftAP with the configured softap_ssid, softap_password, softap_channel, and softap_auth_mode. When set to WIFI_MODE_APSTA both the SoftAP and STATION interfaces will be enabled.
connection_mode	is used as the default value for the CDI element of the same name which controls the uplink and hub operation.
sntp_server	is the SNTP server to poll for time updates, this defaults to pool.ntp.org.
timezone	is the POSIX formatted TimeZone of the node, this defaults to UTC0.
sntp_enabled	Enables SNTP synchronization, defaults to false.
hostname_prefix	is the hostname prefix to use for this node. The NodeID will be appended to this value. The maximum length for final hostname is 32 bytes.
softap_channel	is the WiFi channel to use for the SoftAP.
softap_auth_mode	is the authentication mode for the AP when wifi_mode is set to WIFI_MODE_AP or WIFI_MODE_APSTA.
softap_ssid	is the name for the SoftAP, if null the node hostname will be used.
softap_password	will be used as the password for the SoftAP, if null and softap_auth_mode is not WIFI_AUTH_OPEN station_password will be used.

Member Function Documentation

◆ apply_configuration()

ConfigUpdateListener::UpdateAction openmrn_arduino::Esp32WiFiManager::apply_configuration	(	int	fd,
		bool	initial_load,
		BarrierNotifiable *	done
	)

overridevirtual

Updates the WiFiConfiguration settings used by this node.

Parameters

fd	is the file descriptor used for the configuration settings.
initial_load	is set to true when this node loads the configuration for the first time, otherwise it is an update to the configuration and may require a restart.
done	is the control used by the caller to track when all config consumers have completed their updates.

Returns: UPDATED when the configuration has been successfully updated, or REBOOT_NEEDED if the node needs to reboot for configuration to take effect.

Implements ConfigUpdateListener.

◆ enable_verbose_logging()

void openmrn_arduino::Esp32WiFiManager::enable_verbose_logging ( )

inline

If called, sets the ESP32 wifi stack to log verbose information to the console.

Definition at line 230 of file Esp32WiFiManager.hxx.

◆ executor()

Executor< 1 > * openmrn_arduino::Esp32WiFiManager::executor ( )

inline

Returns: the Executor used by the Esp32WiFiManager.

This can be used for other background tasks that should run periodically but not from the main OpenMRN stack Executor.

Definition at line 332 of file Esp32WiFiManager.hxx.

◆ factory_reset()

void openmrn_arduino::Esp32WiFiManager::factory_reset ( int fd )

overridevirtual

Resets the WiFiConfiguration settings used by this node.

Parameters

fd	is the file descriptor used for the configuration settings.

Implements ConfigUpdateListener.

◆ get_ssid_scan_result()

wifi_ap_record_t openmrn_arduino::Esp32WiFiManager::get_ssid_scan_result ( size_t index )

Returns one entry from the SSID scan.

Parameters

index is the index of the SSID to retrieve. If the index is invalid or no records exist a blank wifi_ap_record_t will be returned.

◆ get_ssid_scan_result_count()

size_t openmrn_arduino::Esp32WiFiManager::get_ssid_scan_result_count ( )

Returns: the number of SSIDs that were found via the scan.

◆ mdns_publish()

void openmrn_arduino::Esp32WiFiManager::mdns_publish	(	std::string	service,
		uint16_t	port
	)

Advertises a service via mDNS.

Parameters

service	is the service name to publish.
port	is the port for the service to be published.

Note: This will schedule a CallbackExecutable on the Executor used by the SimpleCanStackBase.

◆ mdns_unpublish()

void openmrn_arduino::Esp32WiFiManager::mdns_unpublish ( std::string service )

Removes the advertisement of a service via mDNS.

Parameters

service is the service name to remove from advertising.

◆ on_softap_start()

void openmrn_arduino::Esp32WiFiManager::on_softap_start ( )

private

Event handler called when the ESP32 SoftAP interface has started.

This will handle the configuration of the SoftAP Static IP (if used).

◆ on_softap_station_connected()

void openmrn_arduino::Esp32WiFiManager::on_softap_station_connected	(	uint8_t	mac[6],
		uint8_t	aid
	)

private

Event handler called when a station connects to the ESP32 SoftAP.

Parameters

mac	Station MAC address.
aid	Station access point identifier.

◆ on_softap_station_disconnected()

void openmrn_arduino::Esp32WiFiManager::on_softap_station_disconnected	(	uint8_t	mac[6],
		uint8_t	aid
	)

private

Event handler called when a station disconnects from the ESP32 SoftAP.

Parameters

mac	Station MAC address.
aid	Station access point identifier.

◆ on_station_disconnected()

void openmrn_arduino::Esp32WiFiManager::on_station_disconnected ( uint8_t reason )

private

Event handler called when the ESP32 Station interface has lost it's connection to the SSID or failed to connect.

Parameters

reason The reason for the disconnected event.

◆ on_station_started()

void openmrn_arduino::Esp32WiFiManager::on_station_started ( )

private

Event handler called when the ESP32 Station interface has started.

This will handle configuration of any static IP address, hostname, DNS and initiating the SSID connection process.

◆ on_uplink_created()

void openmrn_arduino::Esp32WiFiManager::on_uplink_created	(	int	fd,
		Notifiable *	on_exit
	)

private

Callback for the SocketClient to handle a newly connected outbound socket connection.

Parameters

fd	is the connected socket descriptor.
on_exit	is the Notifiable for when this socket has closed.

◆ on_wifi_scan_completed()

void openmrn_arduino::Esp32WiFiManager::on_wifi_scan_completed	(	uint32_t	status,
		uint8_t	count
	)

private

Event handler called when a WiFi scan operation completes.

Parameters

status	is the status of the WiFi scan request.
count	is the number of access points found.

◆ process_idf_event()

static void openmrn_arduino::Esp32WiFiManager::process_idf_event	(	void *	ctx,
		esp_event_base_t	event_base,
		int32_t	event_id,
		void *	event_data
	)

static

Processes an event coming from the ESP-IDF default event loop.

Parameters

ctx	context parameter (unused).
event_base	Determines the category of event being sent.
event_id	Specific event from the event_base being sent.
event_data	Data related to the event being sent, may be null.

NOTE: This is not intended to be called by the user.

◆ reconfigure_wifi_tx_power()

void openmrn_arduino::Esp32WiFiManager::reconfigure_wifi_tx_power ( )

private

Reconfigures the WiFi radio transmit power.

NOTE: This will only be called after the station connection has been established or after the SoftAP has been started. Before these events the transmit power will be configured to the maximum value.

◆ register_network_down_callback()

void openmrn_arduino::Esp32WiFiManager::register_network_down_callback ( esp_network_down_callback_t callback )

Registers a callback for when the WiFi connection is down.

Parameters

callback The callback to invoke when the WiFi connection is down.

◆ register_network_init_callback()

void openmrn_arduino::Esp32WiFiManager::register_network_init_callback ( esp_network_init_callback_t callback )

Registers a callback for when WiFi interfaces are being initialized.

Parameters

callback The callback to invoke when the WiFi interface is initializing.

NOTE: this will not be invoked for ESP_IF_WIFI_AP since there are no events raised between enabling the interface and when it is ready.

◆ register_network_time_callback()

void openmrn_arduino::Esp32WiFiManager::register_network_time_callback ( esp_network_time_callback_t callback )

Registers a callback for when SNTP updates are received.

Parameters

callback The callback to invoke when SNTP updates are received.

◆ register_network_up_callback()

void openmrn_arduino::Esp32WiFiManager::register_network_up_callback ( esp_network_up_callback_t callback )

Registers a callback for when the WiFi connection is up.

Parameters

callback The callback to invoke when the WiFi connection is up.

◆ set_status_led()

void openmrn_arduino::Esp32WiFiManager::set_status_led ( const Gpio * led = nullptr )

inline

Configures a Gpio to be used as a visual indication of the current WiFi status.

Parameters

led	is the Gpio instance connected to the LED.

Definition at line 192 of file Esp32WiFiManager.hxx.

◆ set_tx_power()

void openmrn_arduino::Esp32WiFiManager::set_tx_power ( uint8_t power )

inline

Configures the WiFi maximum transmit power setting.

Parameters

power is the maximum transmit power in 0.25dBm units, range is 8-84 (2-20dBm).

NOTE: This should be called as early as possible, once the Station or SoftAP has been started this setting will not be used.

Definition at line 289 of file Esp32WiFiManager.hxx.

◆ start_hub()

void openmrn_arduino::Esp32WiFiManager::start_hub ( )

private

Creates a hub listener for this node after loading configuration details.

Note: This method will block until the hub is active.

◆ start_ssid_scan()

void openmrn_arduino::Esp32WiFiManager::start_ssid_scan ( Notifiable * n )

Starts a scan for available SSIDs.

Parameters

n	is the Notifiable to notify when the SSID scan completes.

◆ sync_time()

void openmrn_arduino::Esp32WiFiManager::sync_time ( time_t now )

Time synchronization callback for SNTP.

Parameters

now	is the current time.

NOTE: This is not intended to be called by the user.

◆ wait_for_ssid_connect()

void openmrn_arduino::Esp32WiFiManager::wait_for_ssid_connect ( bool enable )

inline

Forces the Esp32WiFiManager to wait until SSID connection completes.

Parameters

enable when true will force the Esp32WiFiManager to wait for successful SSID connection (including IP assignemnt), when false and the Esp32WiFiManager will not check the SSID connection process.

The default behavior is to wait for SSID connection to complete when the WiFi mode is WIFI_MODE_STA or WIFI_MODE_APSTA. When operating in WIFI_MODE_APSTA mode the application may opt to present a configuration portal to allow reconfiguration of the SSID.

Definition at line 277 of file Esp32WiFiManager.hxx.

◆ wifi_manager_task()

static void * openmrn_arduino::Esp32WiFiManager::wifi_manager_task ( void * param )

staticprivate

Background task used by the Esp32WiFiManager to maintain health of any connections to other nodes.

Parameters

param is a pointer to the Esp32WiFiManager instance.

Member Data Documentation

◆ cfg_

const WiFiConfiguration openmrn_arduino::Esp32WiFiManager::cfg_

private

Persistent configuration that will be used for this node's WiFi usage.

Definition at line 450 of file Esp32WiFiManager.hxx.

◆ configCrc32_

uint32_t openmrn_arduino::Esp32WiFiManager::configCrc32_ {0}

private

Calculated CRC-32 of cfg_ data.

Used to detect changes in configuration which may require the wifi_manager_task to reload config.

Definition at line 499 of file Esp32WiFiManager.hxx.

◆ configFd_

int openmrn_arduino::Esp32WiFiManager::configFd_ {-1}

private

Cached copy of the file descriptor passed into apply_configuration.

This is internally used by the wifi_manager_task to processed deferred configuration load.

Definition at line 495 of file Esp32WiFiManager.hxx.

◆ CONN_MODE_HUB_BIT

constexpr uint8_t openmrn_arduino::Esp32WiFiManager::CONN_MODE_HUB_BIT = BIT(1)

staticconstexprprivate

Constant used to determine if the Hub mode should be enabled.

Definition at line 579 of file Esp32WiFiManager.hxx.

◆ CONN_MODE_UPLINK_BIT

constexpr uint8_t openmrn_arduino::Esp32WiFiManager::CONN_MODE_UPLINK_BIT = BIT(0)

staticconstexprprivate

Constant used to determine if the Uplink mode should be enabled.

Definition at line 576 of file Esp32WiFiManager.hxx.

◆ connectionMode_

uint8_t openmrn_arduino::Esp32WiFiManager::connectionMode_ {CONN_MODE_UPLINK_BIT}

private

Defines the WiFi connection mode to operate in.

Definition at line 510 of file Esp32WiFiManager.hxx.

◆ espNetIfaces_

esp_netif_t* openmrn_arduino::Esp32WiFiManager::espNetIfaces_[MAX_NETWORK_INTERFACES]

private

Initial value:

{
        nullptr, nullptr
    }

Network interfaces that are managed by Esp32WiFiManager.

Definition at line 582 of file Esp32WiFiManager.hxx.

◆ executor_

Executor<1> openmrn_arduino::Esp32WiFiManager::executor_ {NO_THREAD()}

private

Executor to use for the uplink connections and callbacks.

Definition at line 550 of file Esp32WiFiManager.hxx.

◆ hostname_

std::string openmrn_arduino::Esp32WiFiManager::hostname_

private

Dynamically generated hostname for this node, esp32_{node-id}.

This is also used for the SoftAP SSID name (if enabled).

Definition at line 441 of file Esp32WiFiManager.hxx.

◆ hubServiceName_

std::string openmrn_arduino::Esp32WiFiManager::hubServiceName_

private

mDNS service name being advertised by the hub, if enabled.

Definition at line 516 of file Esp32WiFiManager.hxx.

◆ MAX_HOSTNAME_LENGTH

constexpr uint8_t openmrn_arduino::Esp32WiFiManager::MAX_HOSTNAME_LENGTH = 32

staticconstexprprivate

Maximum length of the hostname for the ESP32.

Definition at line 573 of file Esp32WiFiManager.hxx.

◆ mdnsDeferredPublish_

std::map<std::string, uint16_t> openmrn_arduino::Esp32WiFiManager::mdnsDeferredPublish_

private

Internal holder for mDNS entries which could not be published due to mDNS not being initialized yet.

Definition at line 554 of file Esp32WiFiManager.hxx.

◆ mdnsInitialized_

bool openmrn_arduino::Esp32WiFiManager::mdnsInitialized_ {false}

private

Internal flag for tracking that the mDNS system has been initialized.

Definition at line 547 of file Esp32WiFiManager.hxx.

◆ mdnsInitLock_

OSMutex openmrn_arduino::Esp32WiFiManager::mdnsInitLock_

private

Protects the mdnsInitialized_ flag and mdnsDeferredPublish_ map.

Definition at line 544 of file Esp32WiFiManager.hxx.

◆ networkCallbacksLock_

OSMutex openmrn_arduino::Esp32WiFiManager::networkCallbacksLock_

private

Protects the networkUpCallbacks_, networkDownCallbacks_, networkInitCallbacks_ and networkTimeCallbacks_ vectors.

Definition at line 558 of file Esp32WiFiManager.hxx.

◆ networkDownCallbacks_

std::vector<esp_network_down_callback_t> openmrn_arduino::Esp32WiFiManager::networkDownCallbacks_

private

Holder for callbacks to invoke when the WiFi connection is down.

Definition at line 564 of file Esp32WiFiManager.hxx.

◆ networkInitCallbacks_

std::vector<esp_network_init_callback_t> openmrn_arduino::Esp32WiFiManager::networkInitCallbacks_

private

Holder for callbacks to invoke when the WiFi subsystem has started.

Definition at line 567 of file Esp32WiFiManager.hxx.

◆ networkTimeCallbacks_

std::vector<esp_network_time_callback_t> openmrn_arduino::Esp32WiFiManager::networkTimeCallbacks_

private

Holder for callbacks to invoke when network time synchronizes.

Definition at line 570 of file Esp32WiFiManager.hxx.

◆ networkUpCallbacks_

std::vector<esp_network_up_callback_t> openmrn_arduino::Esp32WiFiManager::networkUpCallbacks_

private

Holder for callbacks to invoke when the WiFi connection is up.

Definition at line 561 of file Esp32WiFiManager.hxx.

◆ password_

std::string openmrn_arduino::Esp32WiFiManager::password_

private

User provided password for the SSID to connect to.

Definition at line 447 of file Esp32WiFiManager.hxx.

◆ sntpConfigured_

bool openmrn_arduino::Esp32WiFiManager::sntpConfigured_ {false}

private

Tracks if SNTP has been configured.

Definition at line 490 of file Esp32WiFiManager.hxx.

◆ sntpEnabled_

const bool openmrn_arduino::Esp32WiFiManager::sntpEnabled_

private

Enables SNTP polling.

Definition at line 481 of file Esp32WiFiManager.hxx.

◆ sntpServer_

std::string openmrn_arduino::Esp32WiFiManager::sntpServer_

private

SNTP server address.

Definition at line 484 of file Esp32WiFiManager.hxx.

◆ softAPAuthMode_

wifi_auth_mode_t openmrn_arduino::Esp32WiFiManager::softAPAuthMode_

private

Authentication mode to use for the SoftAP.

If not set to WIFI_AUTH_OPEN softAPPassword_ will be used.

Definition at line 466 of file Esp32WiFiManager.hxx.

◆ softAPChannel_

const uint8_t openmrn_arduino::Esp32WiFiManager::softAPChannel_

private

Channel to use for the SoftAP interface.

Definition at line 462 of file Esp32WiFiManager.hxx.

◆ softAPName_

std::string openmrn_arduino::Esp32WiFiManager::softAPName_

private

User provided name for the SoftAP when active, defaults to hostname_ when null.

NOTE: Only used when wifiMode_ is set to WIFI_MODE_AP or WIFI_MODE_APSTA.

Definition at line 472 of file Esp32WiFiManager.hxx.

◆ softAPPassword_

std::string openmrn_arduino::Esp32WiFiManager::softAPPassword_

private

User provided password for the SoftAP when active, defaults to password when null and softAPAuthMode_ is not WIFI_AUTH_OPEN.

NOTE: Only used when wifiMode_ is set to WIFI_MODE_AP or WIFI_MODE_APSTA.

Definition at line 478 of file Esp32WiFiManager.hxx.

◆ ssid_

std::string openmrn_arduino::Esp32WiFiManager::ssid_

private

User provided SSID to connect to.

Definition at line 444 of file Esp32WiFiManager.hxx.

◆ ssidCompleteNotifiable_

Notifiable* openmrn_arduino::Esp32WiFiManager::ssidCompleteNotifiable_ {nullptr}

private

Notifiable to be called when SSID scan completes.

Definition at line 541 of file Esp32WiFiManager.hxx.

◆ ssidScanResults_

std::vector<wifi_ap_record_t> openmrn_arduino::Esp32WiFiManager::ssidScanResults_

private

WiFi SSID scan results holder.

Definition at line 535 of file Esp32WiFiManager.hxx.

◆ ssidScanResultsLock_

OSMutex openmrn_arduino::Esp32WiFiManager::ssidScanResultsLock_

private

Protects ssidScanResults_ vector.

Definition at line 538 of file Esp32WiFiManager.hxx.

◆ stack_

openlcb::SimpleStackBase* openmrn_arduino::Esp32WiFiManager::stack_

private

OpenMRN stack for the Arduino system.

Definition at line 453 of file Esp32WiFiManager.hxx.

◆ statusLed_

const Gpio* openmrn_arduino::Esp32WiFiManager::statusLed_ {nullptr}

private

WiFi connection status indicator Gpio instance.

Definition at line 456 of file Esp32WiFiManager.hxx.

◆ timeZone_

std::string openmrn_arduino::Esp32WiFiManager::timeZone_

private

TimeZone of the node.

Definition at line 487 of file Esp32WiFiManager.hxx.

◆ uplink_

std::unique_ptr<SocketClient> openmrn_arduino::Esp32WiFiManager::uplink_

private

SocketClient for this node's uplink connection.

Definition at line 519 of file Esp32WiFiManager.hxx.

◆ uplinkFd_

int openmrn_arduino::Esp32WiFiManager::uplinkFd_ {-1}

private

Socket handle used by the uplink connection.

Definition at line 522 of file Esp32WiFiManager.hxx.

◆ uplinkNotifiable_

Notifiable* openmrn_arduino::Esp32WiFiManager::uplinkNotifiable_ {nullptr}

private

Notifiable handle provided by the SocketClient once a connection has been established.

This will be called by UplinkNotifiable when not null and the connection needs to be re-established. This will be set to null when the uplink is intentionally disconnected by configuration updates.

Definition at line 529 of file Esp32WiFiManager.hxx.

◆ uplinkNotifiableProxy_

UplinkNotifiable openmrn_arduino::Esp32WiFiManager::uplinkNotifiableProxy_ {this}

private

UplinkNotifiable to use for uplink connections.

Definition at line 618 of file Esp32WiFiManager.hxx.

◆ verboseLogging_

bool openmrn_arduino::Esp32WiFiManager::verboseLogging_ {false}

private

If true, request esp32 wifi to do verbose logging.

Definition at line 507 of file Esp32WiFiManager.hxx.

◆ waitForStationConnect_

bool openmrn_arduino::Esp32WiFiManager::waitForStationConnect_ {true}

private

If true, the esp32 will block startup until the SSID connection has successfully completed and upon failure (or timeout) the esp32 will be restarted.

Definition at line 504 of file Esp32WiFiManager.hxx.

◆ wifiMode_

const wifi_mode_t openmrn_arduino::Esp32WiFiManager::wifiMode_

private

WiFi operating mode.

Definition at line 459 of file Esp32WiFiManager.hxx.

◆ wifiStackFlow_

WiFiStackFlow openmrn_arduino::Esp32WiFiManager::wifiStackFlow_ {this}

private

Instance of WiFiStackFlow used for WiFi maintenance.

Definition at line 682 of file Esp32WiFiManager.hxx.

◆ wifiStatusEventGroup_

EventGroupHandle_t openmrn_arduino::Esp32WiFiManager::wifiStatusEventGroup_

private

Internal event group used to track the IP assignment events.

Definition at line 532 of file Esp32WiFiManager.hxx.

◆ wifiTXPower_

uint8_t openmrn_arduino::Esp32WiFiManager::wifiTXPower_ {84}

private

Maximum WiFi transmit power setting.

Definition at line 513 of file Esp32WiFiManager.hxx.

The documentation for this class was generated from the following file:

Esp32WiFiManager.hxx

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Esp32WiFiManager()

Member Function Documentation

◆ apply_configuration()

◆ enable_verbose_logging()

◆ executor()

◆ factory_reset()

◆ get_ssid_scan_result()

◆ get_ssid_scan_result_count()

◆ mdns_publish()

◆ mdns_unpublish()

◆ on_softap_start()

◆ on_softap_station_connected()

◆ on_softap_station_disconnected()

◆ on_station_disconnected()

◆ on_station_started()

◆ on_uplink_created()

◆ on_wifi_scan_completed()

◆ process_idf_event()

◆ reconfigure_wifi_tx_power()

◆ register_network_down_callback()

◆ register_network_init_callback()

◆ register_network_time_callback()

◆ register_network_up_callback()

◆ set_status_led()

◆ set_tx_power()

◆ start_hub()

◆ start_ssid_scan()

◆ sync_time()

◆ wait_for_ssid_connect()

◆ wifi_manager_task()

Member Data Documentation

◆ cfg_

◆ configCrc32_

◆ configFd_

◆ CONN_MODE_HUB_BIT

◆ CONN_MODE_UPLINK_BIT

◆ connectionMode_

◆ espNetIfaces_

◆ executor_

◆ hostname_

◆ hubServiceName_

◆ MAX_HOSTNAME_LENGTH

◆ mdnsDeferredPublish_

◆ mdnsInitialized_

◆ mdnsInitLock_

◆ networkCallbacksLock_

◆ networkDownCallbacks_

◆ networkInitCallbacks_

◆ networkTimeCallbacks_

◆ networkUpCallbacks_

◆ password_

◆ sntpConfigured_

◆ sntpEnabled_

◆ sntpServer_

◆ softAPAuthMode_

◆ softAPChannel_

◆ softAPName_

◆ softAPPassword_

◆ ssid_

◆ ssidCompleteNotifiable_

◆ ssidScanResults_

◆ ssidScanResultsLock_

◆ stack_

◆ statusLed_

◆ timeZone_

◆ uplink_

◆ uplinkFd_

◆ uplinkNotifiable_

◆ uplinkNotifiableProxy_

◆ verboseLogging_
