Gpio Class Reference

OS-independent abstraction for GPIO. More...

#include <Gpio.hxx>

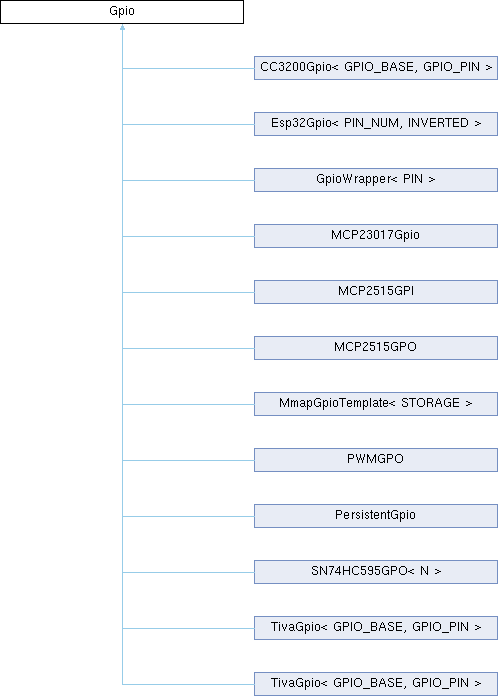

Inheritance diagram for Gpio:

Public Types
enum	Value : bool { CLR = false , SET = true , VLOW = CLR , VHIGH = SET }
	Defines the options for GPIO level. More...
enum class	Direction { DINPUT , DOUTPUT }
	Defines the options for GPIO direction. More...

Public Member Functions
constexpr	Gpio ()
	Constructor.
virtual void	write (Value new_state) const =0
	Writes a GPIO output pin (set or clear to a specific state).
void	write (bool new_state) const
	Writes a GPIO output pin (set or clear to a specific state).
virtual Value	read () const =0
	Retrieves the current Value of a GPIO input pin.
bool	is_set () const
	Tests the GPIO input pin to see if it is set.
bool	is_clr () const
	Tests the GPIO input pin to see if it is clear.
virtual void	set () const =0
	Sets the GPIO output pin to high.
virtual void	clr () const =0
	Clears the GPIO output pin to low.
virtual void	set_direction (Direction dir) const =0
	Sets the GPIO direction.
virtual Direction	direction () const =0
	Gets the GPIO direction.

Detailed Description

OS-independent abstraction for GPIO.

Definition at line 42 of file Gpio.hxx.

Member Enumeration Documentation

Direction

enum class Gpio::Direction

strong

Defines the options for GPIO direction.

This enum must always be used fully qualified (i.e. Gpio::Direction::DINPUT and Gpio::Direction::DOUTPUT).

Definition at line 72 of file Gpio.hxx.

Value

enum Gpio::Value : bool

Defines the options for GPIO level.

Definition at line 61 of file Gpio.hxx.

Constructor & Destructor Documentation

Gpio()

constexpr Gpio::Gpio ( )

inlineconstexpr

Constructor.

It is important that this is constexpr so that the Gpio object instances can be initialized by the data segment and be avalable before constructor calls.

Definition at line 48 of file Gpio.hxx.

Member Function Documentation

clr()

virtual void Gpio::clr ( ) const

pure virtual

Clears the GPIO output pin to low.

Implemented in GpioWrapper< PIN >, MCP23017Gpio, MCP2515GPO, PersistentGpio, PWMGPO, SN74HC595GPO< N >, Esp32Gpio< PIN_NUM, INVERTED >, CC3200Gpio< GPIO_BASE, GPIO_PIN >, TivaGpio< GPIO_BASE, GPIO_PIN >, and MmapGpioTemplate< STORAGE >.

direction()

virtual Direction Gpio::direction ( ) const

pure virtual

Gets the GPIO direction.

Returns

INPUT or OUTPUT

Implemented in GpioWrapper< PIN >, MCP23017Gpio, MCP2515GPO, MCP2515GPI, PersistentGpio, PWMGPO, SN74HC595GPO< N >, Esp32Gpio< PIN_NUM, INVERTED >, CC3200Gpio< GPIO_BASE, GPIO_PIN >, TivaGpio< GPIO_BASE, GPIO_PIN >, and MmapGpioTemplate< STORAGE >.

is_clr()

bool Gpio::is_clr ( ) const

inline

Tests the GPIO input pin to see if it is clear.

Returns

true if input pin is currently low, false if currently high.

Definition at line 113 of file Gpio.hxx.

is_set()

bool Gpio::is_set ( ) const

inline

Tests the GPIO input pin to see if it is set.

Returns

true if input pin is currently high, false if currently low.

Definition at line 105 of file Gpio.hxx.

read()

virtual Value Gpio::read ( ) const

pure virtual

Retrieves the current Value of a GPIO input pin.

Returns

SET if currently high, CLR if currently low.

Implemented in GpioWrapper< PIN >, MCP23017Gpio, MCP2515GPO, MCP2515GPI, PersistentGpio, PWMGPO, SN74HC595GPO< N >, Esp32Gpio< PIN_NUM, INVERTED >, CC3200Gpio< GPIO_BASE, GPIO_PIN >, TivaGpio< GPIO_BASE, GPIO_PIN >, and MmapGpioTemplate< STORAGE >.

set()

virtual void Gpio::set ( ) const

pure virtual

Sets the GPIO output pin to high.

Implemented in GpioWrapper< PIN >, MCP23017Gpio, MCP2515GPO, PersistentGpio, PWMGPO, SN74HC595GPO< N >, Esp32Gpio< PIN_NUM, INVERTED >, CC3200Gpio< GPIO_BASE, GPIO_PIN >, TivaGpio< GPIO_BASE, GPIO_PIN >, and MmapGpioTemplate< STORAGE >.

set_direction()

virtual void Gpio::set_direction ( Direction  dir ) const

pure virtual

Sets the GPIO direction.

Parameters

dir	INPUT or OUTPUT

Implemented in GpioWrapper< PIN >, MCP23017Gpio, PersistentGpio, Esp32Gpio< PIN_NUM, INVERTED >, CC3200Gpio< GPIO_BASE, GPIO_PIN >, TivaGpio< GPIO_BASE, GPIO_PIN >, MmapGpioTemplate< STORAGE >, MCP2515GPO, MCP2515GPI, PWMGPO, and SN74HC595GPO< N >.

write() [1/2]

void Gpio::write ( bool  new_state ) const

inline

Writes a GPIO output pin (set or clear to a specific state).

This is an inline function because this class encapsulates that HIGH==true and LOW==false, thus a direct typecast belongs here and not to customer code.

Parameters

new_state

bool representing the desired output state. true == high, false == low.

Definition at line 92 of file Gpio.hxx.

write() [2/2]

virtual void Gpio::write ( Value  new_state ) const

pure virtual

Writes a GPIO output pin (set or clear to a specific state).

Parameters

new_state

the desired output state. See Value.

Implemented in GpioWrapper< PIN >, MCP23017Gpio, MCP2515GPO, PersistentGpio, PWMGPO, SN74HC595GPO< N >, Esp32Gpio< PIN_NUM, INVERTED >, CC3200Gpio< GPIO_BASE, GPIO_PIN >, TivaGpio< GPIO_BASE, GPIO_PIN >, and MmapGpioTemplate< STORAGE >.

---

The documentation for this class was generated from the following file:

• Gpio.hxx
