Implementation of the hardware-independent parts of the write flows. More...

#include <IfImpl.hxx>

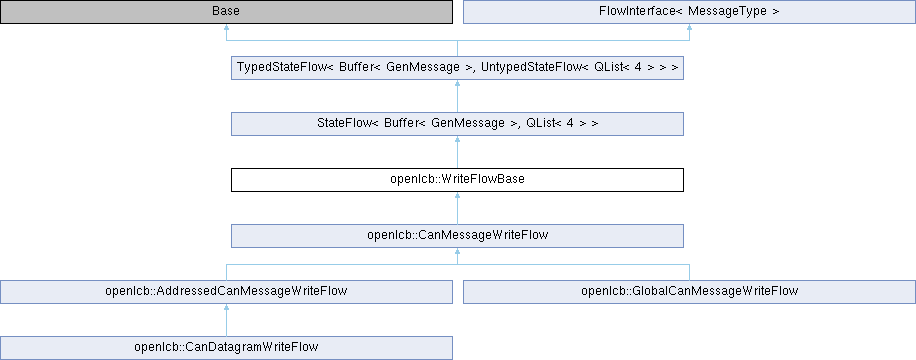

Inheritance diagram for openlcb::WriteFlowBase:

Public Member Functions
	WriteFlowBase (If *async_if)

Public Member Functions inherited from StateFlow< Buffer< GenMessage >, QList< 4 > >
	StateFlow (Service *service)
	Constructor.

Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

virtual Action	entry () override=0
	Entry into the StateFlow activity.

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Protected Member Functions
virtual Action	send_to_hardware ()=0
	This function will be called (on the main executor) to initiate sending this message to the hardware.

virtual Action	send_to_local_node ()
	This state is called when an addressed message's destination is a node that is local to this interface.

virtual Action	send_finished ()
	Virtual method called after the send is completed, i.e., all the frames are generated and sent to the hardware.

If *	async_if ()

GenMessage *	nmsg ()
	Implementations shall call this function when they are done with sending the packet.

Action	addressed_entry ()
	Addressed write flows should call this state BEFORE sending to the hardware.

Action	global_entry ()
	Global write flows should return to this state AFTER sending the message to the hardware.

Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Detailed Description

Implementation of the hardware-independent parts of the write flows.

Definition at line 45 of file IfImpl.hxx.

Constructor & Destructor Documentation

◆ WriteFlowBase()

openlcb::WriteFlowBase::WriteFlowBase ( If * async_if )

inline

Definition at line 48 of file IfImpl.hxx.

Member Function Documentation

◆ addressed_entry()

StateFlowBase::Action openlcb::WriteFlowBase::addressed_entry ( )

protected

Addressed write flows should call this state BEFORE sending to the hardware.

They may get back control at the send_to_hardware state if needed. NOTE: datagram write flow cannot use this because it won't get back.

Definition at line 41 of file IfImpl.cxx.

◆ async_if()

If * openlcb::WriteFlowBase::async_if ( )

inlineprotected

Returns: the interface that this flow is assigned to.

Definition at line 77 of file IfImpl.hxx.

◆ global_entry()

StateFlowBase::Action openlcb::WriteFlowBase::global_entry ( )

protected

Global write flows should return to this state AFTER sending the message to the hardware.

They should ensure the message is still intact. They will not get back control.

Definition at line 67 of file IfImpl.cxx.

◆ nmsg()

GenMessage * openlcb::WriteFlowBase::nmsg ( )

inlineprotected

Implementations shall call this function when they are done with sending the packet.

Returns the NMRAnet message we are trying to send.

Definition at line 88 of file IfImpl.hxx.

◆ send_finished()

virtual Action openlcb::WriteFlowBase::send_finished ( )

inlineprotectedvirtual

Virtual method called after the send is completed, i.e., all the frames are generated and sent to the hardware.

Various flows might need to take additional steps afterwards.

Reimplemented in openlcb::GlobalCanMessageWriteFlow.

Definition at line 71 of file IfImpl.hxx.

◆ send_to_hardware()

virtual Action openlcb::WriteFlowBase::send_to_hardware ( )

protectedpure virtual

This function will be called (on the main executor) to initiate sending this message to the hardware.

The flow will then execute the returned action.

NOTE: it is possible that this functon will never be called for a given flow.

Implemented in openlcb::CanMessageWriteFlow, and openlcb::AddressedCanMessageWriteFlow.

◆ send_to_local_node()

StateFlowBase::Action openlcb::WriteFlowBase::send_to_local_node ( )

protectedvirtual

This state is called when an addressed message's destination is a node that is local to this interface.

The dstNode will already be filled. The implementation should perform the send and then transition to the send_finished state.

Definition at line 54 of file IfImpl.cxx.

The documentation for this class was generated from the following files:
