This write flow inherits all the business logic from the parent, just maintains a separate allocation queue. More...

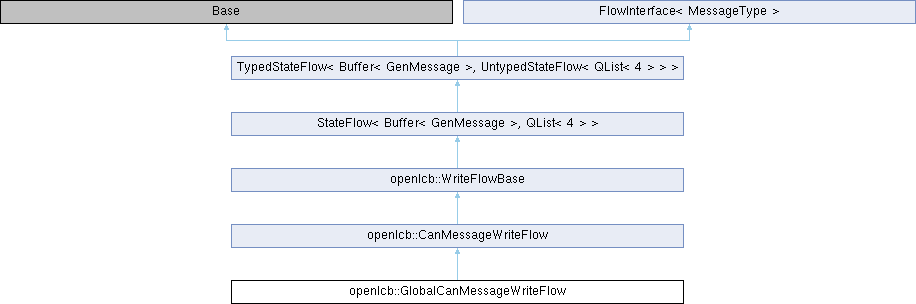

Inheritance diagram for openlcb::GlobalCanMessageWriteFlow:

Public Member Functions
	GlobalCanMessageWriteFlow (IfCan *if_can)

Public Member Functions inherited from openlcb::CanMessageWriteFlow
	CanMessageWriteFlow (IfCan *if_can)

IfCan *	if_can ()

Public Member Functions inherited from openlcb::WriteFlowBase
	WriteFlowBase (If *async_if)

Public Member Functions inherited from StateFlow< Buffer< GenMessage >, QList< 4 > >
	StateFlow (Service *service)
	Constructor.

Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Protected Member Functions
Action	entry () override
	Entry into the StateFlow activity.

Action	send_finished () override
	Virtual method called after the send is completed, i.e., all the frames are generated and sent to the hardware.

Protected Member Functions inherited from openlcb::CanMessageWriteFlow
Action	send_to_hardware () override
	This function will be called (on the main executor) to initiate sending this message to the hardware.

Action	find_local_alias ()
	Performs the local alias lookup and branches depending on whether we found a local alias or not.

Action	get_can_frame_buffer ()

Protected Member Functions inherited from openlcb::WriteFlowBase
virtual Action	send_to_local_node ()
	This state is called when an addressed message's destination is a node that is local to this interface.

If *	async_if ()

GenMessage *	nmsg ()
	Implementations shall call this function when they are done with sending the packet.

Action	addressed_entry ()
	Addressed write flows should call this state BEFORE sending to the hardware.

Action	global_entry ()
	Global write flows should return to this state AFTER sending the message to the hardware.

Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Protected Attributes inherited from openlcb::CanMessageWriteFlow
NodeAlias	srcAlias_
	Source node alias.

NodeAlias	dstAlias_
	Destination node alias.

uint8_t	dataOffset_
	for continuation frames: which offset in the Buffer should we start the payload at.

Detailed Description

This write flow inherits all the business logic from the parent, just maintains a separate allocation queue.

This allows global messages to go out even if addressed messages are waiting for destination address resolution.

Definition at line 63 of file IfCan.cxx.

Constructor & Destructor Documentation

openlcb::GlobalCanMessageWriteFlow::GlobalCanMessageWriteFlow ( IfCan * if_can )

inline

Definition at line 66 of file IfCan.cxx.

Action openlcb::GlobalCanMessageWriteFlow::entry ( )

inlineoverrideprotectedvirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Definition at line 72 of file IfCan.cxx.

Action openlcb::GlobalCanMessageWriteFlow::send_finished ( )

inlineoverrideprotectedvirtual

Virtual method called after the send is completed, i.e., all the frames are generated and sent to the hardware.

Various flows might need to take additional steps afterwards.

Definition at line 77 of file IfCan.cxx.

The documentation for this class was generated from the following file:
