Implementation of the ConfigUpdateService: state flow issuing all the calls to the registered ConfigUpdateListener descendants. More...

#include <ConfigUpdateFlow.hxx>

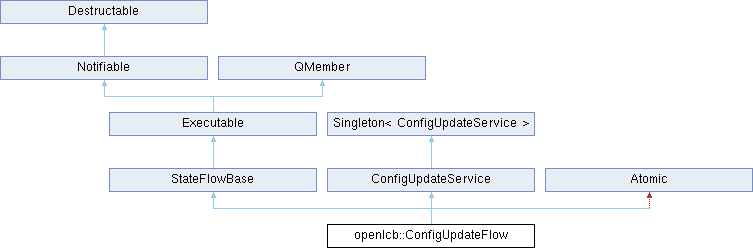

Inheritance diagram for openlcb::ConfigUpdateFlow:

Public Member Functions
	ConfigUpdateFlow (If *iface)

int	open_file (const char *path)
	Must be called once (only) before calling anything else.

void	init_flow ()
	Asynchronously invokes all update listeners with the config FD.

void	factory_reset ()
	Synchronously invokes all update listeners to factory reset.

int	get_fd ()

void	trigger_update () override
	Executes an update in response to the configuration having changed.

void	register_update_listener (ConfigUpdateListener *listener) override
	Adds a config update listener to be called upon configuration updates.

void	unregister_update_listener (ConfigUpdateListener *listener) override
	Removes a config update listener.

Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.

void	notify () override
	Wakeup call arrived.

Service *	service ()
	Return a pointer to the service I am bound to.

Public Member Functions inherited from Executable
void	test_deletion ()

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Private Types
typedef TypedQueue< ConfigUpdateListener >	queue_type

Private Member Functions
Action	call_next_listener ()

Action	call_listener (ConfigUpdateListener *l, bool is_initial)

Action	do_initial_load ()

Action	apply_action ()

Private Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Private Attributes
queue_type	listeners_
	All registered update listeners. Protected by Atomic *this.

queue_type	pendingListeners_
	All listeners that have not yet been added to listeners_ and their initial load needs to be called.

queue_type::iterator	nextRefresh_
	Where are we in the refresh cycle.

unsigned	needsReboot_: 1
	did anybody request a reboot to happen?

unsigned	needsReInit_: 1
	did anybody request a node reinit to happen?

int	fd_

BarrierNotifiable	n_

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.

Static Public Member Functions inherited from Singleton< ConfigUpdateService >
static ConfigUpdateService *	instance ()

static bool	exists ()

Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.

Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.

	~StateFlowBase ()
	Destructor.

void	reset_flow (Callback c)
	Resets the flow to the specified state.

bool	is_state (Callback c)

bool	is_terminated ()

void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.

Action	again ()
	Call the current state again via call_immediately.

Action	exit ()
	Terminate current StateFlow activity.

Action	delete_this ()
	Terminates the flow and deletes *this.

Action	set_terminated ()
	Sets the flow to terminated state.

Action	call_immediately (Callback c)
	Imediately call the next state upon return.

Action	wait ()
	Wait for an asynchronous call.

Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.

template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > target_flow, Callback c, Pool pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.

Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.

template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.

template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.

Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.

Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.

Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.

template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.

Action	read_repeated (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.

Action	read_single (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.

Action	read_nonblocking (StateFlowSelectHelper helper, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.

Action	read_repeated_with_timeout (StateFlowTimedSelectHelper helper, long long timeout_nsec, int fd, void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.

Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.

Action	write_repeated (StateFlowSelectHelper helper, int fd, const void buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.

Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

Implementation of the ConfigUpdateService: state flow issuing all the calls to the registered ConfigUpdateListener descendants.

This flow also handles any necessary action such as reboot or factory reset. This flow keeps the file descriptor for the config file that's currently open.

Definition at line 60 of file ConfigUpdateFlow.hxx.

Member Typedef Documentation

◆ queue_type

typedef TypedQueue<ConfigUpdateListener> openlcb::ConfigUpdateFlow::queue_type

private

Definition at line 202 of file ConfigUpdateFlow.hxx.

Constructor & Destructor Documentation

◆ ConfigUpdateFlow()

openlcb::ConfigUpdateFlow::ConfigUpdateFlow ( If * iface )

inline

Definition at line 65 of file ConfigUpdateFlow.hxx.

Member Function Documentation

◆ apply_action()

Action openlcb::ConfigUpdateFlow::apply_action ( )

inlineprivate

TODO(balazs.racz) apply the changes reported.

Definition at line 185 of file ConfigUpdateFlow.hxx.

◆ call_listener()

Action openlcb::ConfigUpdateFlow::call_listener	(	ConfigUpdateListener *	l,
		bool	is_initial
	)

inlineprivate

Definition at line 138 of file ConfigUpdateFlow.hxx.

◆ call_next_listener()

Action openlcb::ConfigUpdateFlow::call_next_listener ( )

inlineprivate

Definition at line 123 of file ConfigUpdateFlow.hxx.

◆ do_initial_load()

Action openlcb::ConfigUpdateFlow::do_initial_load ( )

inlineprivate

Definition at line 167 of file ConfigUpdateFlow.hxx.

◆ factory_reset()

void openlcb::ConfigUpdateFlow::factory_reset ( )

Synchronously invokes all update listeners to factory reset.

Definition at line 57 of file ConfigUpdateFlow.cxx.

◆ get_fd()

int openlcb::ConfigUpdateFlow::get_fd ( )

inline

Returns: the file descriptor of the configuration file, or -1 if the configuration file has not yet been opened.

Definition at line 84 of file ConfigUpdateFlow.hxx.

◆ init_flow()

void openlcb::ConfigUpdateFlow::init_flow ( )

Asynchronously invokes all update listeners with the config FD.

Definition at line 52 of file ConfigUpdateFlow.cxx.

◆ open_file()

int openlcb::ConfigUpdateFlow::open_file ( const char * path )

Must be called once (only) before calling anything else.

Returns the file descriptor.

Definition at line 43 of file ConfigUpdateFlow.cxx.

◆ register_update_listener()

void openlcb::ConfigUpdateFlow::register_update_listener ( ConfigUpdateListener * listener )

overridevirtual

Adds a config update listener to be called upon configuration updates.

Should be called before the startup of the stack in order to ensure that the initial load will be successful.

Parameters

listener pointer to the implementation that needs to listen to config updates.

Implements ConfigUpdateService.

Definition at line 69 of file ConfigUpdateFlow.cxx.

◆ trigger_update()

void openlcb::ConfigUpdateFlow::trigger_update ( )

inlineoverridevirtual

Executes an update in response to the configuration having changed.

Implements ConfigUpdateService.

Definition at line 108 of file ConfigUpdateFlow.hxx.

◆ unregister_update_listener()

void openlcb::ConfigUpdateFlow::unregister_update_listener ( ConfigUpdateListener * listener )

overridevirtual

Removes a config update listener.

Requires: the listener has been inserted before using register_update_listener.

Parameters

listener pointer to the implementation that needs to be removed.

Implements ConfigUpdateService.

Definition at line 79 of file ConfigUpdateFlow.cxx.

Member Data Documentation

◆ fd_

int openlcb::ConfigUpdateFlow::fd_

private

Definition at line 214 of file ConfigUpdateFlow.hxx.

◆ listeners_

queue_type openlcb::ConfigUpdateFlow::listeners_

private

All registered update listeners. Protected by Atomic *this.

Definition at line 204 of file ConfigUpdateFlow.hxx.

◆ n_

BarrierNotifiable openlcb::ConfigUpdateFlow::n_

private

Definition at line 215 of file ConfigUpdateFlow.hxx.

◆ needsReboot_

unsigned openlcb::ConfigUpdateFlow::needsReboot_

private

did anybody request a reboot to happen?

Definition at line 211 of file ConfigUpdateFlow.hxx.

◆ needsReInit_

unsigned openlcb::ConfigUpdateFlow::needsReInit_

private

did anybody request a node reinit to happen?

Definition at line 213 of file ConfigUpdateFlow.hxx.

◆ nextRefresh_

queue_type::iterator openlcb::ConfigUpdateFlow::nextRefresh_

private

Where are we in the refresh cycle.

Definition at line 209 of file ConfigUpdateFlow.hxx.

◆ pendingListeners_

queue_type openlcb::ConfigUpdateFlow::pendingListeners_

private

All listeners that have not yet been added to listeners_ and their initial load needs to be called.

Definition at line 207 of file ConfigUpdateFlow.hxx.

The documentation for this class was generated from the following files:
