openlcb::CanDatagramWriteFlow Class Reference

Datagram client implementation for CANbus-based datagram protocol. More...

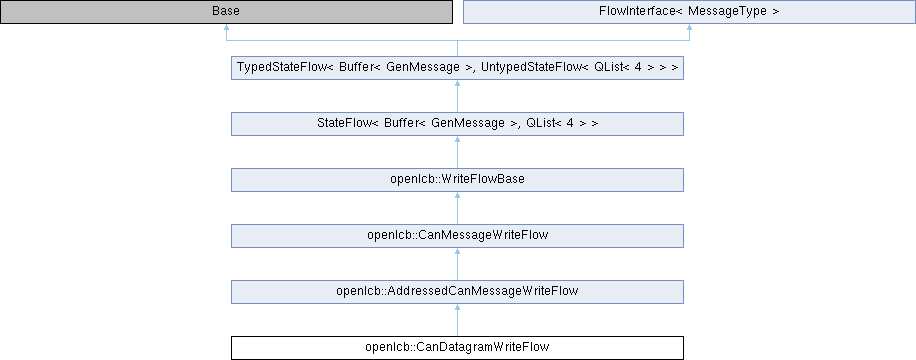

Inheritance diagram for openlcb::CanDatagramWriteFlow:

Public Member Functions
	CanDatagramWriteFlow (IfCan *iface)
Public Member Functions inherited from openlcb::AddressedCanMessageWriteFlow
	AddressedCanMessageWriteFlow (IfCan *if_can)
Public Member Functions inherited from openlcb::CanMessageWriteFlow
	CanMessageWriteFlow (IfCan *if_can)
IfCan *	if_can ()
Public Member Functions inherited from openlcb::WriteFlowBase
	WriteFlowBase (If *async_if)
Public Member Functions inherited from StateFlow< Buffer< GenMessage >, QList< 4 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Member Functions
Action	fill_can_frame_buffer () OVERRIDE

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Member Functions inherited from openlcb::AddressedCanMessageWriteFlow
Action	entry () override
	Entry point of message handling flow.
Action	send_to_hardware () override
	This function will be called (on the main executor) to initiate sending this message to the hardware.
Action	find_remote_alias ()
Action	send_ame_frame ()
Action	send_verify_nodeid_global ()
Action	fill_verify_nodeid_global ()
Action	wait_looking_for_dst ()
virtual Action	timeout_looking_for_dst ()
Action	remote_alias_found ()
Protected Member Functions inherited from openlcb::CanMessageWriteFlow
Action	send_to_hardware () override
	This function will be called (on the main executor) to initiate sending this message to the hardware.
Action	find_local_alias ()
	Performs the local alias lookup and branches depending on whether we found a local alias or not.
Action	get_can_frame_buffer ()
Protected Member Functions inherited from openlcb::WriteFlowBase
virtual Action	send_to_local_node ()
	This state is called when an addressed message's destination is a node that is local to this interface.
virtual Action	send_finished ()
	Virtual method called after the send is completed, i.e., all the frames are generated and sent to the hardware.
If *	async_if ()
GenMessage *	nmsg ()
	Implementations shall call this function when they are done with sending the packet.
Action	addressed_entry ()
	Addressed write flows should call this state BEFORE sending to the hardware.
Action	global_entry ()
	Global write flows should return to this state AFTER sending the message to the hardware.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.
Protected Attributes inherited from openlcb::AddressedCanMessageWriteFlow
openlcb::AddressedCanMessageWriteFlow::AliasDefListener	this
StateFlowTimer	timer_
Protected Attributes inherited from openlcb::CanMessageWriteFlow
NodeAlias	srcAlias_
	Source node alias.
NodeAlias	dstAlias_
	Destination node alias.
uint8_t	dataOffset_
	for continuation frames: which offset in the Buffer should we start the payload at.

Detailed Description

Datagram client implementation for CANbus-based datagram protocol.

This flow is responsible for the outgoing CAN datagram framing, and listens for incoming datagram response messages.

The base class of AddressedCanMessageWriteFlow is responsible for the discovery and address resolution of the destination node.

Definition at line 55 of file DatagramCan.cxx.

Constructor & Destructor Documentation

CanDatagramWriteFlow()

openlcb::CanDatagramWriteFlow::CanDatagramWriteFlow ( IfCan *  iface )

inline

Definition at line 58 of file DatagramCan.cxx.

Member Function Documentation

fill_can_frame_buffer()

Action openlcb::CanDatagramWriteFlow::fill_can_frame_buffer ( )

inlineprivatevirtual

Reimplemented from openlcb::CanMessageWriteFlow.

Definition at line 65 of file DatagramCan.cxx.

---

The documentation for this class was generated from the following file:

• DatagramCan.cxx
