dcc::SimpleUpdateLoop Class Reference

Implementation of a command station update loop. More...

#include <SimpleUpdateLoop.hxx>

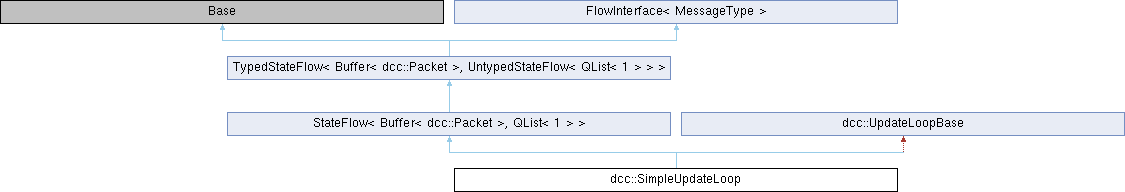

Inheritance diagram for dcc::SimpleUpdateLoop:

Public Member Functions
	SimpleUpdateLoop (Service *service, TrackIf *track_send)
bool	add_refresh_source (dcc::PacketSource *source, unsigned priority) OVERRIDE
	Adds a new refresh source to the background refresh packets.
void	remove_refresh_source (dcc::PacketSource *source) OVERRIDE
	Deletes a packet refresh source.
void	notify_update (PacketSource *source, unsigned code) OVERRIDE
	We ignore notifications.
Action	entry () OVERRIDE
	Entry into the StateFlow activity.
Public Member Functions inherited from StateFlow< Buffer< dcc::Packet >, QList< 1 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Attributes
TrackIf *	trackSend_
vector< dcc::PacketSource * >	refreshSources_
size_t	nextRefreshIndex_
	Offset in the refreshSources_ vector for the next loco to send.
long long	lastCycleStart_
	os time for the last time we sent a packet for loco zero.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.
Static Private Member Functions inherited from Singleton< UpdateLoopBase >
static UpdateLoopBase *	instance ()
static bool	exists ()
Static Private Attributes inherited from dcc::UpdateLoopBase
static constexpr unsigned	EXCLUSIVE_MIN_PRIORITY = 0x100
	Priority value for exclusive sources.
static constexpr unsigned	PROGRAMMING_PRIORITY = 0x110
	Priority value to be used for service mode programming source.
static constexpr unsigned	ESTOP_PRIORITY = 0x108
	Priority value to be used for global emergency stop packet source.

Detailed Description

Implementation of a command station update loop.

This loop iterates over all locomotive implementations and polls them for the next packet in a strict round-robin behavior (no prioritization).

Usage:

• Instantiate a state flow for sending outgoing dcc packets to the command station driver, usually dcc::LocalTrackIf.
• create a FixedPool of dcc::Packets of a given size (usually 2 is enough).
• instantiate SimpleUpdateLoop, passing the LocalTrackIf pointer.
• send all packets from the pool to the updateloop using a PoolToQueueFlow.

Definition at line 61 of file SimpleUpdateLoop.hxx.

Constructor & Destructor Documentation

SimpleUpdateLoop()

dcc::SimpleUpdateLoop::SimpleUpdateLoop	(	Service *	service,
		TrackIf *	track_send
	)

Definition at line 43 of file SimpleUpdateLoop.cxx.

~SimpleUpdateLoop()

dcc::SimpleUpdateLoop::~SimpleUpdateLoop

(

)

Definition at line 51 of file SimpleUpdateLoop.cxx.

Member Function Documentation

add_refresh_source()

bool dcc::SimpleUpdateLoop::add_refresh_source ( dcc::PacketSource *  source, unsigned  priority  )

inlinevirtual

Adds a new refresh source to the background refresh packets.

Todo:

implement priority refresh.

Implements dcc::UpdateLoopBase.

Definition at line 69 of file SimpleUpdateLoop.hxx.

entry()

StateFlowBase::Action dcc::SimpleUpdateLoop::entry ( )

virtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns

function pointer to next state

Implements TypedStateFlow< MessageType, Base >.

Definition at line 55 of file SimpleUpdateLoop.cxx.

notify_update()

void dcc::SimpleUpdateLoop::notify_update ( PacketSource *  source, unsigned  code  )

inlinevirtual

We ignore notifications.

The loop will get to them anyway.

Implements dcc::UpdateLoopBase.

Definition at line 88 of file SimpleUpdateLoop.hxx.

remove_refresh_source()

void dcc::SimpleUpdateLoop::remove_refresh_source ( dcc::PacketSource *  source )

inlinevirtual

Deletes a packet refresh source.

Implements dcc::UpdateLoopBase.

Definition at line 79 of file SimpleUpdateLoop.hxx.

Member Data Documentation

lastCycleStart_

long long dcc::SimpleUpdateLoop::lastCycleStart_

private

os time for the last time we sent a packet for loco zero.

Definition at line 105 of file SimpleUpdateLoop.hxx.

nextRefreshIndex_

size_t dcc::SimpleUpdateLoop::nextRefreshIndex_

private

Offset in the refreshSources_ vector for the next loco to send.

Definition at line 103 of file SimpleUpdateLoop.hxx.

refreshSources_

vector<dcc::PacketSource *> dcc::SimpleUpdateLoop::refreshSources_

private

Definition at line 100 of file SimpleUpdateLoop.hxx.

trackSend_

TrackIf* dcc::SimpleUpdateLoop::trackSend_

private

Definition at line 97 of file SimpleUpdateLoop.hxx.

---

The documentation for this class was generated from the following files:

• SimpleUpdateLoop.hxx
• SimpleUpdateLoop.cxx
