PoolToQueueFlow< T > Class Template Reference

This flow can be used to take all entries that show up in a FixedPool and send them (empty) to a stateflow for processing. More...

#include <PoolToQueueFlow.hxx>

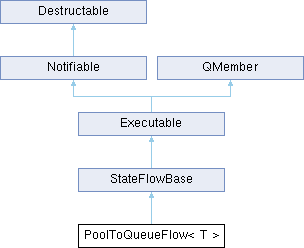

Inheritance diagram for PoolToQueueFlow< T >:

Public Member Functions
	PoolToQueueFlow (Service *service, FixedPool *source, FlowInterface< T > *dest)
	Constructor.
Public Member Functions inherited from StateFlowBase
void	run () override
	Callback from the executor.
void	notify () override
	Wakeup call arrived.
Service *	service ()
	Return a pointer to the service I am bound to.
Public Member Functions inherited from Executable
void	test_deletion ()
Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Private Member Functions
Action	get_next_entry ()
	Allocates the next entry from the pool.
Action	got_entry ()
	Send the entry we got to the queue.

Private Attributes
FixedPool *	source_
	The pool to read all entries from.
FlowInterface< T > *	dest_
	The queue to send all entries to.

Additional Inherited Members
Static Public Member Functions inherited from StateFlowBase
template<class T , typename... Args>
static void	invoke_subflow_and_ignore_result (FlowInterface< Buffer< T > > *target_flow, Args &&... args)
	Calls a helper flow to perform some actions.
Protected Types inherited from StateFlowBase
typedef Action(StateFlowBase::*	Callback) ()
	State Flow callback prototype.
Protected Member Functions inherited from StateFlowBase
	StateFlowBase (Service *service)
	Constructor.
	~StateFlowBase ()
	Destructor.
void	reset_flow (Callback c)
	Resets the flow to the specified state.
bool	is_state (Callback c)
bool	is_terminated ()
void	start_flow (Callback c)
	Resets the flow to the specified state and starts it.
Action	again ()
	Call the current state again via call_immediately.
Action	exit ()
	Terminate current StateFlow activity.
Action	delete_this ()
	Terminates the flow and deletes *this.
Action	set_terminated ()
	Sets the flow to terminated state.
Action	call_immediately (Callback c)
	Imediately call the next state upon return.
Action	wait ()
	Wait for an asynchronous call.
Action	wait_and_call (Callback c)
	Wait for resource to become available before proceeding to next state.
template<class T >
Action	allocate_and_call (FlowInterface< Buffer< T > > *target_flow, Callback c, Pool *pool=nullptr)
	Allocates a buffer from a pool and proceed to the next state when allocation is successful.
Action	allocate_and_call (Callback c, QAsync *queue)
	Allocates an entry from an asynchronous queue, and transitions to a state once the allocation is complete.
template<class T >
Buffer< T > *	full_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation without resetting the object.
template<class T >
T *	full_allocation_result (TypedQAsync< T > *queue)
	Takes the result of the asynchronous allocation without resetting the object.
template<class T >
void	cast_allocation_result (T **member)
	Takes the result of the asynchronous allocation without resetting the object.
template<class T >
Buffer< T > *	get_allocation_result (FlowInterface< Buffer< T > > *target_flow)
	Takes the result of the asynchronous allocation.
Action	yield_and_call (Callback c)
	Place the current flow to the back of the executor, and transition to a new state after we get the CPU again.
Action	yield ()
	Place the current flow to the back of the executor, and re-try the current state after we get the CPU again.
Action	sleep_and_call (::Timer *timer, long long timeout_nsec, Callback c)
	Suspends execution of this control flow for a specified time.
template<class T , typename... Args>
Action	invoke_subflow_and_wait (FlowInterface< Buffer< T > > *target_flow, Callback c, Args &&... args)
	Calls a helper flow to perform some actions.
Action	read_repeated (StateFlowSelectHelper *helper, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read and then invokes the next state.
Action	read_single (StateFlowSelectHelper *helper, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size_t bytes, and blocks the caller until at least one byte is read.
Action	read_nonblocking (StateFlowSelectHelper *helper, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Attempts to read at most size bytes, and then invokes the next state, even if only zero bytes are available right now.
Action	read_repeated_with_timeout (StateFlowTimedSelectHelper *helper, long long timeout_nsec, int fd, void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Blocks until size bytes are read, or a timeout expires.
Action	internal_try_read ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on reading.
Action	write_repeated (StateFlowSelectHelper *helper, int fd, const void *buf, size_t size, Callback c, unsigned priority=Selectable::MAX_PRIO)
	Writes some data into a file descriptor, repeating the operation as necessary until all bytes are written.
Action	internal_try_write ()
	Implementation state that gets repeatedly called upon every wakeup and tries to make progress on writing.
Protected Member Functions inherited from QMember
	QMember ()
	Constructor.
	~QMember ()
	Destructor.
Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

template<class T>
class PoolToQueueFlow< T >

This flow can be used to take all entries that show up in a FixedPool and send them (empty) to a stateflow for processing.

This basically allows a regular stateflow for reacting to when the message it has sent out has finished processing by the destination.

Usage: create a FixedPool of a given size (that you want to buffer, usually 2 or 3) of the particular type T. Implement your request generator as a StateFlow<Buffer<T> >. Make the request generator's entry() state do the following: clear the incoming buffer, fill in the new request, then send off to the request processor.

Then create a PoolToQueueFlow<Buffer<T> > on the pool and give it the request generator's pointer.

Whenever the request processor is finished processing a request, the buffer will be returned to the pool, from there it will be automatically picked up by the PoolToQueueFlow, sent to the request generator, which will generate the next request and send it to the request processor. This will run in an infinite loop with the fixed buffer size.

Definition at line 59 of file PoolToQueueFlow.hxx.

Constructor & Destructor Documentation

PoolToQueueFlow()

template<class T >

PoolToQueueFlow< T >::PoolToQueueFlow ( Service *  service, FixedPool *  source, FlowInterface< T > *  dest  )

inline

Constructor.

Parameters

service	defines which executor this flow will run in
source	the pool to allocate all entries from
dest	the queue to send all allocated entries to.

Definition at line 67 of file PoolToQueueFlow.hxx.

Member Function Documentation

get_next_entry()

template<class T >

Action PoolToQueueFlow< T >::get_next_entry ( )

inlineprivate

Allocates the next entry from the pool.

Returns

next state.

Definition at line 77 of file PoolToQueueFlow.hxx.

got_entry()

template<class T >

Action PoolToQueueFlow< T >::got_entry ( )

inlineprivate

Send the entry we got to the queue.

Returns

next state.

Definition at line 83 of file PoolToQueueFlow.hxx.

Member Data Documentation

dest_

template<class T >

FlowInterface<T>* PoolToQueueFlow< T >::dest_

private

The queue to send all entries to.

Definition at line 93 of file PoolToQueueFlow.hxx.

source_

template<class T >

FixedPool* PoolToQueueFlow< T >::source_

private

The pool to read all entries from.

Definition at line 91 of file PoolToQueueFlow.hxx.

---

The documentation for this class was generated from the following file:

• PoolToQueueFlow.hxx
