Emulates EEPROM in FLASH for the Tiva platform. More...

#include <TivaEEPROMEmulation.hxx>

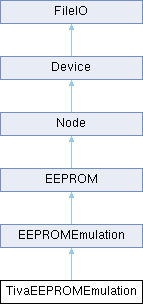

Inheritance diagram for TivaEEPROMEmulation:

Public Types
enum	Family { TM4C123 = 1024 , TM4C129 = 1024 * 16 }
	Product family. More...

Public Member Functions
	TivaEEPROMEmulation (const char *name, size_t file_size_bytes)
	Constructor.

	~TivaEEPROMEmulation ()
	Destructor.

Public Member Functions inherited from EEPROM
	EEPROM (const char *name, size_t file_size)
	Constructor.

size_t	file_size ()

Public Member Functions inherited from Device
	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Private Member Functions
void	flash_erase (unsigned sector) override
	Simple hardware abstraction for FLASH erase API.

void	flash_program (unsigned sector, unsigned start_block, uint32_t *data, uint32_t byte_count) override
	Simple hardware abstraction for FLASH program API.

const uint32_t *	block (unsigned sector, unsigned offset) override
	Computes the pointer to load the data stored in a specific block from.

	TivaEEPROMEmulation ()
	Default constructor.

	DISALLOW_COPY_AND_ASSIGN (TivaEEPROMEmulation)

Static Private Member Functions
static const uint32_t *	get_block (unsigned sector, unsigned offset)

Static Private Attributes
static const unsigned	FAMILY
	Family that device belongs to

Additional Inherited Members
Static Public Member Functions inherited from Device
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Protected Types inherited from EEPROMEmulation
enum	MagicBlockIndex { MAGIC_FIRST_INDEX = 0 , MAGIC_DIRTY_INDEX = 0 , MAGIC_INTACT_INDEX , MAGIC_USED_INDEX , MAGIC_COUNT }
	Raw block indexes within a sector to mark the state of the sector. More...

Protected Member Functions inherited from EEPROMEmulation
	EEPROMEmulation (const char *name, size_t file_size)
	Constructor.

	~EEPROMEmulation ()
	Destructor.

void	mount ()
	Mount the EEPROM file.

	EEPROMEmulation ()
	Default constructor.

	DISALLOW_COPY_AND_ASSIGN (EEPROMEmulation)

Protected Member Functions inherited from EEPROM
	EEPROM (const char *name, size_t file_size)
	Constructor.

	~EEPROM ()
	Destructor.

size_t	file_size ()
	Get the maximum file size of the EEPROM file.

Protected Member Functions inherited from Node
	Node (const char *name)
	Constructor.

virtual	~Node ()
	Destructor.

int	open (File , const char , int, int) OVERRIDE
	Open method.

int	close (File *) OVERRIDE
	Close method.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual int	ioctl (File *file, unsigned long int key, unsigned long data)
	Request an ioctl transaction.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

virtual bool	select (File *file, int mode)
	Device select method.

Static Protected Member Functions inherited from Device
static void	select_insert (SelectInfo *info)
	Add client to list of clients needing woken.

static void	select_wakeup (SelectInfo *info)
	Wakeup the list of clients needing woken.

static void	select_wakeup_from_isr (SelectInfo info, int woken)
	Wakeup the list of clients needing woken.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Protected Attributes inherited from EEPROMEmulation
const uint8_t	sectorCount_ {(uint8_t)(EEPROMEMU_FLASH_SIZE / SECTOR_SIZE)}
	Total number of sectors available.

uint8_t	activeSector_ {0}
	Index of the active sector.

const uint16_t	rawBlockCount_ {(uint16_t)(SECTOR_SIZE / BLOCK_SIZE)}
	How many blocks are there in a sector.

size_t	availableSlots_ {0}
	Number of available (writable) slots for new data in the active sector.

bool	shadowInRam_ {false}
	local copy of SHADOW_IN_RAM which we can manipulate at run time.

uint8_t *	shadow_ {nullptr}
	pointer to RAM for shadowing EEPROM.

Protected Attributes inherited from Node
OSMutex	lock_
	protects internal structures.

mode_t	mode_
	File open mode, such as O_NONBLOCK.

unsigned int	references_
	number of open references

Protected Attributes inherited from FileIO
const char *	name
	device name

Static Protected Attributes inherited from EEPROMEmulation
static const size_t	SECTOR_SIZE = (4 * 1024)
	Sector size in bytes.

static const size_t	BLOCK_SIZE = 16
	block size in bytes

static constexpr unsigned	MAX_BLOCK_SIZE = 16
	Maximum byte size of a single block.

static const uint32_t	MAGIC_INTACT = 0xaa558001
	magic marker for an intact block

static const uint32_t	MAGIC_DIRTY = 0xaa55aa55
	magic marker for a block that we are transitioning to intact

static const uint32_t	MAGIC_USED = 0x00000000
	magic marker for a used block

static const uint32_t	MAGIC_ERASED = 0xFFFFFFFF
	magic marker for an erased block

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

Emulates EEPROM in FLASH for the Tiva platform.

Todo:: there is a known bug whereby the ADDRESS_SPACE cannot be larger than (block size - 4).

Definition at line 48 of file TivaEEPROMEmulation.hxx.

Member Enumeration Documentation

◆ Family

enum TivaEEPROMEmulation::Family

Product family.

We use this to determine details, such as sector size, specific to a given family and relevant to the agorithm.

Enumerator
TM4C123	Tiva TM4C123 devices, 1K block size.
TM4C129	Tiva TM4C129 devices, 16K block Size.

Definition at line 54 of file TivaEEPROMEmulation.hxx.

Constructor & Destructor Documentation

◆ TivaEEPROMEmulation()

TivaEEPROMEmulation::TivaEEPROMEmulation	(	const char *	name,
		size_t	file_size_bytes
	)

Constructor.

Parameters

name	device name
file_size_bytes	maximum file size that we can grow to.

Definition at line 45 of file TivaEEPROMEmulation.cxx.

◆ ~TivaEEPROMEmulation()

TivaEEPROMEmulation::~TivaEEPROMEmulation ( )

inline

Destructor.

Definition at line 68 of file TivaEEPROMEmulation.hxx.

Member Function Documentation

◆ block()

const uint32_t * TivaEEPROMEmulation::block	(	unsigned	sector,
		unsigned	offset
	)

overrideprivatevirtual

Computes the pointer to load the data stored in a specific block from.

Parameters

sector	sector number [0..sectorCount_ - 1]
offset	block index within sector, [0..rawBlockCount_ - 1]

Returns: pointer to the beginning of the data in the block. Must be alive until the next call to this function.

Implements EEPROMEmulation.

Definition at line 64 of file TivaEEPROMEmulation.cxx.

◆ flash_erase()

void TivaEEPROMEmulation::flash_erase ( unsigned sector )

overrideprivatevirtual

Simple hardware abstraction for FLASH erase API.

Parameters

address the start address of the flash block to be erased

Implements EEPROMEmulation.

Definition at line 72 of file TivaEEPROMEmulation.cxx.

◆ flash_program()

void TivaEEPROMEmulation::flash_program	(	unsigned	sector,
		unsigned	start_block,
		uint32_t *	data,
		uint32_t	byte_count
	)

overrideprivatevirtual

Simple hardware abstraction for FLASH program API.

Parameters

sector	the sector to write to
start_block	the block index to start writing to
data	a pointer to the data to be programmed
byte_count	the number of bytes to be programmed. Must be a multiple of BLOCK_SIZE

Implements EEPROMEmulation.

Definition at line 103 of file TivaEEPROMEmulation.cxx.

◆ get_block()

const uint32_t * TivaEEPROMEmulation::get_block	(	unsigned	sector,
		unsigned	offset
	)

inlinestaticprivate

Definition at line 52 of file TivaEEPROMEmulation.cxx.

Member Data Documentation

◆ FAMILY

const unsigned TivaEEPROMEmulation::FAMILY

staticprivate

Family that device belongs to

Definition at line 76 of file TivaEEPROMEmulation.hxx.
