Test EEPROM emulation HAL implementation that writes to a block of (RAM) memory. More...

#include <EEPROMEmuTest.hxx>

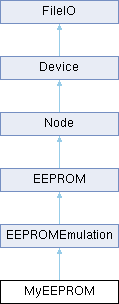

Inheritance diagram for MyEEPROM:

Public Member Functions
	MyEEPROM (size_t file_size, bool clear=true)
	Contructor.

unsigned	avail ()

Public Member Functions inherited from EEPROM
	EEPROM (const char *name, size_t file_size)
	Constructor.

size_t	file_size ()

Public Member Functions inherited from Device
	Device (const char *name)
	Constructor.

virtual	~Device ()
	Destructor.

Private Member Functions
void	flash_erase (unsigned sector) override
	Simple hardware abstraction for FLASH erase API.

void	flash_program (unsigned sector, unsigned block, uint32_t *data, uint32_t byte_count) override
	Simple hardware abstraction for FLASH program API.

const uint32_t *	block (unsigned sector, unsigned index) override
	Computes the pointer to load the data stored in a specific block from.

Additional Inherited Members
Static Public Member Functions inherited from Device
static int	open (struct _reent reent, const char path, int flags, int mode)
	Open a file or device.

static int	close (struct _reent *reent, int fd)
	Close a file or device.

static int	stat (struct _reent reent, const char path, struct stat *stat)
	Get the status information of a file or device.

static int	select (int nfds, fd_set readfds, fd_set writefds, fd_set *exceptfds, long long timeout)
	POSIX select().

static void	select_clear ()
	Clears the current thread's select bits.

Static Public Member Functions inherited from FileIO
static ssize_t	read (struct _reent reent, int fd, void buf, size_t count)
	Read from a file or device.

static ssize_t	write (struct _reent reent, int fd, const void buf, size_t count)
	Write to a file or device.

static _off_t	lseek (struct _reent *reent, int fd, _off_t offset, int whence)
	Change the offset index of a file or device.

static int	fstat (struct _reent reent, int fd, struct stat stat)
	Get the status information of a file or device.

static int	ioctl (int fd, unsigned long int key, unsigned long data)
	Request and ioctl transaction.

static int	fcntl (int fd, int cmd, unsigned long data)
	Manipulate a file descriptor.

static bool	is_device (int fd)
	Test if the file descriptor belongs to a device.

Protected Types inherited from EEPROMEmulation
enum	MagicBlockIndex { MAGIC_FIRST_INDEX = 0 , MAGIC_DIRTY_INDEX = 0 , MAGIC_INTACT_INDEX , MAGIC_USED_INDEX , MAGIC_COUNT }
	Raw block indexes within a sector to mark the state of the sector. More...

Protected Member Functions inherited from EEPROMEmulation
	EEPROMEmulation (const char *name, size_t file_size)
	Constructor.

	~EEPROMEmulation ()
	Destructor.

void	mount ()
	Mount the EEPROM file.

	EEPROMEmulation ()
	Default constructor.

	DISALLOW_COPY_AND_ASSIGN (EEPROMEmulation)

Protected Member Functions inherited from EEPROM
	EEPROM (const char *name, size_t file_size)
	Constructor.

	~EEPROM ()
	Destructor.

size_t	file_size ()
	Get the maximum file size of the EEPROM file.

Protected Member Functions inherited from Node
	Node (const char *name)
	Constructor.

virtual	~Node ()
	Destructor.

int	open (File , const char , int, int) OVERRIDE
	Open method.

int	close (File *) OVERRIDE
	Close method.

virtual int	fstat (File file, struct stat stat) override
	Get the status information of a file or device.

Protected Member Functions inherited from FileIO
	FileIO (const char *name)
	Constructor.

virtual	~FileIO ()
	Destructor.

virtual int	ioctl (File *file, unsigned long int key, unsigned long data)
	Request an ioctl transaction.

virtual int	fcntl (File *file, int cmd, unsigned long data)
	Manipulate a file descriptor.

virtual bool	select (File *file, int mode)
	Device select method.

Static Protected Member Functions inherited from Device
static void	select_insert (SelectInfo *info)
	Add client to list of clients needing woken.

static void	select_wakeup (SelectInfo *info)
	Wakeup the list of clients needing woken.

static void	select_wakeup_from_isr (SelectInfo info, int woken)
	Wakeup the list of clients needing woken.

Static Protected Member Functions inherited from FileIO
static int	fd_alloc (void)
	Allocate a free file descriptor.

static void	fd_free (int fd)
	Free up a file descriptor.

static File *	file_lookup (int fd)
	Looks up a reference to a File corresponding to a given file descriptor.

static int	fd_lookup (File *file)
	Looks up a file descriptor corresponding to a given File reference.

Protected Attributes inherited from EEPROMEmulation
const uint8_t	sectorCount_ {(uint8_t)(EEPROMEMU_FLASH_SIZE / SECTOR_SIZE)}
	Total number of sectors available.

uint8_t	activeSector_ {0}
	Index of the active sector.

const uint16_t	rawBlockCount_ {(uint16_t)(SECTOR_SIZE / BLOCK_SIZE)}
	How many blocks are there in a sector.

size_t	availableSlots_ {0}
	Number of available (writable) slots for new data in the active sector.

bool	shadowInRam_ {false}
	local copy of SHADOW_IN_RAM which we can manipulate at run time.

uint8_t *	shadow_ {nullptr}
	pointer to RAM for shadowing EEPROM.

Protected Attributes inherited from Node
OSMutex	lock_
	protects internal structures.

mode_t	mode_
	File open mode, such as O_NONBLOCK.

unsigned int	references_
	number of open references

Protected Attributes inherited from FileIO
const char *	name
	device name

Static Protected Attributes inherited from EEPROMEmulation
static const size_t	SECTOR_SIZE = (4 * 1024)
	Sector size in bytes.

static const size_t	BLOCK_SIZE = 16
	block size in bytes

static constexpr unsigned	MAX_BLOCK_SIZE = 16
	Maximum byte size of a single block.

static const uint32_t	MAGIC_INTACT = 0xaa558001
	magic marker for an intact block

static const uint32_t	MAGIC_DIRTY = 0xaa55aa55
	magic marker for a block that we are transitioning to intact

static const uint32_t	MAGIC_USED = 0x00000000
	magic marker for a used block

static const uint32_t	MAGIC_ERASED = 0xFFFFFFFF
	magic marker for an erased block

Static Protected Attributes inherited from FileIO
static const unsigned int	numOpenFiles = 20

static File	files []
	File descriptor pool.

static OSMutex	mutex
	mutual exclusion for fileio

Detailed Description

Test EEPROM emulation HAL implementation that writes to a block of (RAM) memory.

Used for unittesting the EEPROM Emulation code.

Definition at line 84 of file EEPROMEmuTest.hxx.

Constructor & Destructor Documentation

◆ MyEEPROM()

MyEEPROM::MyEEPROM	(	size_t	file_size,
		bool	clear = `true`
	)

inline

Contructor.

Parameters

file_size	how many bytes
clear	if true, the EEPROM will be initialized with all 0xFF bytes.

Definition at line 89 of file EEPROMEmuTest.hxx.

Member Function Documentation

◆ avail()

unsigned MyEEPROM::avail ( )

inline

Returns: how many blocks are available in the current sector.

Definition at line 102 of file EEPROMEmuTest.hxx.

◆ block()

const uint32_t * MyEEPROM::block	(	unsigned	sector,
		unsigned	offset
	)

inlineoverrideprivatevirtual

Computes the pointer to load the data stored in a specific block from.

Parameters

sector	sector number [0..sectorCount_ - 1]
offset	block index within sector, [0..rawBlockCount_ - 1]

Returns: pointer to the beginning of the data in the block. Must be alive until the next call to this function.

Implements EEPROMEmulation.

Definition at line 124 of file EEPROMEmuTest.hxx.

◆ flash_erase()

void MyEEPROM::flash_erase ( unsigned sector )

inlineoverrideprivatevirtual

Simple hardware abstraction for FLASH erase API.

Parameters

sector Number of sector [0.. sectorCount_ - 1] to erase

Implements EEPROMEmulation.

Definition at line 107 of file EEPROMEmuTest.hxx.

◆ flash_program()

void MyEEPROM::flash_program	(	unsigned	sector,
		unsigned	start_block,
		uint32_t *	data,
		uint32_t	byte_count
	)

inlineoverrideprivatevirtual

Simple hardware abstraction for FLASH program API.

Parameters

sector	the sector to write to [0..sectorCount_ - 1]
start_block	the block index to start writing to [0..rawBlockCount_ - 1]
data	a pointer to the data to be programmed
byte_count	the number of bytes to be programmed. Must be a multiple of BLOCK_SIZE

The bytes to program cannot overflow beyond the end of sector, so start_block + byte_count / BLOCK_SIZE <= rawBlockCount_ must hold.

Implements EEPROMEmulation.

Definition at line 114 of file EEPROMEmuTest.hxx.

The documentation for this class was generated from the following file:

EEPROMEmuTest.hxx
