Handler for incoming OpenLCB messages of MTI == Traction Protocol Request. More...

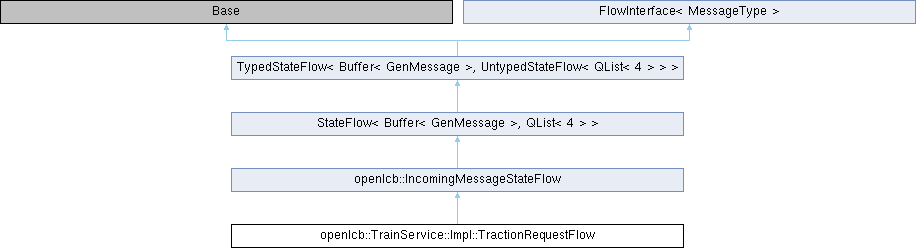

Inheritance diagram for openlcb::TrainService::Impl::TractionRequestFlow:

Public Member Functions
	TractionRequestFlow (TrainService *service)

Public Member Functions inherited from openlcb::IncomingMessageStateFlow
	IncomingMessageStateFlow (If *iface)

If *	iface ()

GenMessage *	nmsg ()
	Returns the NMRAnet message we received.

Public Member Functions inherited from StateFlow< Buffer< GenMessage >, QList< 4 > >
	StateFlow (Service *service)
	Constructor.

Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Protected Member Functions
TrainNode *	train_node ()

Action	maybe_alloc_response (Callback c)

void	ensure_response_exists ()

Action	entry () OVERRIDE
	Entry into the StateFlow activity.

Action	handle_query ()

Action	handle_controller_config ()

Action	handle_consist_config ()

Action	maybe_forward_consist ()

Action	forward_consist ()

Action	handle_traction_mgmt ()

Payload *	initialize_response ()
	Takes the allocation result of a response buffer (addressed write flow) and fills in src, dest as a response message for traction protocol.

Action	init_and_send_response (Payload p)

Action	send_response ()
	Sends off the response buffer to the client.

size_t	size ()
	Returns the size of the incoming message payload.

const uint8_t *	payload ()
	Returns the incoming message payload (bytes).

Action	reject_permanent (uint16_t code=Defs::ERROR_PERMANENT)
	Rejects the incoming message with a permanent error.

Action	send_reject_permanent ()

Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Private Attributes
unsigned	errorCode_: 16
	error code for reject_permanent().

unsigned	nextConsistIndex_: 8

unsigned	reserved_: 1
	1 if the voluntary lock protocol has set this train to be reserved.

TrainService *	trainService_

Buffer< GenMessage > *	response_

BarrierNotifiable	bn_

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Detailed Description

Handler for incoming OpenLCB messages of MTI == Traction Protocol Request.

Definition at line 121 of file TractionTrain.cxx.

Constructor & Destructor Documentation

◆ TractionRequestFlow()

openlcb::TrainService::Impl::TractionRequestFlow::TractionRequestFlow ( TrainService * service )

inline

Definition at line 124 of file TractionTrain.cxx.

◆ ~TractionRequestFlow()

openlcb::TrainService::Impl::TractionRequestFlow::~TractionRequestFlow ( )

inline

Definition at line 134 of file TractionTrain.cxx.

Member Function Documentation

◆ ensure_response_exists()

void openlcb::TrainService::Impl::TractionRequestFlow::ensure_response_exists ( )

inlineprotected

Definition at line 159 of file TractionTrain.cxx.

◆ entry()

Action openlcb::TrainService::Impl::TractionRequestFlow::entry ( )

inlineprotectedvirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns: function pointer to next state

@TODO(balazs.racz): This is probably not the good solution here; since this is an addressed message we should rather send a reject response.

@TODO(balazs.racz) need to validate caller of mutating functions. The mutating options should be factored into a separate flow state.

Implements TypedStateFlow< MessageType, Base >.

Definition at line 168 of file TractionTrain.cxx.

◆ forward_consist()

Action openlcb::TrainService::Impl::TractionRequestFlow::forward_consist ( )

inlineprotected

Definition at line 524 of file TractionTrain.cxx.

◆ handle_consist_config()

Action openlcb::TrainService::Impl::TractionRequestFlow::handle_consist_config ( )

inlineprotected

Definition at line 407 of file TractionTrain.cxx.

◆ handle_controller_config()

Action openlcb::TrainService::Impl::TractionRequestFlow::handle_controller_config ( )

inlineprotected

@TODO (balazs.racz): we need to implement stealing a train from the existing controller.

Definition at line 318 of file TractionTrain.cxx.

◆ handle_query()

Action openlcb::TrainService::Impl::TractionRequestFlow::handle_query ( )

inlineprotected

Definition at line 272 of file TractionTrain.cxx.

◆ handle_traction_mgmt()

Action openlcb::TrainService::Impl::TractionRequestFlow::handle_traction_mgmt ( )

inlineprotected

Definition at line 551 of file TractionTrain.cxx.

◆ init_and_send_response()

Action openlcb::TrainService::Impl::TractionRequestFlow::init_and_send_response ( Payload p )

inlineprotected

Definition at line 604 of file TractionTrain.cxx.

◆ initialize_response()

Payload * openlcb::TrainService::Impl::TractionRequestFlow::initialize_response ( )

inlineprotected

Takes the allocation result of a response buffer (addressed write flow) and fills in src, dest as a response message for traction protocol.

The caller only needs to provide the payload.

Definition at line 595 of file TractionTrain.cxx.

◆ maybe_alloc_response()

Action openlcb::TrainService::Impl::TractionRequestFlow::maybe_alloc_response ( Callback c )

inlineprotected

Definition at line 146 of file TractionTrain.cxx.

◆ maybe_forward_consist()

Action openlcb::TrainService::Impl::TractionRequestFlow::maybe_forward_consist ( )

inlineprotected

Definition at line 463 of file TractionTrain.cxx.

◆ payload()

const uint8_t * openlcb::TrainService::Impl::TractionRequestFlow::payload ( )

inlineprotected

Returns the incoming message payload (bytes).

Definition at line 628 of file TractionTrain.cxx.

◆ reject_permanent()

Action openlcb::TrainService::Impl::TractionRequestFlow::reject_permanent ( uint16_t code = Defs::ERROR_PERMANENT )

inlineprotected

Rejects the incoming message with a permanent error.

Definition at line 634 of file TractionTrain.cxx.

◆ send_reject_permanent()

Action openlcb::TrainService::Impl::TractionRequestFlow::send_reject_permanent ( )

inlineprotected

Definition at line 639 of file TractionTrain.cxx.

◆ send_response()

Action openlcb::TrainService::Impl::TractionRequestFlow::send_response ( )

inlineprotected

Sends off the response buffer to the client.

Definition at line 614 of file TractionTrain.cxx.

◆ size()

size_t openlcb::TrainService::Impl::TractionRequestFlow::size ( )

inlineprotected

Returns the size of the incoming message payload.

Definition at line 622 of file TractionTrain.cxx.

◆ train_node()

TrainNode * openlcb::TrainService::Impl::TractionRequestFlow::train_node ( )

inlineprotected

Definition at line 141 of file TractionTrain.cxx.

Member Data Documentation

◆ bn_

BarrierNotifiable openlcb::TrainService::Impl::TractionRequestFlow::bn_

private

Definition at line 658 of file TractionTrain.cxx.

◆ errorCode_

unsigned openlcb::TrainService::Impl::TractionRequestFlow::errorCode_

private

error code for reject_permanent().

Definition at line 652 of file TractionTrain.cxx.

◆ nextConsistIndex_

unsigned openlcb::TrainService::Impl::TractionRequestFlow::nextConsistIndex_

private

Definition at line 653 of file TractionTrain.cxx.

◆ reserved_

unsigned openlcb::TrainService::Impl::TractionRequestFlow::reserved_

private

1 if the voluntary lock protocol has set this train to be reserved.

Definition at line 655 of file TractionTrain.cxx.

◆ response_

Buffer<GenMessage>* openlcb::TrainService::Impl::TractionRequestFlow::response_

private

Definition at line 657 of file TractionTrain.cxx.

◆ trainService_

TrainService* openlcb::TrainService::Impl::TractionRequestFlow::trainService_

private

Definition at line 656 of file TractionTrain.cxx.

The documentation for this class was generated from the following file:

TractionTrain.cxx
