openlcb::TractionProxyService::Impl::ProxyRequestFlow Class Reference

State flow handling incoming OpenLCB messages of MTI == Traction proxy Request. More...

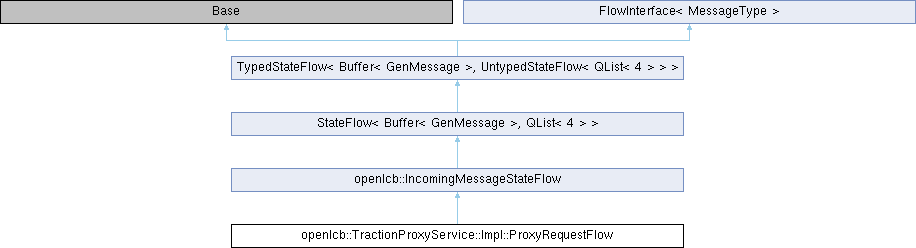

Inheritance diagram for openlcb::TractionProxyService::Impl::ProxyRequestFlow:

Public Member Functions
	ProxyRequestFlow (Impl *impl)
Public Member Functions inherited from openlcb::IncomingMessageStateFlow
	IncomingMessageStateFlow (If *iface)
If *	iface ()
GenMessage *	nmsg ()
	Returns the NMRAnet message we received.
Public Member Functions inherited from StateFlow< Buffer< GenMessage >, QList< 4 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Protected Member Functions
Action	entry () OVERRIDE
	Entry into the StateFlow activity.
Action	handle_cmd ()
Action	handle_manage ()
Action	handle_allocate ()
size_t	size ()
	Returns the size of the incoming message payload.
const uint8_t *	payload ()
	Returns the incoming message payload (bytes).
Action	reject_permanent ()
	Rejects the incoming message with a permanent error.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.

Private Attributes
Impl *	impl_
Buffer< GenMessage > *	response_
unsigned	reserved_: 1

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Detailed Description

State flow handling incoming OpenLCB messages of MTI == Traction proxy Request.

Definition at line 107 of file TractionProxy.cxx.

Constructor & Destructor Documentation

ProxyRequestFlow()

openlcb::TractionProxyService::Impl::ProxyRequestFlow::ProxyRequestFlow ( Impl *  impl )

inline

Definition at line 110 of file TractionProxy.cxx.

~ProxyRequestFlow()

openlcb::TractionProxyService::Impl::ProxyRequestFlow::~ProxyRequestFlow ( )

inline

Definition at line 119 of file TractionProxy.cxx.

Member Function Documentation

entry()

Action openlcb::TractionProxyService::Impl::ProxyRequestFlow::entry ( )

inlineprotectedvirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns

function pointer to next state

Implements TypedStateFlow< MessageType, Base >.

Definition at line 126 of file TractionProxy.cxx.

handle_allocate()

Action openlcb::TractionProxyService::Impl::ProxyRequestFlow::handle_allocate ( )

inlineprotected

Definition at line 227 of file TractionProxy.cxx.

handle_cmd()

Action openlcb::TractionProxyService::Impl::ProxyRequestFlow::handle_cmd ( )

inlineprotected

Definition at line 150 of file TractionProxy.cxx.

handle_manage()

Action openlcb::TractionProxyService::Impl::ProxyRequestFlow::handle_manage ( )

inlineprotected

Definition at line 182 of file TractionProxy.cxx.

payload()

const uint8_t * openlcb::TractionProxyService::Impl::ProxyRequestFlow::payload ( )

inlineprotected

Returns the incoming message payload (bytes).

Definition at line 272 of file TractionProxy.cxx.

reject_permanent()

Action openlcb::TractionProxyService::Impl::ProxyRequestFlow::reject_permanent ( )

inlineprotected

Rejects the incoming message with a permanent error.

Definition at line 278 of file TractionProxy.cxx.

size()

size_t openlcb::TractionProxyService::Impl::ProxyRequestFlow::size ( )

inlineprotected

Returns the size of the incoming message payload.

Definition at line 266 of file TractionProxy.cxx.

Member Data Documentation

impl_

Impl* openlcb::TractionProxyService::Impl::ProxyRequestFlow::impl_

private

Definition at line 291 of file TractionProxy.cxx.

reserved_

unsigned openlcb::TractionProxyService::Impl::ProxyRequestFlow::reserved_

private

Definition at line 293 of file TractionProxy.cxx.

response_

Buffer<GenMessage>* openlcb::TractionProxyService::Impl::ProxyRequestFlow::response_

private

Definition at line 292 of file TractionProxy.cxx.

---

The documentation for this class was generated from the following file:

• TractionProxy.cxx
