openlcb::TcpSendFlow Class Reference

This flow renders outgoing OpenLCB messages to their TCP stream representation. More...

#include <IfTcpImpl.hxx>

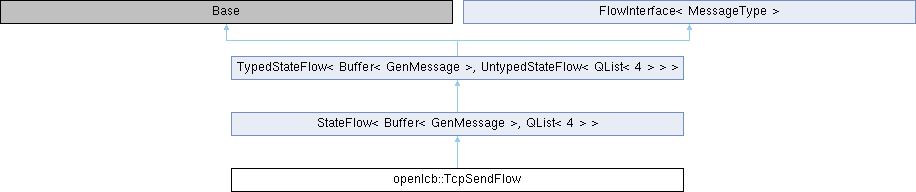

Inheritance diagram for openlcb::TcpSendFlow:

Public Member Functions
	TcpSendFlow (If *service, NodeID gateway_node_id, HubPortInterface *send_target, HubPortInterface *skip_member, SequenceNumberGenerator *sequence)
	Constructor.
NodeID	get_gateway_node_id ()
Public Member Functions inherited from StateFlow< Buffer< GenMessage >, QList< 4 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Member Functions
Action	entry () override
	Handler where dequeueing of messages to be sent starts.
Action	render_src_message ()
	Callback state after allocation succeeded.
GenMessage *	nmsg ()
If *	iface ()

Private Attributes
HubPortInterface *	sendTarget_
	Where to send the rendered messages to.
HubPortInterface *	skipMember_
	This value will be populated to the skipMember_ field.
NodeID	gatewayId_
	Populated into the source gateway field of the outgoing messages.
SequenceNumberGenerator *	sequenceNumberGenerator_
	Responsible for generating the sequence numbers of the outgoing messages.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.

Detailed Description

This flow renders outgoing OpenLCB messages to their TCP stream representation.

Definition at line 281 of file IfTcpImpl.hxx.

Constructor & Destructor Documentation

TcpSendFlow()

openlcb::TcpSendFlow::TcpSendFlow ( If *  service, NodeID  gateway_node_id, HubPortInterface *  send_target, HubPortInterface *  skip_member, SequenceNumberGenerator *  sequence  )

inline

Constructor.

Parameters

service	the owning TCP interface.
gateway_node_id	our own node ID that will be put into the gateway node ID field of outgoing TCP messages.
send_target	where to send rendered TCP messages (this is usually either the device FD flow or a hub with the binary rendered packets).
skip_member	outgoing packets will get their skipMember_ set to this value. Usually the matching read flow of the interface to avoid undesired echo.
sequence	how to generate sequence numbers for the outgoing packets.

Definition at line 296 of file IfTcpImpl.hxx.

Member Function Documentation

entry()

Action openlcb::TcpSendFlow::entry ( )

inlineoverrideprivatevirtual

Handler where dequeueing of messages to be sent starts.

Returns

next state

Implements TypedStateFlow< MessageType, Base >.

Definition at line 316 of file IfTcpImpl.hxx.

get_gateway_node_id()

NodeID openlcb::TcpSendFlow::get_gateway_node_id ( )

inline

Returns

the node ID the gateway uses to set on outgoing messages.

Definition at line 308 of file IfTcpImpl.hxx.

iface()

If * openlcb::TcpSendFlow::iface ( )

inlineprivate

Returns

owning interface object.

Definition at line 361 of file IfTcpImpl.hxx.

nmsg()

GenMessage * openlcb::TcpSendFlow::nmsg ( )

inlineprivate

Returns

the abstract message we are trying to send.

Definition at line 355 of file IfTcpImpl.hxx.

render_src_message()

Action openlcb::TcpSendFlow::render_src_message ( )

inlineprivate

Callback state after allocation succeeded.

Renders the message to binary payload into the allocated buffer, send the message and exits the processing.

Returns

back to the base state.

Definition at line 338 of file IfTcpImpl.hxx.

Member Data Documentation

gatewayId_

NodeID openlcb::TcpSendFlow::gatewayId_

private

Populated into the source gateway field of the outgoing messages.

Definition at line 371 of file IfTcpImpl.hxx.

sendTarget_

HubPortInterface* openlcb::TcpSendFlow::sendTarget_

private

Where to send the rendered messages to.

Definition at line 367 of file IfTcpImpl.hxx.

sequenceNumberGenerator_

SequenceNumberGenerator* openlcb::TcpSendFlow::sequenceNumberGenerator_

private

Responsible for generating the sequence numbers of the outgoing messages.

Definition at line 374 of file IfTcpImpl.hxx.

skipMember_

HubPortInterface* openlcb::TcpSendFlow::skipMember_

private

This value will be populated to the skipMember_ field.

Definition at line 369 of file IfTcpImpl.hxx.

---

The documentation for this class was generated from the following file:

• IfTcpImpl.hxx
